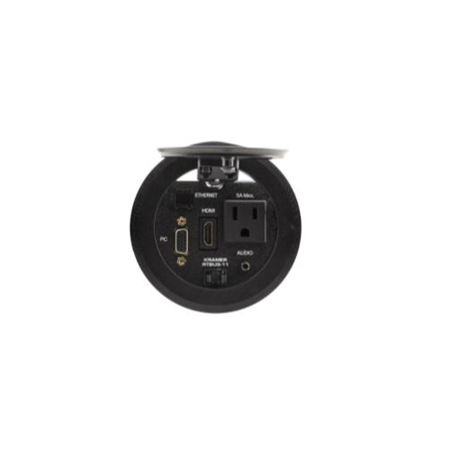

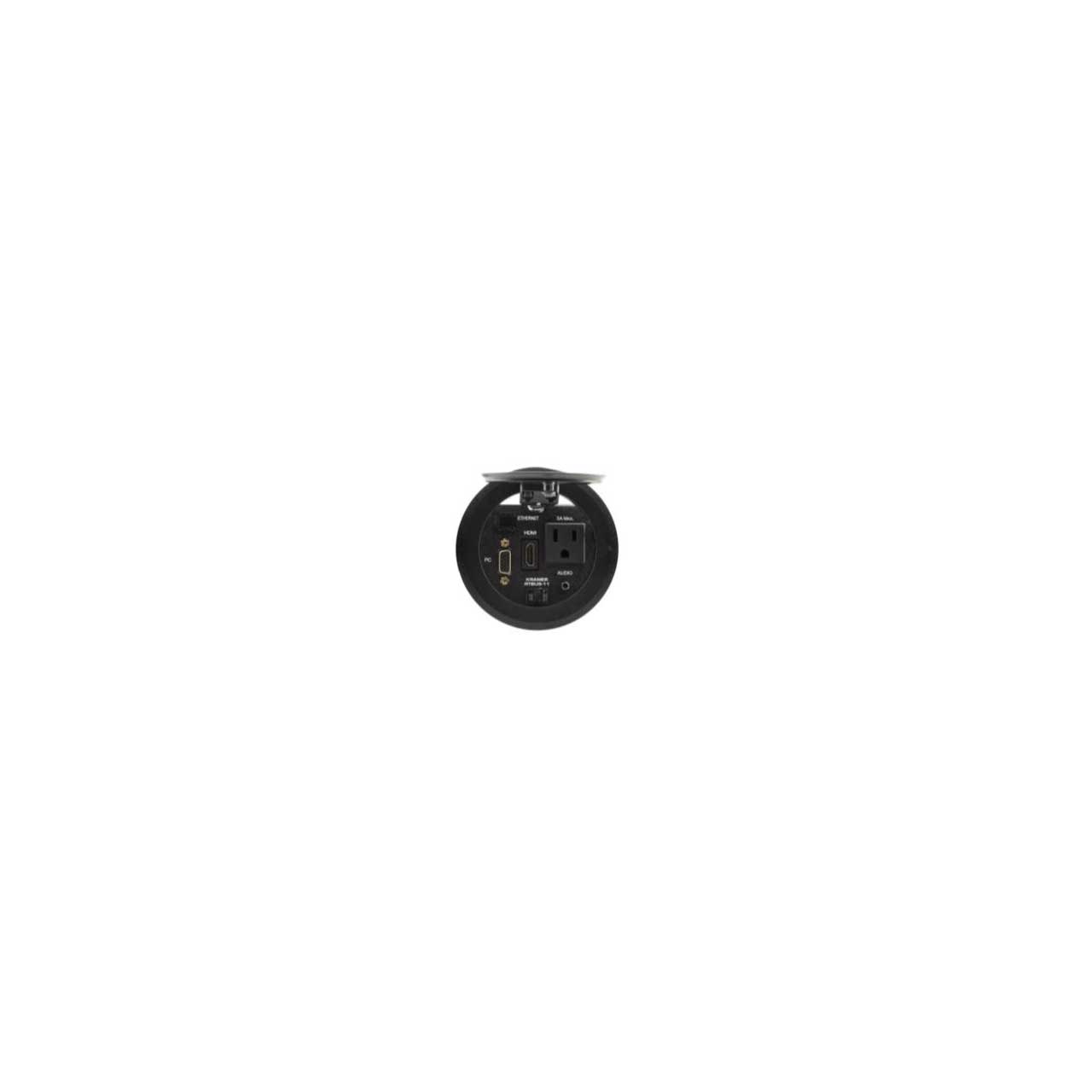

Kramer RTBUS-11-B Round Table Mount Multi-Connection Solution - Pneumatic Lid - Black Sand Blasted Finish

68-00088010 - Overview

4 Inputs - 15-pin HD, HDMI, 3.5mm, & RJ-45.

• Features:

  • 4 Inputs - 15-pin HD, HDMI, 3.5mm, & RJ-45
  • Power Input - 110V AC (USA only). Purchase power cord optionally
  • Cover - Pneumatic pop-up lid
  • Cut-out Size (Mount Dimension) - 92 to 95mm diameter


• Specifications:

  • PORTS
  • 1 HDMI connector, 1 15-pin HD connector, 1 3.5mm mini jack, 1 RJ-45 connector


  • CUTOUT SIZE
  • 92 to 95mm diameter


  • POWER SOURCE (AC POWER LIMITS)
  • 115V AC, 50/60Hz, 5A max. (power cord purchased separately)


  • FUSE RATING
  • T 6.3A 250V


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-49° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • RTBUS-11 Table Mount Bus
  • Mounting Brackets (2)
  • Locking Ties (1 set)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063016999
