TBUS-1-KWC(B) - Overview

Integrated Wireless Charging Spot

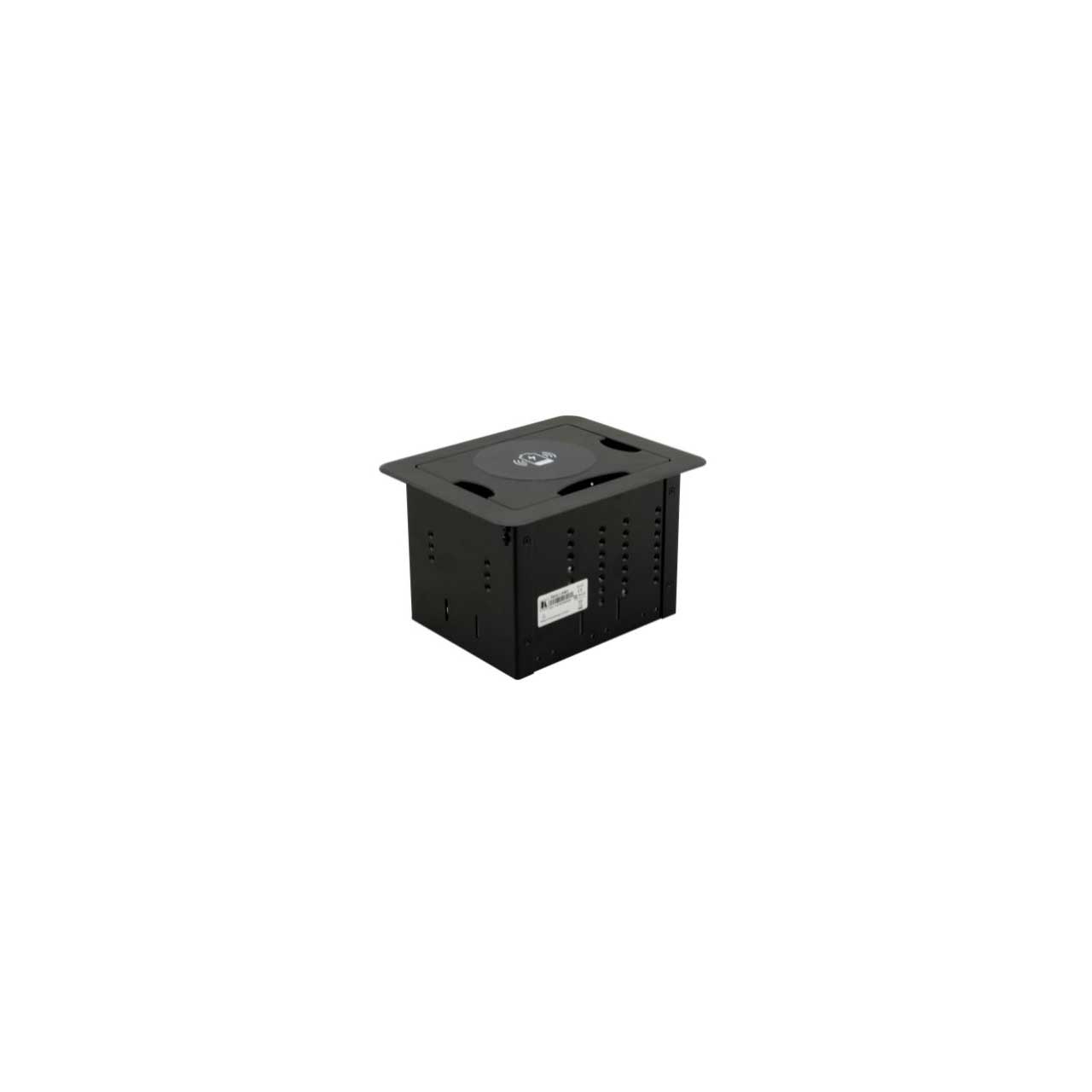

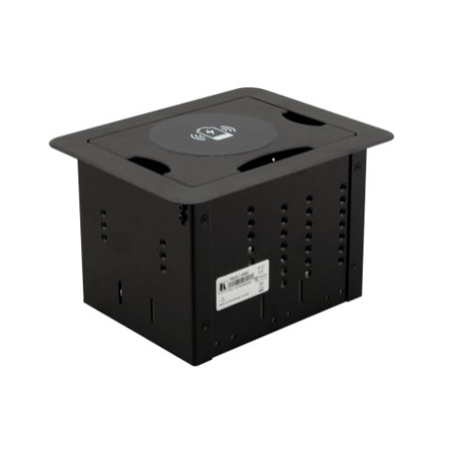

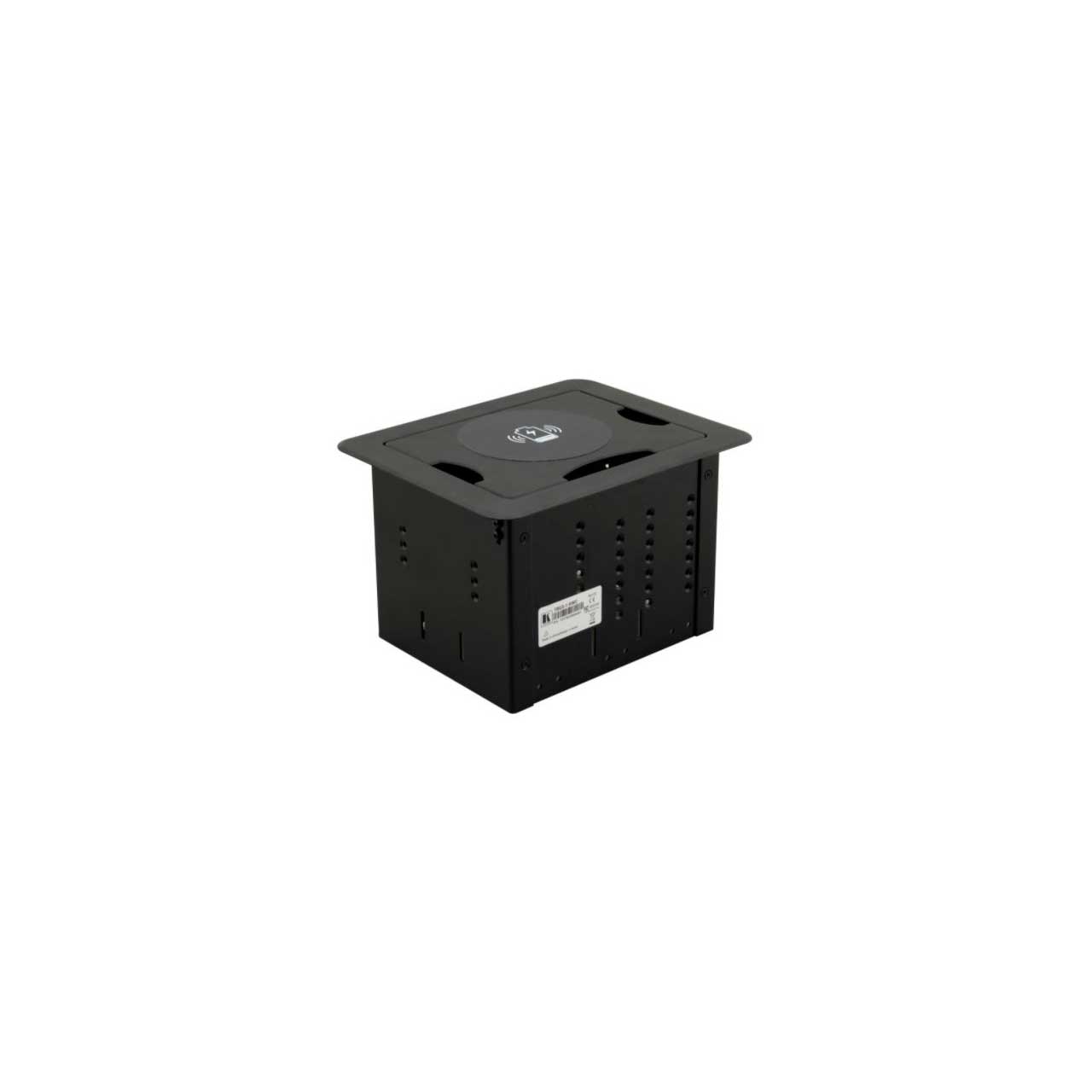

The Kramer TBUS-1-KWC is a modular enclosure using the same inner frames as the TBUS-1Axl and TBUS-1N with an integrated, surface mount, wireless charging spot flush-mounted on the TBUS bezel.

Perfect for:
Boardrooms, conference and training rooms

Please Note: Power cord, inner frames, passive wall plates and interfaces, power socket kits are sold separately.

  • Features:

    • Integrated Wireless Charging Spot - For mobile phones integrated in the TBUS.
    • Flush Surface
    • Power Supply - Requires a supply voltage of 12V DC at 2.0A.
    • Current Input - 1A, IEEE 802.15.4 based RF channels.
    • Power Output - 6 to 15W.
    • Regulatory Compliance - PMA type 3 compliant
    • EMC Emission - EN5502/CISPR22
    • Safety - EN60950-1, EN60950-1, UL60950-1, IEC 60950-1, RoHS, REACH
    • Qi Standard Compliant
    • Cutout Dimensions - 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).


  • Specifications:

    • POWER SOURCE
    • International power sockets available from 110V to 240V AC

    • FUSE RATING
    • T 6.3A 250V

    • POWER CONSUMPTION
    • Charging spot: 12V DC, 1.25A

    • CHARGING EFFICIENCY
    • 73%

    • CHARGING POWER OUTPUT
    • 900mA max

    • SAFETY REGULATORY COMPLIANCE
    • CE compliant

    • STANDARD
    • Qi

    • OPERATING TEMPERATURE RANGE
    • 0° to +40°C (32° to 104°F)

    • OPERATING HUMIDITY RANGE
    • 10 to 90% RHL, non-condensing

    • STORAGE TEMPERATURE RANGE
    • -40° to +70°C (-40° to 158°F)

    • STORAGE HUMIDITY RANGE
    • 5 to 95% RHL, non-condensing


  • Item Includes:

    • TBUS-1-KWC Charging Spot
    • 12V DC Power Supply (1)
    • Self-locking ties (6)
    • Cutout template (1)
    • Power supply bracket (1)


  • Warranty:

    • Standard one (1) year warranty


  • GTIN:

    7291063074975
