Kramer TBUS-3XLB Table Mount Modular Multi-Connection Solution - Black Sand Blasted Top

Name: Kramer TBUS-3XLB Table Mount Modular Multi-Connection Solution - Black Sand Blasted Top
Brand: Kramer
SKU: KR-TBUS-3XLB
Price: 80.00 USD
Availability: PreSale

ITEM #: KR-TBUS-3XLB MFG #: TBUS-3XL(B)

Kramer

Color:

Color

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$100.00

Our Price:

$80.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

TBUS-3XL(B) - Overview

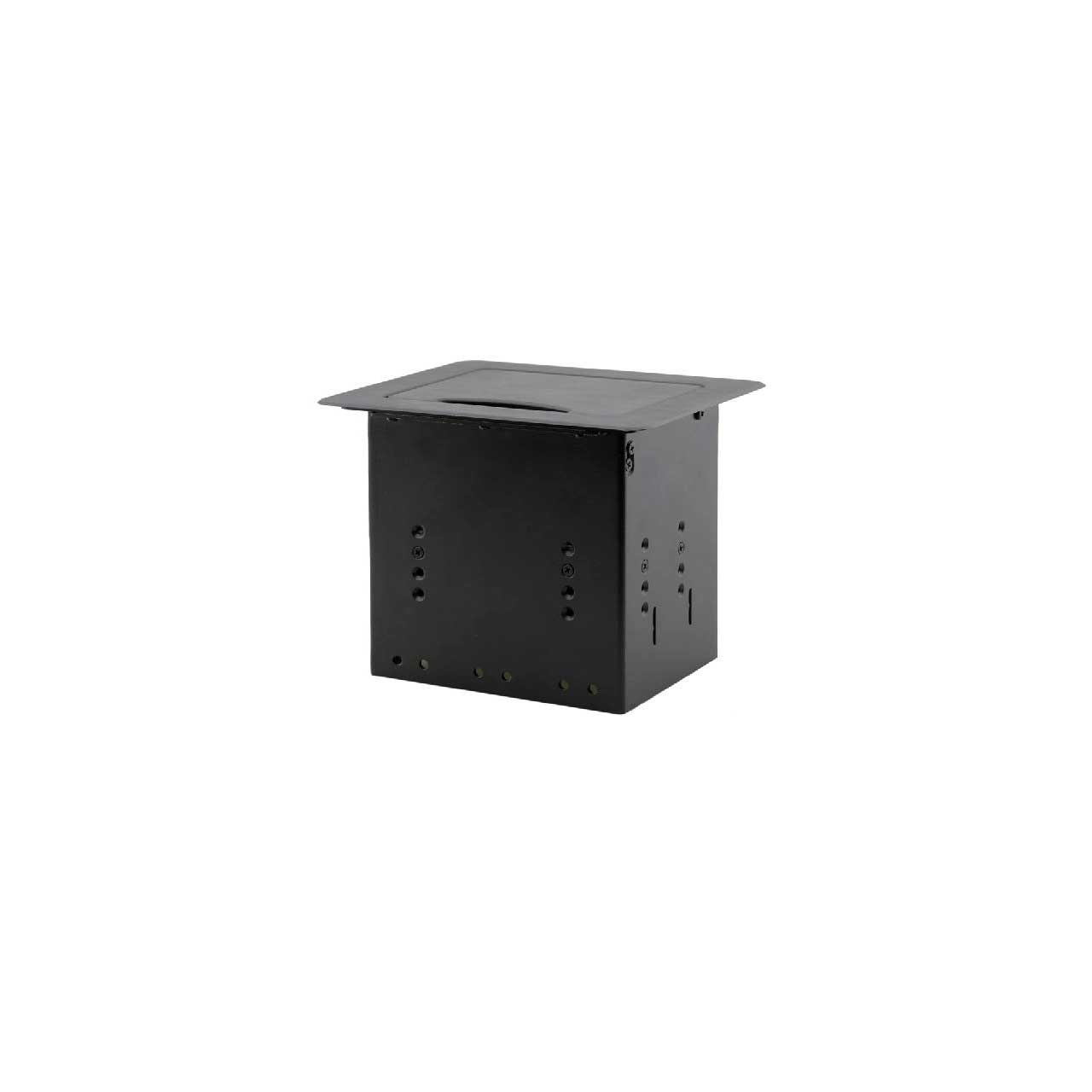

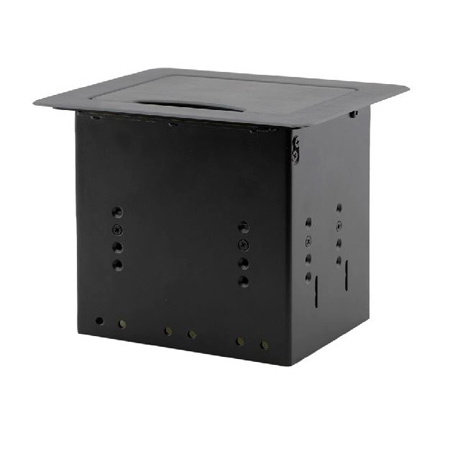

The Kramer TBUS-3xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

Perfect for:
Boardrooms.
Conference rooms.
Classrooms.
Training facilities.
Lab tables.
Lecterns.

Features:
- Inner Frame - 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
- Power Cords - 8 different "C-AC" single power cords for each power socket.
- Optional Accessories - TBUS Brackets, K-ABLE Box Cable Reels, Step-In Modules and Controllers are available.
- Cover - Manually opens & closes.
- Connector Depth - Adjustable.
- Installation Requirement - Table cutout of 158mm x 123mm (6.23" x 4.85").
- Dimensions - Top plate: 17.6cm x 14.0cm (6.9" x 5.5") W, D; Enclosure: 13.6cm x 10.2cm x 13.0cm (5.4" x 4.0" x 5.1") W, D, H.
- Weight - 1.02kg (2.25lb) approx.; table clamps: 0.257kg (0.566lbs); template: 0.125kg (0.275lbs).
- Size - T-BUS
Specifications:
- DIMENSIONS: Top plate: 176mm x 140.4mm (6.9" x 5.5") W, D; enclosure: 136mm x 102mm x 130mm (5.4" x 4.0" x 5.1") W, D, H.
- WEIGHT: TBUS-3 enclosure: 1.04kg (2.29lbs) approx; table clamps: 0.26kg (0.57lbs); template: 0.12kg (0.27lbs).
- ACCESSORIES: Six self-locking ties, cut out template, template screws.
- OPTIONS: Inner frames, passive wall plates and interfaces, T-2INSERT kit, power socket kits, power cord, Kramer K-Able Box (furniture-mounted cable extension
Item Includes:
- TBUS-3xl Box in Black
- Six self-locking ties
- Cut out template
- Template screws
Warranty:
- Limited 7 Year Warranty
GTIN:
7291063018917

TBUS-3XL(B) - Recommended Accessories

Kramer T3F-1C Inner Frame for the TBUS-3xl Table Connection Box
KR-T3F-1C
Our Price: $16.00
Kramer T-2INSERT TBUS Bracket to Install 2 Inserts in a Power Socket Opening
KR-T-2INSERT
Our Price: $37.60
Kramer C-AC/US TBUS US AC Power Cord 110V - 6 Foot
KR-C-ACUS
Our Price: $4.00

TBUS-3XL(B) - Reviews

TBUS-3XL(B) - Attachments

See Kramer TBUS-3XL Specifications (PDF)
