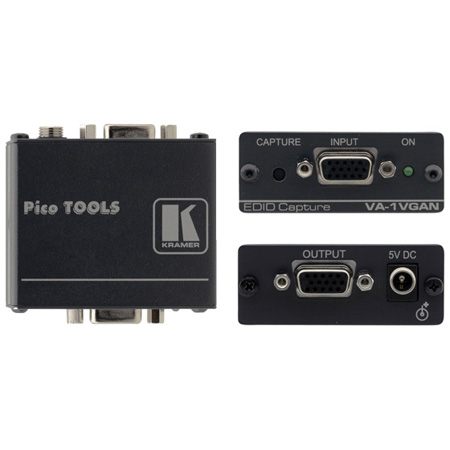

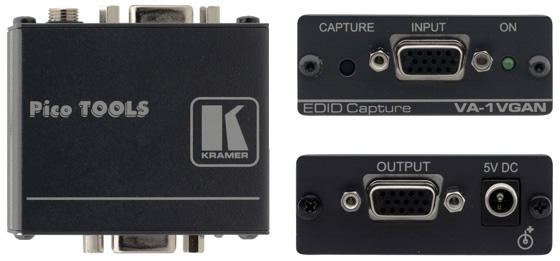

Kramer VA-1VGAN VGA/UXGA Computer Graphics Video EDID Emulator

ITEM #: KR-VA1VGAN MFG #: VA-1VGAN

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VA1VGAN

VA-1VGAN - Overview

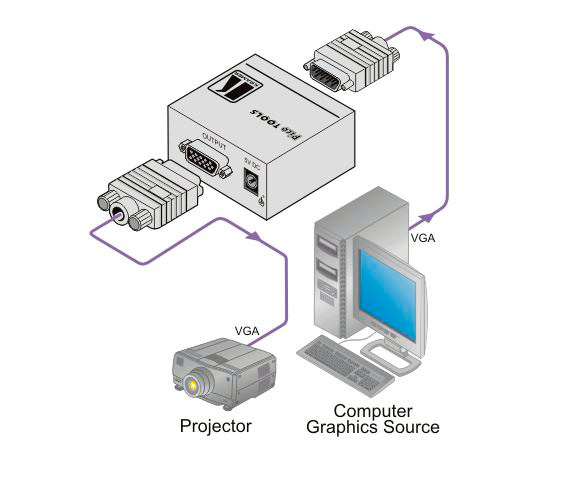

The Kramer VA-1VGAN is an 1.8GHz EDID emulator for computer graphics video signals. Once the VA-1VGAN is connected to a display device and the CAPTURE EDID button is pressed, the VA-1VGAN reads and stores the EDID (Extended Display Identification Data) from the display device. Be aware that some computers need to have the EDID information available when they boot up, otherwise the VGA output may be disabled. The display can be disconnected and later reconnected without rebooting the operating system.

Perfect for:
Distributing presentation graphics.
Using a display at a distance from the computer.
Using in graphics production studios.

  • Features:

    • 15-pin HD connectors for input and output signals
    • An EDID capture pushbutton
    • An ON LED
    • 5V DC power

  • Specifications:

    • INPUT
    • 1 XGA input on a 15-pin HD (F) connector

    • OUTPUT
    • 1 XGA output on a 15-pin HD (F) connector

    • MAX. OUTPUT LEVEL
    • >2Vpp

    • BANDWIDTH (-3DB)
    • 1.8GHz

    • DIFF. GAIN
    • 0.02%

    • DIFF. PHASE
    • 0.02Deg

    • K-FACTOR
    • <0.05%

    • S/N RATIO
    • 74dB @5MHz (unweighted: 66dB)

    • CONTROLS
    • Button for EDID capture

    • COUPLING
    • DC, direct wiring between input and output

    • POWER CONSUMPTION
    • 5V DC, 20mA

  • Item Includes:

    • VA-1VGAN Emulator
    • 5V DC Power Supply
    • Rubber Feet (4)
    • Quick-Start Guide

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063030384
