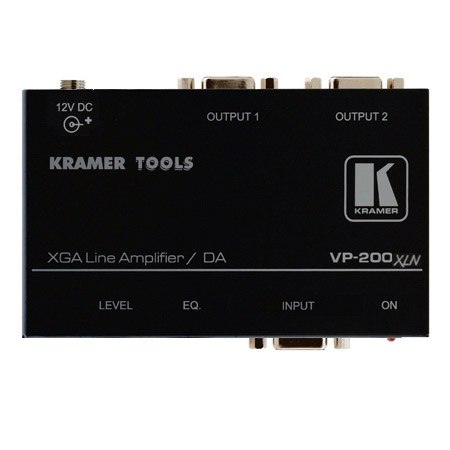

Kramer VP-200XLN - 1:2 UXGA Computer Graphics Video Line and Distribution Amplifier

ITEM #: VP-200XLN MFG #: VP-200XLN

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the VP-200XLN

VP-200XLN - Overview

HDTV Compatible

The Kramer VP-200xln is a high performance line and distribution amplifier for computer graphics video signals with resolutions ranging from VGAthrough UXGA and higher. It provides controls to compensate for signal losses inherent in long cable runs.

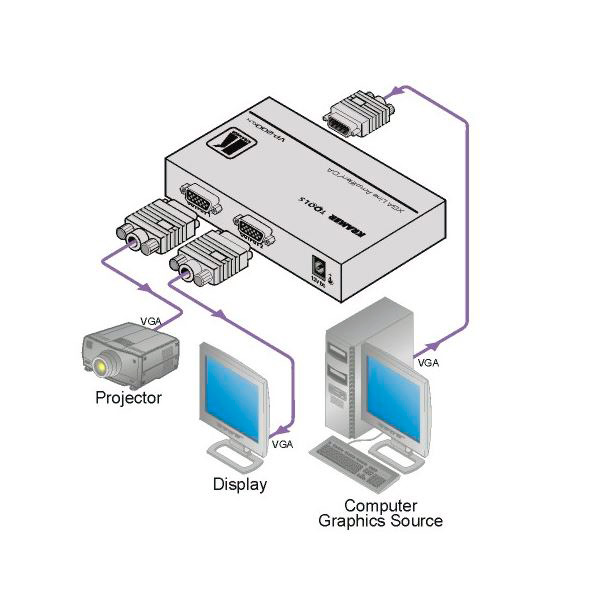

Perfect for:
Dual monitor systems, stores, and points of sale.
Presentation systems.

  • Features:

    • High Bandwidth - 400MHz (-3dB).
    • HDTV Compatible.
    • Level (Gain) and EQ (Peaking) Controls.
    • ID Bit Control.
    • AC/DC Coupling Selection - Individually for R, G, & B signals.


  • Specifications:

    • INPUT
    • 1 UXGA on a 15-pin HD (F) connector

    • OUTPUTS
    • 2 UXGA on 15-pin HD (F) connectors

    • MAX. OUTPUT LEVEL
    • 2Vpp

    • BANDWIDTH (-3DB)
    • 400MHz

    • DIFF. GAIN
    • 0.05%

    • DIFF. PHASE
    • 0.03Deg

    • K-FACTOR
    • <0.05%

    • S/N RATIO
    • 71dB

    • CONTROLS
    • Level: - 1.5dB to +6.1dB, EQ.: 0 to +7.3dB @50MHz

    • COUPLING
    • AC/DC

    • POWER CONSUMPTION
    • 12V DC, 95mA


  • Item Includes:

    • VP-200xln DA
    • Power Supply
    • Mounting Brackets


  • Warranty:

    • Limited 7 Year Warranty


  • GTIN:

    7291063028404
