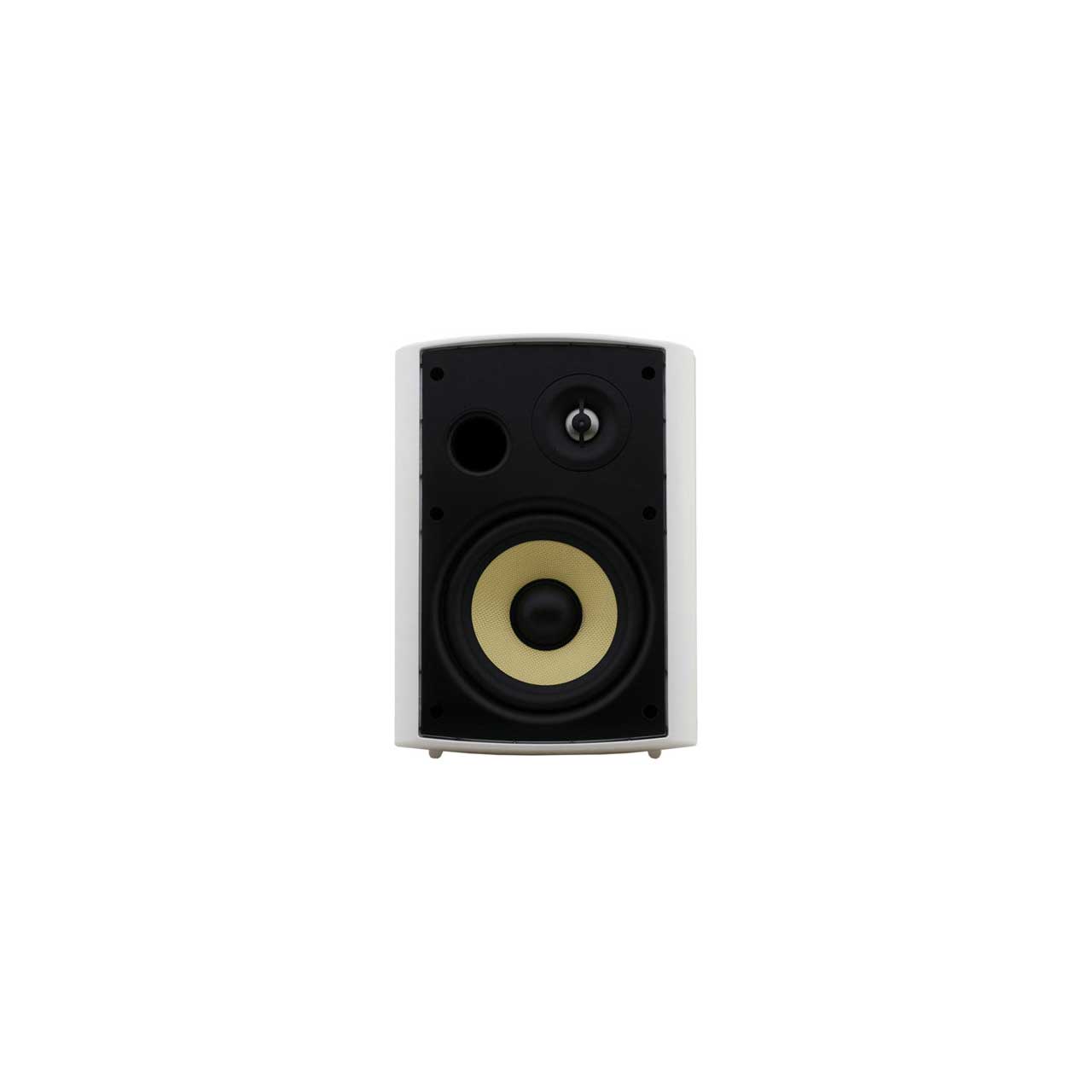

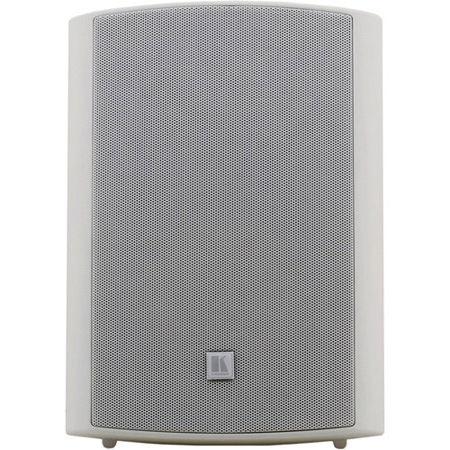

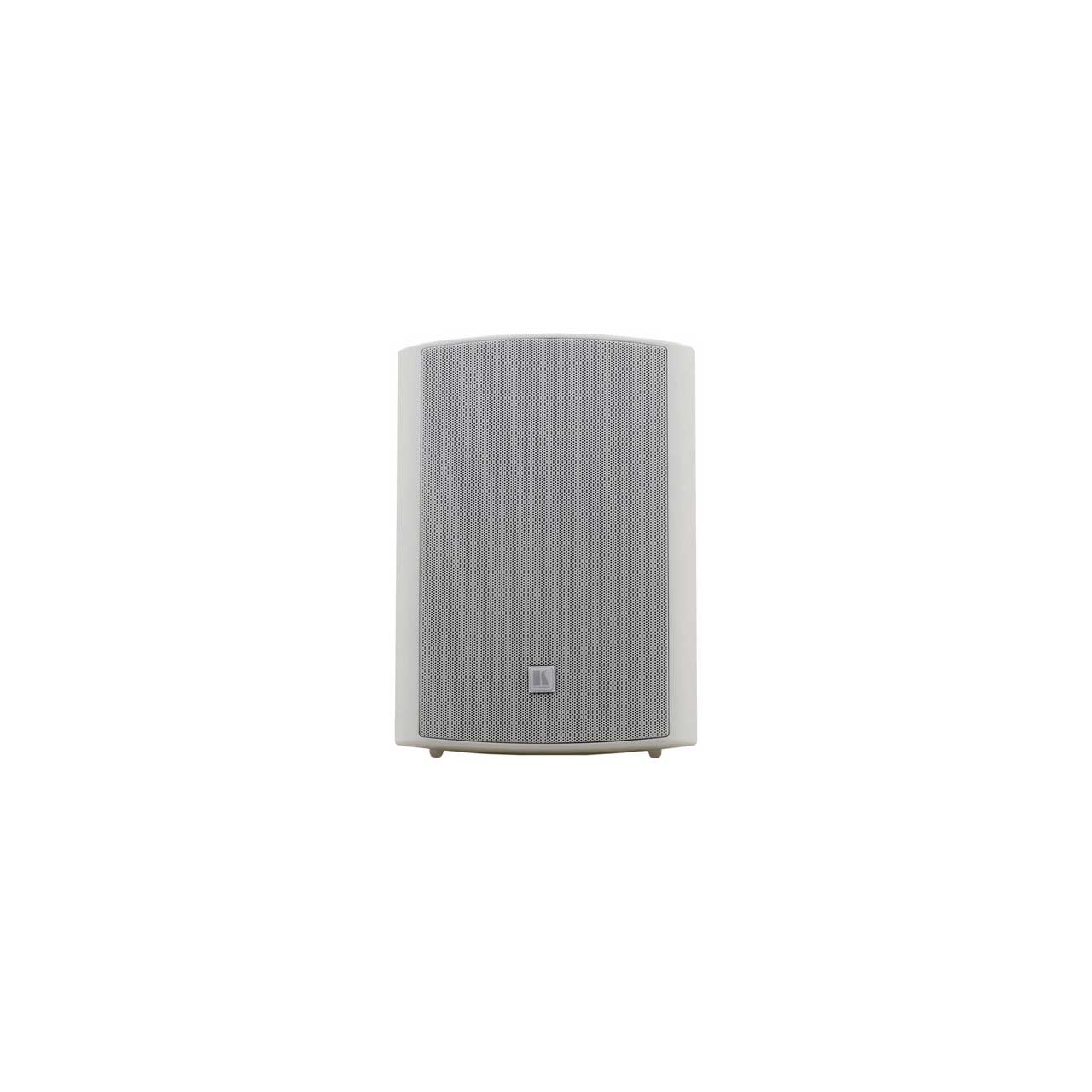

Kramer YARDEN 6-O (W) 6.5 Inch 2-Way On-Wall Speakers with Kevlar Woofers & Titanium Tweeters - Pair - White

YARDEN 6-O (W) - Overview

High Performance On-wall Speaker

• Features:

  • Type - 2-way on-wall speaker.
  • Woofer - 6.5" Kevlar(R) cone.
  • Tweeter - 1" titanium dome.
  • Impedance - 8Ω.
  • Power Handling - 80W RMS, 220W continuous program.
  • Transformer Taps - 70V: 60W /30W/15W/7.5W/Off (Lo-Z); 100V: 60W/30W /15W/Off (Lo-Z).
  • Package - 2 speakers (1 pair).


• Specifications:

  • DESCRIPTION
  • 2-way on-wall speakers


  • FREQUENCY RESPONSE
  • 65Hz to 20kHz @-10dB, 83Hz to 20kHz @±3dB


  • WOOFER
  • 6.5" (166mm) Kevlar(R) with rubber surround


  • TWEETER
  • 1" (25.4mm) titanium


  • IMPEDANCE
  • 8Ω (transformer tap in off position)


  • TRANSFORMER TAPS
  • 70V - 60W/30W/15W/7.5W/Off (Lo-Z), 100V - 60W/30W/15W/Off (Lo-Z)


  • SENSITIVITY
  • 86dB SPL, 1W@1m


  • MAX SPL
  • Continuous: 104dB, peak: 107dB


  • POWER HANDLING
  • 80W RMS, 220W continuous program


  • CROSSOVER FREQUENCY
  • 1.9kHz


  • DIRECTIVITY FACTOR (Q)
  • 7.1 averaged 1kHz to 10kHz


  • DIRECTIVITY INDEX (DI)
  • 8.5dB averaged 1kHz to 10kHz


  • INPUT CONNECTORS
  • Terminal blocks


  • MATERIALS
  • Frame, aluminum grill, steel brackets and ABS cabinet


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • WEIGHT PER SINGLE SPEAKER
  • 3.93kg (8.66lb) approx


  • WEIGHT WITH MOUNTING KIT
  • 4.18kg (9.22lb) approx


  • SHIPPING WEIGHT (FOR PAIR)
  • 9kg (19.84lb) approx


  • DIMENSIONS WITH MOUNTING BRACKETS
  • 21.5cm x 22.5cm x 30.1cm (8.5" x 8.9" x 11.9"), W, D, H


  • INSTALLATION CLEARANCE
  • Front panel to wall (with mounting bracket): 22.7cm (8.9")
  • back panel to wall (with mounting bracket): 3.8cm (1.5")


• Item Includes:

  • Package - 2 speakers (1 pair).
  • 2 mounting brackets (including 4 knobs and 4 mounting screws)


• Warranty:

  • Standard 1 Year Warranty


• GTIN:

  7291063065270
