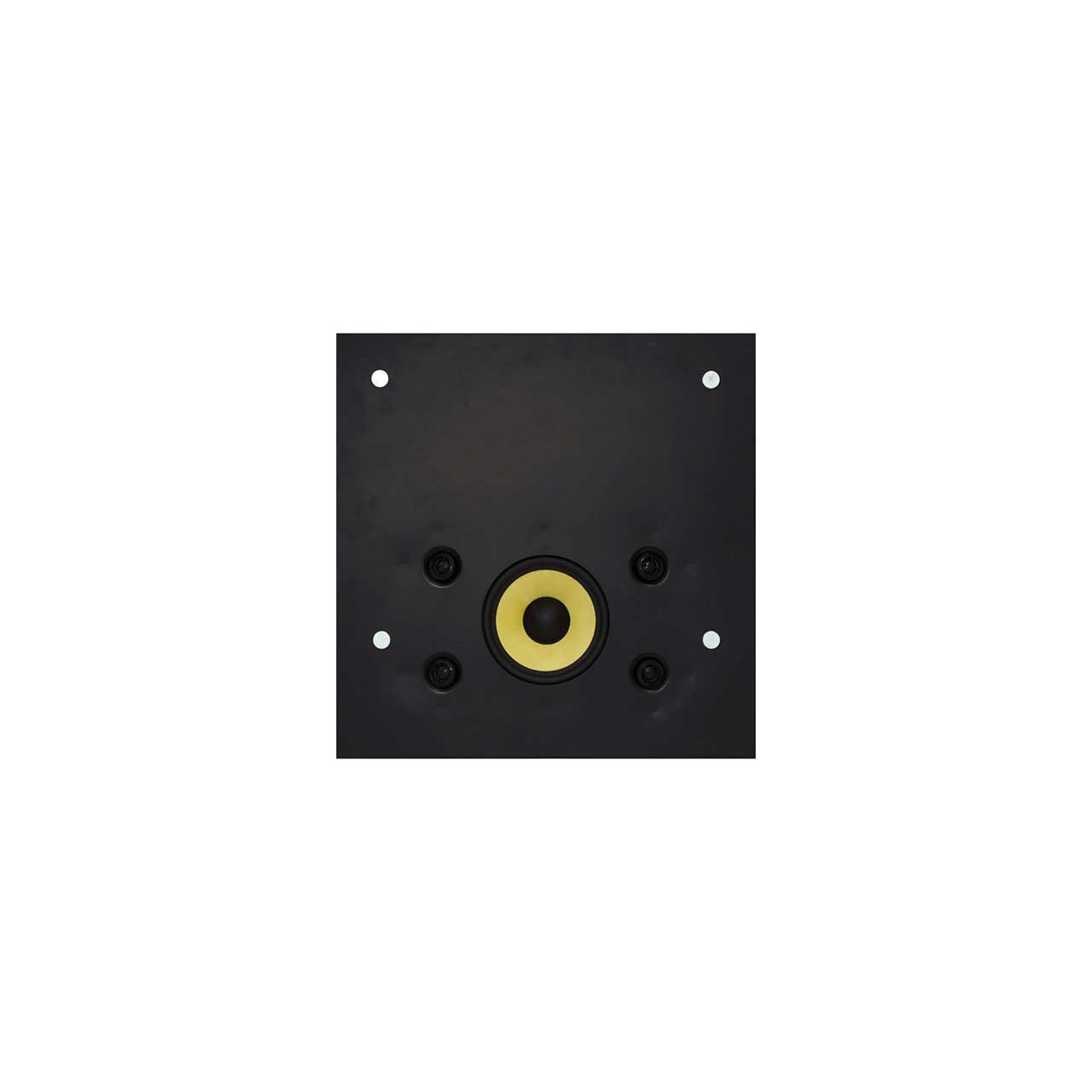

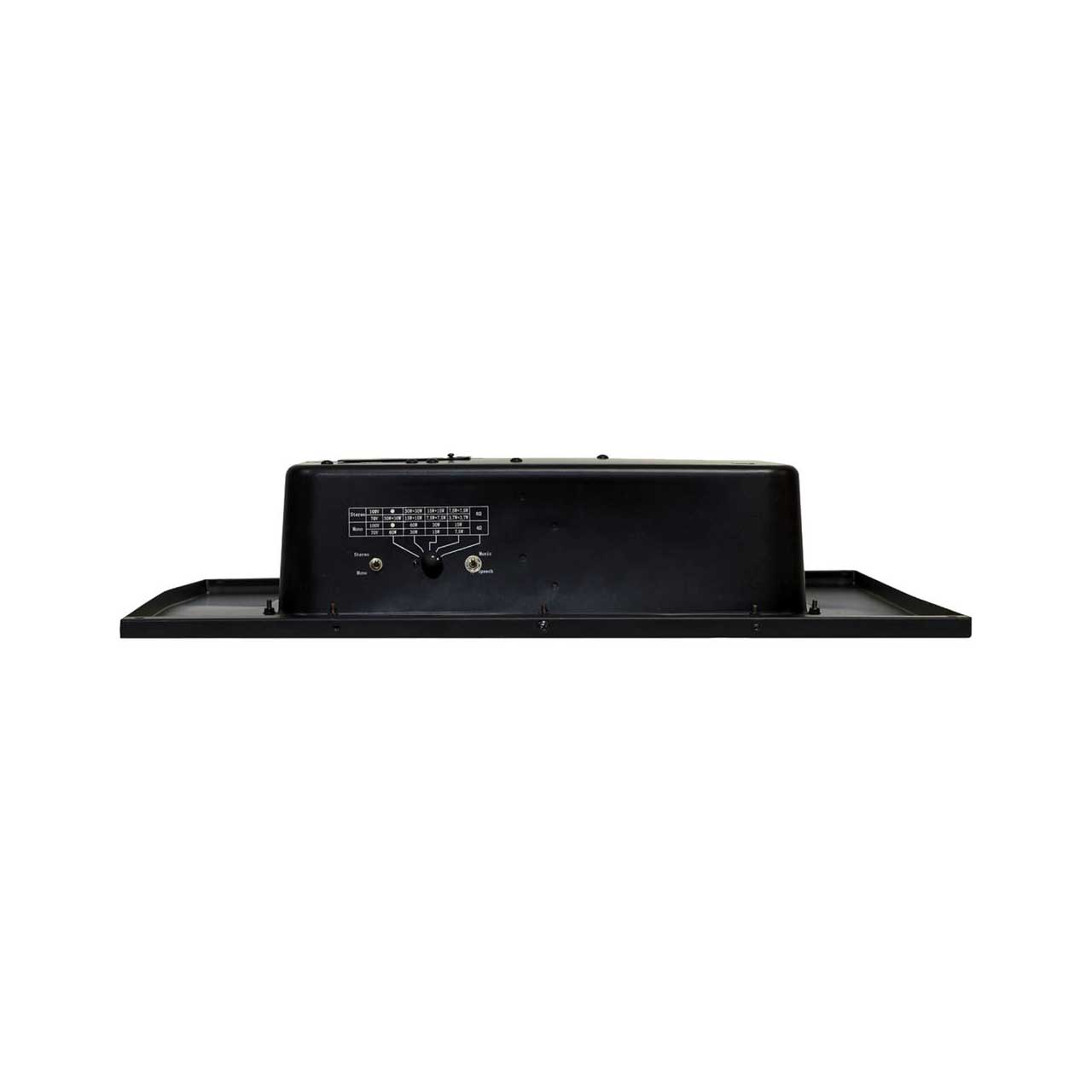

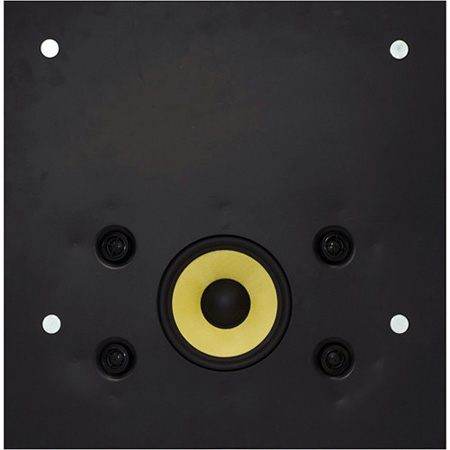

Kramer YARDEN 8-T (W) 8-Inch High-Performance Ceiling Tile Stereo Speaker - Each - White

YARDEN 8-T (W) - Overview

• Features:

  • Type - 2-way ceiling tile speaker.
  • Woofer - 8" Kevlar(R) cone.
  • Tweeters - Four pivoting 0.75" titanium domes.
  • Impedance - Stereo 8Ω, mono 4Ω.
  • Stereo/Mono Selector Switch.
  • Speech/Music Selector Switch.
  • Power Handling - 2 x 40W RMS, 2 x 110W continuous program.
  • Transformer Taps - Stereo: 70V: 2 x 30W/15W/7.5W/3.7W, 100V: 2 x 30W/15W/7.5W; Mono: 70V: 60W/30W/15W/7.5W, 100V: 60W/30W/15W.
  • UL Certification - UL 1480 & 2043 listed and plenum compliant.
  • Package - 1 speaker.


• Specifications:

  • DESCRIPTION
  • Ceiling tile speaker


  • FREQUENCY RESPONSE
  • 65Hz to 20kHz @-10dB, 80Hz to 20kHz @±3dB


  • WOOFER
  • 8" (200mm) Kevlar(R) with rubber surround


  • TWEETER
  • Four 0.75" (20mm) pivoting titanium domes


  • IMPEDANCE
  • 8Ω stereo, 4Ω mono (transformer tap in off position)


  • TRANSFORMER TAPS
  • Stereo: 70V - 3.75W/7.5W/15W/30W
  • 100V - 7.5W/15W/30W, Mono: 70V - 7.5W/15W/30W/60W
  • 100V - 15W/30W/60W


  • SENSITIVITY
  • 87dB 1W @1m


  • MAX SPL
  • Continuous: 102dB, peak: 105dB


  • POWER HANDLING
  • 40W RMS, 110W continuous program


  • CROSSOVER FREQUENCY
  • 2.175kHz


  • DIRECTIVITY FACTOR (Q)
  • 9.43 averaged 1kHz to 10kHz


  • DIRECTIVITY INDEX (DI)
  • 9.5dB averaged 1kHz to 10kHz


  • INPUT CONNECTORS
  • Terminal block connectors


  • CONTROLS
  • Mono/Stereo select switch, Music/Speech select switch


  • MATERIALS
  • Frame, steel grills (595x595mm, 605x605mm), cable holder


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • 1 YARDEN8-T speaker


• Warranty:

  • Standard One Year Warranty


• GTIN:

  7291063048082
