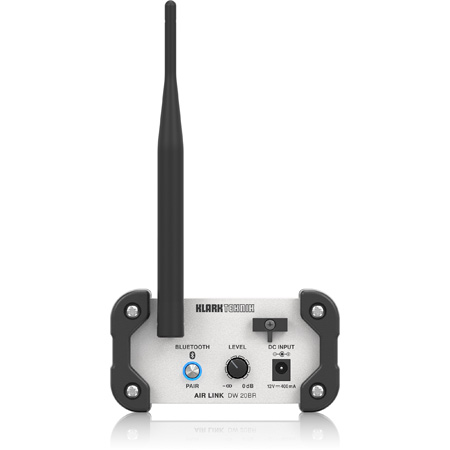

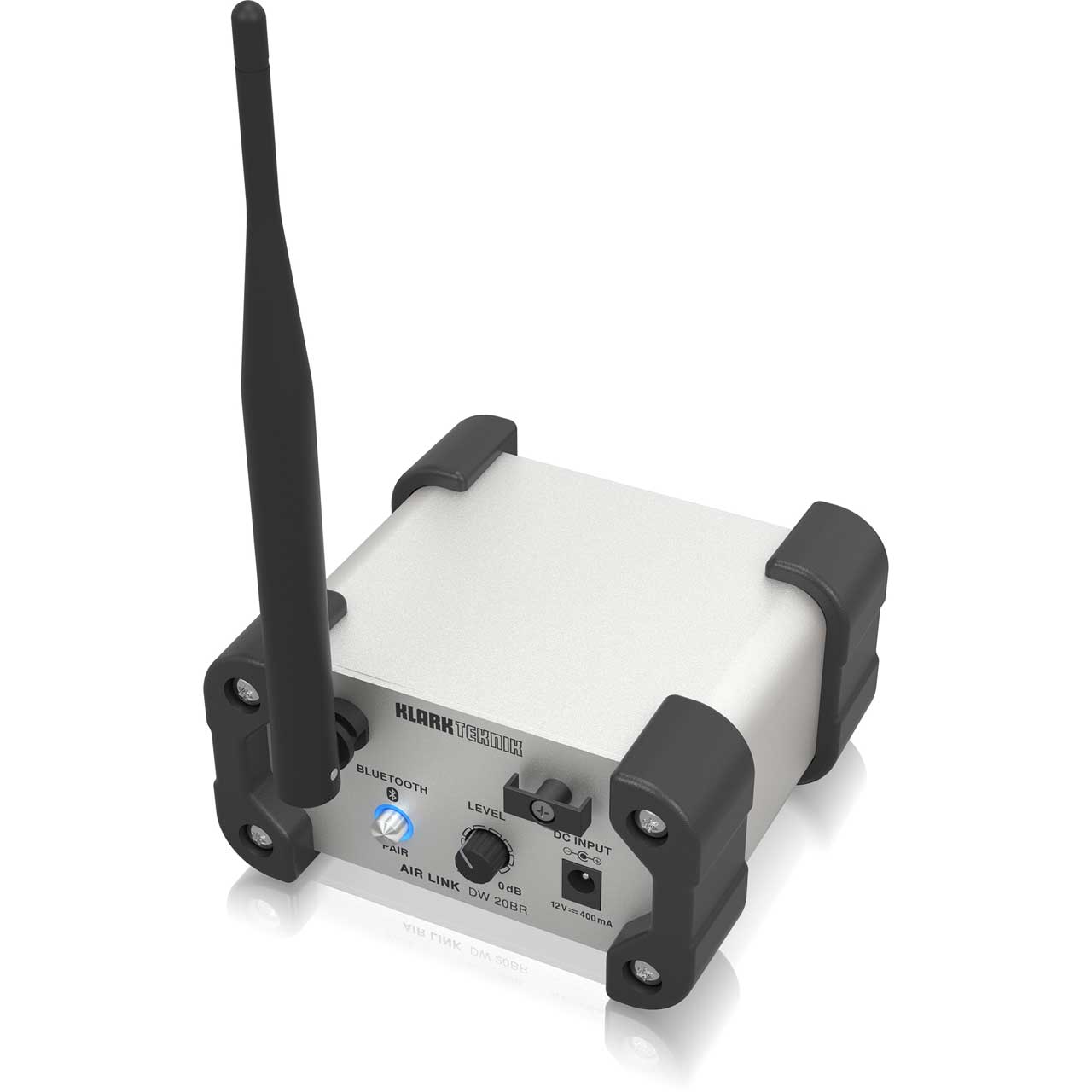

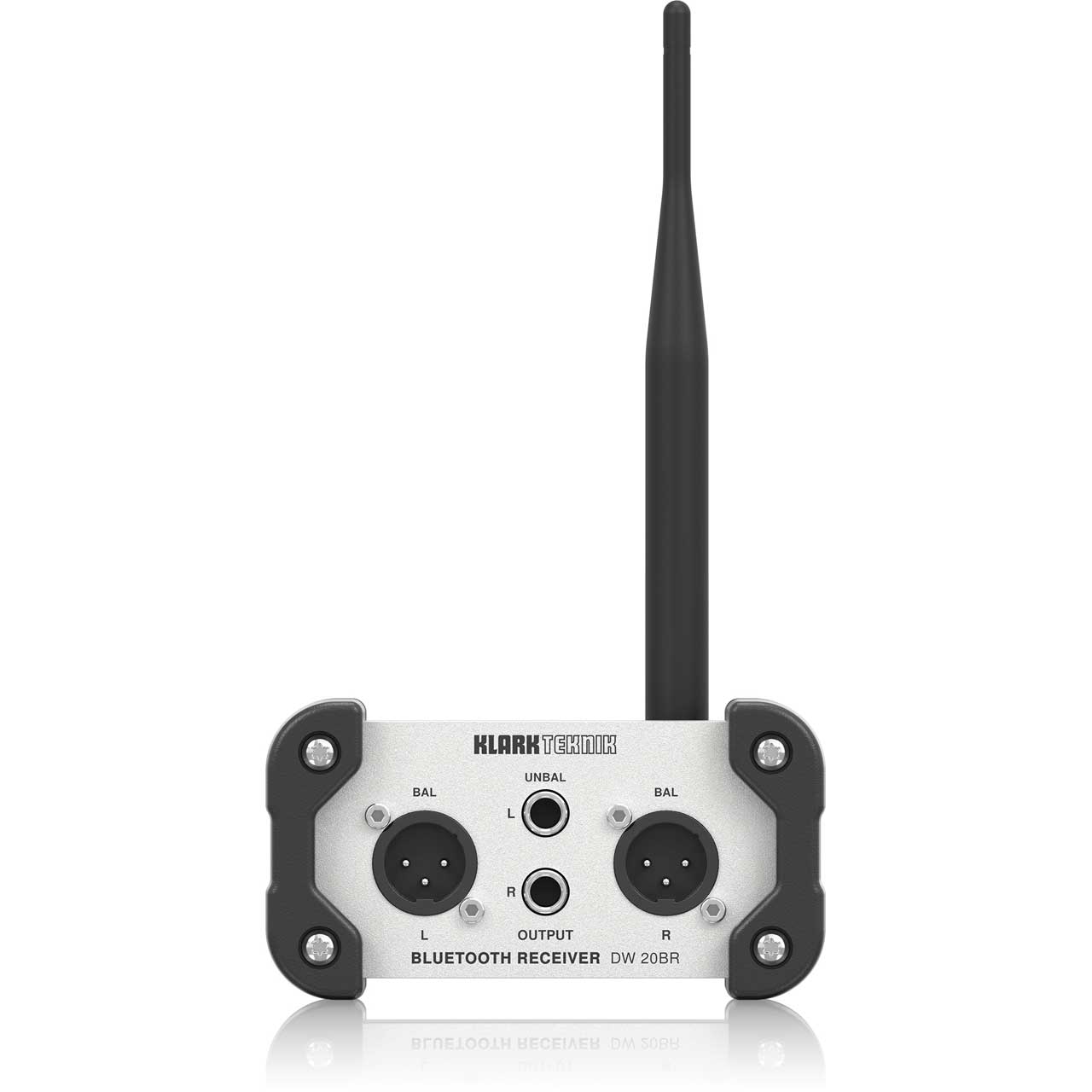

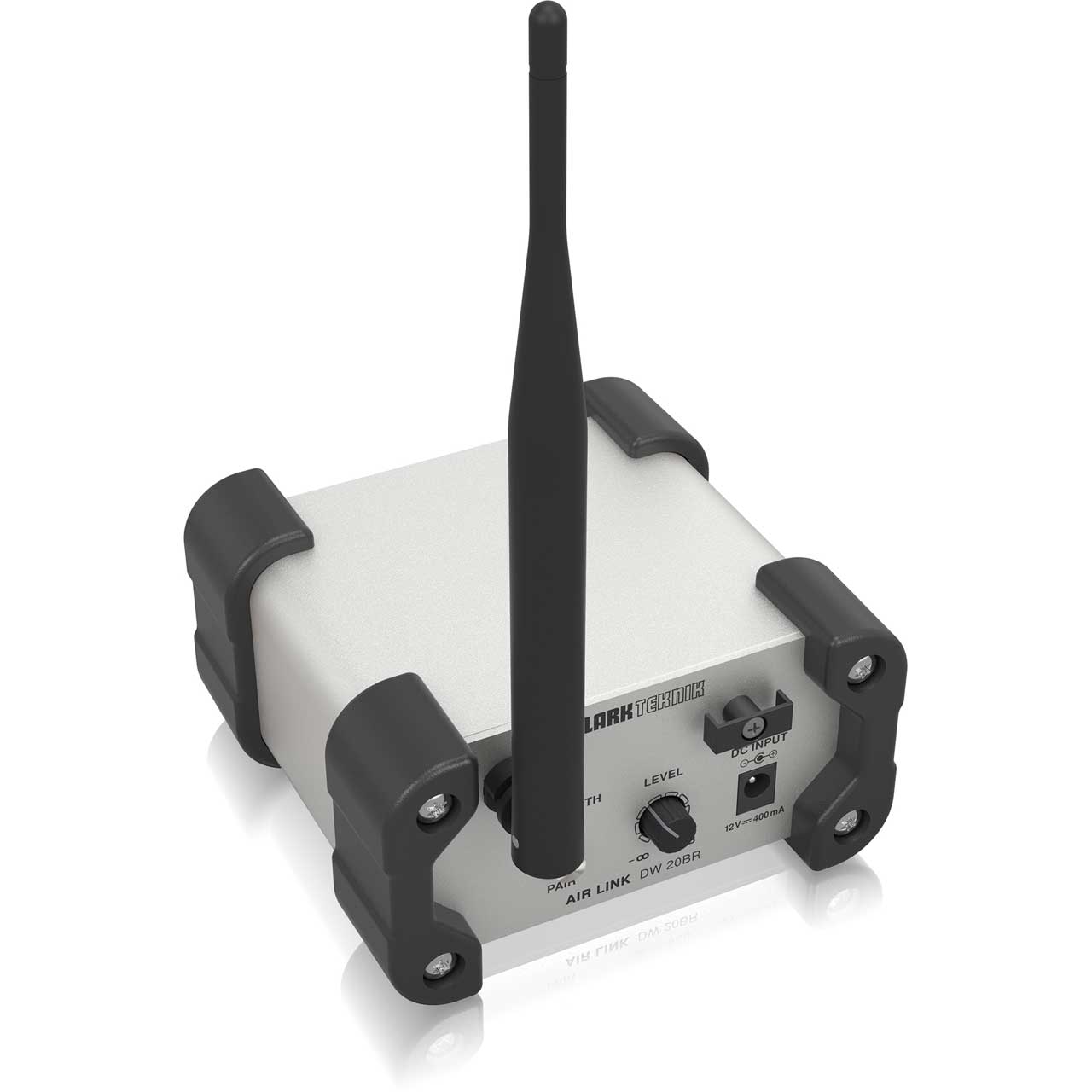

Klark Teknik DW20BR AIR LINK DW 20BR Bluetooth Wireless Stereo Receiver

DW20BR - Overview

• Features:

  • Stereo receiver to wirelessly stream Bluetooth to any audio system
  • Perfect for hospitality and event spaces, retail and home audio, etc.
  • High headroom design offers superior sound quality
  • Maximum wireless range 100 feet (30 m)
  • External, articulating antenna ensures optimum transmission and reception
  • Aluminium extrusion casing with protective rubber corners
  • Floor and wall mount brackets for fixed installation (included)
  • High quality Neutrik XLR and 1/4" TRS connectors
  • Compact and rugged design


• Specifications:

  • Outputs
  • Connectors: Balanced XLR, unbalanced 1/4"
  • Impedance: 240 Ω
  • Max. output level: 4 dBu @ 1 kHz

    Bluetooth
  • Frequency range: 2402 - 2480 MHz
  • Channel number: 79
  • Bluetooth version: 4.2
  • Receiver range: Up to 30 m (100 ft)
  • Output power: Class 2, <10 dBm
  • Supported codec: SBC, aptX
  • Supported profiles: AVRCP 1.4, A2DP 1.2

    System
  • Frequency response: 20 Hz to 20 kHz (+0/-2 dB)
  • THD + N (distortion): 0.1% @ 1 kHz
  • Signal-to-noise ratio: >90 dB
  • Power adaptor: 12 V DC, 400 mA, center positive

    Physical
  • Dimensions (HxWxD)
    Without bumpers or antenna: 54 x 108 x 103 mm (2.1 x 4.3 x 4.1")
    With bumpers, without antenna: 63 x 118 x 112 mm (2.5 x 4.6 x 4.4")
    With bumpers, upright antenna: 212 x 118 x 126 mm (8.3 x 4.6 x 5.0")
    Weight incl. bumpers and antenna: 0.6 kg (1.3 lbs)


• GTIN:

  0653341317537
