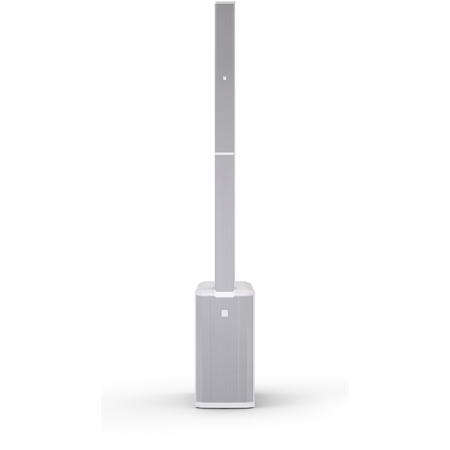

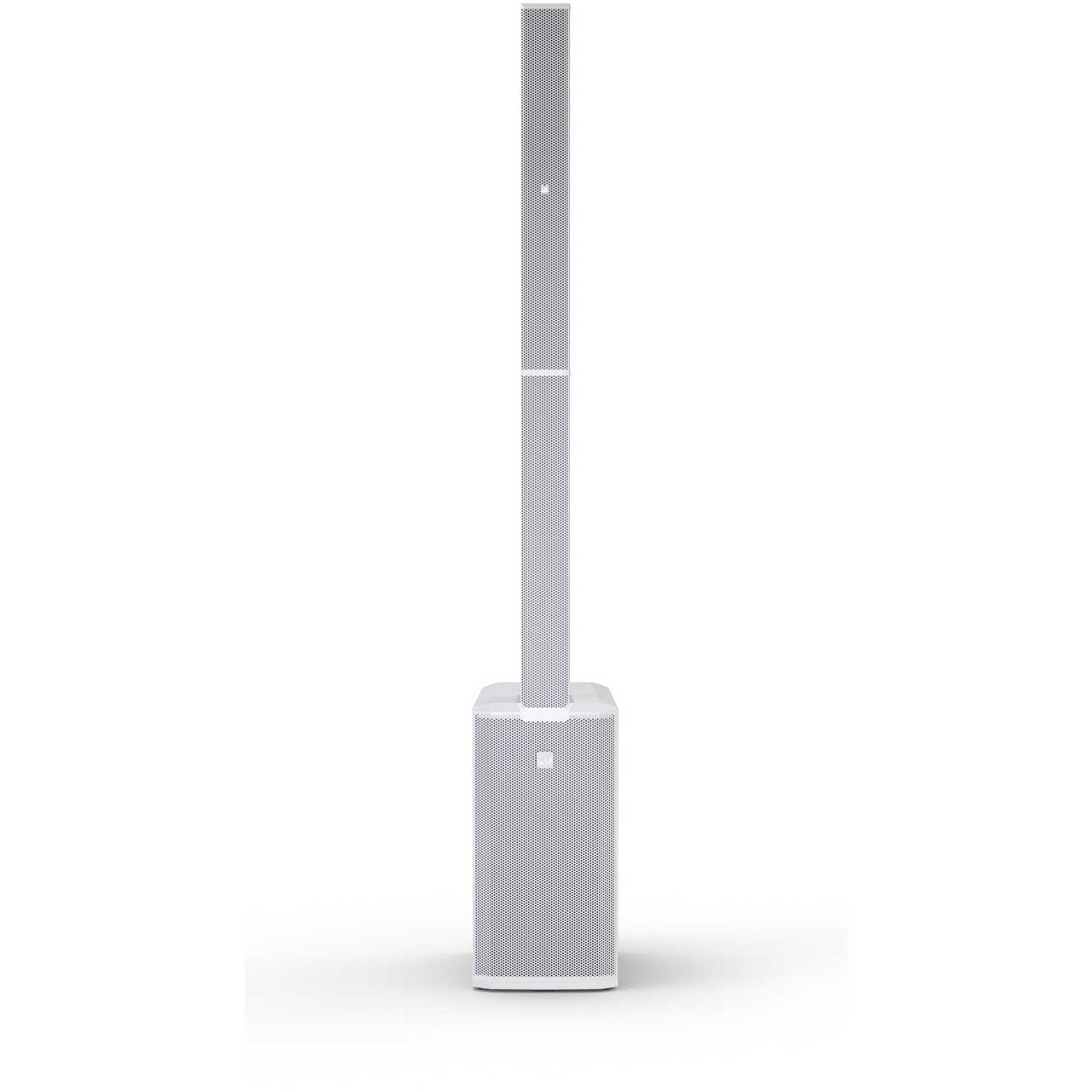

LD Systems MAUI 11 G3 W - Portable Cardioid Powered Column PA System - White

ITEM #: LDS-MAUI11G3W MFG #: MAUI11G3W

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$1,199.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


MAUI11G3W - Overview

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs, singer-songwriters and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 11 G3 delivers a huge, powerful and precise sound featuring 700 W RMS power (1,400 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

With its sleek and elegant design, the MAUI 11 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5" midrange drivers and 2 x 1" tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

  • Features:

    • Powerful bass reproduction with 2 x 8" subwoofer
    • Balanced mids thanks to 6 x 3.5" full-range speakers
    • Precise and silky highs with 2 x 1" high-frequency drivers
    • Cardioid column for controlled low-mid and midrange sound dispersion
    • BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
    • Optimised bass-reflex design improves bass response and reduces air flow noise
    • Can be combined with an additional subwoofer for increased low end or for cardioid subwoofer setups
    • Dynx® DSP for distortion-free sound even at maximum volume
    • AAC coding for HD Bluetooth® 5.0 streaming
    • Automatic setup detection for quick and easy operation
    • Fast and simple assembly without stands or cables
    • Rugged birch plywood subwoofer housing with durable polyurea-coating
    • Lightweight, powder-coated aluminium column housing

  • Specifications:

    • Product type: PA Complete Systems
    • Type: Active
    • Color: White (RAL 9003)
    • Max. SPL (Peak): 125 dB
    • Frequency response: 39 Hz - 20 kHz
    • Dispersion (H x V): 120° x 30°
    • Overall height : 2052 mm
    • Weight: 30.7 kg
    • Key features: Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Dispersion Behavior, Mono/Stereo Operation, Cardioid Column

      Subwoofer:
    • Low/mid woofer dimensions: 2 x 8"
    • Woofer dimensions: 2 x 203 mm
    • Woofer magnet: Ferrite
    • Woofer brand: Custom Made
    • Woofer voice coil: 2"
    • Woofer voice coil: 50,8 mm
    • Cabinet construction: Bass Reflex
    • Cabinet material: 15 mm Birch Plywood
    • Cabinet surface: Polyurea
    • Subwoofer dimensions (W x H x d): 305 x 607 x 403 mm
    • Subwoofer weight: 20,5 kg

      Mid/Hi System:
    • Midrange size: 6 x 3,5"
    • Midrange size: 6 x 89 mm
    • Midrange magnet: Ferrite
    • Midrange brand: Custom Made
    • Midrange voice coil: 0.75"
    • Midrange voice coil: 19 mm
    • Tweeter dimensions: 2 x 0,5"
    • Tweeter dimensions: 2 x 12,7 mm
    • Tweeter magnet: Neodym
    • Tweeter brand: Custom Made
    • Tweeter voice coil: 1 "
    • Tweeter voice coil: 25,4 mm
    • Horn: CD Waveguide
    • Loudspeaker inputs: 1
    • Speaker input connections: Custom Made Multipin
    • Cabinet construction mid/high: Passive Cardioid
    • Mid/Hi system cabinet material: Aluminum
    • Mid/Hi system cabinet material surface: Powder Coated Aluminum
    • Mid/Hi system width: 103 mm
    • Mid/Hi system height: 1460 mm
    • Mid/Hi system depth: 135 mm
    • Mid/hi system weight: 10,2 kg

      Amplifier module (integrated in subwoofer):
    • Amplifier: Class D
    • Amplifier output system (RMS): 700 W
    • Protection circuits: DC Protection, Multiband Limiter, Short Circuit, Thermal Overload
    • Cooling: Convection

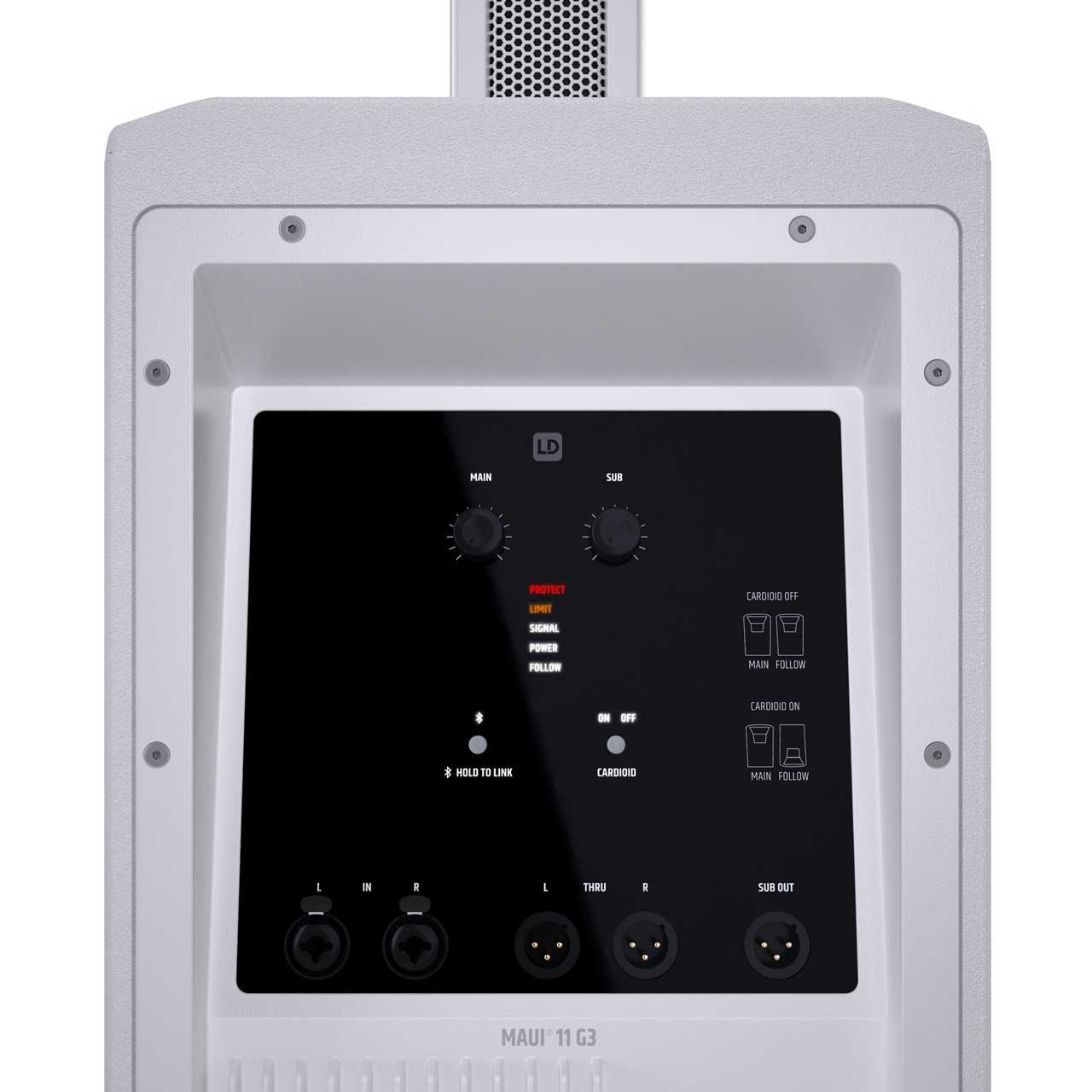

    • Controls: Bluetooth HOLD TO LINK-Switch, Cardioid On/Off, Main Level, Power On/Off, Sub Level
    • Indicators: Bluetooth, Cardioid On/Off, Limit, Power, Protect (fuse active), Signal, Follower Mode, Subwoofer Mode
    • Power connector: IEC Power Cable (included)
    • Operating voltage: 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC, 50 - 60 Hz
    • Fuse: T3.15AL250V
    • Power consumption: 300 W
    • Operating temperature: 0 - 40 °C
    • Humidity range: <80% (non condensing)
    • Line inputs: 2
    • Line input connectors: Combo XLR/TRS
    • Line outputs: 1 Sub OUT, 2x THRU
    • Line output connectors: XLR male
    • Loudspeaker outputs: 1
    • Speaker output connections: Custom Made Multipin
    • Bluetooth-profile: A2DP
    • Bluetooth-audio-decoder: AAC, SBC

    • DSP characteristics:
    • Bit depth AD/DA converter: 24 Bit
    • Internal sampling frequency: 48 kHz

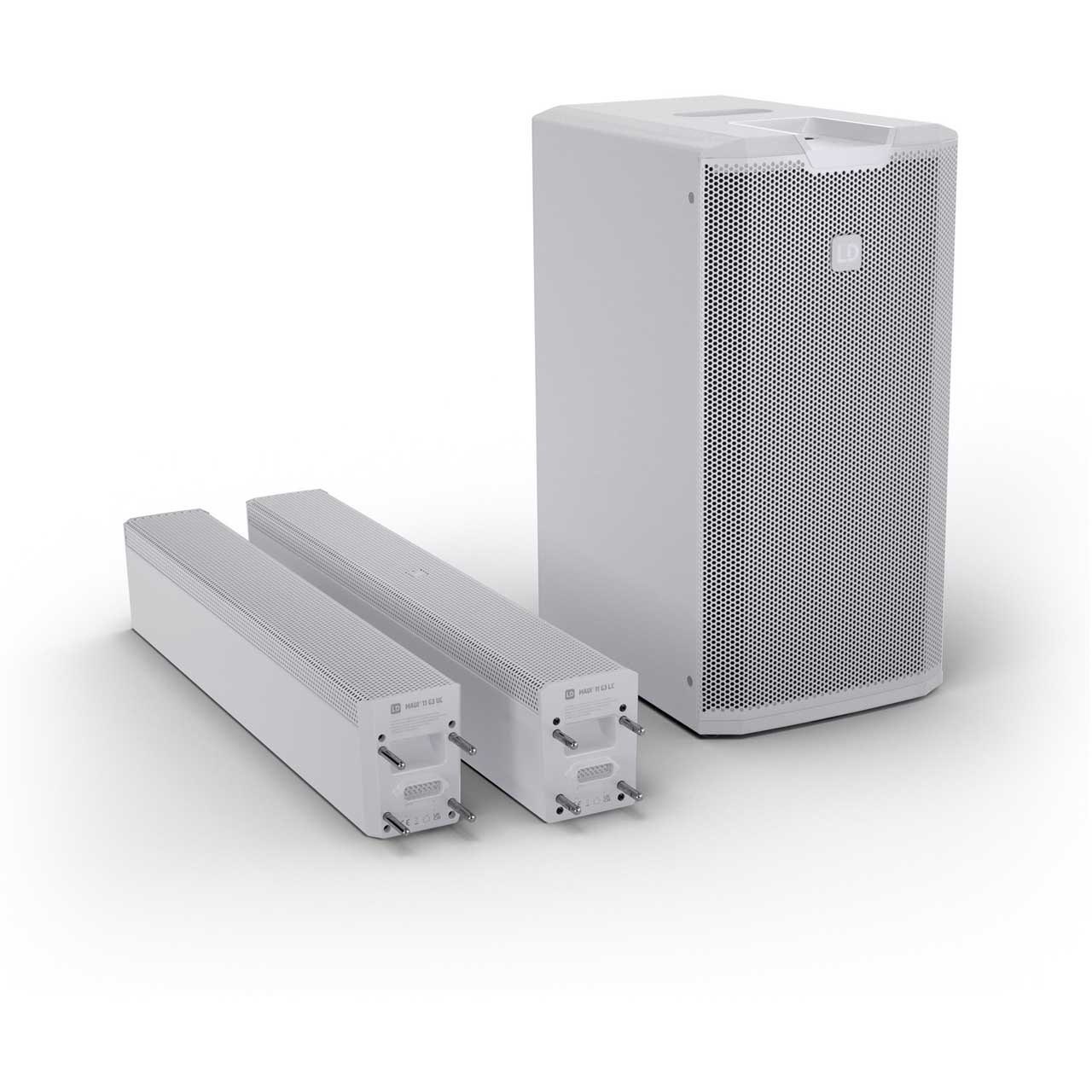

  • Item Includes:

    • 1x MAUI 11 G3 subwoofer, white
    • 1x MAUI 11 G3 lower column (LC), white
    • 1x MAUI 11 G3 Upper Column (UC), white
    • 1x power cable
    • User manual

  • Warranty:

    • 2 Years

  • GTIN:

    4049521713583
