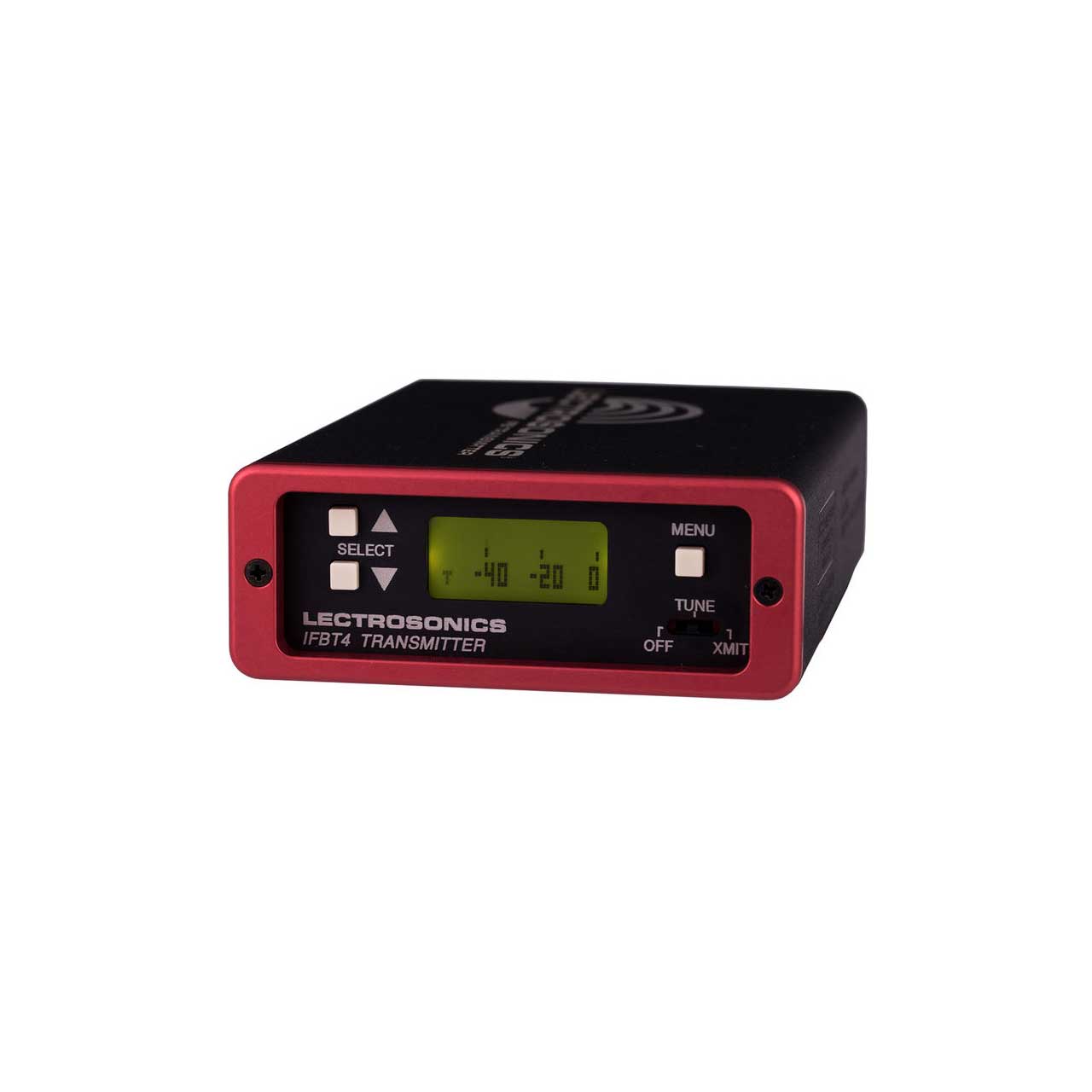

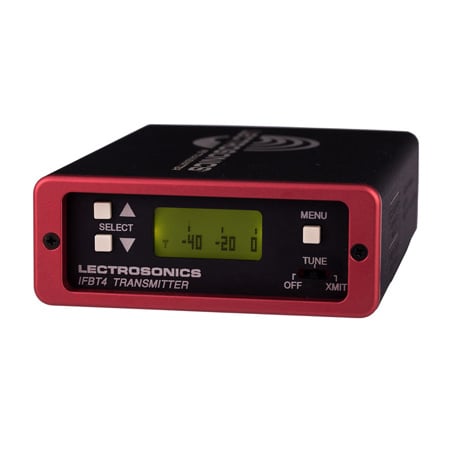

Lectrosonics IFBT4-VHF Frequency-Agile Compact IFB Transmitter - Base Station Type - VHF 174-216 MHZ

ITEM #: LEC-IFBT4-VHF MFG #: IFBT4-VHF

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,975.00

Our Price:

$1,429.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


IFBT4-VHF - Overview

The Lectrosonics IFBT4-VHF transmitter was designed for use in broadcast, motion picture, theater, and stage applications where extended operating range and high quality audio are essential. The transmitter can be used as a stand-alone device or patched directly into popular intercom systems.

The design is based upon the patented Lectrosonics Digital Hybrid Wireless system. While at the time of the first release of the product, there is only a companion analog receiver, the Digital Hybrid Wireless system is included for compatibility with future products.

Wireless IFB (interruptible fold back) systems are used for talent cueing and crew communications in broadcast and motion picture production. In other cases, the IFB system is used by directors and other management to monitor program audio during a production. The IFBR1a-VHF receiver provides simplicity and flexibility in a package that is intuitive for untrained users to operate.

The default frequency of the receiver is set by two rotary switches on the side panel. Up to five additional frequencies can also be programmed into the receiver memory using the scan mode. If more than one frequency is stored in the receiver, the operator can scroll through all stored frequencies by simply pressing the volume knob.

  • Features:

    • Digital Hybrid Wireless technology Microprocessor controlled operation
    • 50 mW power output for long range use
    • Pilot tone squelch control
    • Multi-use XLR input jack
    • Built-in microphone preamp
    • DIP switch programmable intercom input
    • Tx mute for frequency scrolling
    • Multi-function LCD display
    • Rugged machined aluminum construction

  • Specifications:

    • Operating Frequencies (MHz): 174.100 to 215.750 MHz
    • Available Frequencies: 239
    • Channel Spacing: 175 kHz
    • RF Power Output: 50 mW
    • Frequency Stability: +/- .001% (10 ppm) @ 25° C
    • Temperature Stability: +/- .001% (10 ppm) from -30° C to +50° C
    • Channel Selection: Momentary pushbutton switches, tune Up and Down
    • Compatibility Modes (2): IFB and Digital Hybrid Wireless (400 Series)
    • Pilot Tone: 29.997 kHz IFB & 400 MODE; each frequency has a unique pilot tone
    • Modulation: IFB Mode: FM, +/- 20 kHz deviation
    • Digital Hybrid Mode: +/- 75kHz
    • Audio Frequency Response: IFB Mode: 100 Hz to 8 kHz, +/- 1 dB
    • Digital Hybrid Mode: 30Hz to 20kHz +/- 1dB response (see Rolloff)
    • Rolloff: Low frequency audio rolloff is menu selectable for 3 dB down at 35 Hz or 50 Hz.
    • Audio Compressor: 2 to 1 (IFB mode)
    • Output Impedance: 50 ohms

    • Audio Input Levels: 0 dBu for Line, RTS1 & RTS2
    • -10 dBu for Clear Com
    • -42 dBu for mic dry inputs (no phantom power)
    • +/- 50Vdc max

    • Audio Input Config: Balanced and Unbalanced, rear panel selectable for Line, Mic. RTS 1, RTS 2, and Clear Comm
    • Audio Input Impedance: Greater than 2 K balanced, greater than 1 K unbalanced at any gain setting
    • Gain Control Range: -18 dB to +24 dB (0 dB nominal center),
    • Audio Input Jack: Standard XLR female connector
    • Input Power: 12 to 14 VDC typical, 200 ma. max.; Max. Input Range
    • 6 to 18 VDC
    • Power Input Jack: Coax type, locking LZR RL26AE
    • Indicators: Backlit Liquid Crystal Display. Displays modulation meter, frequencies, modes, roll-off and audio level

    • Front panel controls: MENU momentary pushbutton switch
    • Power OFF-TUNE-XMIT, 3 position slide switch
    • Select Up momentary pushbutton switch
    • Select down momentary pushbutton switch

    • Rear panel controls: Input Mode Select, 4 section DIP switch
    • Weight: 9 ozs.
    • Size: 5.25" L (including connectors) x 3.25" W x 1.25" H
    • Emission designator: 180KF3E

  • Item Includes:

    • IFBT4-VHF transmitter
    • 1/4 Wave BNC Whip Antenna
    • AC Adapter

  • Warranty:

    • 1 Year
