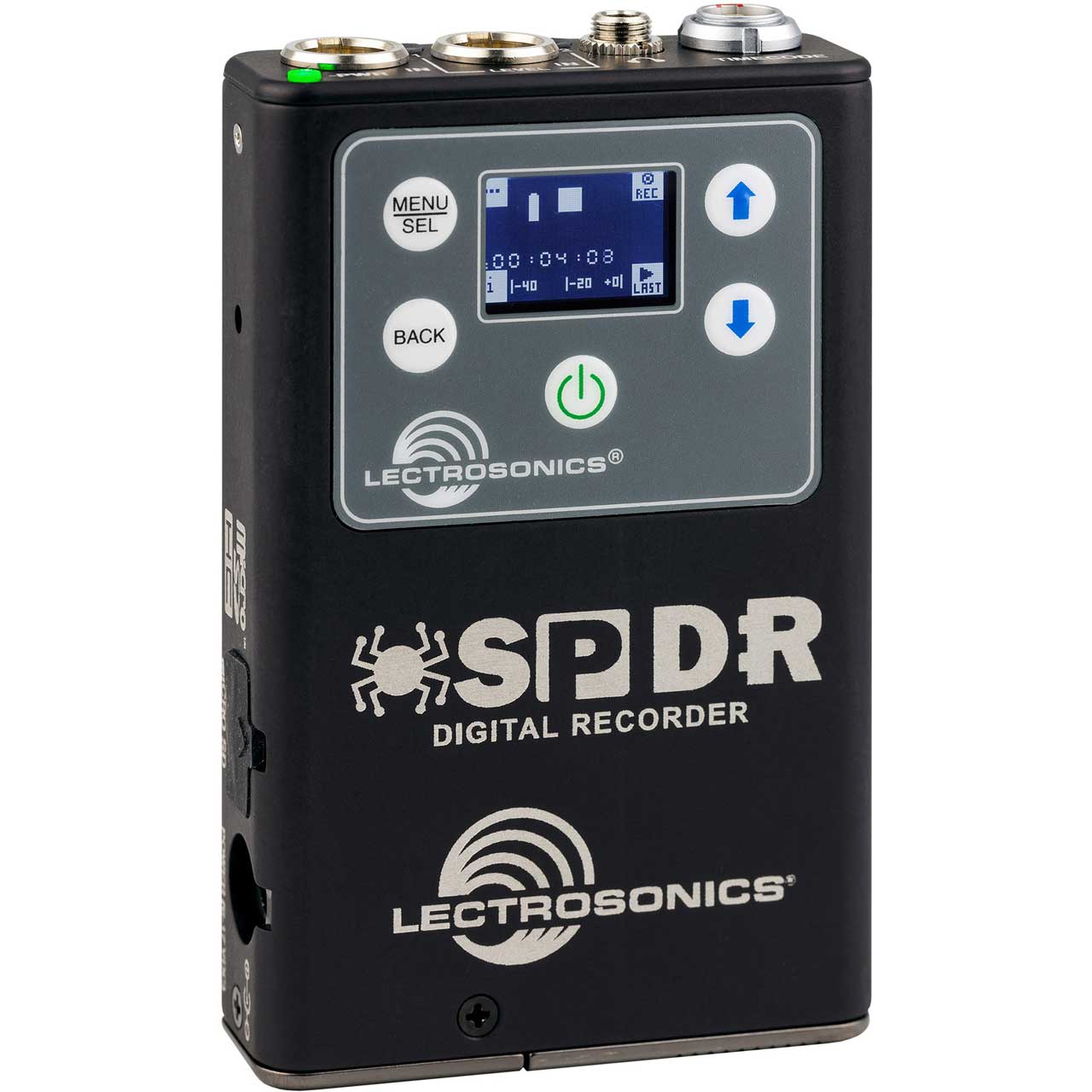

Lectrosonics SPDR Stereo Portable Digital Audio Recorder with Timecode Support

ITEM #: LEC-SPDR MFG #: SPDR

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$1,938.00

Our Price:

$1,390.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


SPDR - Overview

The SPDR is Lectrosonics' response to customer demand for a small, lightweight dual channel recorder for use on virtual reality sound captures or as a backup recorder for bag systems in the field. The SPDR will let you capture the full stereo audio of an extreme sport participant, in-car scenes or in situations where a wireless system cannot be used.

When used in conjunction with a small mixer and the SRC receiver, the SPDR makes for a lightweight interview setup that provides full redundancy - all fitting into a small fanny pack. The industry standard 5 Pin LEMO time code input allows a simple momentary jam. The high accuracy oscillator allows free running precision better than 1 ppm for those long recording days.

Offering the same high definition display as the PDR, the SPDR keypad has a tactile feedback riser on the record button for easy eyes-off recording startup. Dweedle tone commands allow easy start and stop using the PDRRemote app. The SPDR has an external power input with internal battery switchover, allowing all day recording from your bag battery with an immediate fall back to the internal batteries should there be an external power loss. A 32GB memory card allows almost 30 hours of recording time at the 48kHz sample rate. A high-quality headphone output is provided for playback and monitoring.

WARNING: Do not perform a low-level format (complete format) with a computer. Doing so WILL render the memory card unusable with the SPDR recorder. With a Windows based computer, be sure to check the quick format box before formatting the card. With a Mac, be sure to format as "master boot record".

  • Features:

    • Professional quality low noise digital audio recordings in Broadcast Wave Format (iXML metadata) with high dynamic range
    • Compact size for easy bag, plant mic and personal use

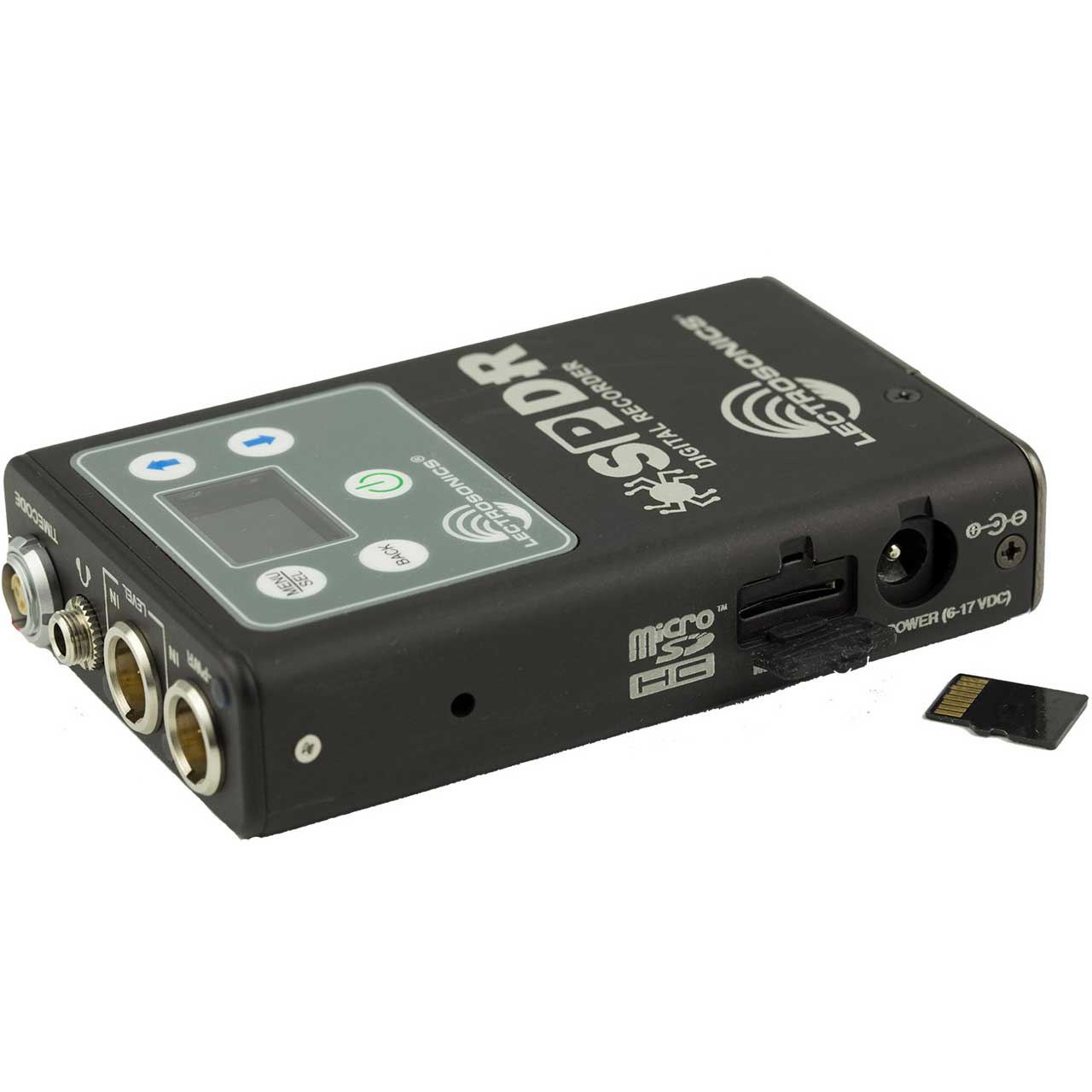

    • Records to a microSDHC memory card
    • Wide range input gain adjustment for mic to line level signals
    • AES input for digital signal chains
    • Time code jam/sync from external source
    • Standard Lectrosonics TA5M input jack
    • Lectrosonics "servo bias" input preamp
    • Solid machined aluminum construction

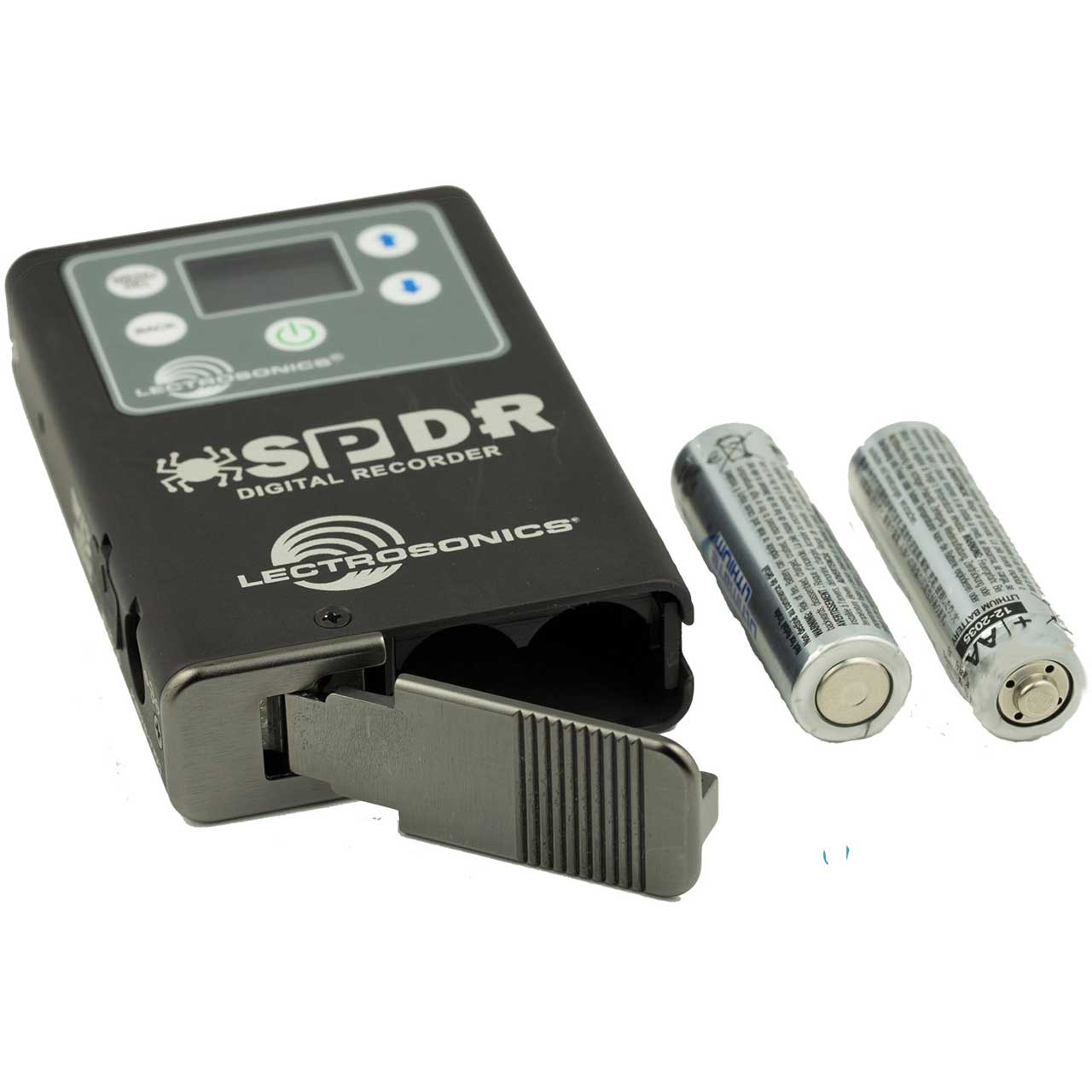

    • Over 20 hours of operation on dual AA lithium batteries
    • Temperature compensating clock accurate to less than 1ppm at all temperatures

  • Specifications:

    • Recording
    • Storage media: microSDHC memory card
    • File format: .wav files (BWF) iXML metadata
    • A/D converter: 24-bit
    • Sampling rate: 48 kHz or 96 kHz
    • HD stereo mode: 288 K bps or 576 K bps
    • Split gain mode: 576 K bps

      Input Type
    • Analog mic/line level compatible; servo bias preamp for 2V and 4V lavaliere microphones
    • Input 1 is switchable to AES3 two channel digital.

      Input level
    • Dynamic mic: 0.5 mV to 50 mV
    • Electret mic: Nominal 2 mV to 300 mV
    • Line level: 17 mV to 1.7 V
    • Input connector: TA5M 5-pin male

      Headphone Output
    • Connector: 3.5 mm mini jack; TRS
    • Maximum level: -3 dBu (575 mV RMS)

      Audio Performance
    • Frequency response: 20 Hz to 20 kHz; +0.5/-1.5 dB
    • Dynamic range: 110 dB (A), before limiting
    • Distortion: < 0.035%

      Time Code
    • Connector: 5-pin LEMO
    • Signal voltage: 0.5V p-p to 5V p-p
    • Input impedance: 10 k Ohms
    • Format: SMPTE 12M - 1999 compliant
    • Battery Power/Life
    • Battery type: AA Alkaline non-rechargeable (recommended)
    • Battery life: 13 hours typical at 48kHz sample rate (AA Alkaline)

      External Power
    • Input voltage: 6-17 VDC
    • Input current: 75 mA max @ 12 VDC (96 kHz recording)
    • Connector: 2.5mm coaxial connector, center pin positive

      Operating Temperature Range
    • Celsius: -20 to 50
    • Fahrenheit: -4 to 122

      Dimensions and Weight
    • Dimensions: Inches: 3.9 H x 2.38 W x .82 D; Millimeters: 99.06 H x 60.45 W x 20.83 D
    • Weight: 5.7 ozs. (162 grams) w/ AA Alkaline batteries (without belt clip)

  • Item Includes:

    • 2 - AA Alkaline Batteries
    • 1 - microSDHC Memory Card
    • 1 - Manual
    • 1 - Beltclip (#26526)
