Lectrosonics UFM144-A1B1 UHF RF Filter/Amplifier Module with 144 MHz passband from 470 to 614 Megahertz

ITEM #: LEC-UFM144-A1B1 MFG #: UFM144-A1B1

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$599.00

Our Price:

$448.75

Availability: In Stock
iAvailability Description Popup


UFM144-A1B1 - Overview

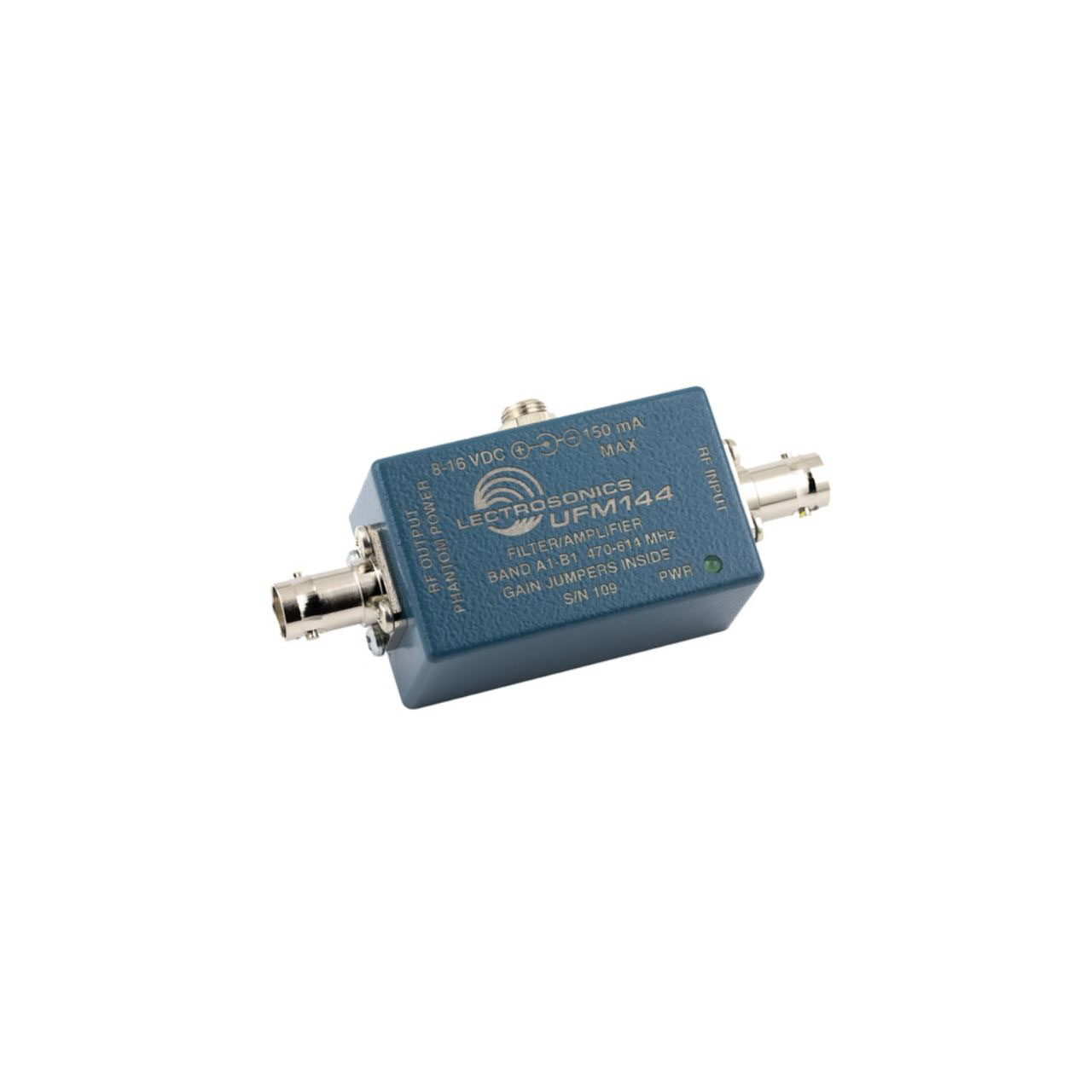

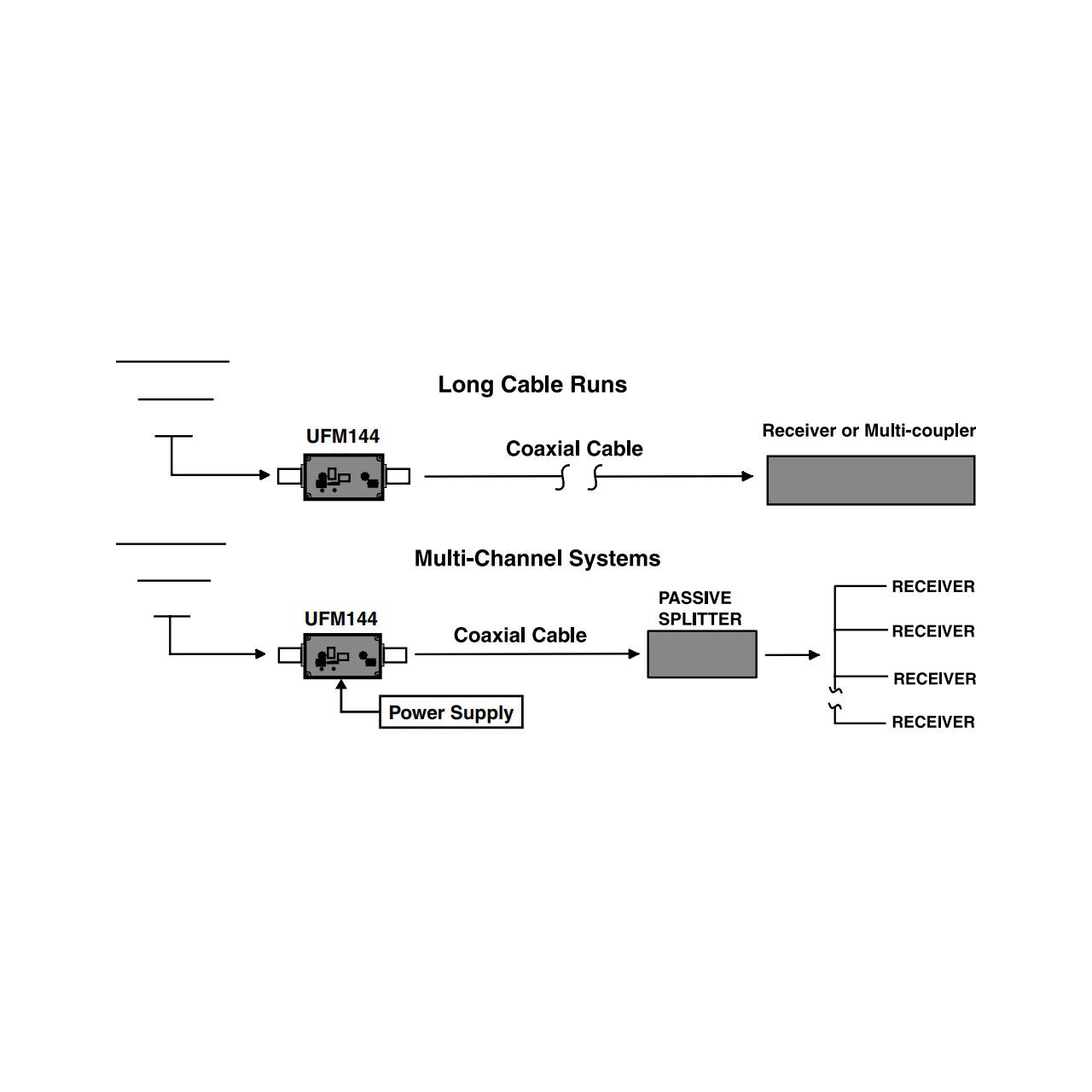

The Lectrosonics UFM144-A1B1 is a UHF Filter/Amplifier Module with 144 MHz passband from 470 to 614 Megahertz (Band A1B1) that's used to configure antenna systems requiring long cable runs or to handle distribution to multiple receivers. RF filtering before gain minimizes intermodulation (IM) products and prevents overload. Two transmission line ceramic resonators at the input provide filtering with a 144 MHz bandwidth, followed by 12dB of gain using a high quality GaAsFET RF amplifier with an excellent +41dBm output IP3. Power can be applied to a side panel connector, or from DC bias on the RF output jack from a receiver or multicoupler. A switching regulator is used in the power supply to control current consumption over an input voltage range of 8 to 16 volts. The regulator maintains low current consumption and low heat dissipation which is especially useful in mobile field production applications. The housing is constructed of cast aluminum with a brushed aluminum cover plate. Two rugged BNC connectors and a threaded, locking power jack provide secure connections for reliability in field production and longterm installations.

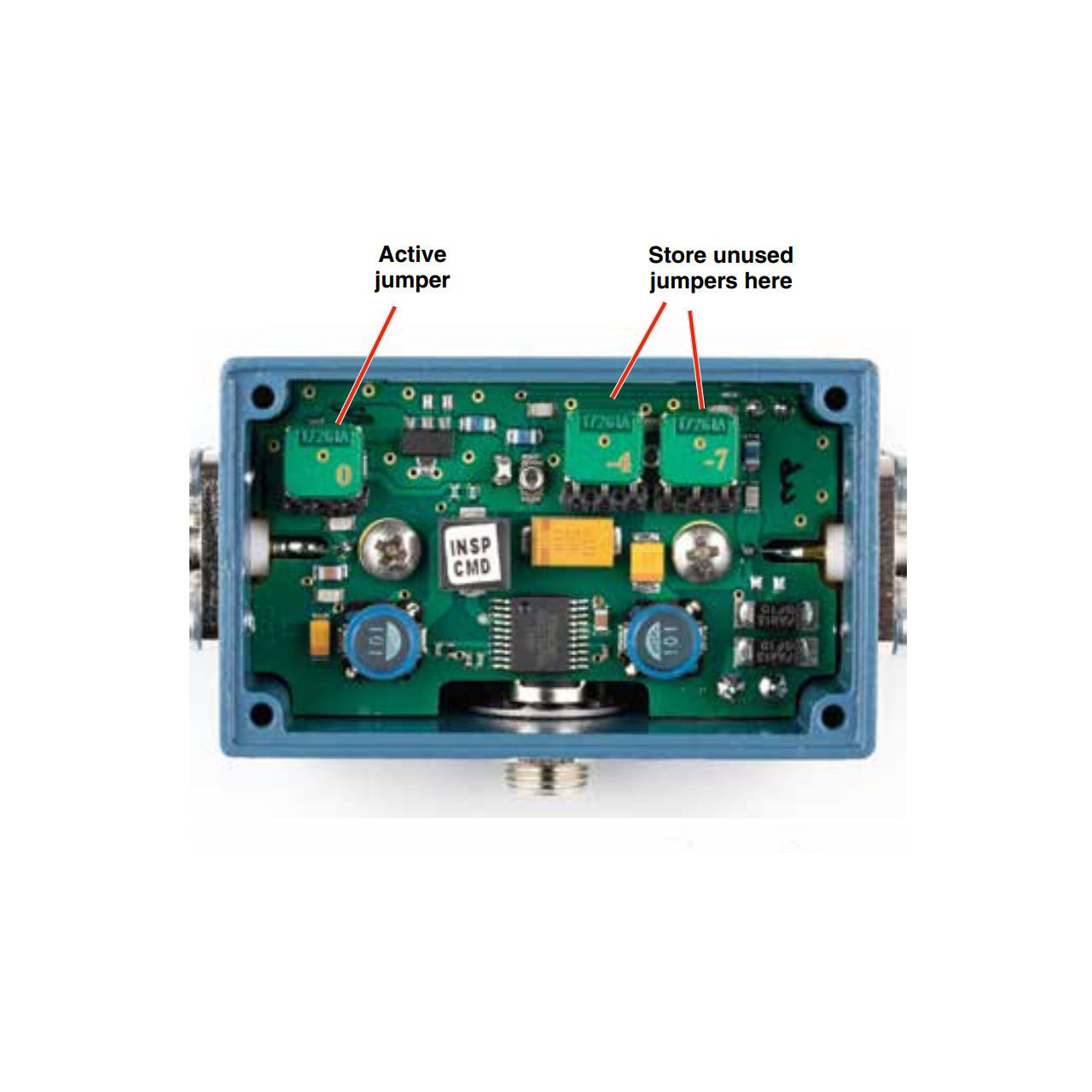

The RF amplifier is fixed at 12 dB of gain. Adjustments to the gain are made by inserting attenuators. The gain can be adjusted to +12dB, +8dB or +5dB using the 0, -4 and -7 jumpers. Remove the four screws and the bottom cover for access to the internal connections and jumpers. The power input on the side panel is a thread-locking (LZR type) connector. The unit is powered from external DC source such as the DCR12-A5U (sold separately) or via DC bias from Lectrosonics multicouplers and Venue Series receivers.

  • Features:

    • Filters and Boosts Wireless Antenna Signals
    • 144 MHz passband from 470 to 614 MHz
    • Ceramic resonator filters
    • GaAsFET RF amplifier
    • +27 dBm (input) and +41 dBm (output) 3rd Order Intercept
    • Switching regulator for 8-16V power at constant power dissipation to minimize heat
    • Jumpers set gain at +5dB, +8dB or +12dB
    • Powered from external DC source or DC bias from Lectrosonics multicouplers and Venue Series receivers

  • Specifications:

    • Third Order Intercept: Input IP3 = +27 dBm (+41 dBm output)
    • Connectors
      - RF IN: 50 ohm BNC
      - DC IN: 2.1 mm locking power jack
      - RF OUT (phantom power in): 50 ohm BNC
    • Freq Range: 470 - 614MHz
    • Filter Bandwidth: 144MHz, factory set
    • RF Gain:
      - +12dB with 0dB attenuator
      - +8dB with 4dB attenuator
      - +5dB with 7dB attenuator
    • Power Requirements: 8V to 16V DC at the input jack; auto reset poly fuse protection circuit; constant power switching supply
      - 8V DC (125mA to 145mA)
      - 12V DC (83mA to 106mA)
      - 14.4V DC (69mA to 89mA)
      - 16V DC (60mA to 80mA)
    • DC Bias/Phantom Powering: DC voltage supplied via coaxial cable by UMC16B or VRM input jack or BIAS-T power inserter (70 to 80 mA)
    • Power Consumption: 1 Watt nominal (switching regulator)
    • Dimensions: 2.26" x 1.39" x 1.14" (not including BNC connectors)
    • Weight: 3.3oz (94g)

  • Item Includes:

    • 1x UFM144 A1B1 Filter/Amplifier

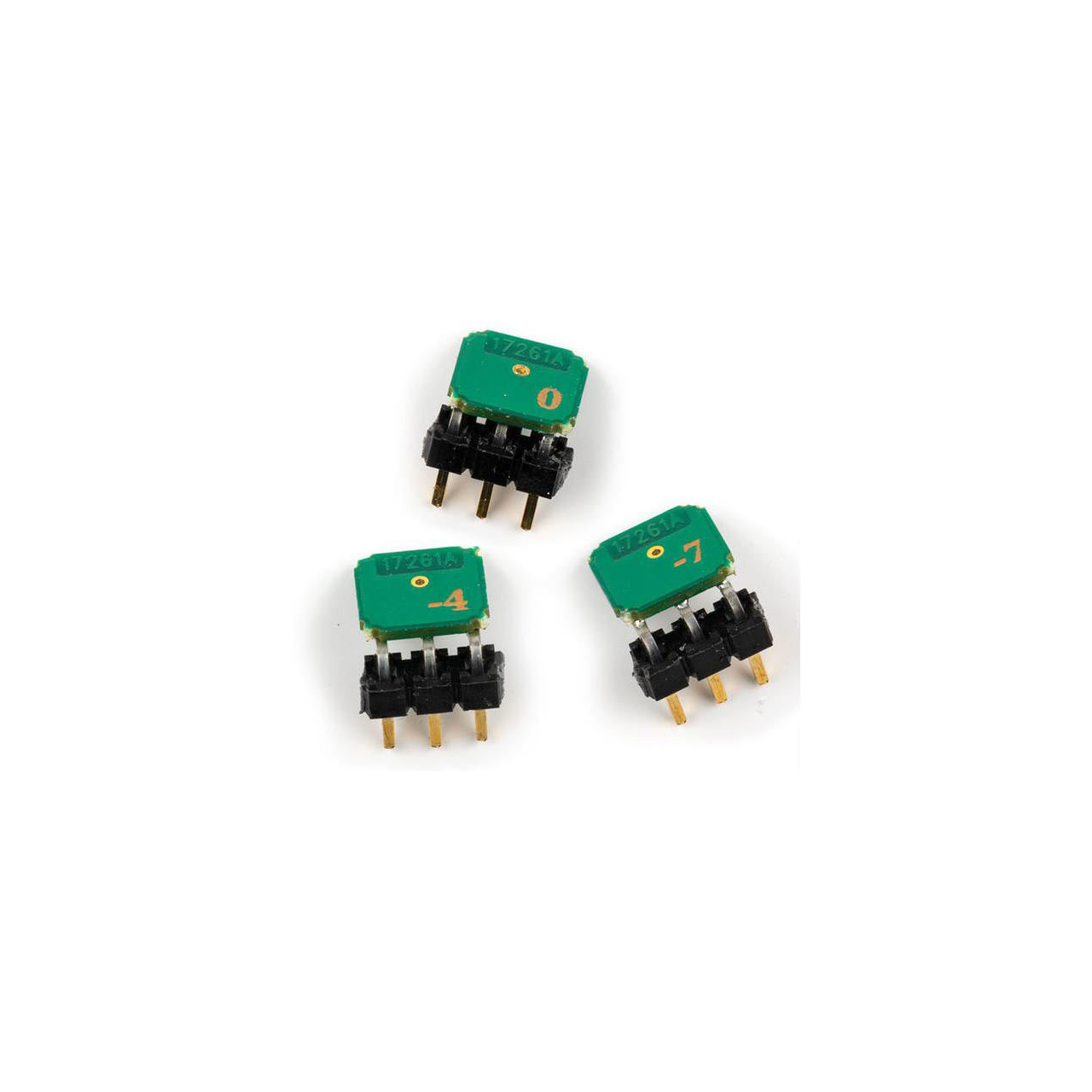

    • 3x Attenuator Jumpers at 0, -4, and -7

  • Warranty:

    • 1 Year Limited
