Lectrosonics ZS-LRLT-A1 Complete L-Series Camera Mount Lavalier Mic Kit Band A1 470.100 - 537.575 MHz

ITEM #: LEC-ZS-LRLT-A1 MFG #: ZS-LRLT-A1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$4,765.00

Our Price:

$3,699.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


ZS-LRLT-A1 - Overview

The Lectrosonics L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band, and employ Lectrosonics' patented Digital Hybrid Wireless technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all our other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation. The ZS-LRLMb kit [or ZS-LRLT kit] makes it easy to put these products right to work on the job. Everything you need is here: transmitter, receiver, mounting hardware, lav mic and connecting cables. Even batteries are included!

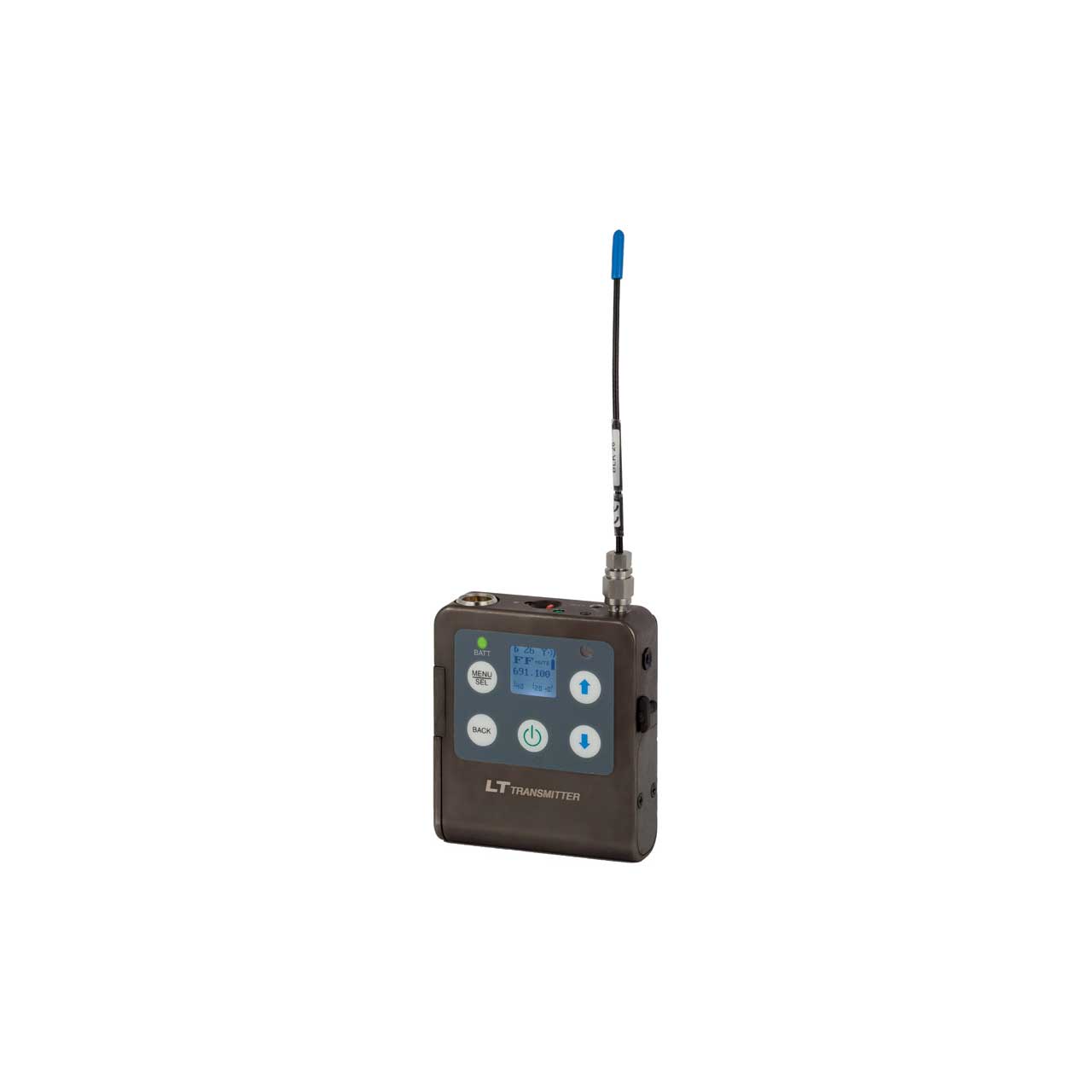

The LT transmitter offers a full set of professional features in a compact, rugged package. The unit is compatible with all Digital Hybrid Wireless receivers and even some from other manufacturers, making it comfortable in a wide variety of applications from video production to theater, stage and house of worship.

The LT can be configured to operate as a "one touch" device with a single power on/off switch on the top panel, or with full access to all operational parameters using the side panel membrane switches and LCD interface.The top panel switch can also be configured to provide a mute or talkback function.

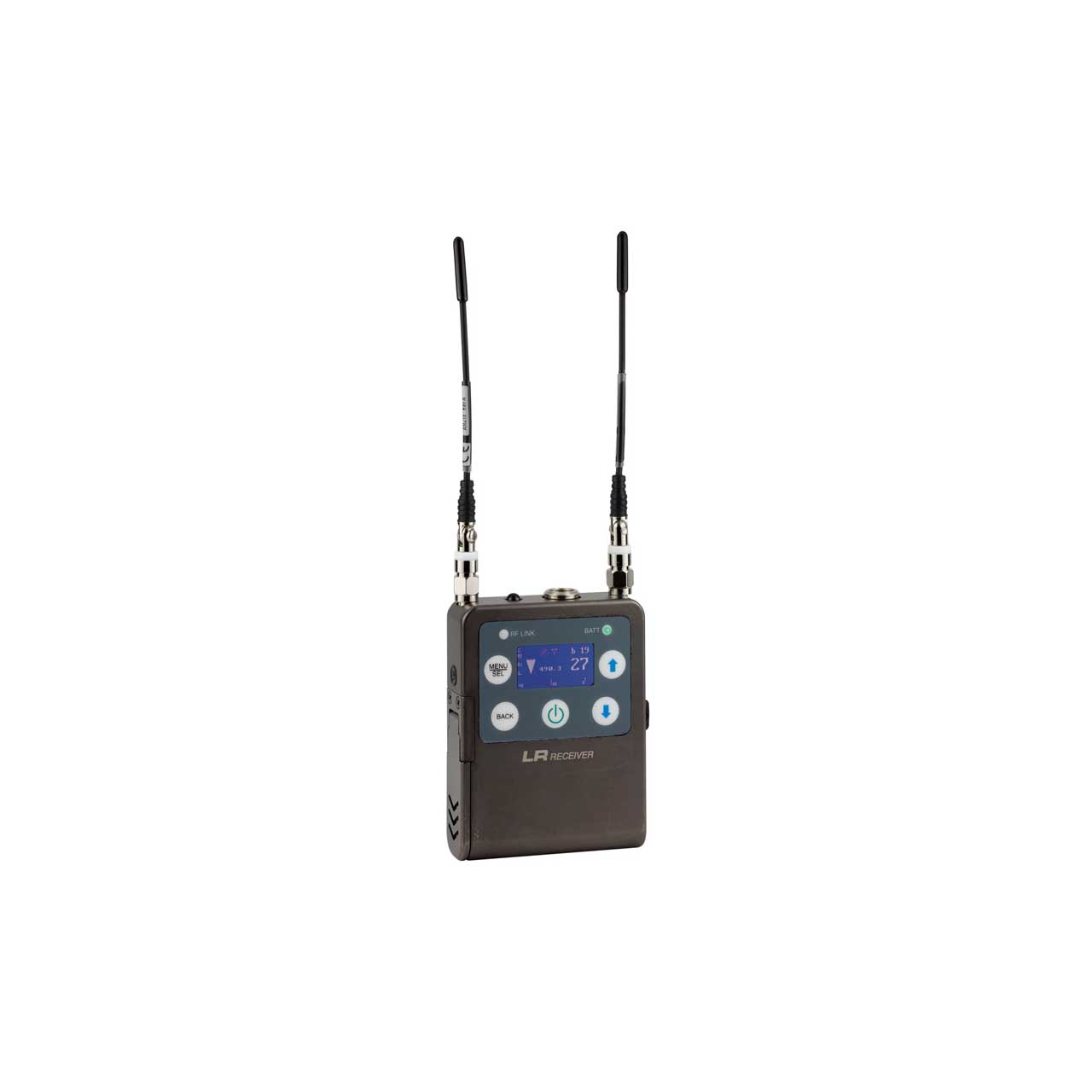

The LR receiver is powered by internal AA batteries. The top panel includes an IR port for transmitter setup. Firmware updates are enabled via a USB port on the side panel. The housing is made from a solid machined aluminum billet.

Frequencies are selectable in 100 kHz or 25 kHz steps, yielding a total of up to 3072 available frequencies across three standard frequency blocks. An IR port on the membrane panel enables automatic setup when coupled with an IR enabled receiver. A USB port on the side panel allows firmware updates to be made easily.

The servo bias input accepts mic or line level signals with a wide range of gain adjustment in 1 dB steps. A menu selectable instrument level input is available on the LCD. Accurate LED indications on the top panel and a bar graph indicator on the LCD allow precise gain adjustments to be made for the maximum signal to noise ration and minimum distortion.

  • Features:

    • Transmitter
    • Covers three standard frequency blocks
    • Digital Hybrid Wirelessr for compandor-free audio
    • Selectable 50 or 100mW output power
    • Compatibility modes for use with analog receivers
    • 25 or 100 kHz tuning steps for up to 3072 selectable frequencies
    • Integrated multi-function switch for mute or talkback modes
    • Wide range input gain control in 1 dB steps
    • IR port for setup with IR enabled receivers
    • USB port for firmware updates
    • Menu selectable mic or instrument input
    • Optional battery eliminator
    • Detachable antenna

      Receiver
    • Tunes over a 75 MHz range
    • Tracking front-end filters
    • Digital Hybrid Wireless with compatibility modes for use with earlier transmitters
    • Compact size powered by two AA batteries
    • LCD with RF spectrum scanning
    • SmartSquelchTM noiseless muting adapts automatically for near/far operation
    • DSP-based pilot tone for squelch control
    • USB port for firmware updates
    • IR sync port for transmitter setup

  • Specifications:

    • Transmitter
    • Operating Frequencies: Block A1: 470.100 - 537.575, Block B1: 537.600 - 614.375, Block C1: 614.400 - 691.175.
    • Frequency Selection Steps: Selectable; 100 kHz or 25 kHz.
    • RF Power output: Selectable: 50 or 100mW.
    • Pilot tone: 25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode).
    • Frequency Stability: ± 0.002%.
    • Deviation: ± 75 kHz max. (Digital Hybrid mode).
    • Spurious radiation: 60 dB below carrier.
    • Input impedance: 2k Ohm.
    • Input limiter: DSP controlled, dual envelope "soft" limiter with greater than 30 dB range.
    • Gain control range: 44 dB; digital control.
    • Controls: Top panel slide switch; programmable as power, mute, talkback or no (off) function, Side panel membrane switches with LCD
    • interface for power on/off and all setup and configuration controls.
    • Audio Input Jack: Switchcraft 5-pin locking (TA5F).
    • Antenna: Galvanized steel, flexible wire.

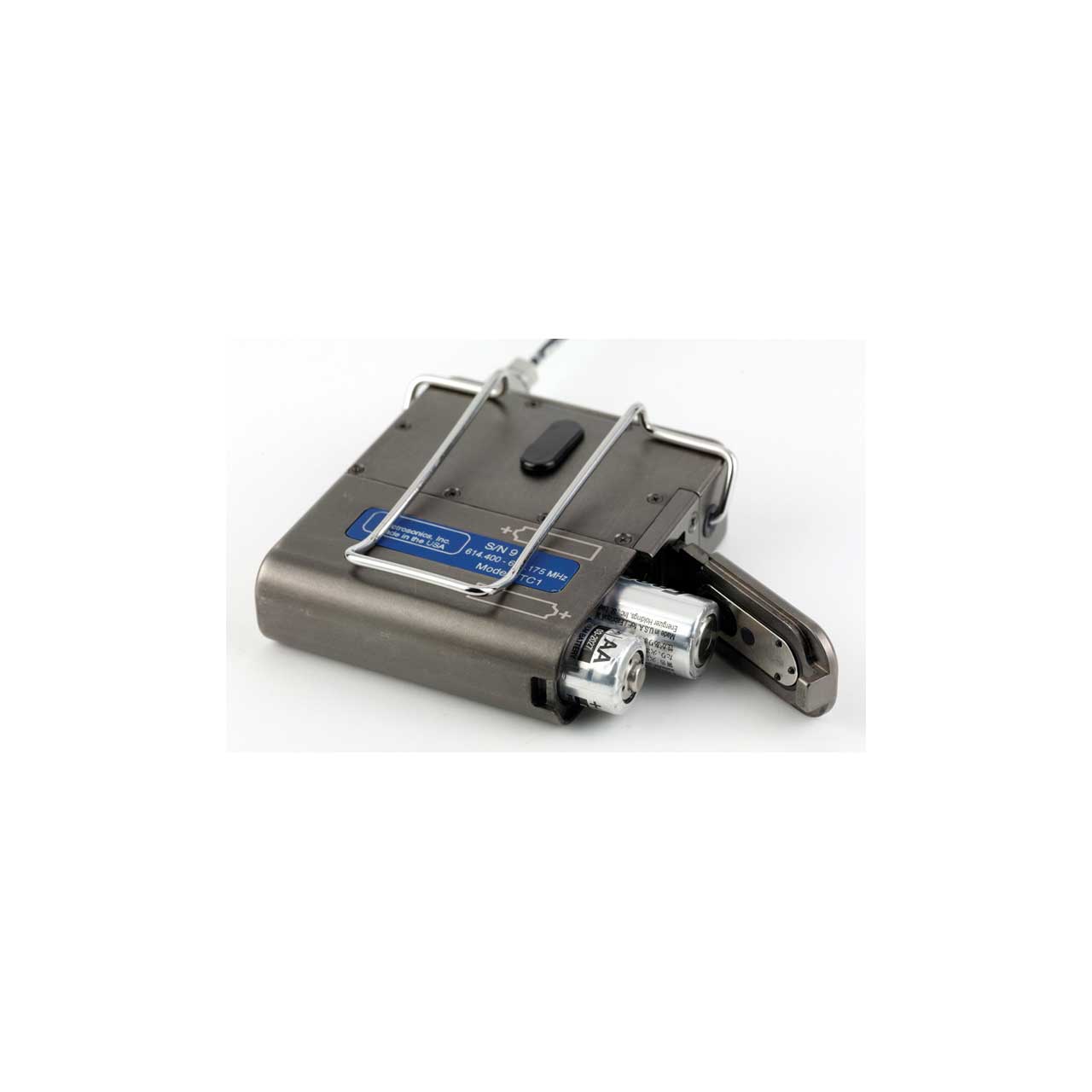

    • Battery: Two AA; alkaline, lithium, NiMH rechargeable.
    • Weight: 5.9 ounces (169 grams), with alkaline AA batteries.
    • Dimensions: 2.85 x 2.45 x .75 in. (72 x 62 x 19 mm).

      Receiver
    • Operating Frequencies: Band A1: 470.100 - 537.575 MHz, Band B1: 537.600 - 614.375 MHz, Band 606: 606.000 - 631.500 MHz, Band C1: 614.400 - 691.175 MHz.
    • Frequency selection steps: Selectable; 100 kHz or 25 kHz.
    • Receiver Type: Dual conversion, superheterodyne.
    • IF Frequencies: 243.950 MHz and 250.000 kHz.
    • Front end bandwidth: 20 MHz @ -3 dB.
    • Squelch quieting: Greater than 100 dB typical.
    • Image and spurious rejection: 85 dB.
    • FM detector: Digital Pulse Counting Detector.
    • RF spectrum analyzer: Single and multiple block scanning modes; coarse and fine views of results.
    • Antenna inputs: 50 Ohm; SMA female connectors.
    • Audio output: TA3 male (mini XLR) balanced output.
    • Audio output level: Adjustable -50 to +5 dBu in 1 dB steps; unbalanced output level is 6 dB lower.
    • Transmitter battery type selection: AA alkaline or lithium; timer available for use with alkaline, lithium and HiMH.
    • Operating temperature: -20° C to +50°C.
    • Weight: 185.4 grams (6.54 ozs.) with two AA lithium batteries.
    • Dimensions (housing): 3.21 x 2.45 x .84 in. (82 x 62 x 21 mm).

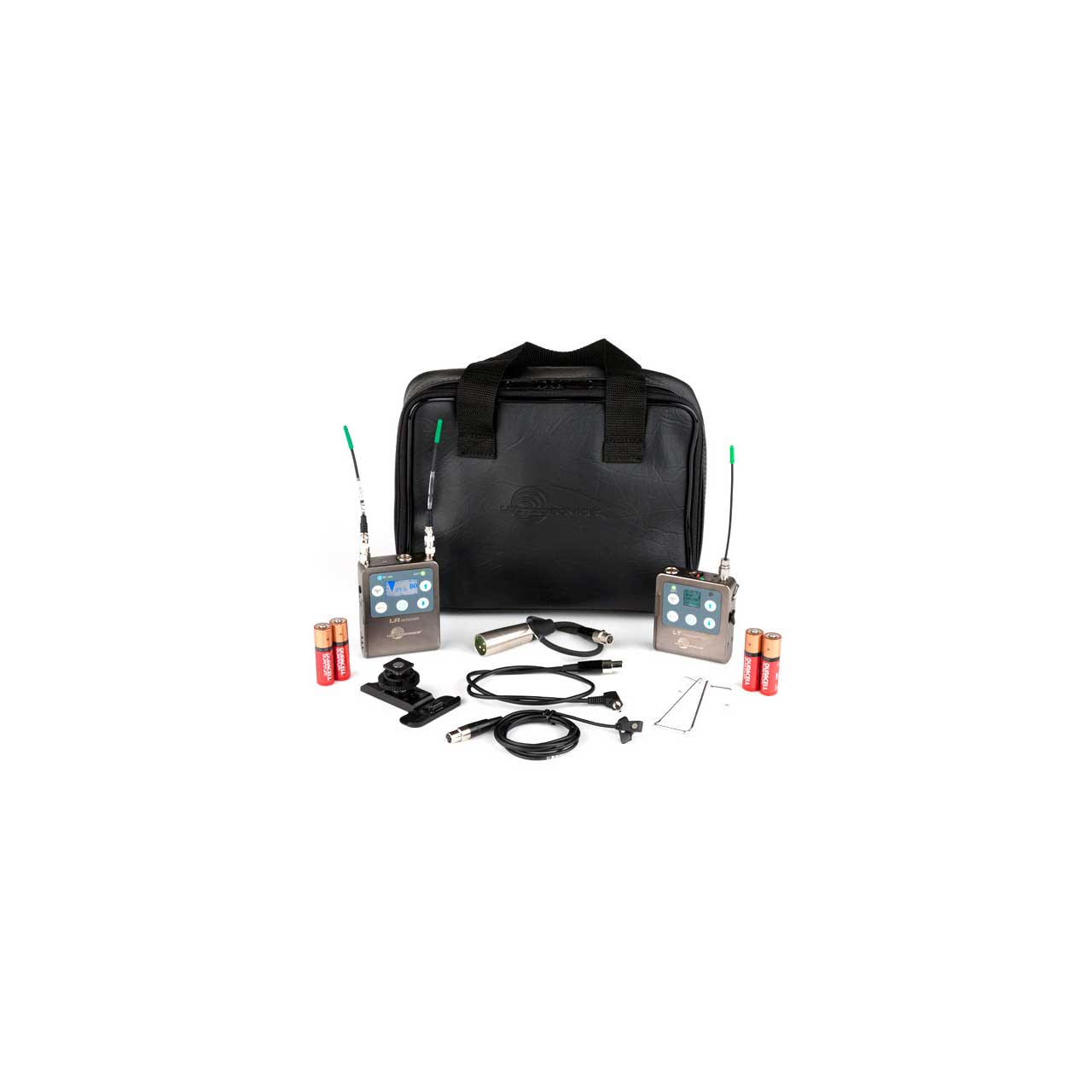

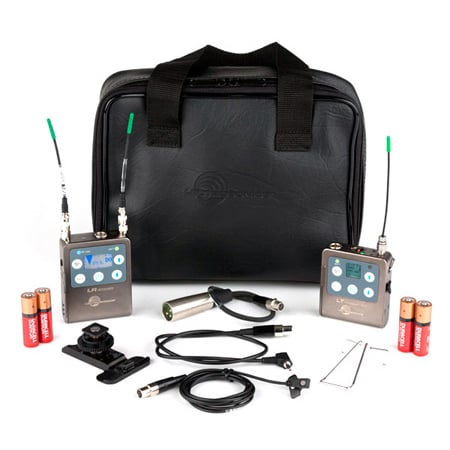

  • Item Includes:

    • 1) LR-XX receiver (Frequency band A1, B1 or C1)
    • 1) LT-XX transmitter (Frequency band A1, B1 or C1)
    • 1) M152/5P lavaliere Microphone
    • 1) LRSHOE camera shoe mount for LR Receiver
    • 1) MCSRXLR cable, TA3F to XLRM
    • 1) MCLRTRS cable, TA3F to 1/8" TRS
    • 1) CCMINI zippered pouch
