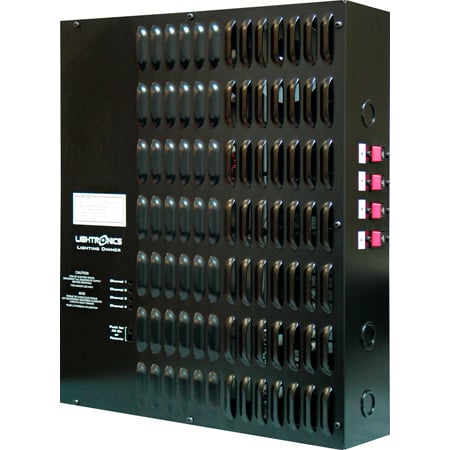

Lightronics AT402 Unity Architectural Dimmer

ITEM #: LGT-AT402 MFG #: AT402

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,475.00

Our Price:

$1,106.25

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


AT402 - Overview

The AT402 is a wall mounted permanent install, four channel architectural dimmer rated a 2400 Watts per channel. This dimmer accepts DMX-512 control signals and simple local input contact closures. It is an ideal architectural dimmer for less complex environments where the DMX protocol needs to be utilized. It is especially well suited for churches, theaters and auditoriums, but works well in restaurants, meeting rooms or other environments requiring a few heavy-duty dimmers. The AT402 allows you to create many functionally diverse visual environments for any space. UL-508 compliant

  • Features:

    • 4 Channels
    • 2400W Each
    • DMX-512
    • Contact Closures
    • 16 Scene Memory
    • Fast Acting Magnetic Circuit Breakers
    • UL-508 Compliant

  • Specifications:

    • Channels/Capacity: 4 @ 2400 Watts each
    • Filtering: 500 uS Minimum
    • Power Input: 120/240 VAC Single Phase, 120/208VAC Three Phase
    • Control Sources: DMX-512
    • Scenes: 16 via Contact Closure
    • Remote Stations: Momentary Contact Closure
    • Sub-zones: 4 (# of smaller rooms a large room can be broken into)
    • System Expandability: 128 AT-402s Total (512 dimmers)
    • Size: 15”L x 4”W x 18”H
    • Weight: 26 Pounds
    • All units require DMX address programming - please provide your requirements when you place your order.
