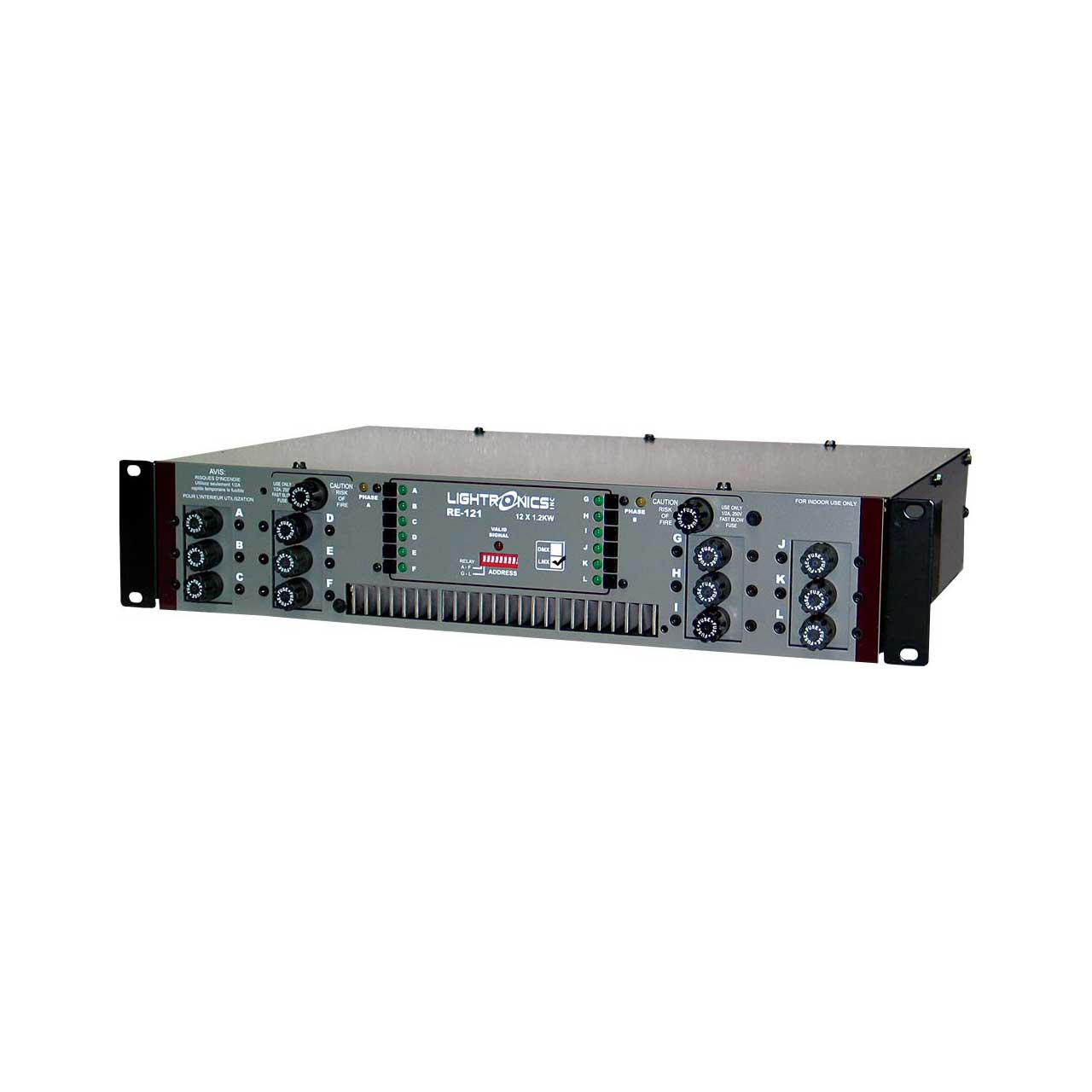

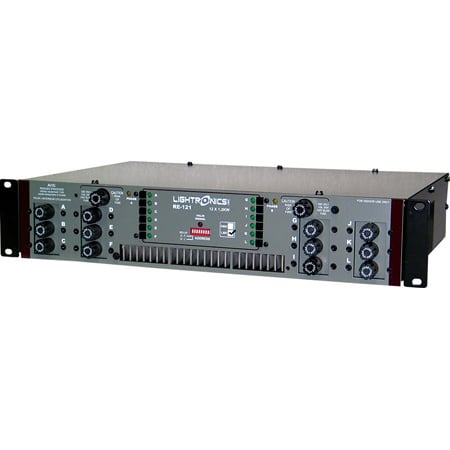

The RE121D is a 12 channel rack mount dimmer with a capacity of 1,200 watts per channel giving a total of 14,400 watts. It is suitable for church, stage, theater, school, night club, live performances and other event and artistic applications.
The RE121D is controlled by a lighting control console. The unit uses the DMX-512 5 pin XLR control protocol. Channels A - F and/or channels G - L may be switched to operate in "relay" mode. In relay mode, channels may be switched only to either to full on or full off depending on fader position.

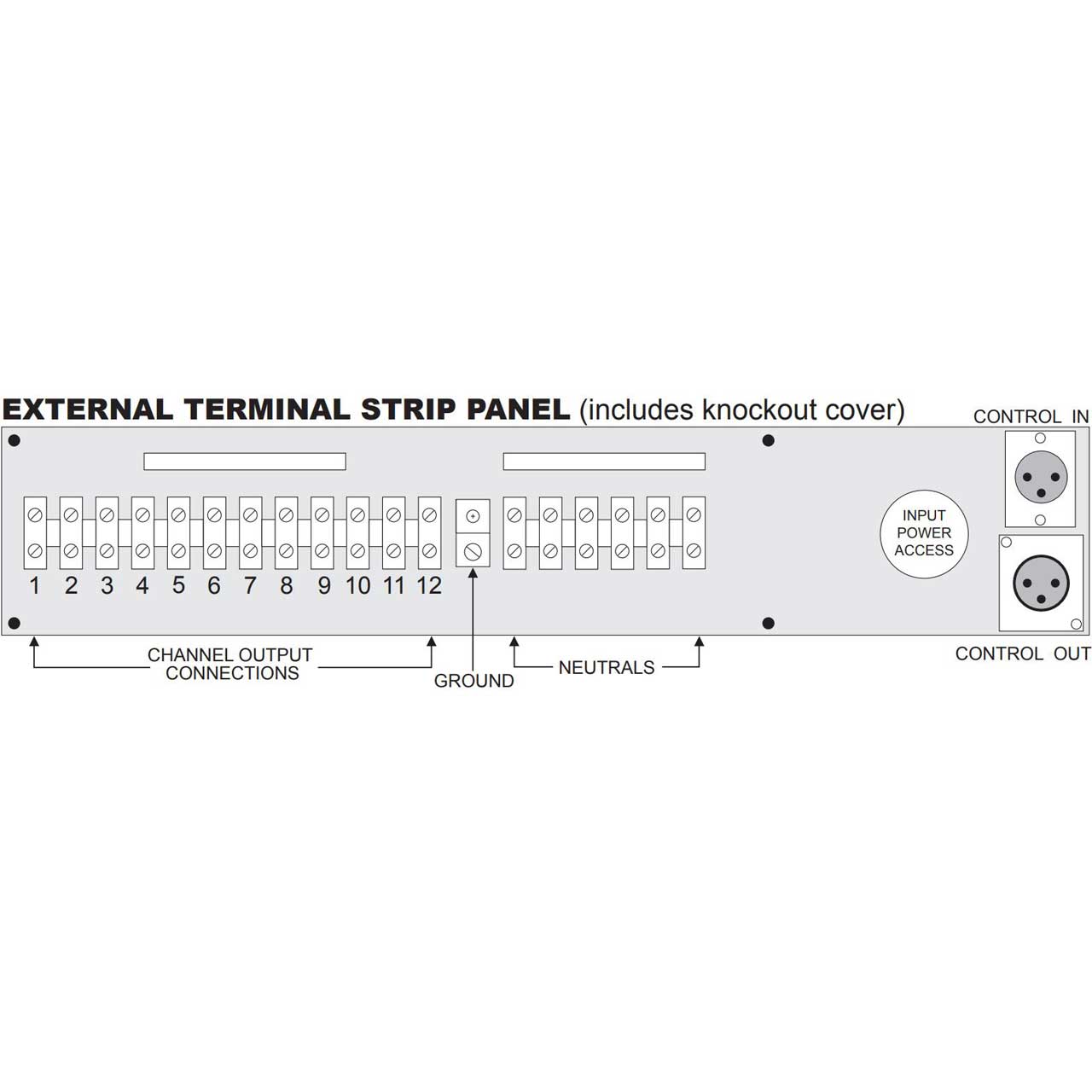

Please Note! The unit uses the DMX-512 5 pin XLR control protocol. Image is for reference only. You will receive 5 pin XLR connections rather that 3 pin shown in the diagram.
