Lightronics TX30 DMX-512 (5 pin) Input to LMX-128 Output Converter

ITEM #: LGT-TX30 MFG #: TX30

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Lightronics
Free Shipping with $49 Minimum Order

List Price:

$333.00

Our Price:

$249.75

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

TX30 - Overview

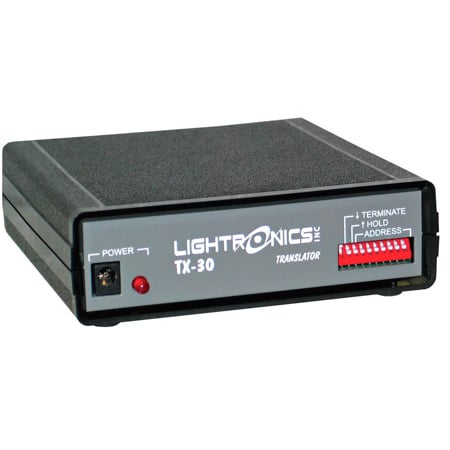

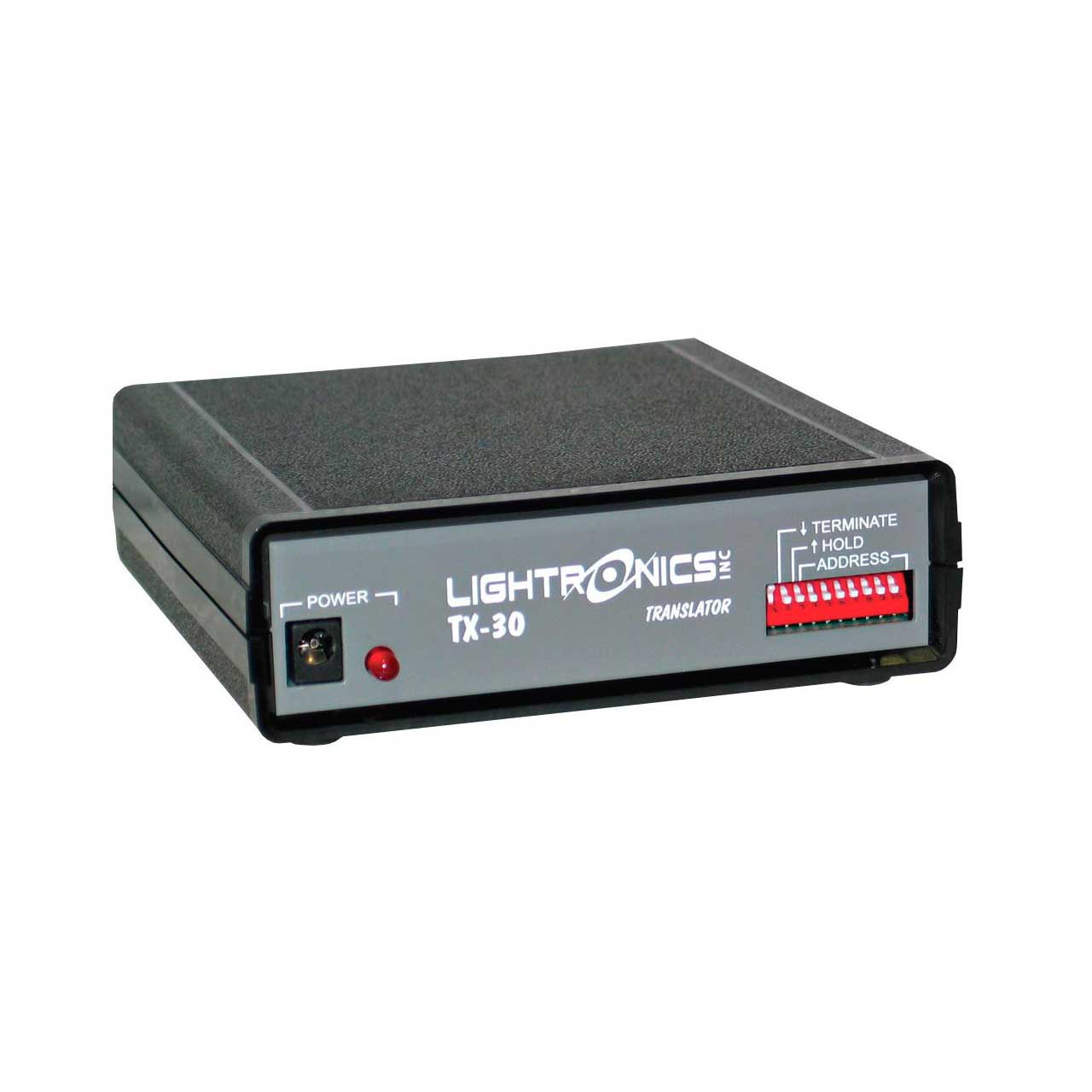

The TX30 is a very compact in-line translator which receives USITT DMX-512 signals and transmits the Lightronics (LMX-128) multiplex protocol. This is the industry standard multiplex protocol.

  • Features:

    • DMX-512 Input
    • LMX-128 Output
    • 192 Channels Out
    • Optional AMX-192 Output


  • Specifications:

    • Input Signal: DMX-512

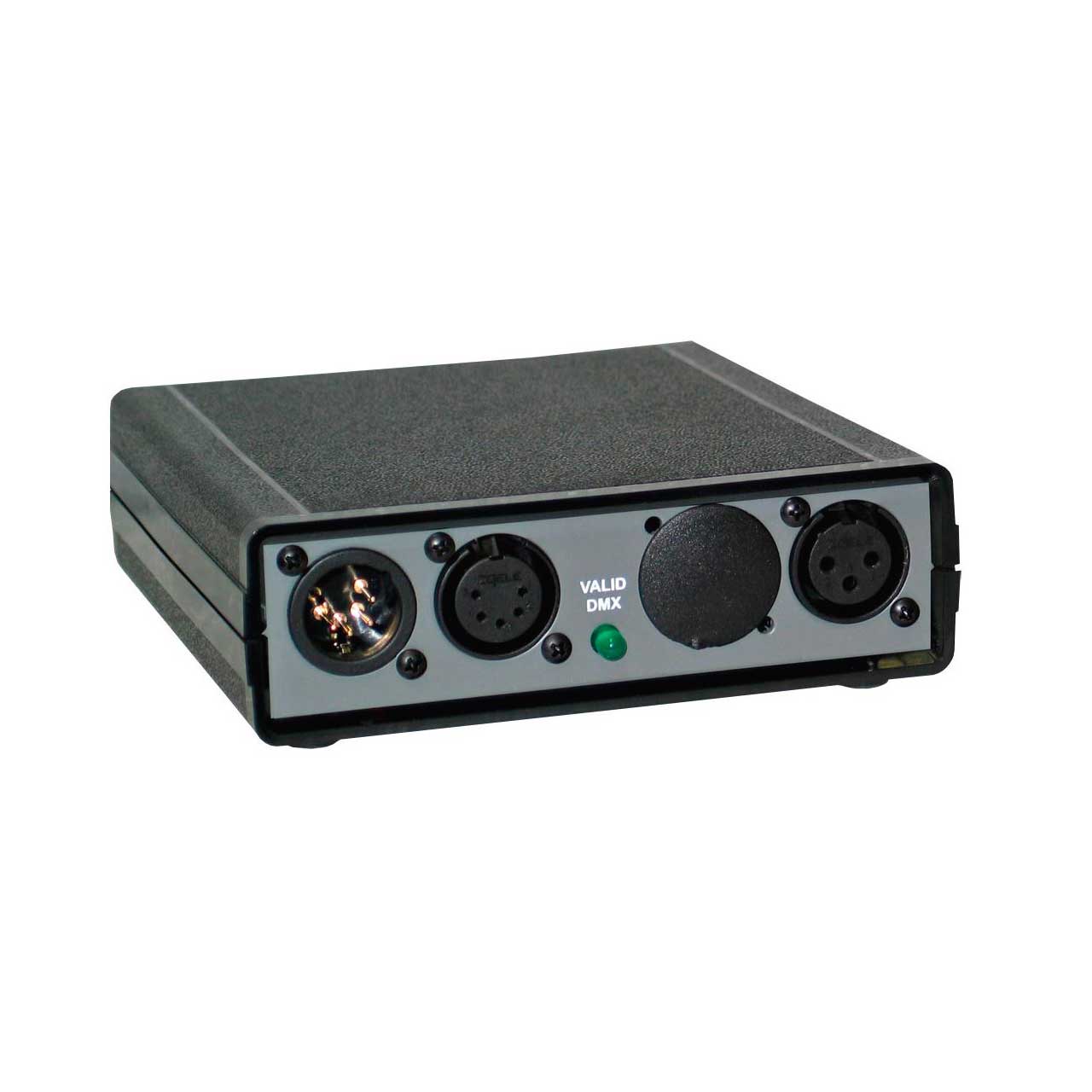

    • Input Connection: 5 Pin Male and 5 Pin Female Pass Thru
    • Output Signal: LMX-128 (192 channels)
    • Output Connection: 3 Pin Male XLR
    • Addressing: DIP Switch Selectable
    • Power Input: Phantom - from Dimmer(s)
    • Optional Power Input: 13VAC External Supply
    • Size: 5.125"W x 1.75"H x 5.25"D
    • Weight: 0.9 Pounds
