Lilliput FA1014/S 10.1 Inch 3G-SDI Production/Security Monitor with HDMI/VGA Inputs and I/O Interface

ITEM #: LIL-FA1014S MFG #: FA1014-S

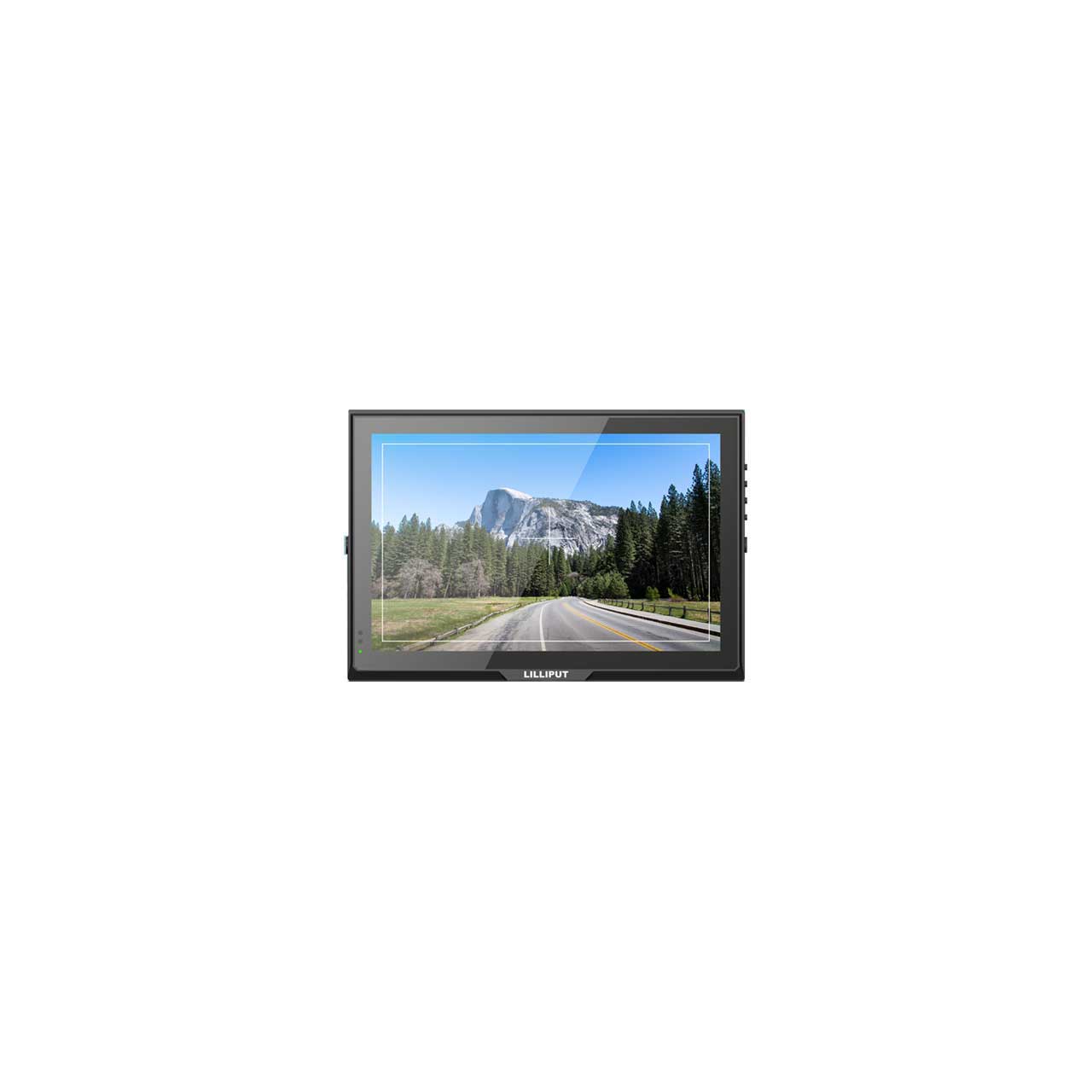

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$499.00

Our Price:

$479.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


FA1014-S - Overview

The Lilliput FA1014/S is a 10.1 inch 3G-SDI IPS monitor with HDMI, DVI, VGA and A/V inputs. Perfect for the great outdoors the FA1014/S has a cleverly engineered integrated front panel to help keep out dust and moisture. Lux Auto Brightness uses a light sensor to detect ambient lighting conditions and automatically adjust the panel's brightness. The 10.1 inch IPS display has a 1280x800 native resolution and twice the viewing area of a 7 inch monitor. Powerful, accurate images courtesy of 800:1 high contrast and 350 cd/m2 high brightness are combined with 170 degree vertical and horizontal viewing angles. The I/O interface expands the possibilities allowing you to trigger for computer control and the screen is touch capacitive.

  • Features:

    • High contrast: 800:1
    • High brightness: 350cd/m²
    • Lux auto brightness
    • Integrated dustproof front panel
    • I/O control interface/ touch capacative
    • 3G-SDI, HDMI, DVI, VGA & AV inputs
    • Controls: Brightness, Contrast, Saturation, Tint, Sharpness, Volume, Color Temp, Center Marker, Safety Marker, Aspect Ratio, H/V delay, Check Field, Pixel-to-Pixel, Underscan, Zoom, Freeze Input, Auto, H-Position, V-Position, Phase, Clock, Language, Reset, Backlight, Auto Light, Image Flip, Upgrade

  • Specifications:

    • Display Screen 10.1" LED IPS
    • Resolution 1280 x 800, suport up to 1920 x 1080
    • Aspect Ratio 16:9
    • Contrast Ratio 800:1
    • Brightness 350cd/m2
    • Viewing Angle 170°/170° (H/V)
    • Input Signal 3G-SDI, HDMI, VGA, AV & DVI (optional)
    • Output Signal 3G-SDI, HDMI (optional)
    • I/O port 1
    • Speaker 1
    • Input Voltage DC 7-24V
    • Battery External (optional)
    • Current 800mA
    • Power Consumption 12W
    • Audio Output 1W
    • Operating Temperature 0 to 50 degrees
    • Storage Temperature -20 to 60 degrees
    • Dimension(LWD) 250x170x32.3 mm
    • Weight 660g

  • Item Includes:

    • Monitor x1
    • Gimbal bracketx1
    • HDMI A/C cable x1
    • Mini XLR & TALLY cable x1
    • 12V DC adapter x1
    • Shoe mount x1
    • Video output cable x1
    • Composite cable x1
    • VESA battery plate x1
    • Battery Plates F-970 ,LP-E6,DU21,QM91D
    • Mount plate bracket x1
    • Remote control x1
    • Manual x1

  • GTIN:

    6950821601099
