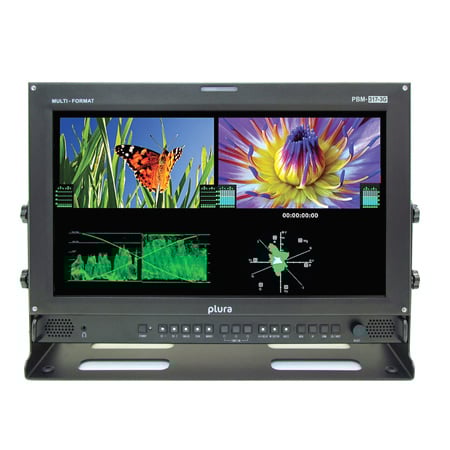

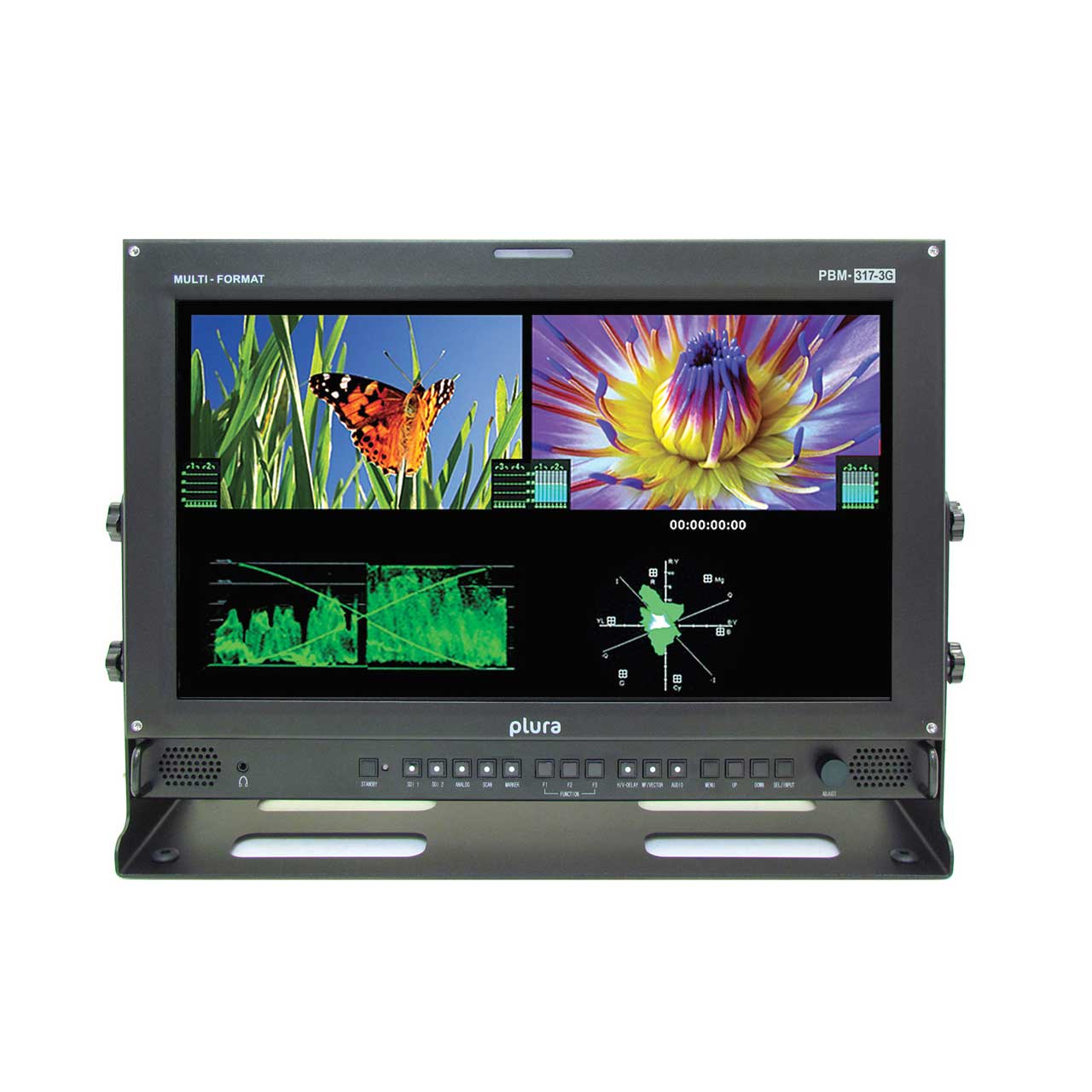

Plura PBM-317-3G 17 Inch 3G Broadcast Monitor (1920x1080) Class A- 3Gb/s Ready

ITEM #: PLUR-PBM-317-3G MFG #: PBM-317-3G

Primary Image
Plura Broadcast, Inc.
Free Shipping with $49 Minimum Order

List Price:

$3,149.00

Our Price:

$2,834.10

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

PBM-317-3G - Overview

Built-In Waveform, Vector and Closed Caption Decoding!

Plura PBM-3G Series offers an elegant slim design with fast response time for smooth videostreaming in 7", 17", 20", 24", 32", 40", 46" & 55" display sizes, native full HD resolution with high contrast ratio, wide viewing angles, accurate color reproduction and quality picture consistency that meets your HD SD Monitoring application.

It features intelligent connection for Calibration Alignment and Adjustable Colormetry and Gamma Correction. Multiple monitors can be controlled by a centralized Wall control system which can be utilized to connect different size monitors in any combination.

PBM-3G Series also provide many powerful display functions such as Powerful Dual 3Gb/s input display. Auto Calibration. Advanced Waveform. Vectorscope. Closed Caption (708/608) or Teletext 801 & Subtitle OP-47 for North American or Australian markets respectively. VPID. IMD. UnderScan/ZeroScan/OverScan/Zoom. 1:1 Pixel mode. PIP PAP. Various Digital Audio Metering Scales Digital Audio Decoding. Built-In Speaker. Time Code Display. Tally Lamp and Wall Control System

  • Features:

    • 3Gb/s ready - 1080/60P
    • Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
    • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s).
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards.
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
    • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 10 Bit Digital Signal Processing
    • 178° Viewing Angle Display
    • Closed Caption (608/708)
    • Color Temperature - User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K.
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Advanced Waveform (Y.Cb.Cr.selectable), Vector Scope
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Built In Stereo Speaker , 16 CH Audio Metering Display
    • IMD & Time code display and Wall Control System
    • Pixel to Pixel Mode, Tally, DC Operation
    • Underscan/ Overscan/ Normal / Zoom
    • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control.
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System).
    • OPTIONS: Battery Mount (PBM-217-3G, PBM-220-3G), Carry Case, Rack mount: (PBM-217-3G, PBM-220-3G & PBM-224-3G)


  • Specifications:

    • Input:
    • SD-SDI Input: 2EA, HD/SD Serial Digital , 3G/1.485G/270M ,BNC Jack.
    • Analog Input: 3EA, Composite, Component (YPbPr/RGB), BNC Jack
    • S-VIDEO Input: 1EA,YC (S-Video)
    • DVI/VGA Input: 1EA, DVI-I, 24-pin, Female
    • HDMI: 1EA, H DMI, 19-pin Female

      Output
    • SDI Output: 2EA, BNC, Active Through Output
    • Analog loop: Output 3 EA, 75Ω BNC

      Analog Input Level:
    • Composite 1.0Vpp (With sync)
    • YC (S-Video) 1.0Vpp (Y With sync), 0.286Vpp (C)
    • Component 1.0Vpp (Y With sync), 0.7Vpp (Pb/Pr)
    • RGB 1.0Vpp (G With sync), 0.7Vpp (R/B)
    • DVI - (Analog PC): H Frequency Range : 22-82KHz, V Frequency Range : 55-90Hz, Maximum Resolution : UXGA at 60Hz, Maximum Pixel Rate : 162MHz - Separate Sync Support.

      Digital Input Format:
    • SMPTE-428.1M 2048x1080P(24/25)
    • SMPTE-425M(3G): 1920x1080P(50/60)
    • SMPTE-260M: 1920x1035i(60/59.94)
    • SMPTE-274M: 1920x1080i (50/59.94/60), 1920x1080P (30Psf/25Psf/24Psf/30/25/24)
    • SMPTE-372M: Dual Link HD-SDI YPbPr(4:2:2): 1080P(50/59.94/60), Dual Link HD-SDI YpbPr/RGB(4:4:4), 1080P(30/29.97/25/24/23.98), 1080i(29.97/25/24/23.98), 720P(60/59.94/50), SMPTE-296M 1280x720P (50/59.94/60) , SMPTE-125M 480i(59.94) , ITU-R BT.601 576i(50)
    • Component 640 X 480 up to 1920 X 1080p
    • HDMI - DVI-I Digital: H Frequency Range: 22-82KHz, V Frequency Range : 55-90Hz, Maximum Resolution: UXGA at 60Hz. Maximum Pixel Rate 162MHz
