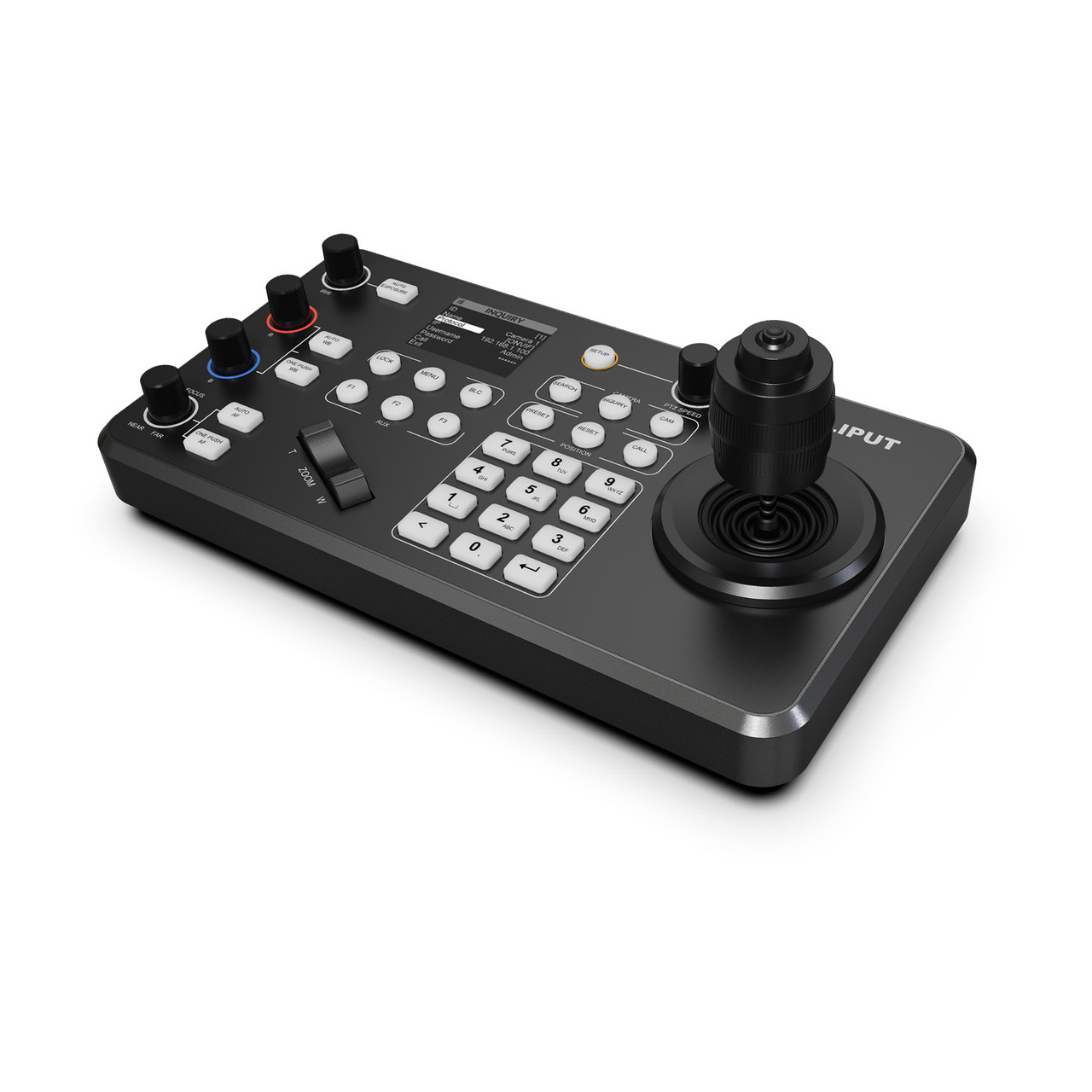

The Lilliput K1 controller offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
Camera Control Protocol

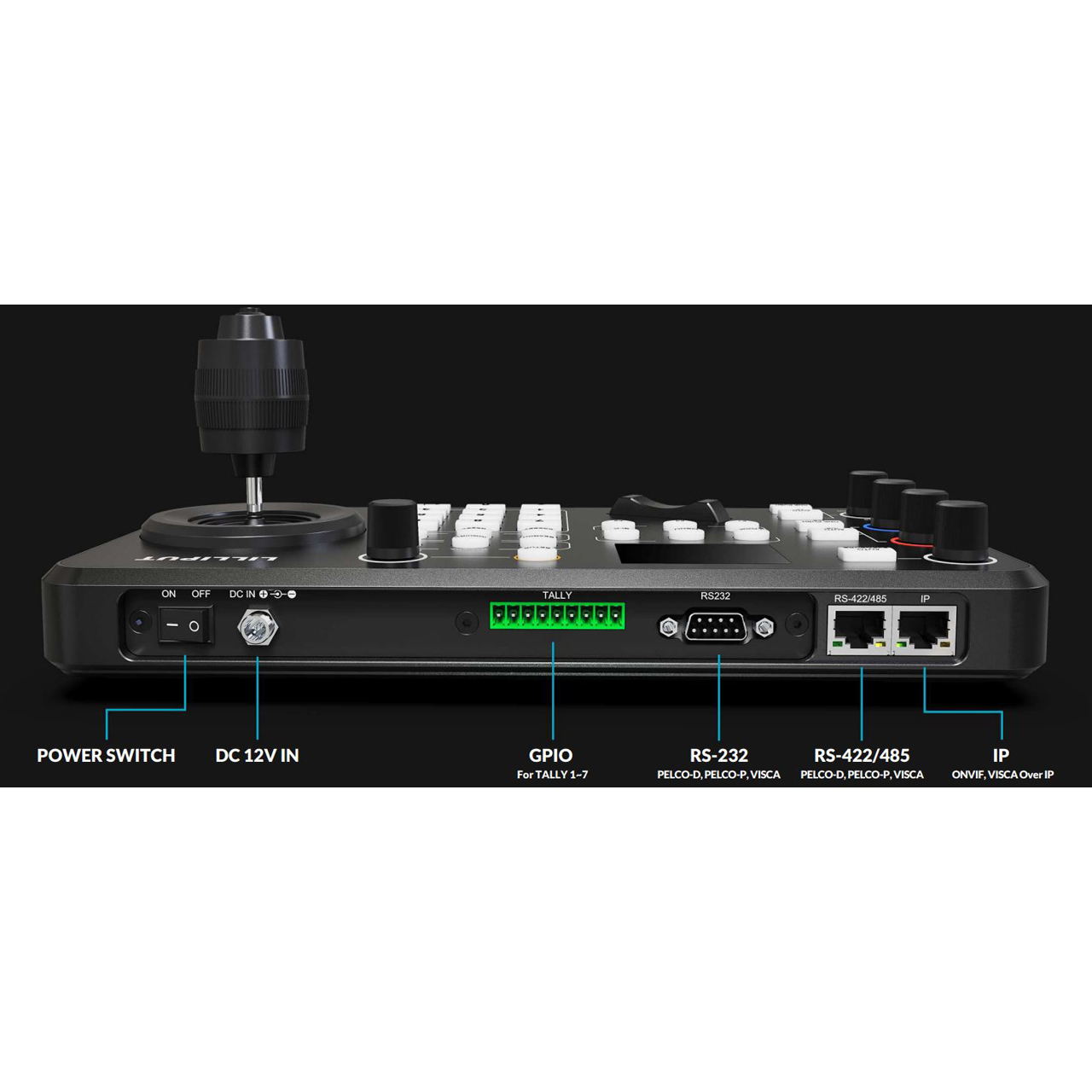

The controller has a variety of control interfaces including IP, RS-422/RS-485/ RS-232. The rich control interface makes it easy to match camera connections of different interfaces. It offers cross protocol mix-control on one controller operating Protocol by VISCA, VISCA Over IP, and Pelco P&D, as well as ONVIF. Control multiple different PTZ camera brands simultaneously, including LILLIPUT, AVMATRIX, HuddleCamHD, PTZOptics, Sony, Bird Dog, and NewTek.

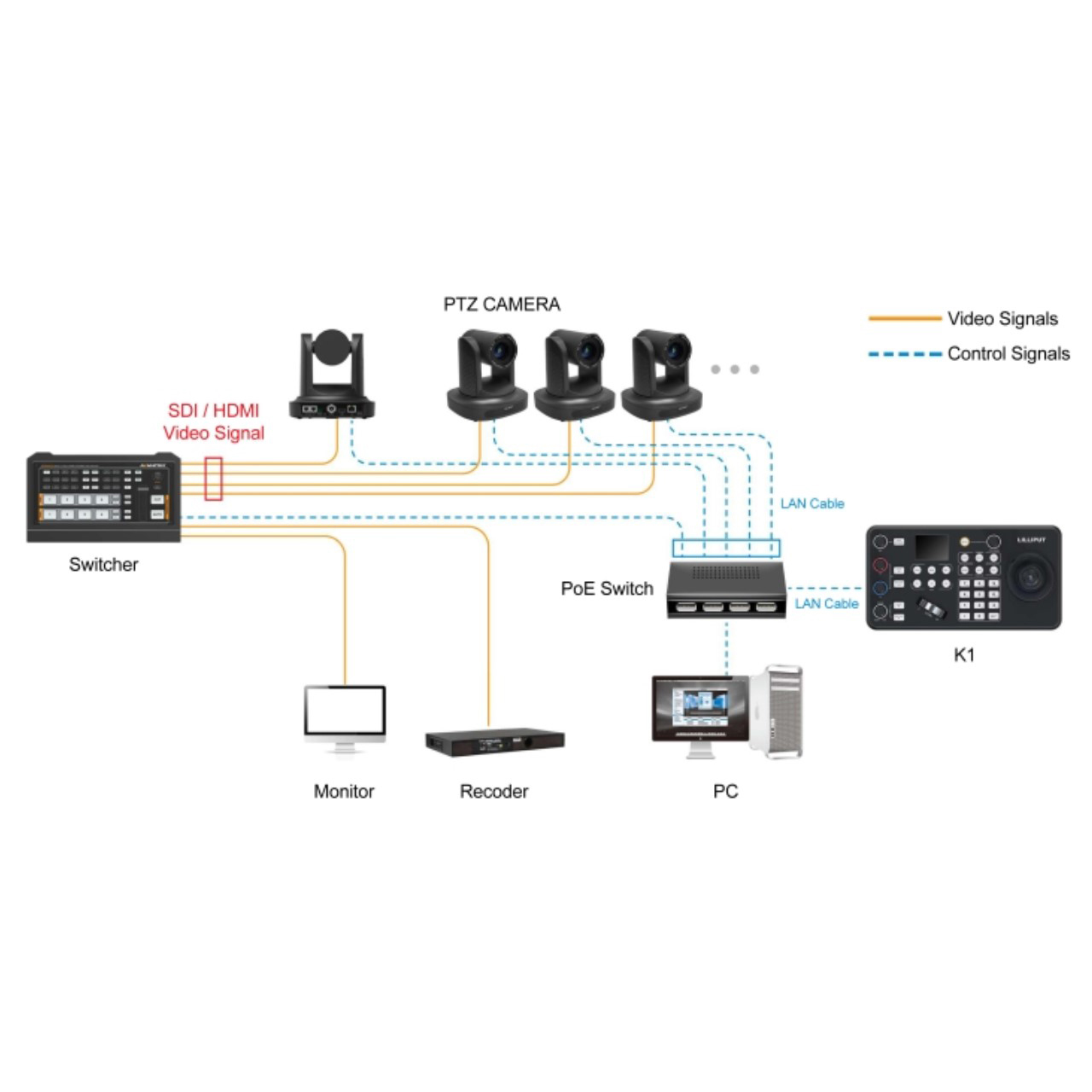

IP control is a very intelligent and convenient control mode. With IP control, automatically search available IP cameras in the network and assign IP addresses easily. IP control supports ONVIF, Visca Over IP.
RS-232, RS-422, and RS-485 communication support protocol such as PELCO-D, PELCO-P, VISCA. Any device on the RS485 bus can be individually configured with different protocols and baud rates.

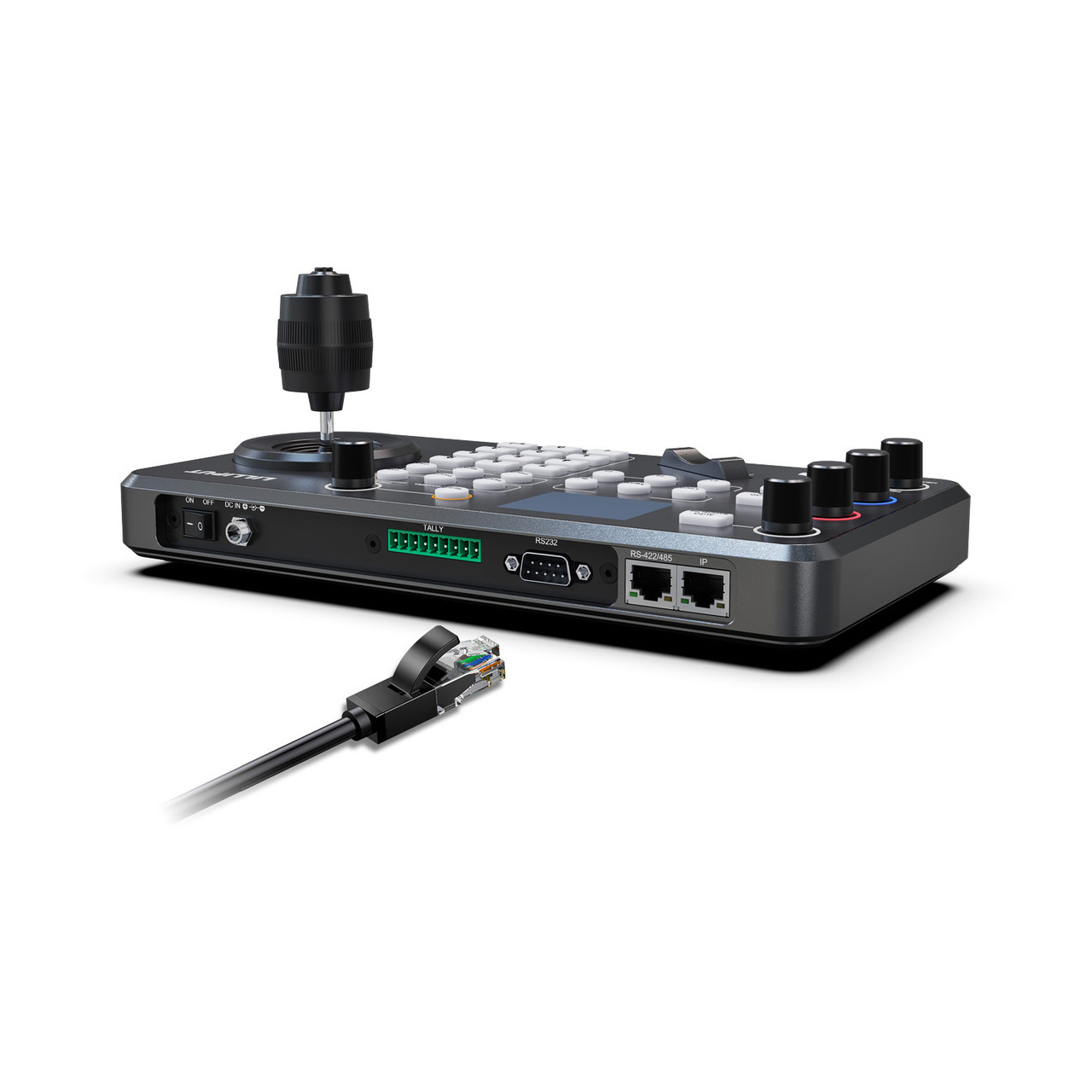

Power-over-Ethernet (PoE) & DC Power supply
Control up to total of 255 IP cameras on a single network with PoE support. You can use not only traditional DC power supply but also POE power supply to set up in various locations.
Aluminum Alloy Body
Aluminum alloy anodized fuselage, upgrade the product grade, and ensure the heat dissipation and stability of equipment.
Bracket Design
Easy installation and flexible application. This controller designed with a detachable bracket design.
