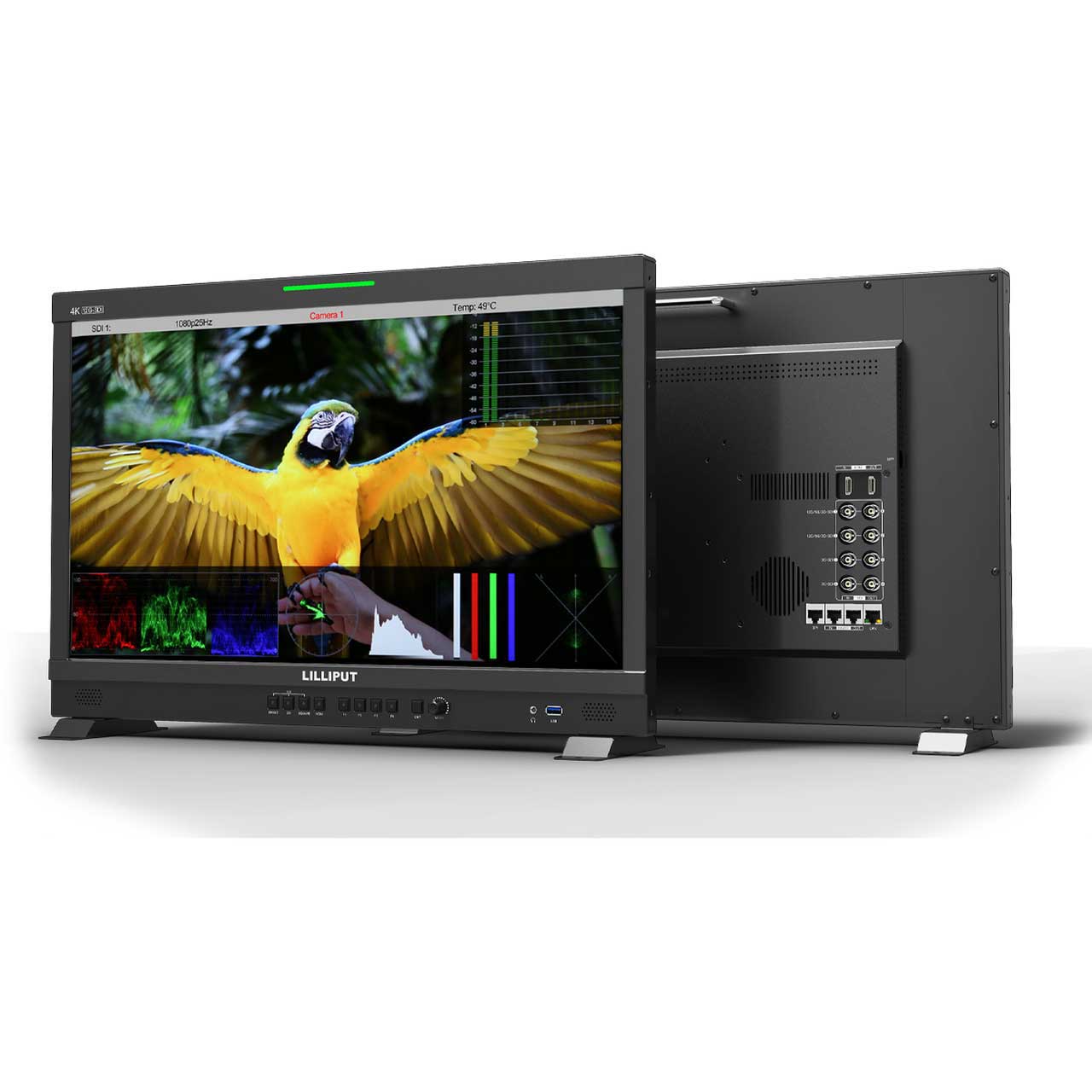

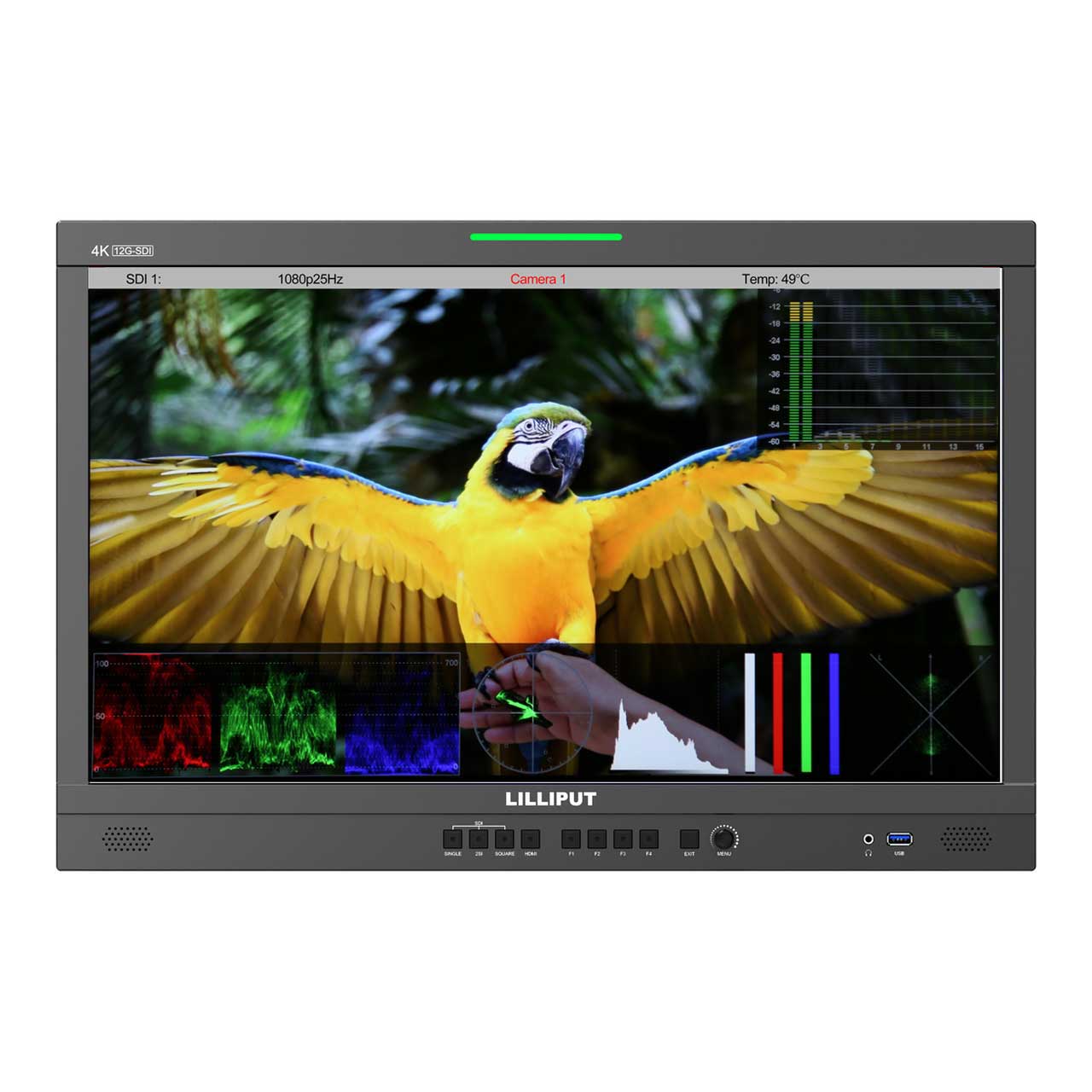

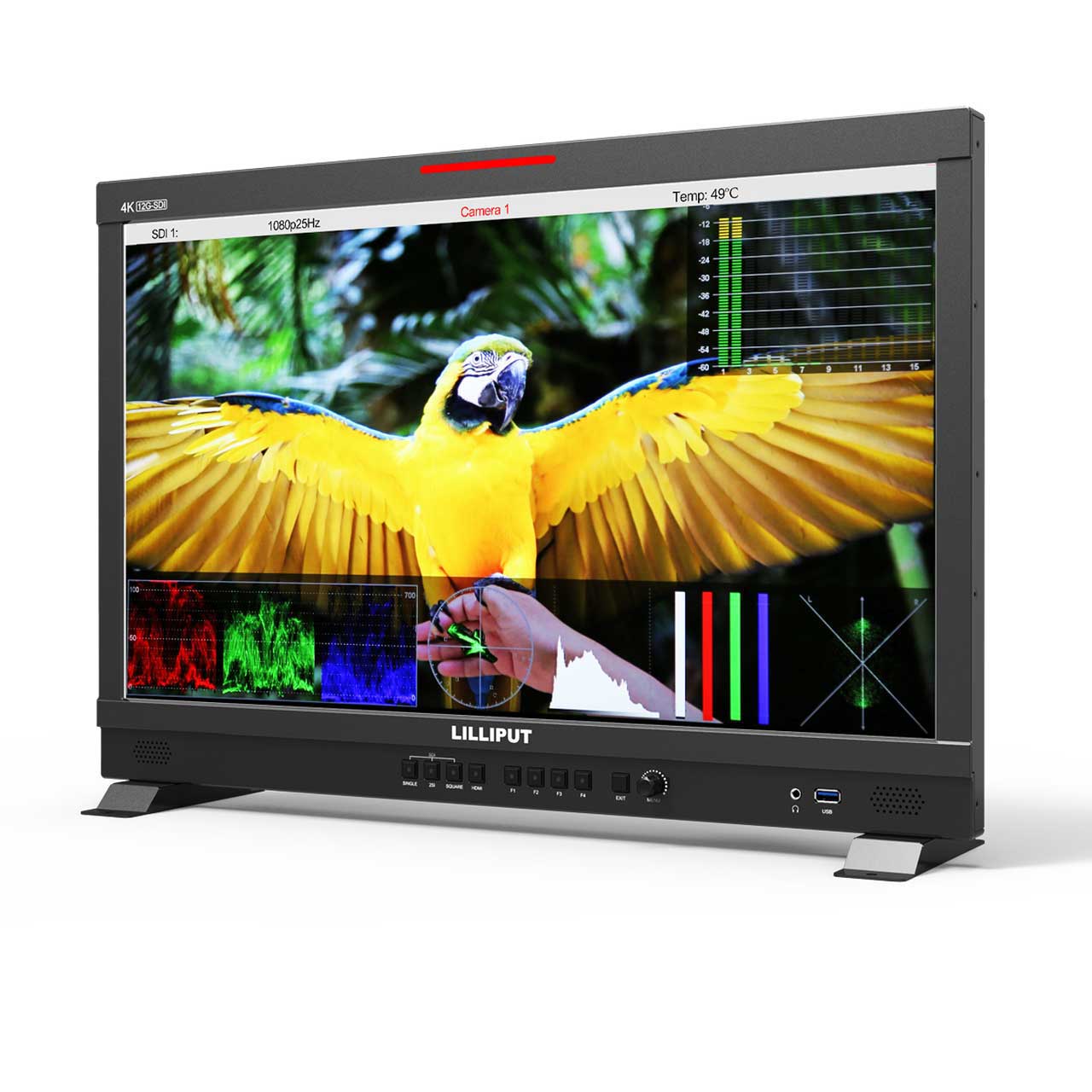

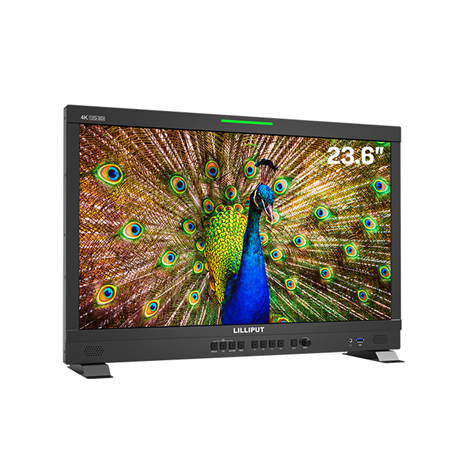

The Lilliput Q24-ABBP Is a 23.6 Inch Broadcast Production Studio Monitor with an Anton Bauer Mount for professional camcorder & DSLR Application.
12G-SDI / 4K HDMI Signal

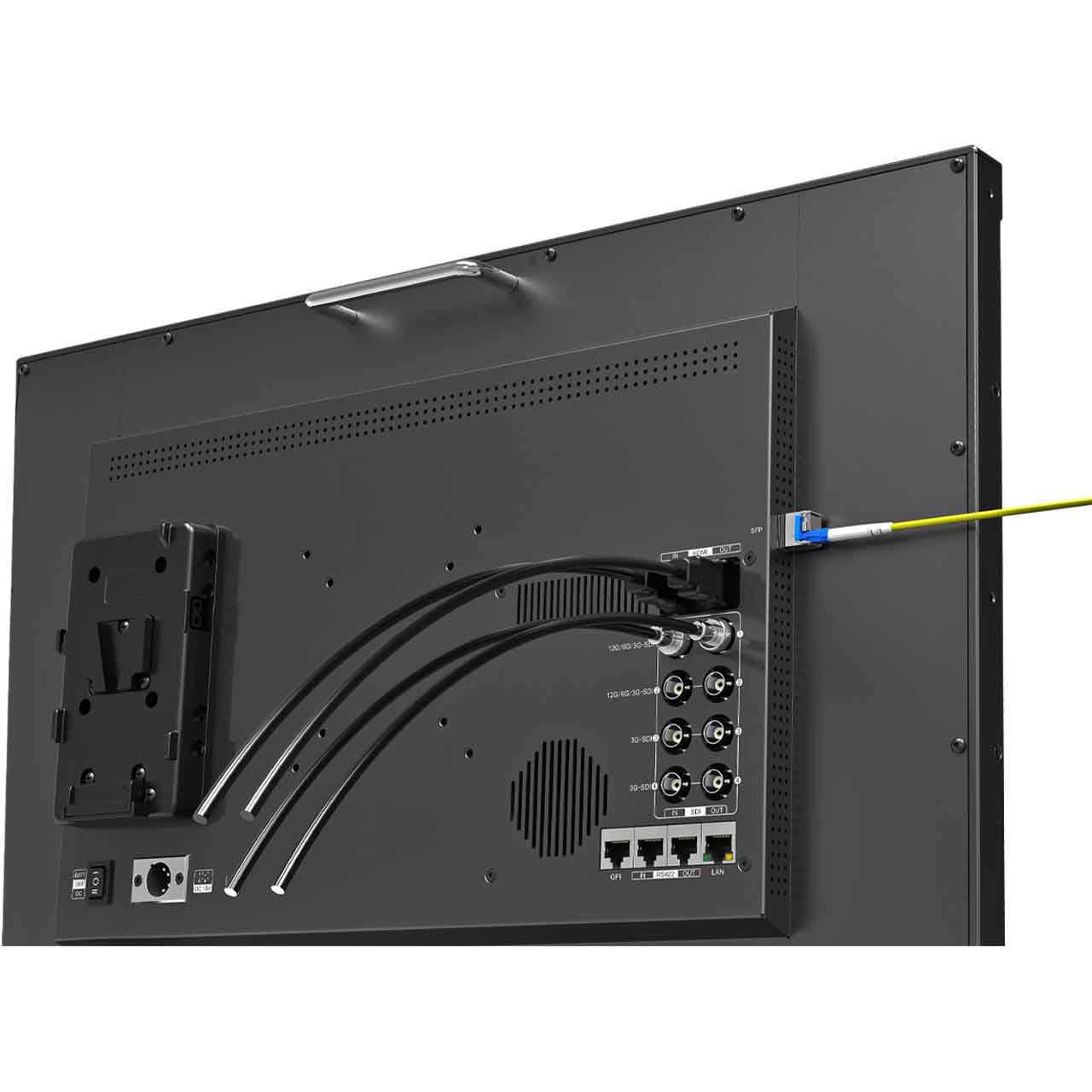

12G-SDI, 4K HDMI, 12G SFP+ and other signal transmission methods are integrated into this display, to avoid being lost in the choice question for video signals. Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096 x 2160 (60p, 50p, 30p, 25p, 24p) & 3840 x 2160 (60p, 50p, 30p, 25p, 24p) signal. 12G SFP+ interface, which allows to transmit 12-SDI signal via SFP optical module, is suitable for most broadcast field.
Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.
Gammas
Gamma redistributes tonal level closer to how our eyes perceive them. Since Gamma value is adjusted from 1.8 to 2.8, more bits would be left to describe the dark tones where the camera is relatively less sensitive.
Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.
Audio Vector (Lissajous)
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It is used to test the phase of mono audio signal and phase relationships depends on its wavelength. Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.
HDR
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearly. Effectively enhancing the overall picture quality. Support ST2084 300 / ST2084 1000 / ST2084 10000 / HLG.
