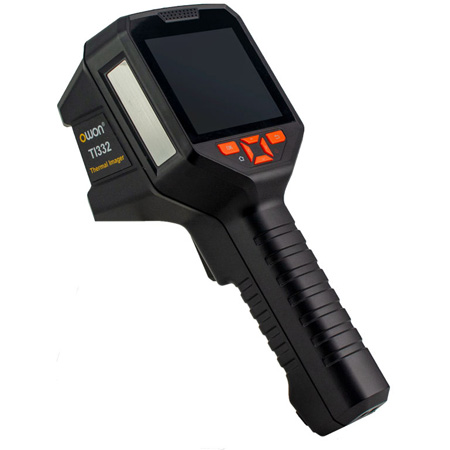

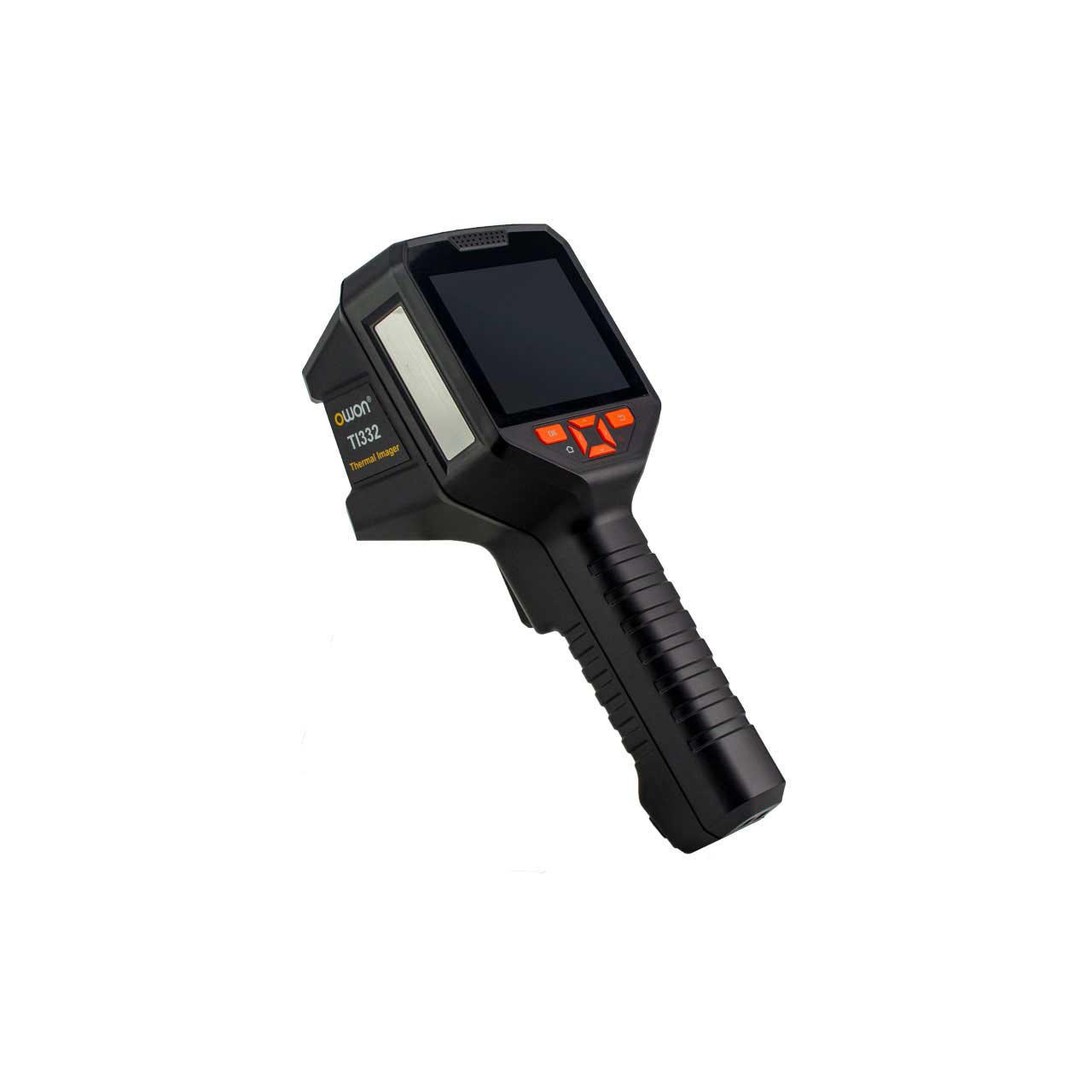

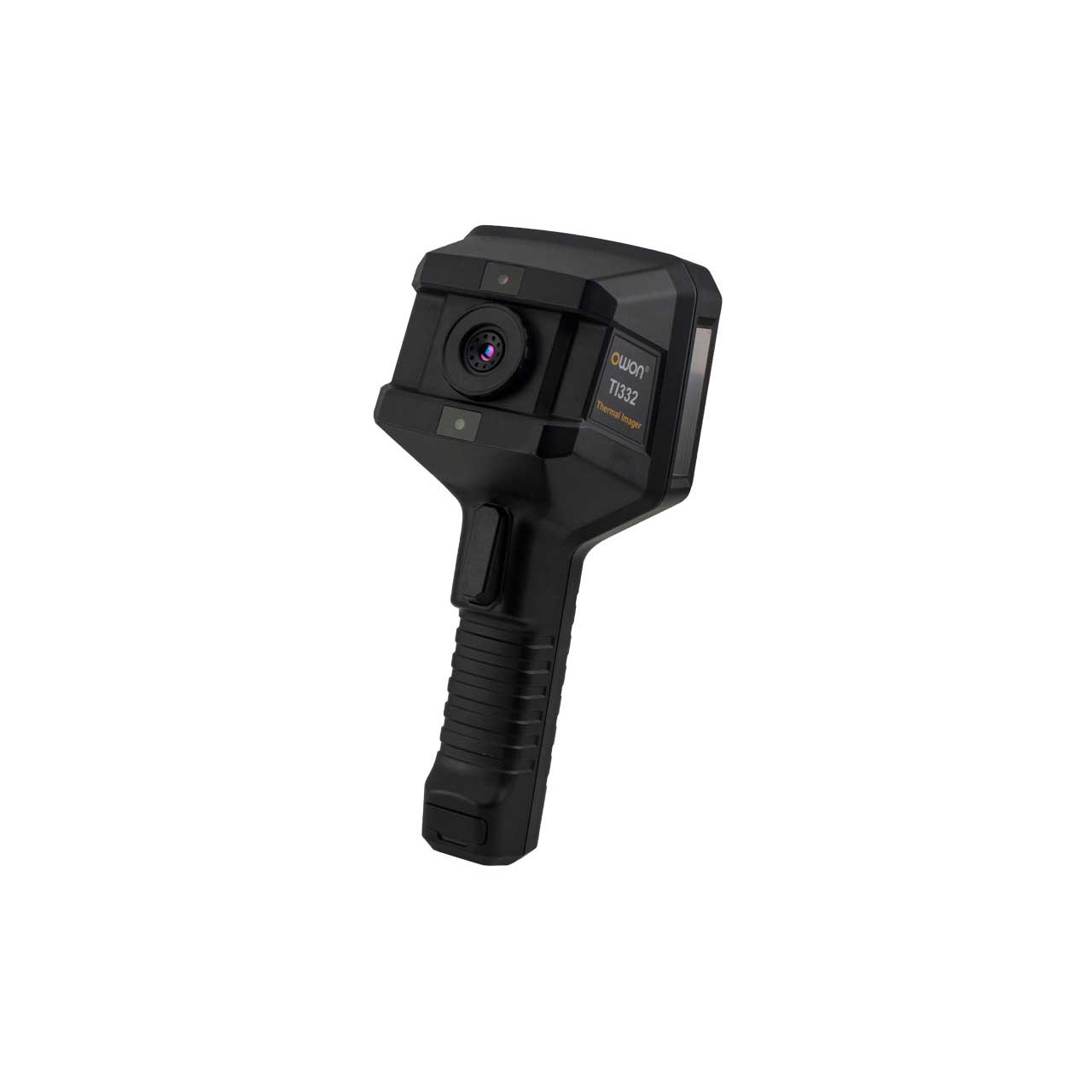

OWON TI332 Handheld Thermal Imaging Camera with WiFi & Quick Temperature Capture

ITEM #: LIL-TI332 MFG #: TI332

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$999.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TI332 - Overview

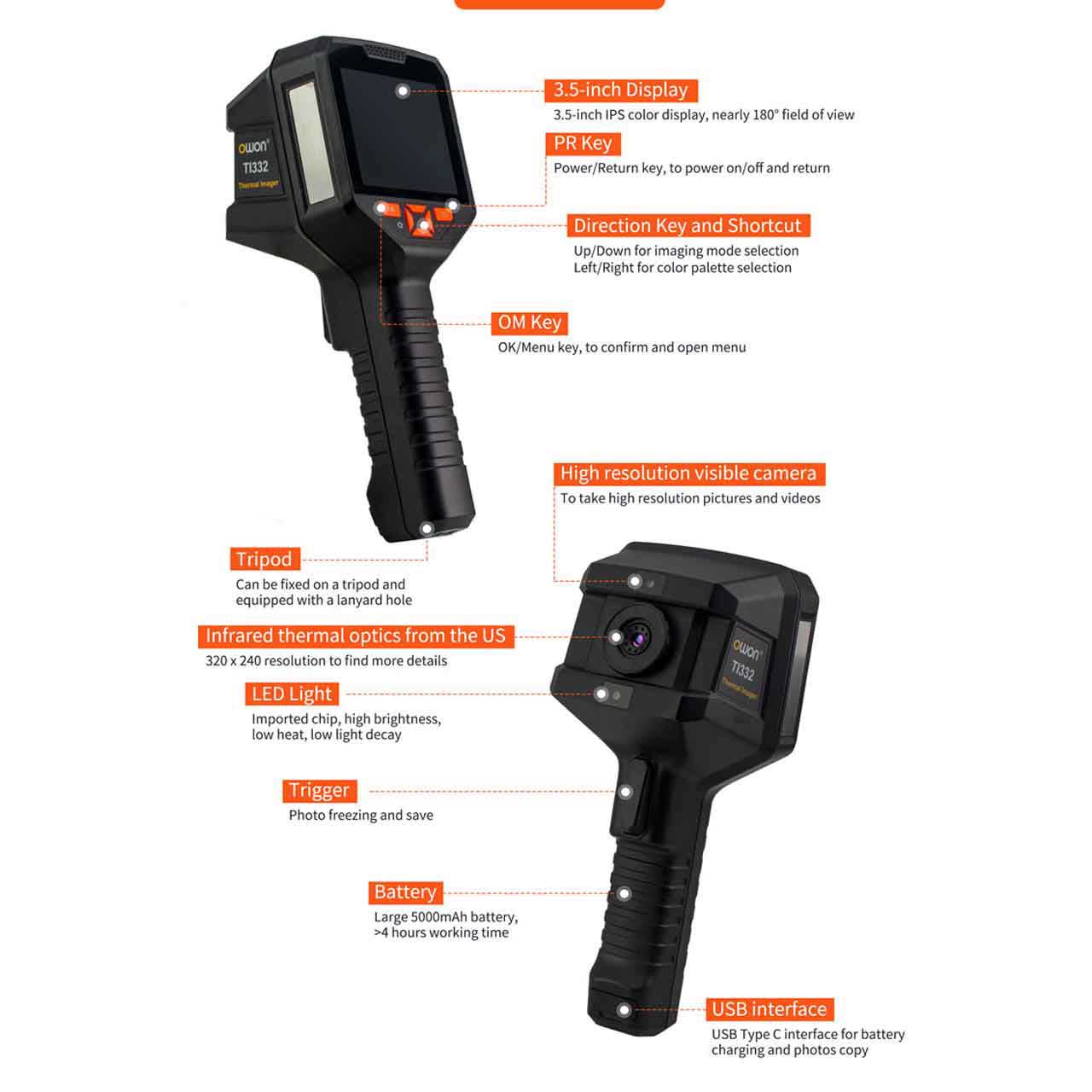

Owon TI332 is a handheld thermal imaging camera with a 3.5" color display. Infrared thermal imaging camera with 320 x 240 resolution and three fusion modes of visible and infrared. Has three image enhancement modes for different applications. Customized high and low temperature limit alarm. The computer analysis software meets more professional industry applications. With multiple measurement methods, let the temperature hide nowhere! 5 color palettes (Black Hot, White Hot, Rainbow, Iron, Enhanced Iron). In addition, there are several methods to export camera pictures -- When the thermal imaging camera is powered on, connect the camera's USB interface to the computer with the accessory's USB cable. A USB drive letter will appear on the computer. You can select the pictures to copy to the computer. Another method is when the thermal imaging camera is powered on, turn on WiFi, and copy the pictures of interest to the computer through the analysis software.

  • Features:

    • Infrared thermal imaging 320 x 240 resolution
    • Three fusion modes of visible and infrared

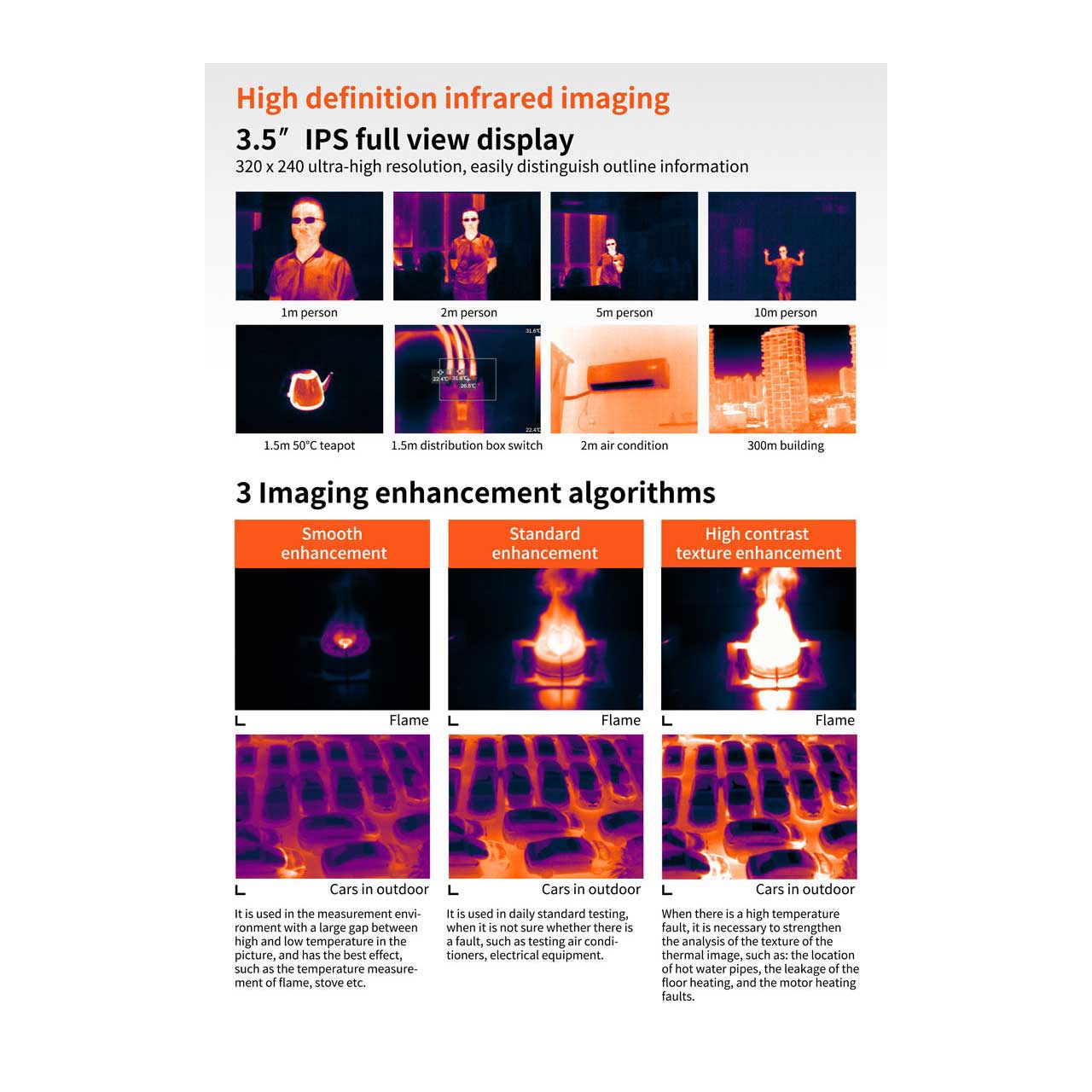

    • Three image enhancement modes for different applications
    • Customized high and low temperature limit alarm
    • Computer analysis software meets more professional industry applications
    • Multiple measurement methods, let the temperature hide nowhere
    • 5 color palettes (Black Hot, White Hot, Rainbow, Iron, Enhanced Iron)
    • Large internal memory can store up to 20,000 images
    • Temperature measurement range -20 °C to 350 °C
    • Emissivity adjustable (0.01-0.99), default 0.95
    • Image capture using three images storage for multi-view analysis 3.5-inch TFT LCD

  • Specifications:

    • General
    • Resolution: 320 x 240
    • Frame Rate: 9Hz
    • Lens: 6.5mm prime lens
    • Field of View: H:32 V:20
    • Lens: Horizontal field of view 66°
    • Light: LED light (torch)

      Temperature measurement
    • Accuracy: ±2°
    • Ambient Temperature: 14° to 626°F (-10° to 330°C)
    • Temperature Measurement Range: -4° to 662°F (-20° to 350°C)

      Device
    • Storage: 8G EMMC internal flash memory
    • Wi-Fi Function (Optional): Support 2.4G transmission, used to connect with computer
    • Communication and Charging: USB Type-C
    • Battery: Built-in 5000mAh Li-ion battery(last about 4 hours after charge fully)
    • Handheld Lanyard: Support
    • Display: 3.5-inch IPS full-color display
    • Weight: Approx. 1.10Lbs (500g)
    • Dimensions: 11 x 6 x 5"

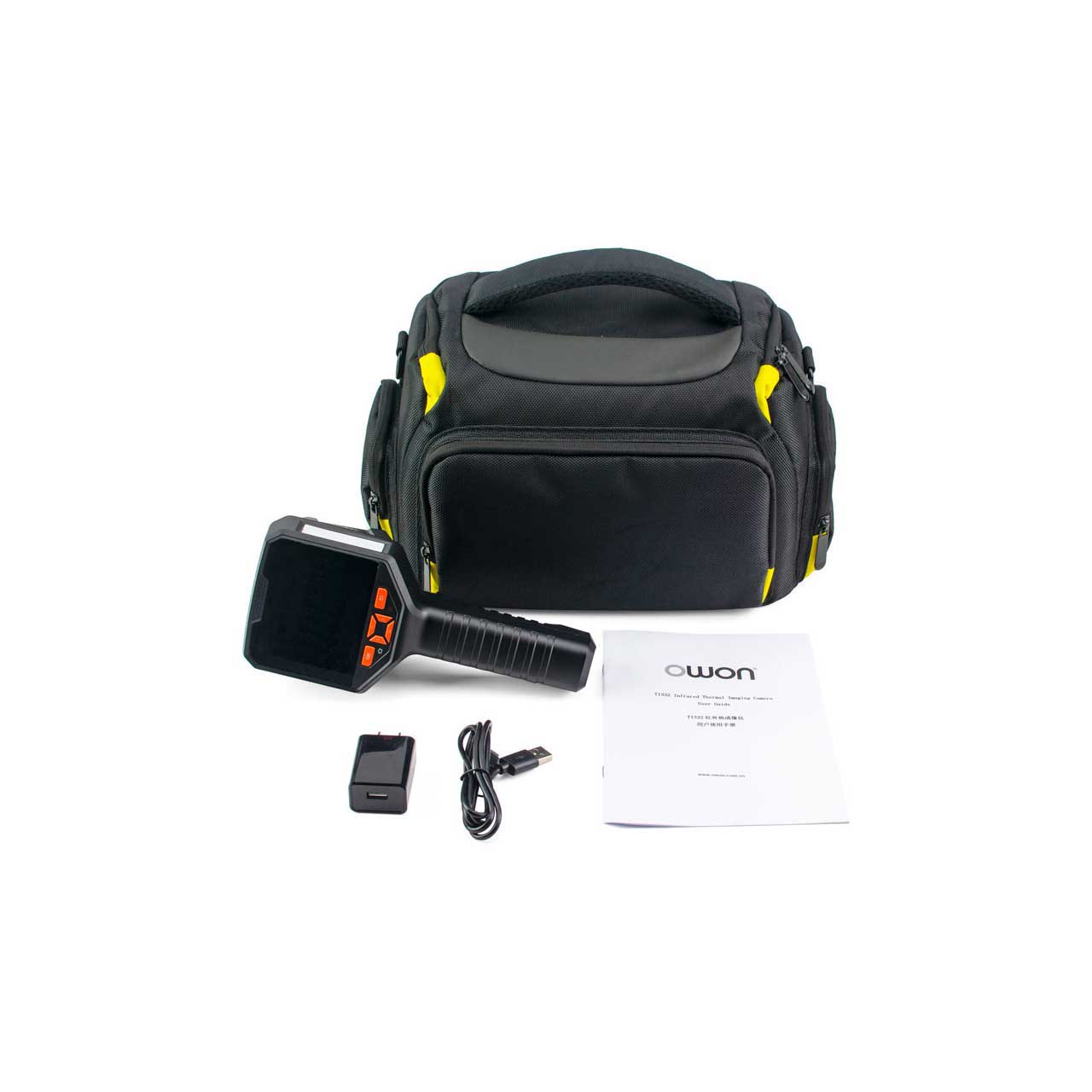

  • Item Includes:

    • 1x Quick Guide
    • 1x USB Cable
    • 1x Power Adapter
    • 1x Carrying Bag

  • GTIN:

    6955344401317
