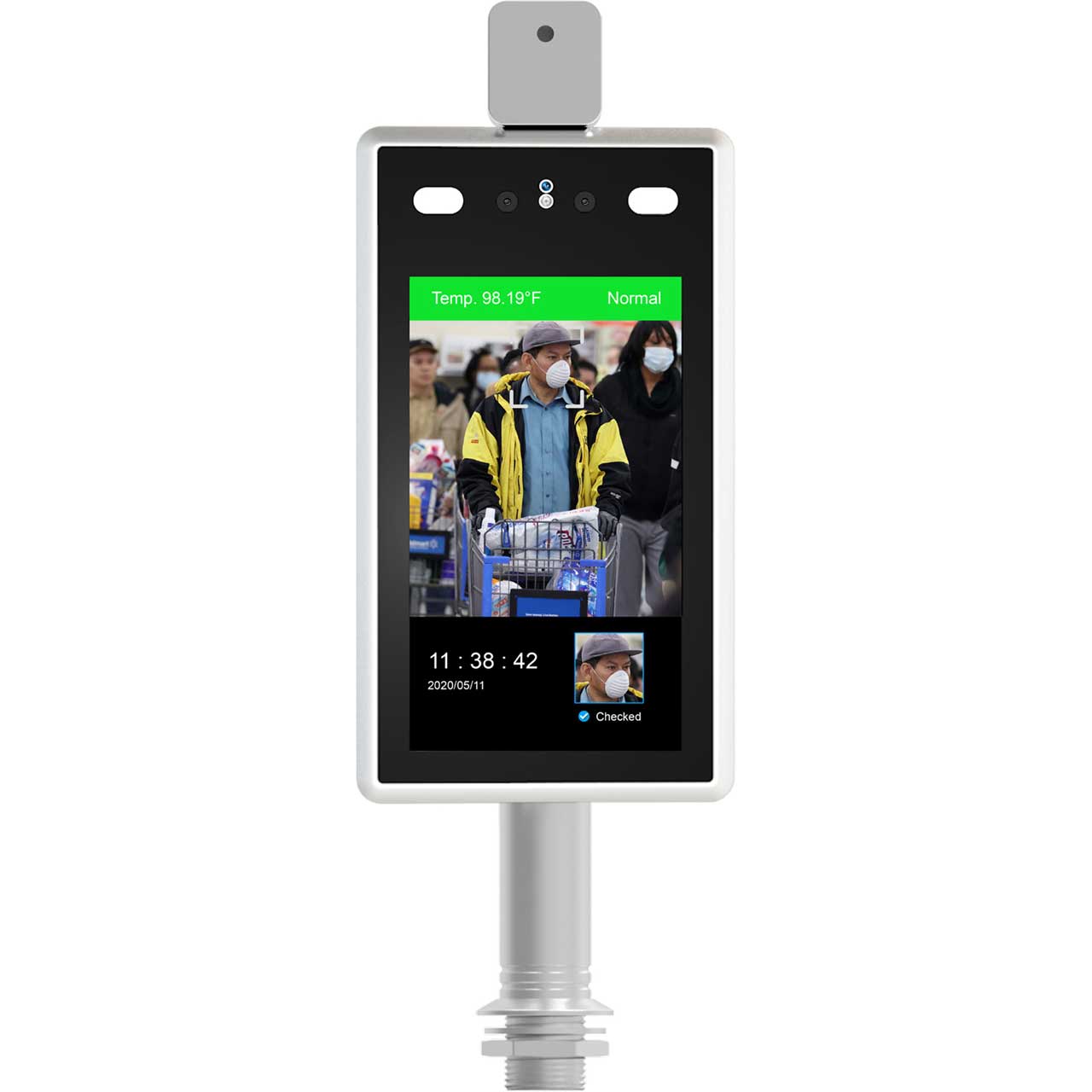

ViewZ VZ-7TIM-S 7inch HD Thermal Imaging -Temperature Sensor Camera & Monitor with Face Protection Detectio

VZ-7TIM-S - Overview

• Features:

  • Non-contact Automatic Face Temperature Detection Monitor
  • Temperature Measurement Range 86 to 113°F Accuracy ±0.54°F
  • Automatically Identifies Unmasked Personnel and Provides Real-time Warning
  • Registers and Records Information without the need of Manual Operation
  • Supports Mid-range Temperature Measurement and Real-time Warning at High Temperature
  • Unique Face Recognition Algorithm to accurately Recognize Faces
  • Face Recognition Time is less than 500ms
  • Supports Binocular Live Detection
  • Supports Wiegand Input / Output
  • Supports Alarm System
  • IP34 Dust & Water Proof


• Specifications:

  • Display
  • Screen Size: 7"

    Interface
  • Ethernet 10/100: 1
  • USB: 1
  • Wiegand: 26 Input / 34 Output
  • Alarm: 1-Channel (Relay Output)

    Face Recognition
  • Height: 3.93 to 7.2' (1.2 to 2.2m)
  • Distance: 1.64 to 6.56' (0.5 to 2m)
  • Recognition Time: <500ms
  • Viewing Angle: Ver.±40°
  • Function: Support 22,400 Face DB & 100,000 Records

    Temperature Recognition
  • Temperature Detection Range: 86° to 113°F (30° to 45°C)
  • Temperature Detection Accuracy: 0.54°F (0.3°C)
  • Distance: 0.98 - 2.62' (0.3 to 0.8m)
  • Response Time: <300ms

    Hardware
  • Chipset: Hi3516DV300
  • System: Linux OS
  • RAM: 16GB EMMC

    Camera
  • Camera Type: 2 Mega Pixel Binocular w/ Live Detection
  • Lens: 4.5mm
  • Image Sensor: 1/2.7" CMOS
  • Total / Effect Pixel: 1920(H) x 1080p
  • Min. lux:
    Color 0.01Lux @F1.2(ICR)
    B/W 0.001Lux @F1.2
  • SNR: ≥ 50 db (AGC Off)
  • WDR: ≥ 80 db

    Physical
  • Outline Dimension (WxHxD): 4.86 x 10.47 x 1.79" (123.5 x 266 x 45.5mm)
  • Weight:
    Product: 2.20Lbs (1kg)
    Shipping: 4.62Lbs (2.1kg)

    General
  • Power:
    Electrical Ratings: DC 12V, 3.0A (AC100~240V[50/60Hz])
    Consumption: 20W Max
  • Operating Temperature: 32° to 122°F (0° to 50°C)
  • Humidity: 5 to 90%, RH (non-condensing)


• Item Includes:

  • 1x VZ-7TIM 7" Mask Detection Temperature Measurement Monitor
  • 1x Stand Adapter
