Lilliput TK1019/T 10.1 In 1500 Nit Highbright Touch Screen Monitor - IP65 Rated Front Panel 1920x1200 - HDMI/VGA/USB-C

ITEM #: LIL-TK1019-T MFG #: TK1019/T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Lilliput Electronics
Free Shipping with $49 Minimum Order

List Price:

$309.00

Our Price:

$289.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

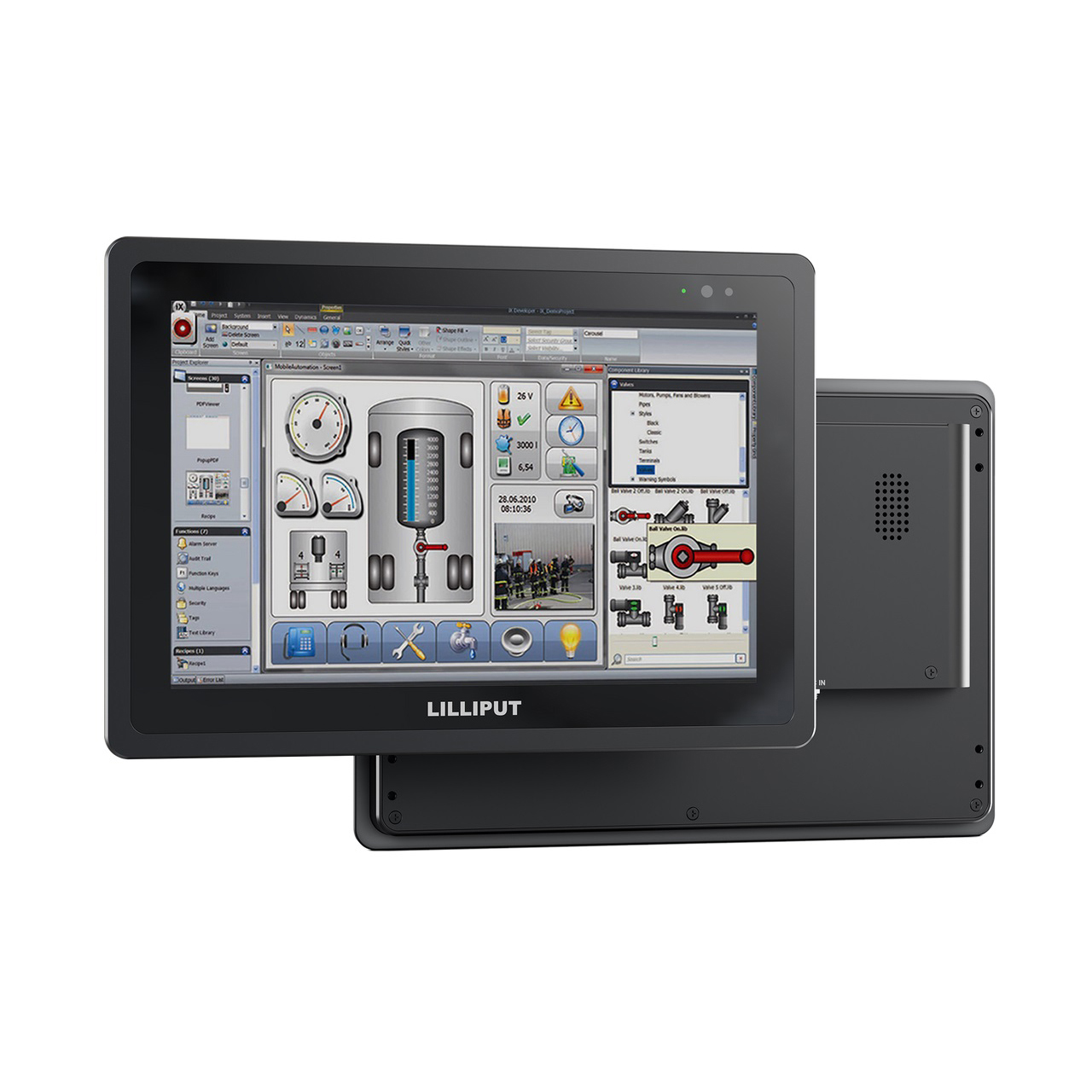

TK1019/T - Overview

1500 Nit High Brightness Industrial PCAP Touch Monitor with HDMI and VGA

The Lilliput TK1019/T is a 10.1 Inch 10-Point Touch IP65 Rated Panel with Lilliputs best-in-range 1920x1200 resolution 1500 nit high brightness screen. It's suitable for a wide range of outdoor industrial and commercial applications, the TK1019/T is ideal for use in a POI/POS, Kiosk, HMI or other industrial field-equipment setup. It can also be installed as either a desktop device for control centers, or as a second panel for a home PC system.

Meeting latest connectivity standards, it will connect by USB-C, as well as by HDMI - and in both of these modes it can accept up to a 4K 60Hz input. Need a legacy input? Lilliput has you covered with a VGA port, which will accept up to a 1080p signal.

  • Features:

    • 1500 Nit Highbright Touch Screen
    • IP65 Rated Front Panel
    • 1920 x1200 Resolution
    • Supports up to 4K @ 30fps with HDMI (1080p @60fps with VGA)
    • Autodimming Screen to Save Power
    • HDMI/VGA/USB-C Connections

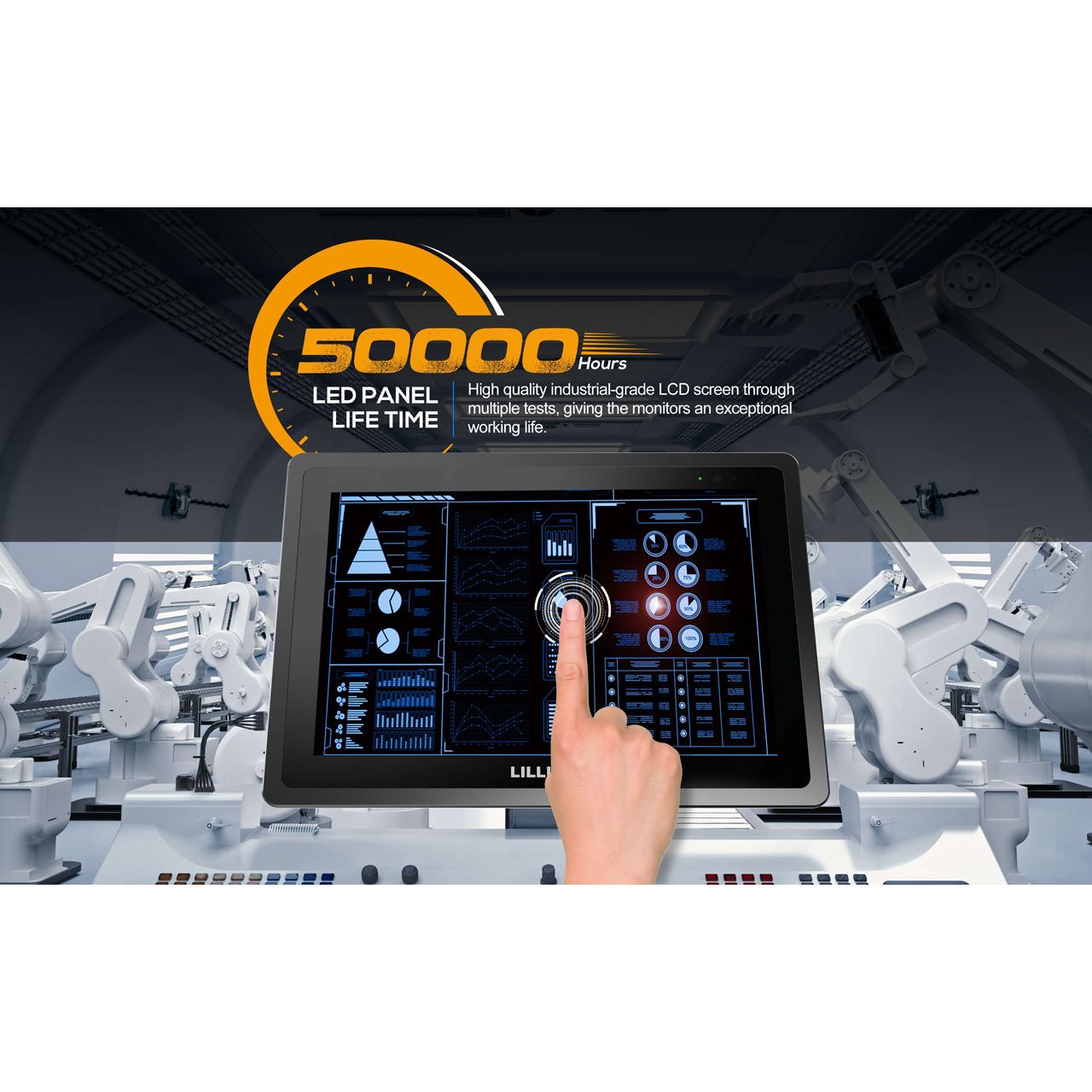

    • 50,000 Hour LCD Panel Life


  • Specifications:

    • Display
    • Touch Panel: 10-Point PCAP
    • Aspect Ratio: 16:10
    • Brightness: 1500 Nits
    • Contrast Ratio: 1000:1
    • Resolution: 1920 x 1200
    • Viewing Angle: 170°/170°
    • Screen Size: 10.1" LCD

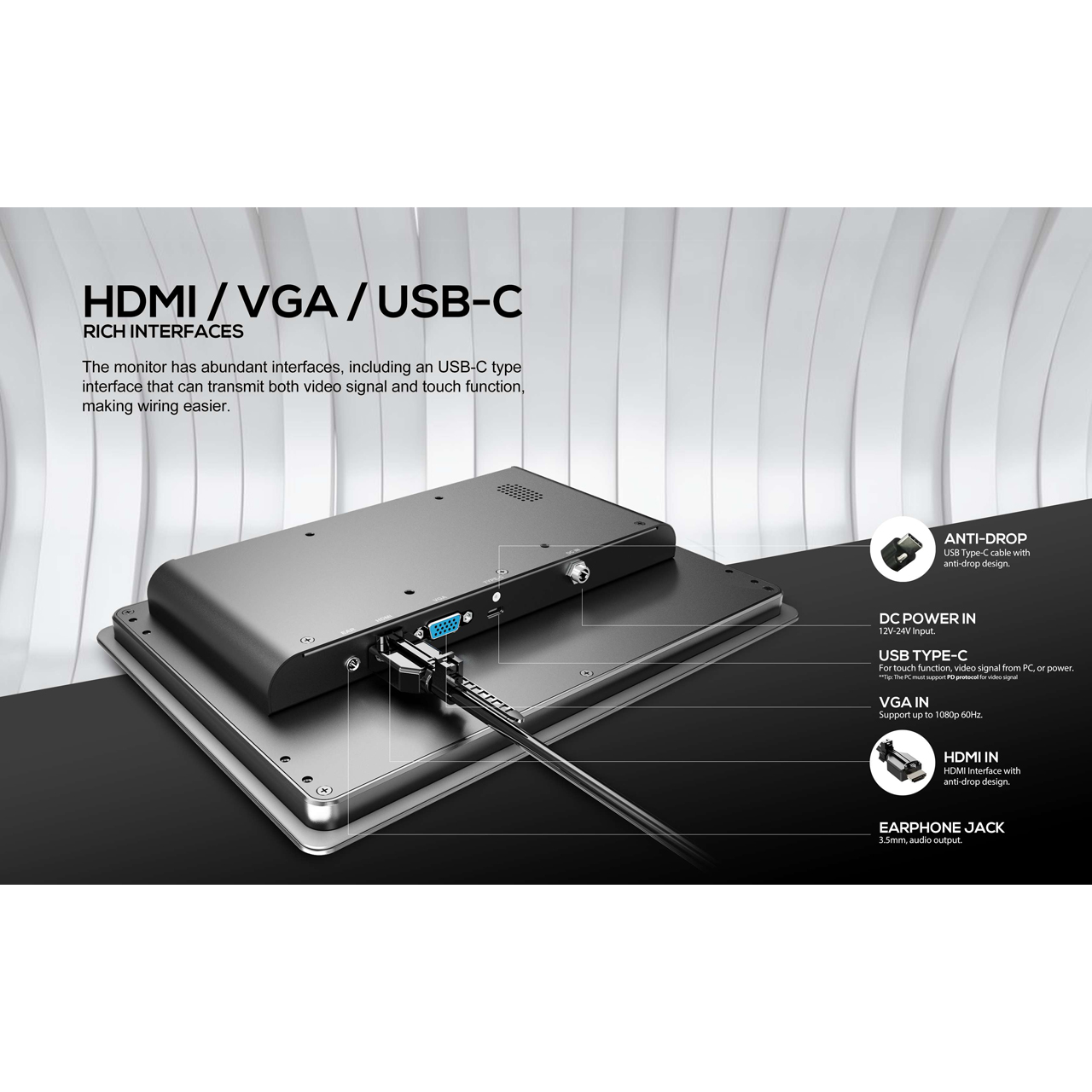

      Connections
    • HDMI Video Input: 1x
    • USB: 1x Type C
    • VGA Video Input: 1x

      Formats
    • USB Format: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50/30/25/24
    • HDMI Formats: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50/30/25/24
    • VGA Formats: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 60/50/30/25/24

      Power
    • Input Voltage: DC 12-24V
    • Power Consumption: <= 19W (12V)

      Environment

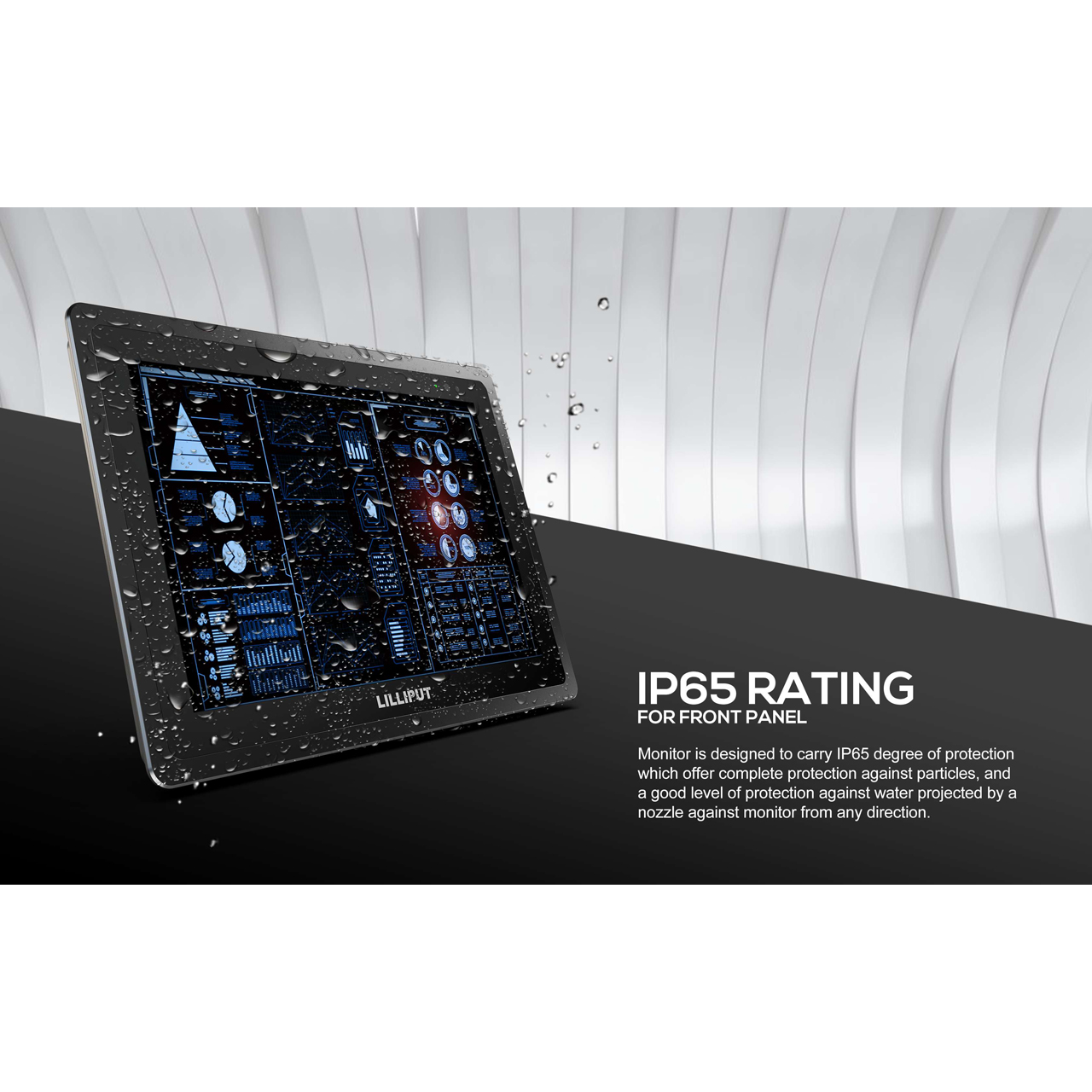

    • IP Rating: IP65 Front Panel
    • Operating Temperature: -4°F - 158°F (-20°C - 70°C)
    • Storage Temperature: -22°F - 176°F (-30°C - 80°C)

      Size
    • Dimensions: 10.3" x 7.2" x 1.4" (264mm x 183mm x 35.6mm)
    • Weight: 2.88lbs (1.31kg)


  • Item Includes:

    • 1x Lilliput TK1019/C 10.1" High Bright Monitor
    • 1x 12V 3A Power Adapter
    • 1x HDMI A to A Cable
    • 1x USB C to C Cable (With Screw)

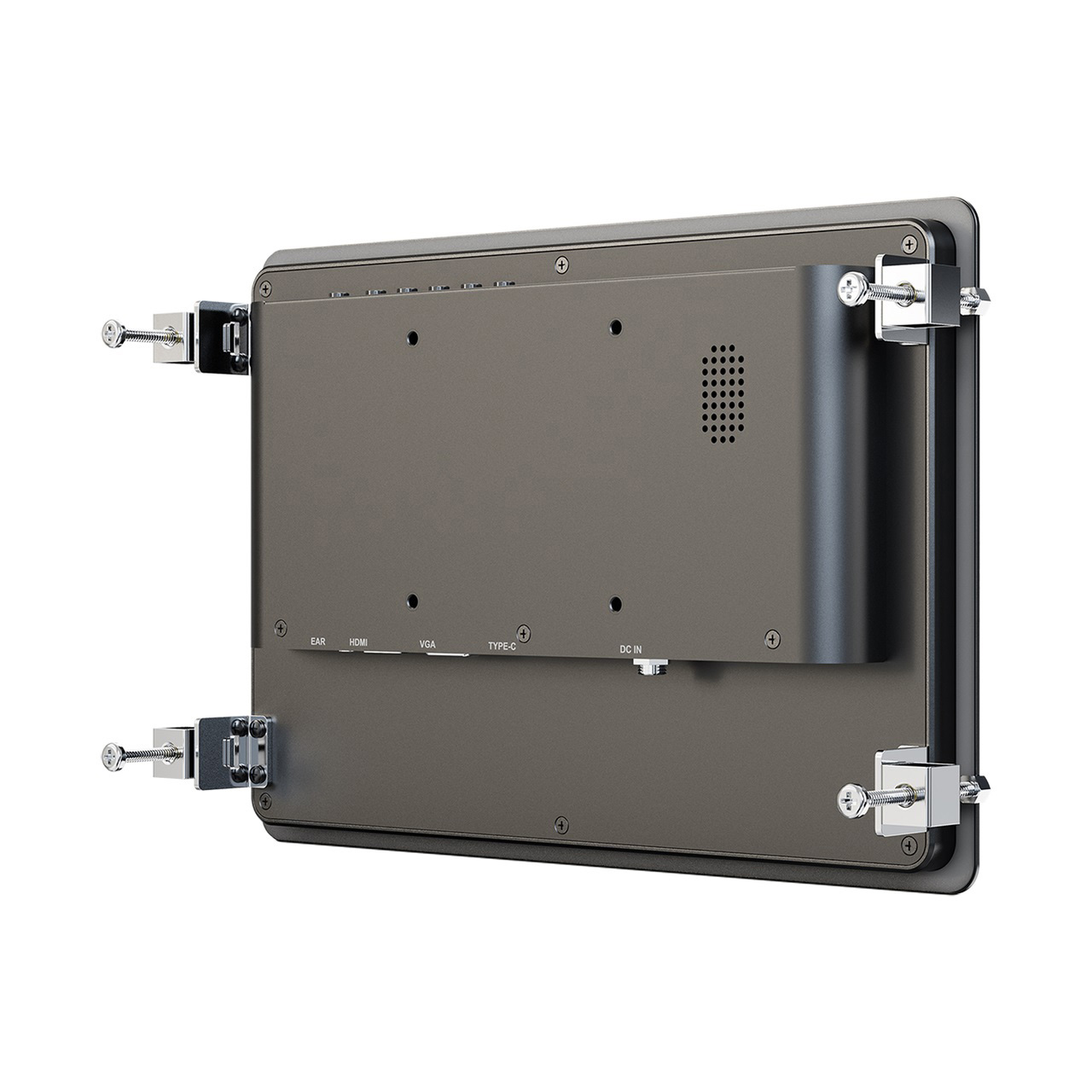

    • 2x Screw Kits


  • Warranty:

    • 1-Year Warranty


  • GTIN:

    6950821603949
