Lilliput TK1560/T Full HD 15.6 Inch Touchscreen LED Monitor

ITEM #: LIL-TK1560-T MFG #: TK1560/T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$459.00

Our Price:

$439.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


TK1560/T - Overview

Bring easy visibility to industrial environments with the 15.6" TK1560/T Touchscreen Specialty Monitor from Lilliput. Featuring metal construction and IP64 dust and water resistance, this monitor is optimized for industrial applications. The 15.6" LCD panel features 160° viewing angles, a 1000:1 static contrast ratio, and 1000 cd/m² of brightness for accurate views. Connect to video sources via HDMI, VGA, and RCA composite inputs; integrated speakers provide onboard audio, while a 3.5mm aux port can be used to connect headphones. VESA 75 x 75 and 100 x 100mm mounting patterns allow this monitor to be used with compatible third-party mounts or stands for versatile deployment.

Industrial-Grade Screen
This monitor's industrial-grade screen ensures accurate color reproduction with 1000 cd/m² brightness, making it suitable for indoor and outdoor applications.

15.6" Touchscreen
Get detailed, interactive views with a 15.6" touchscreen that supports 10-point gestures and boasts a 1000:1 static contrast ratio for crisp on-screen images. Furthermore, 160° horizontal and vertical viewing angles allow for easy visibility, even at extreme angles.

Ports Aplenty
Choose between HDMI, VGA, and RCA composite inputs and connect sound components via 3.5mm audio-in and headphone-out ports.

IP64 Dust and Water Resistance
The front panel delivers IP64 dust and water resistance for easy deployment in demanding environments.

Secure Connectivity

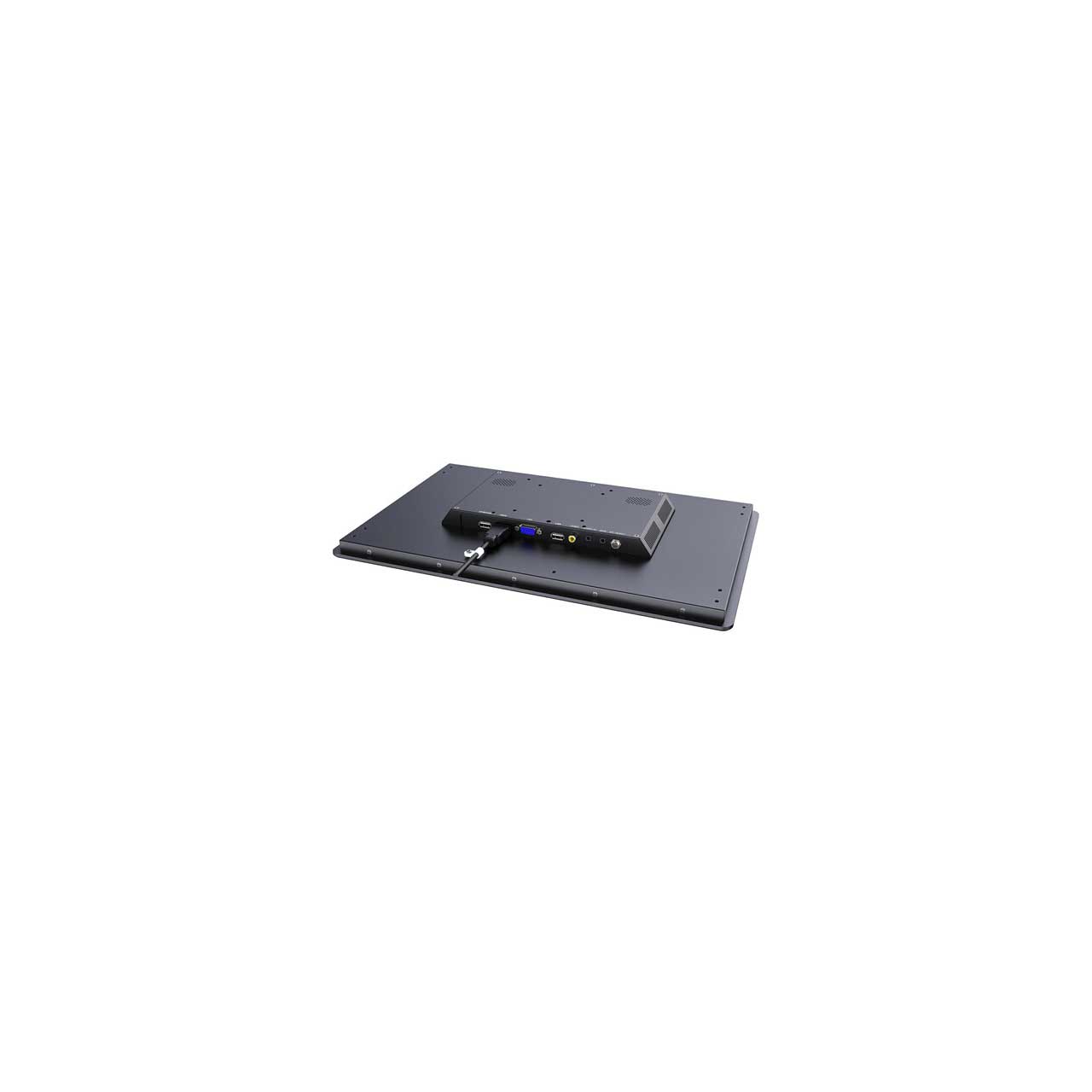

A cable clamp allows the HDMI input cable to be fixed to the back of the monitor, preventing it from coming loose due to vibrations in industrial applications.

  • Features:

    • 1920 x 1080 Full HD Resolution
    • HDMI, VGA, and RCA Composite Inputs
    • 1000 cd/m2 Brightness
    • 1000:1 Static Contrast Ratio
    • 160° Viewing Angles
    • Integrated Speakers
    • IP64 Dust & Water Resistant

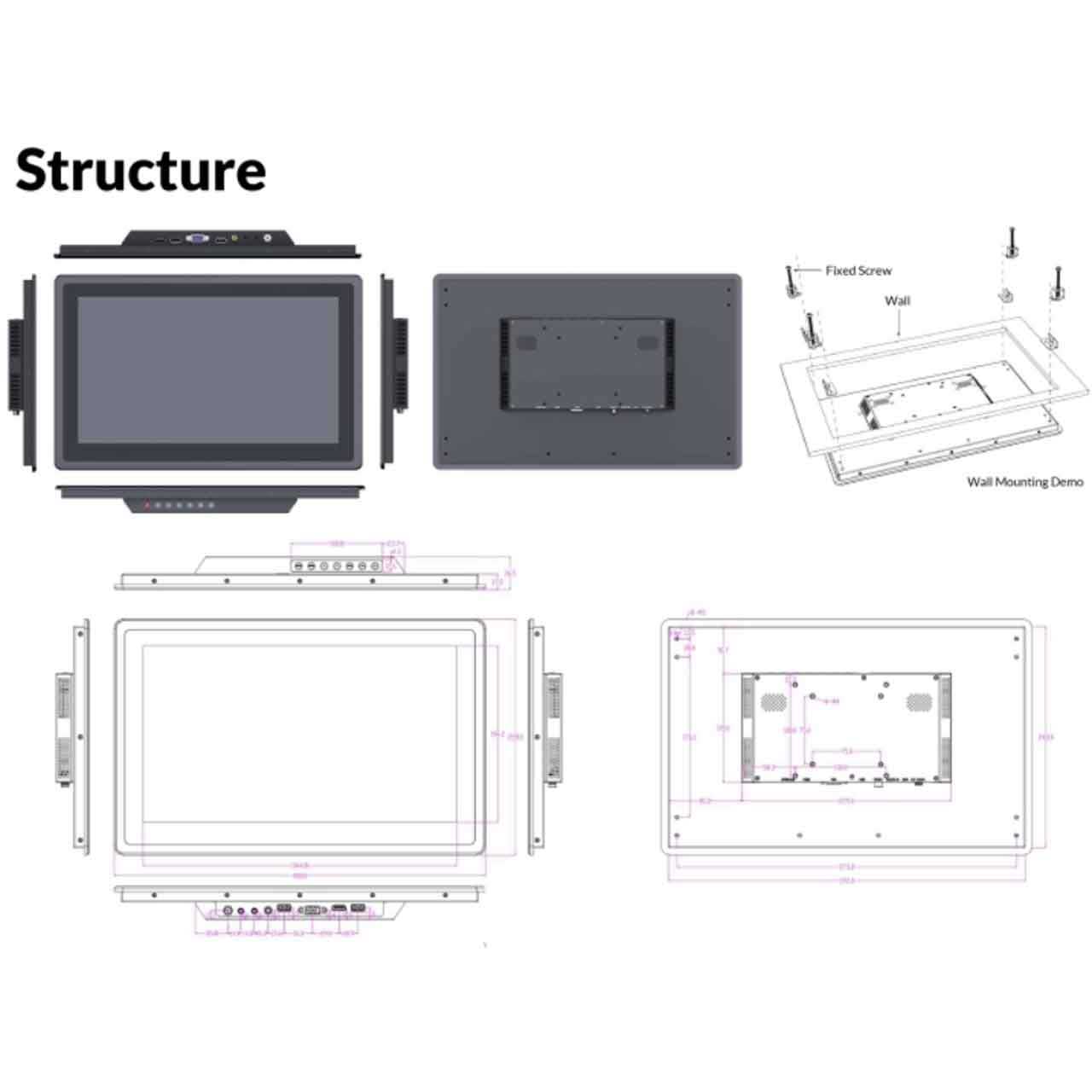

    • VESA 75 x 75 & 100 x 100mm Mounting
    • Metal Construction
    • Optimized for Industrial Applications

  • Specifications:

    • Display:
    • Screen Size (Diagonal): 15.6"
    • Resolution: 1920 x 1080
    • Supported Display Resolutions: Maximum: 3840 x 2160 / 30 Hz
    • Panel Type: LCD
    • Brightness: 1000 cd/m2
    • Viewing Angle (H x V): 160 x 160°
    • Aspect Ratio: 16:9
    • Contrast Ratio: 1000:1

      Connectivity:
    • Primary Connectivity Location: Display
    • Input Ports:
      1 x HDMI 1.4 - Audio, Video (Bottom)
      1 x VGA 15-Pin - Video (Bottom)
      1 x RCA Composite - Video (Bottom)
      1 x 1/8" / 3.5 mm - Audio (Bottom)
    • Output Ports: 1 x 1/8" / 3.5 mm - Headphone (Bottom)
    • Ethernet Ports: None
    • Digital Media Slot: None

      Surface:
    • Touchscreen Technology: Capacitive
    • Multi-Touch Points: 10

      Audio:
    • Built-In Speakers: Yes

      Electrical:
    • Power Consumption: Maximum: < 24.5 W
    • DC Input Power: 12 to 24 VDC
    • Power Adapter Type: Internal

      Environmental:
    • Operating Temperature: -4 to 140°F / -20 to 60°C
    • Storage Temperature: -22 to 158°F / -30 to 70°C

      Physical:
    • Wall Mounting: 75 x 75 mm, 100 x 100 mm
    • Material of Construction: Metal
    • IP Rating: IP64
    • Dimensions: 16.1 x 10.2 x 1.4" / 408.0 x 259.0 x 36.5 mm
    • Weight: 6.4 lb / 2.9 kg

  • Item Includes:

    • 1x TK1560/T 15.6 Touchscreen Inch Monitor
    • 1x 12V 3A DC Power Adapter
    • 1x HDMI A to A Cable
    • 1x VGA Cable
    • 1x USB A to A Cable
    • 1x Audio & Video Input Cables
    • 4x Fixed Screws & Gaskets
    • 4x Cable Clamps

  • GTIN:

    6950821602157
