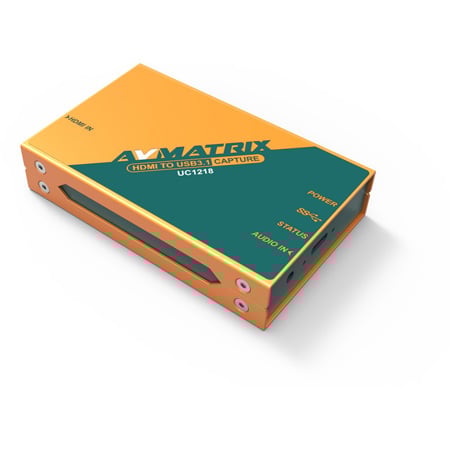

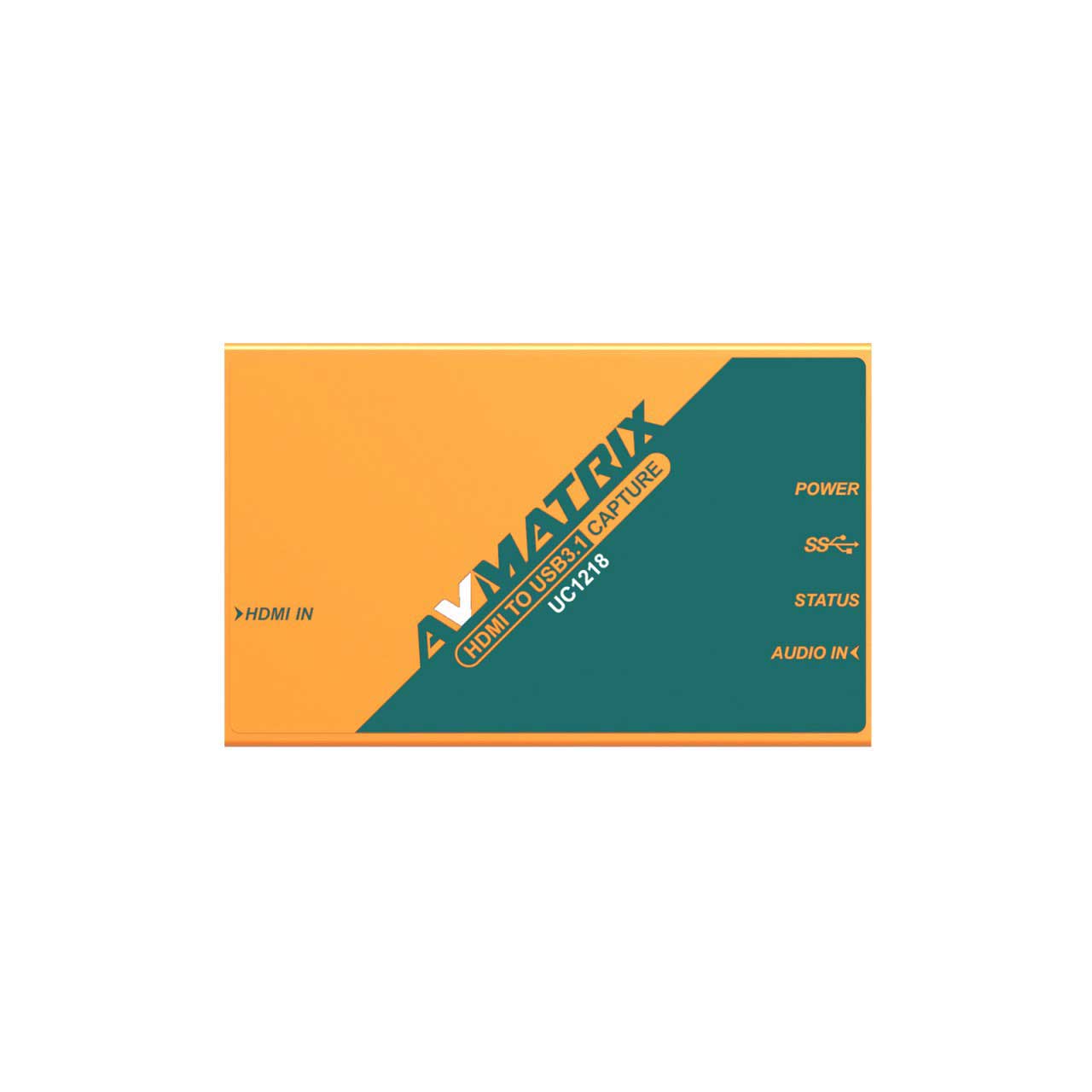

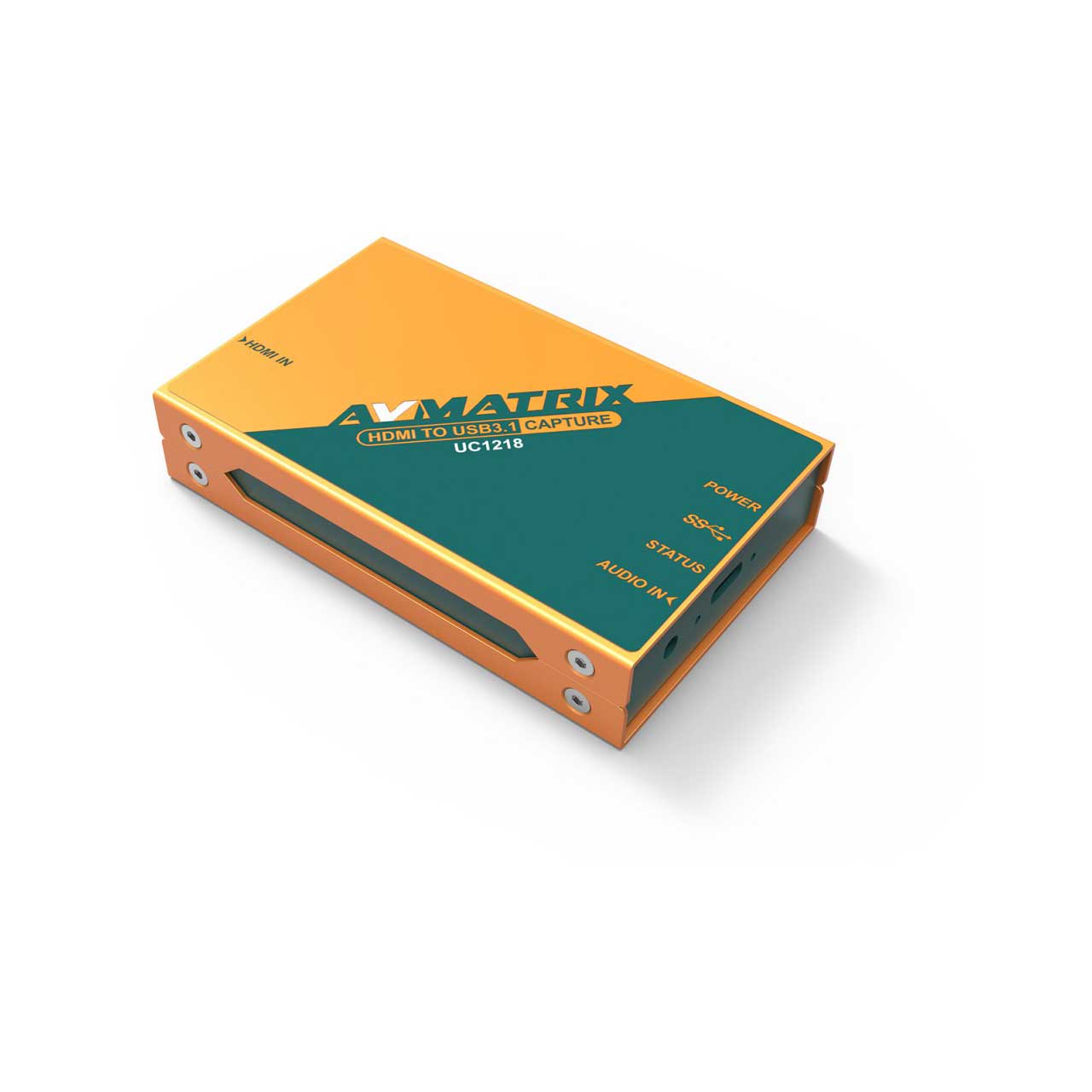

AVMATRIX UC1218 HDMI to USB 3.1 Video Capture Device

UC1218 - Overview

• Features:

  • Plug-and-Play, driver free & power free
  • HDMI in, and USB 3.1 Gen1 (USB3.0) out
  • Automatic input signal detection, up to 1080p60
  • Uncompressed transmission rate up to 200MB/s via USB 3.1 Gen1
  • Comply with UVC video capture and YUY2 video output
  • Comply with UAC audio out from HDMI embedded audio or line in
  • Compatible with Windows, Linux, macOS
  • Compatible with OBS, ZOOM, Teams & Twitch, etc.


• Specifications:

  • Connection

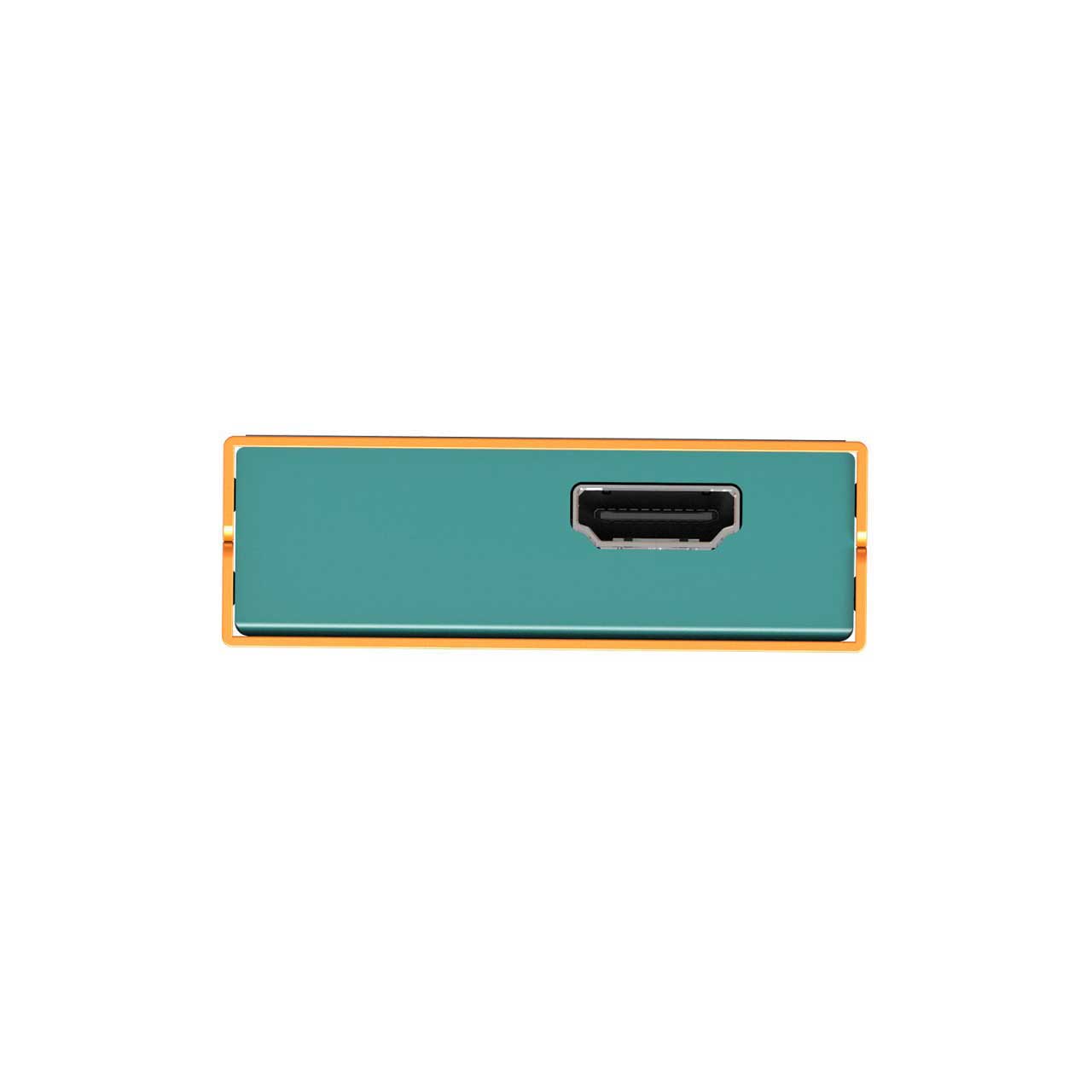

  • Input Interface: 1x HDMI 1.4a, 1x3.5mm stereo audio (Line in)

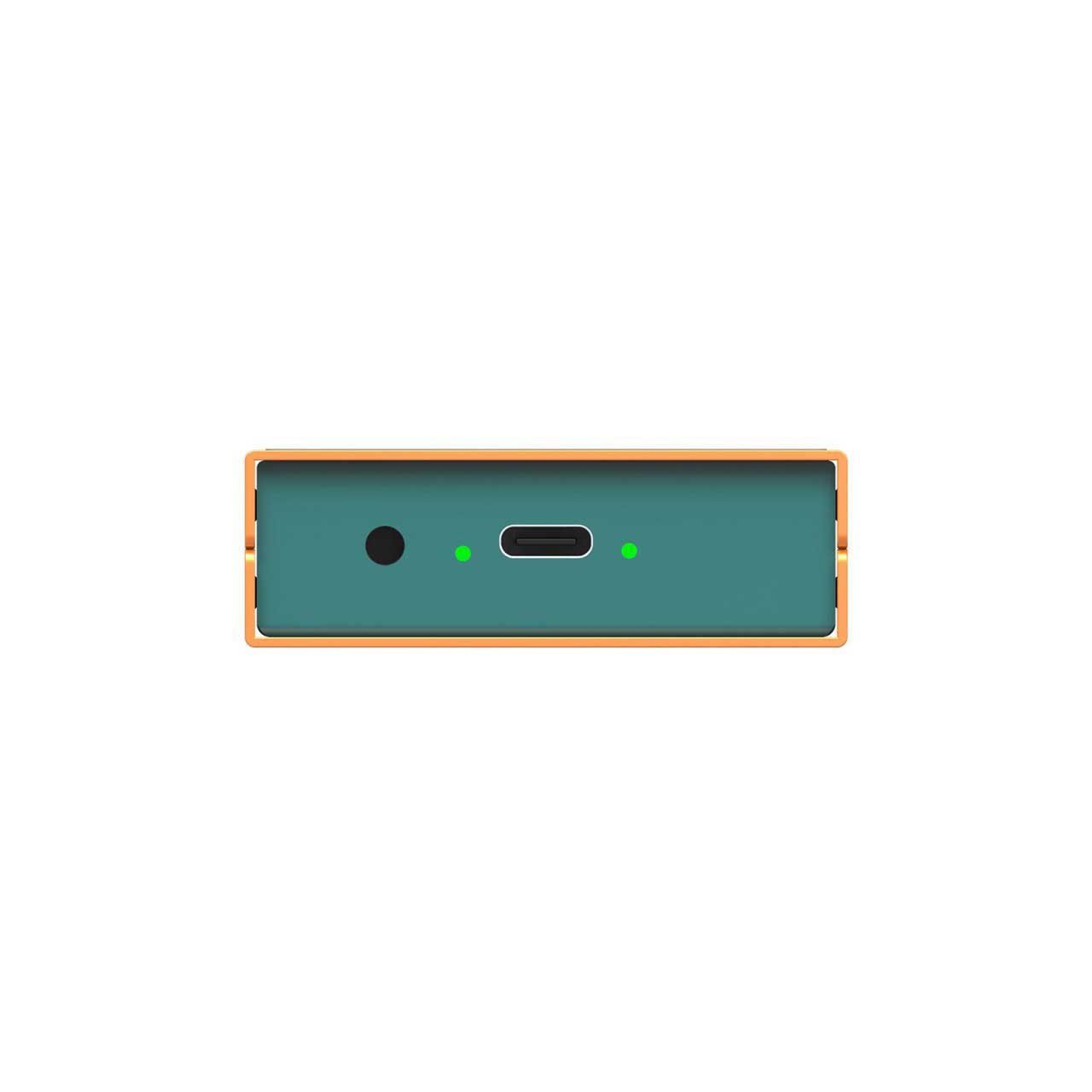

  • Output Interface: 1x USB Type C, USB 3.1 Gen1 (up to 200MB/s)

    Format
  • HDMI Input Format:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 576p 50/576i50, 80i 59.94/60
    - 480 59.94/60
  • USB Output Format: 1920x1200, 1920x1080, 1680x1050, 1600x1200, 1440x900, 1368x768, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 1024x576, 960x540, 856x480, 800x600, 768x576, 720x576, 720x480, 640x480, 640x360
  • Video & Audio Capture: UVC (USB video class) & UAC (USB audio class) Standard
  • Audio Codec: 2-Channel, 16 bit PCM, 48kHz, 1536kbps
  • Video Color Space: YUY2

    Others
  • Supported OS: Windows 7/8/10, Linux (Kernel version 2.6.38 and above), MacOS (10.8 & above)
  • Software Compatibility: OBS Studio, Skype, ZOOM, Teams, Google Meet, Youtube Live, QuickTime Player, FaceTime, Wirecast, CAMTASIA, Ecamm.Live, Twitch.tv
  • Compatible SDK: DirectShow (Windows), DirectSound (Windows)
  • Dimensions: 3.86" x 2.20" x 0.63" (98mm x 56mm x 16mm)
  • Weight: 0.66lbs (300g)
  • Power Consumption: 3.5W
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
  • Storage Temperature: -22°F - 158°F (-30°C - 70°C)
  • Relative Humidity: 20% - 90% RH, non-condensing


• Item Includes:

  • 1x USB 3.0 A-C Cable
