Lowell 10KLVC-DSW 1-Gang Potentiometer Volume Control Wallplate with Rotary Knob

ITEM #: LMC-10KLVC-DSW MFG #: 10KLVC-DSW

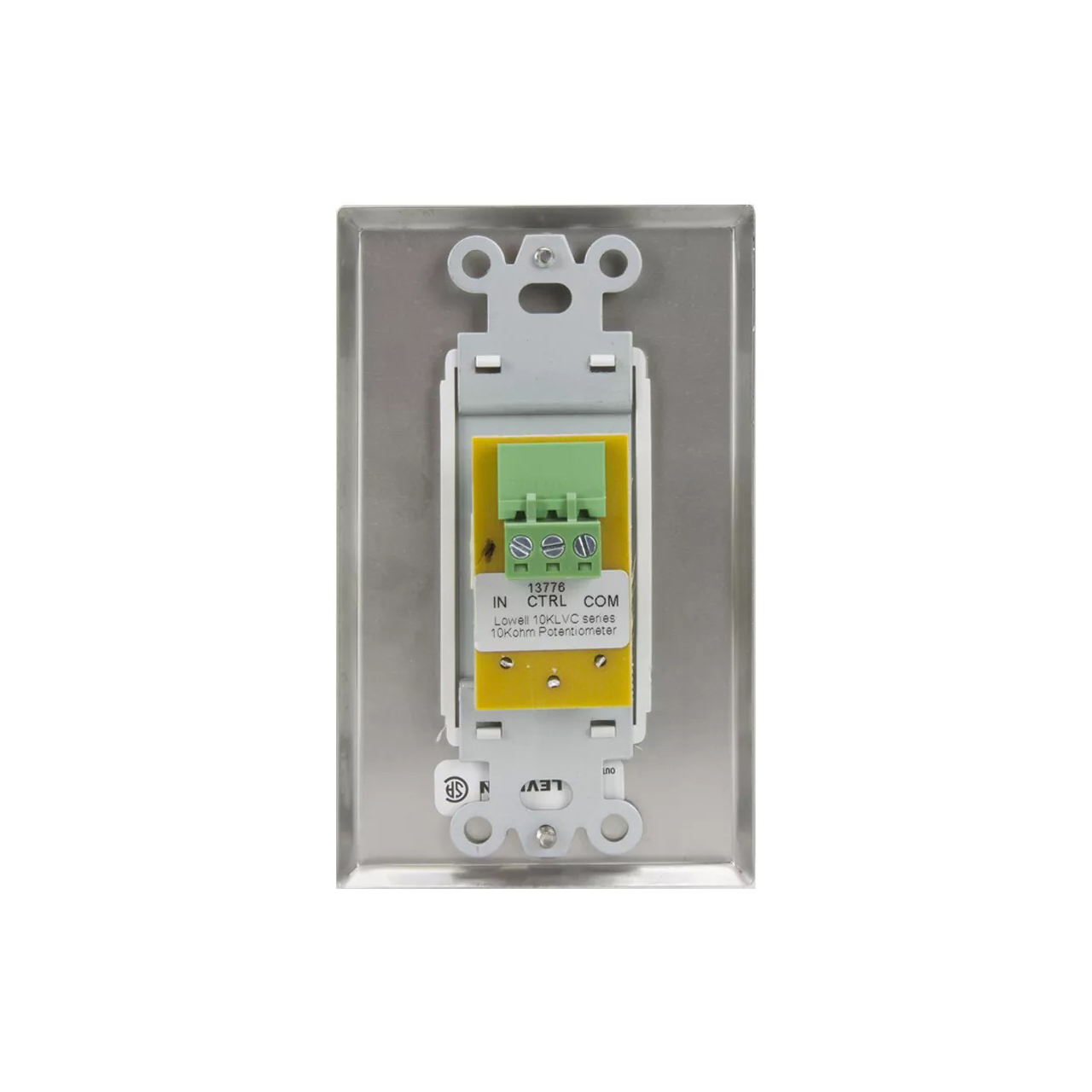

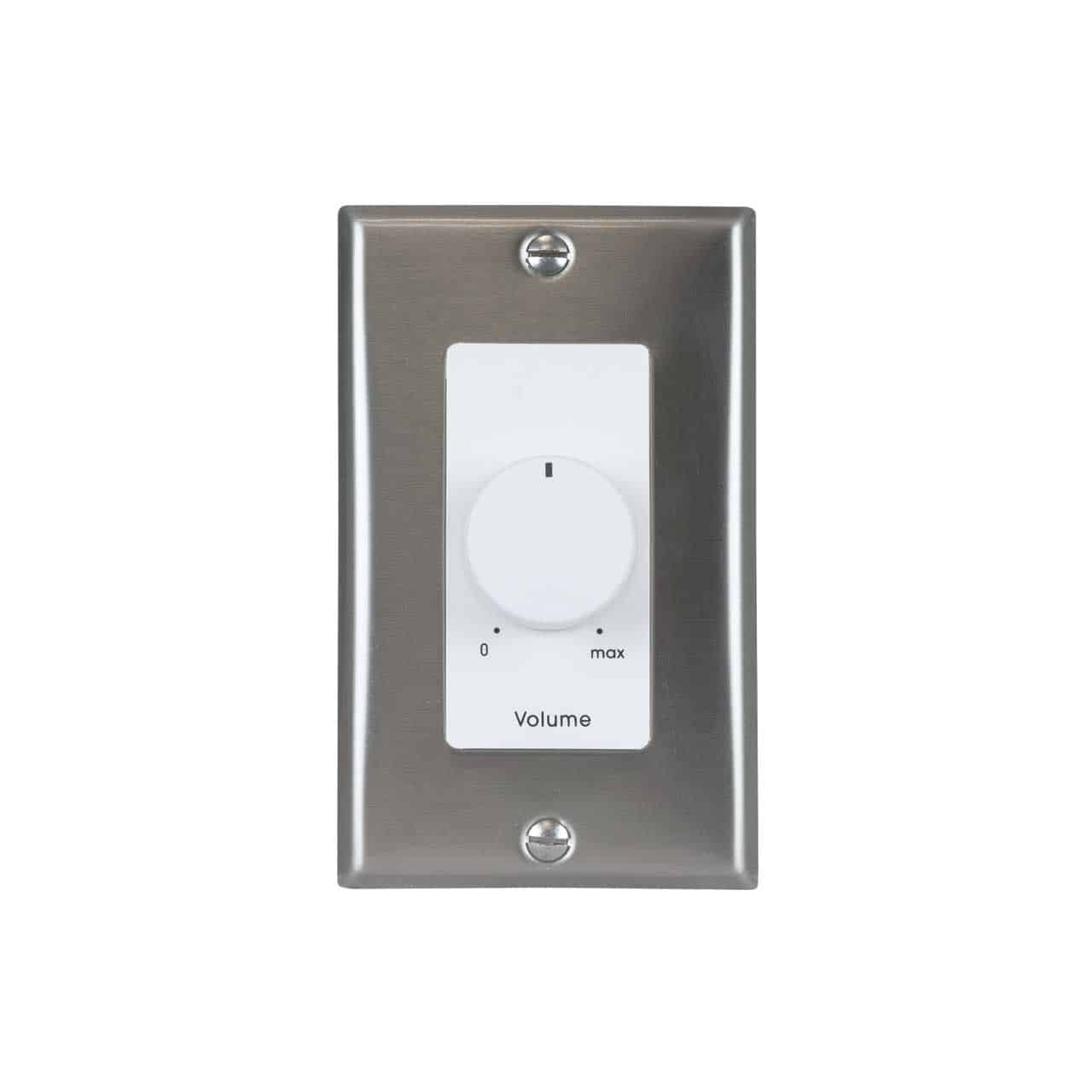

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$75.00

Our Price:

$66.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


10KLVC-DSW - Overview

The Lowell 10KLVC-DSW 10kΩ linear taper control for single-point remote level adjustment of voltage controlled amplifiers (VCA, by others) is designed to interface directly with three-wire, 0 to 10 volt control inputs typical on voltage-controlled amplifiers. The 10k ohm potentiometer allows the amplifier's control voltage to be set or adjusted from a single remote location. Includes one-gang decorator style stainless steel wall plate with white sub-plate.

  • Features:

    • Power Rating: 1/2W
    • Resistance: 10kΩ
    • Continuous attenuation (stops at 0/max.)
    • Incremental detents for precision feel
    • Use With: VCA control or audio circuit
    • Activation: Rotary knob
    • Termination: Phoenix-style
    • Wire Capacity: 14-gauge
    • Wall Plate: 1-gang decorator style
    • Finish: Stainless Steel & White
    • Fits standard E.O. box (2.125" min. depth)

  • Item Includes:

    • 1x Linear taper potentiometer volume control
    • 1x 1-gang decorator-style wall plate
    • 1x Rotary knob


10KLVC-DSW - Required Accessories
