Lowell LT-810-72-BB 1ft X 2ft Lay-In Tile Speaker w/ 8 Inch Dual-Cone / 25V/70V X-Former

LT-810-72-BB - Overview

• Specifications:

  • Driver (810): 8 in. 15W dual cone driver with 10 oz. magnet, frequency response of 54Hz-11.6kHz (±6dB) and 50Hz-20kHz (±6.6dB), and average sensitivity of 97.9dB measured 1W/1M. Conical dispersion 95 degrees.
  • Transformer: Dual voltage 25V/70V transformer with taps at .25, .5, 1, 2, 5W.

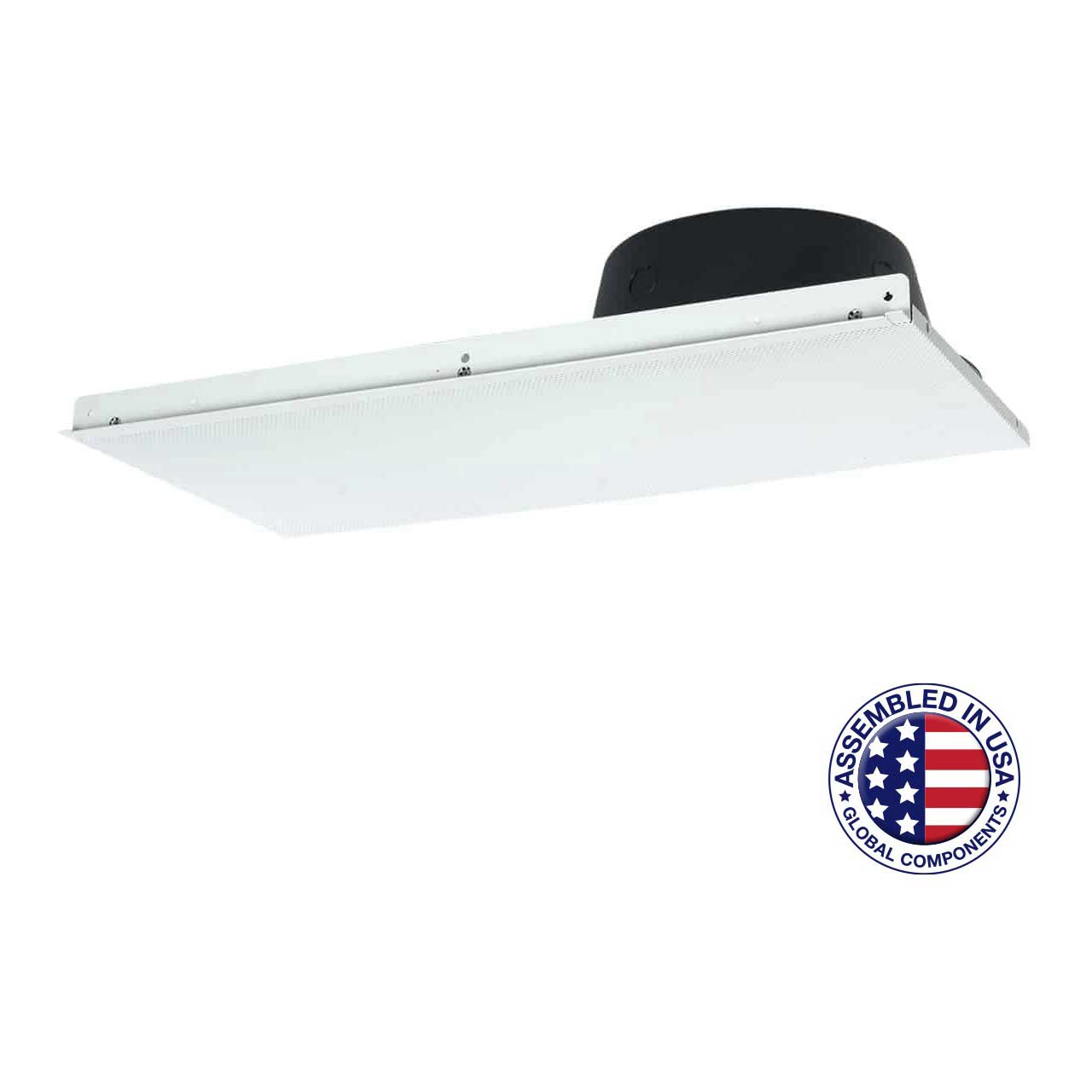

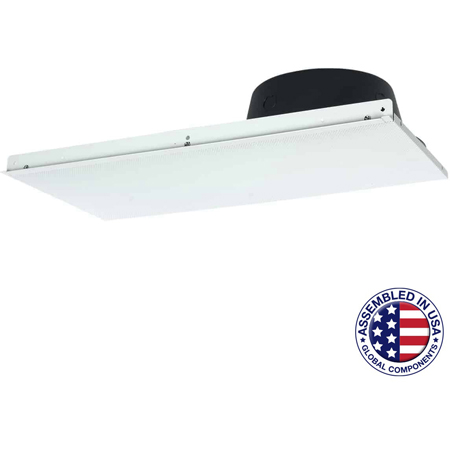

  • Grille with Subplate (1 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

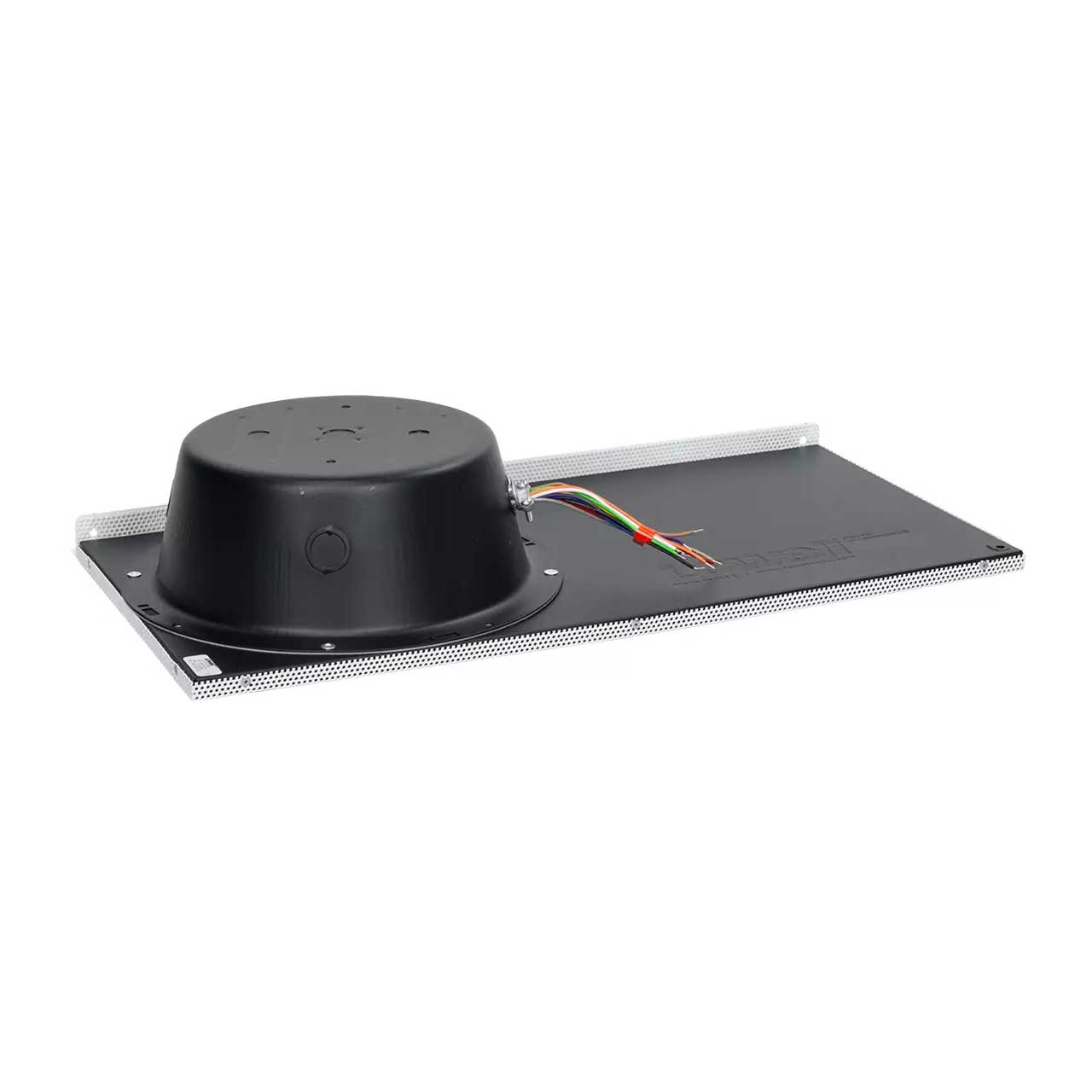

  • Enclosure (0.147 cu.ft.): Steel backbox with speaker leads that exit through a metal clamp for fast connection. Black.
  • Mounting Aid: Patented integral T-bar supports neighboring cut non-tegular ceiling tile. Restraint tab and hole for two-cable code compliance (cables not incuded).


• Item Includes:

  • 1x Speaker Package - 8" Dual Cone Speaker
  • 1x 2 Tile System, 15W
  • 1x 5W 70/25V xfmr
  • 1x 0.147 cubic ft backbox


• Warranty:

  • 3 years
