Lowell LUH-15TA 15W Flush-Mount Re-Entrant Unihorn w/ 25V/70V Transformer / Grille

ITEM #: LMC-LUH-15TA MFG #: LUH-15TA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$286.00

Our Price:

$251.68

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


LUH-15TA - Overview

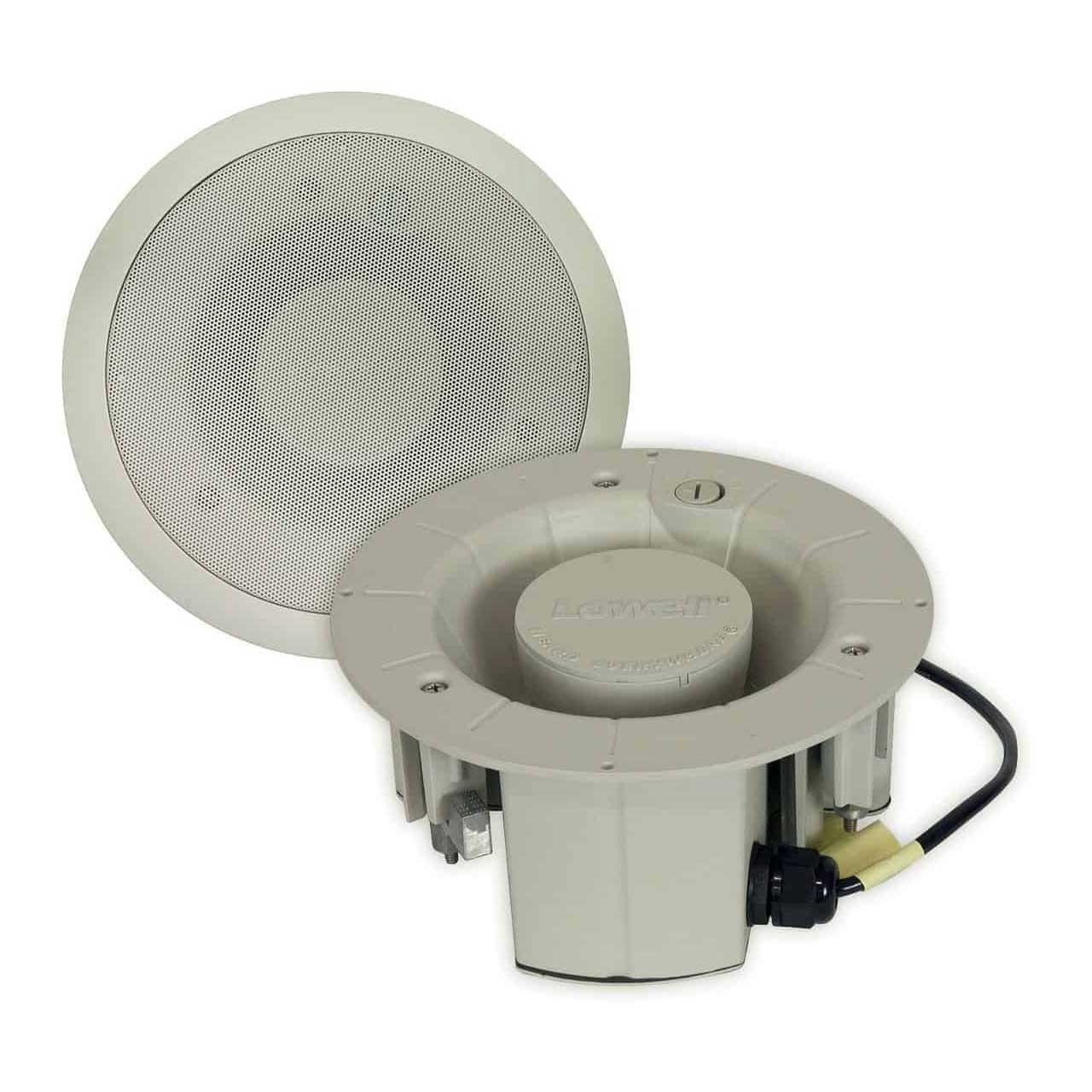

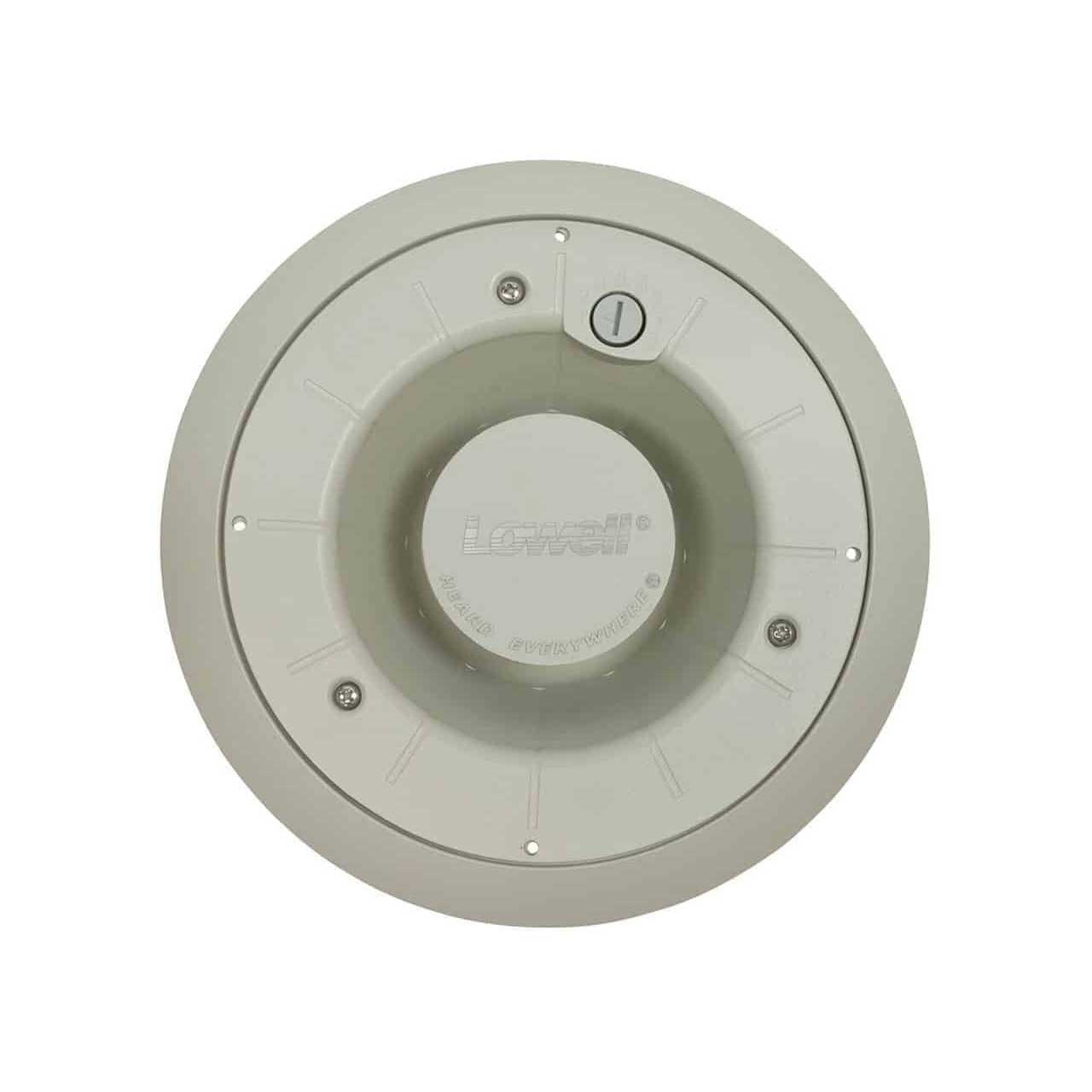

The Lowell LUH-15TA for paging and general voice communications (25V, 70V, 100V, 8ohm), the ready-to-install paging re-entrant horn with weather-resistant housing is engineered for versatile, labor-saving installation in brick, concrete block, plaster, drywall or acoustic tile, indoors or outdoors, recessed or surface-mount, new or retrofit applications. Model LUH-15TA includes horn with mounting dogs, press-fit grille and trim ring. Depending on type of application, some accessories may be required.

  • Features:

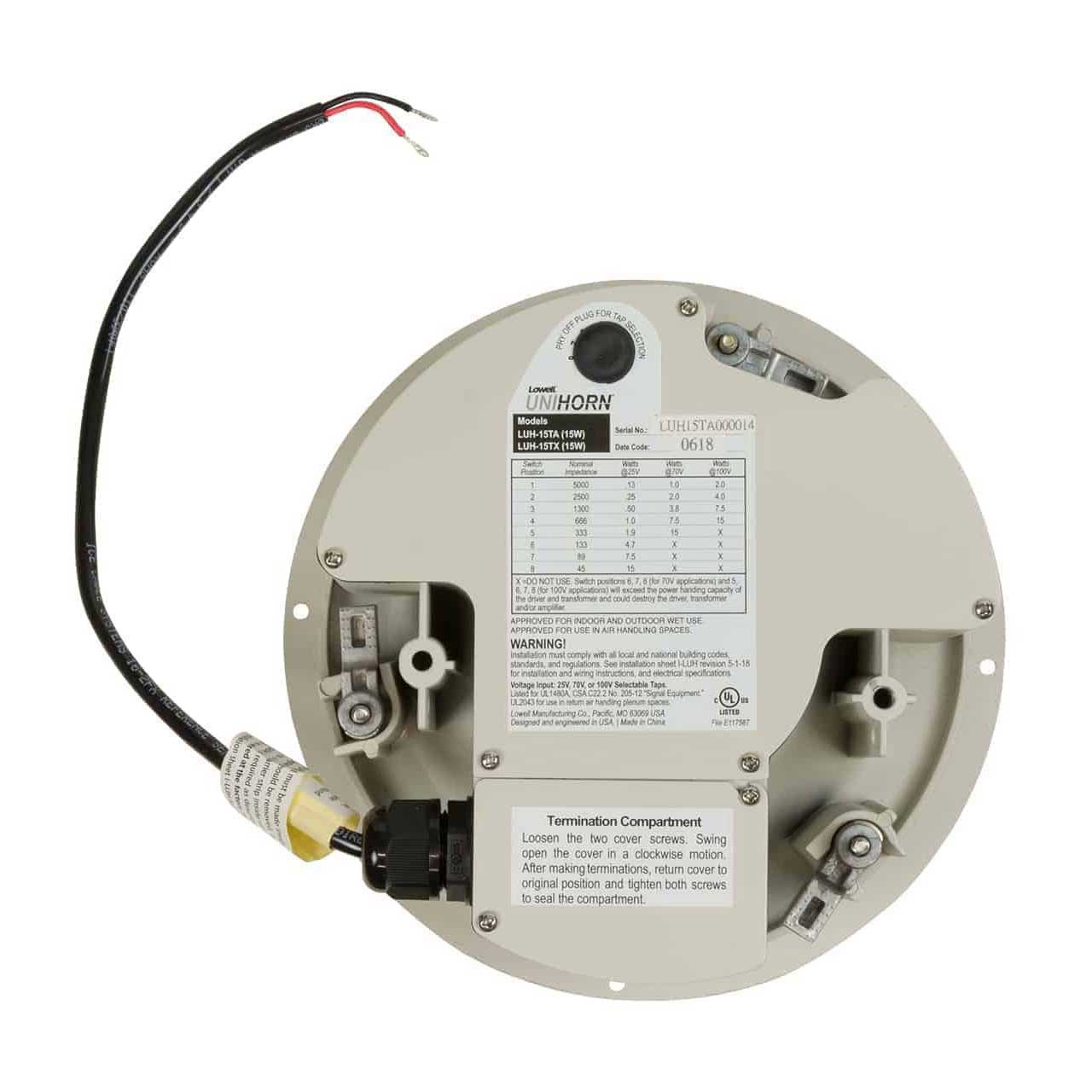

    • Simple two-wire hookup to pigtail (in UL approved junction box) or through the waterproof gland-type cable fitting. (see instruction sheet)

  • Specifications:

    • Performance: Paging and general signaling
    • Driver: 15W
    • Transformer: 25V/70V/100V plus 8ohm bypass input, screwdriver adjustable
    • Housing: Aluminum with moisture-seal cover

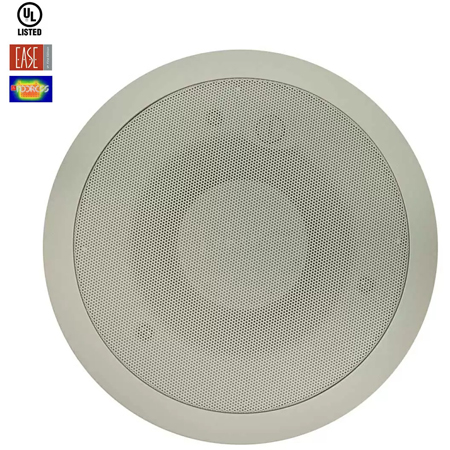

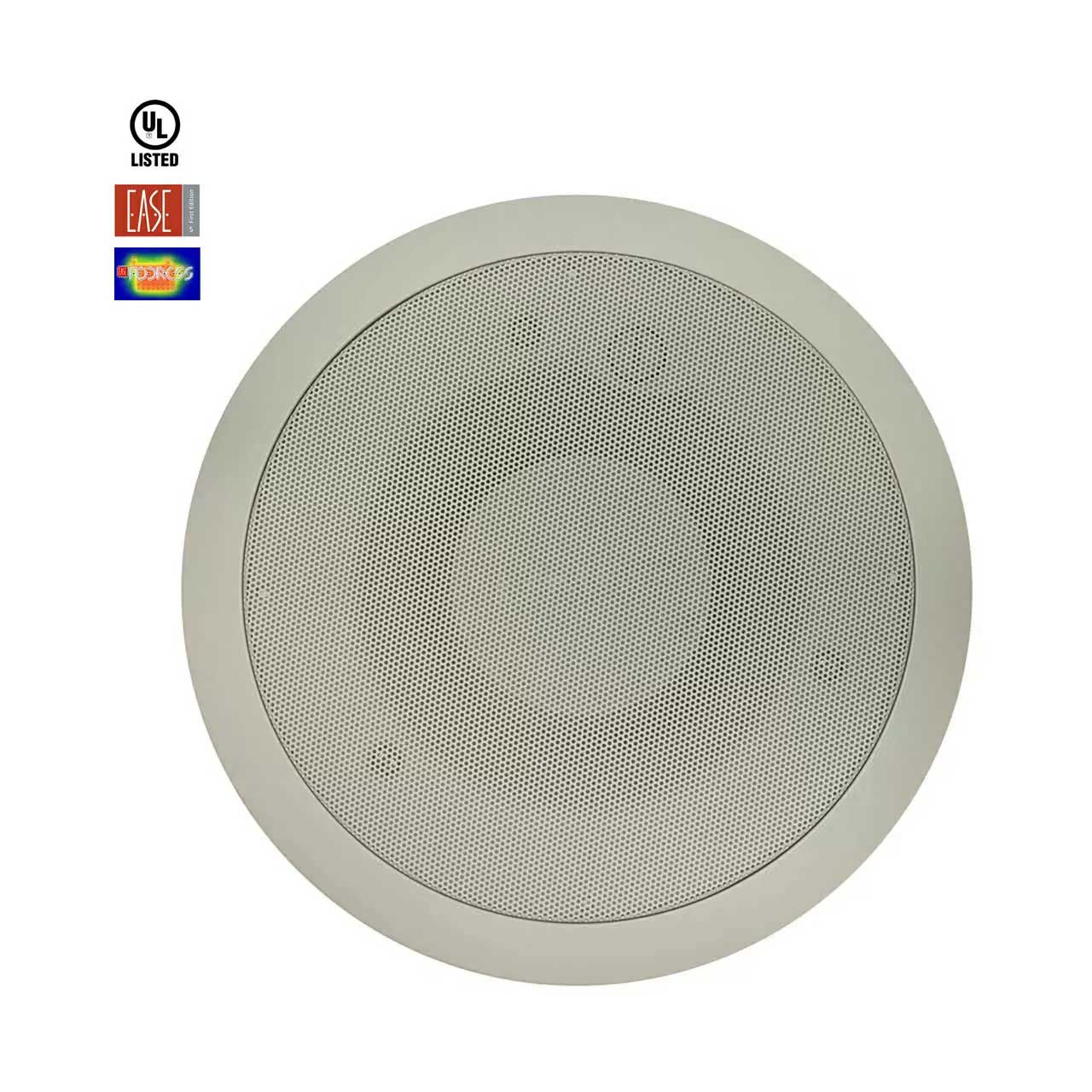

    • Grille: Fine perforation, press-fit aluminum grille fits snugly for a hardware-free appearance, while helping to protect the front of horn from nesting birds and insects
    • Mounting Aids: Trim ring
    • Finish: Network Grey
    • Retrofit Installation: This model will accept an EIA standard grille for 8 in. speaker and the UL Listing will remain valid.
    • Average Sensitivity: 105dB (1W/1M)

  • Item Includes:

    • 1x UNIHORN Horn - Universal Mount - 15W, 70/25/100V General Signaling, Trim Ring
    • 1x Grille, Network Grey

  • Warranty:

    • 3 years
