Lowell LWBR-3532 35RU Wall-Rack With 4RU Support Base / 32 Inch Deep

Name: Lowell LWBR-3532 35RU Wall-Rack With 4RU Support Base / 32 Inch Deep
Brand: Lowell Manufacturing Co.
SKU: LMC-LWBR-3532
Price: 2405.92 USD
Availability: InStock

ITEM #: LMC-LWBR-3532 MFG #: LWBR-3532

Lowell Manufacturing Co.

List Price:

$2,734.00

Our Price:

$2,405.92

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Shipped truck freight.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LWBR-3532 - Overview

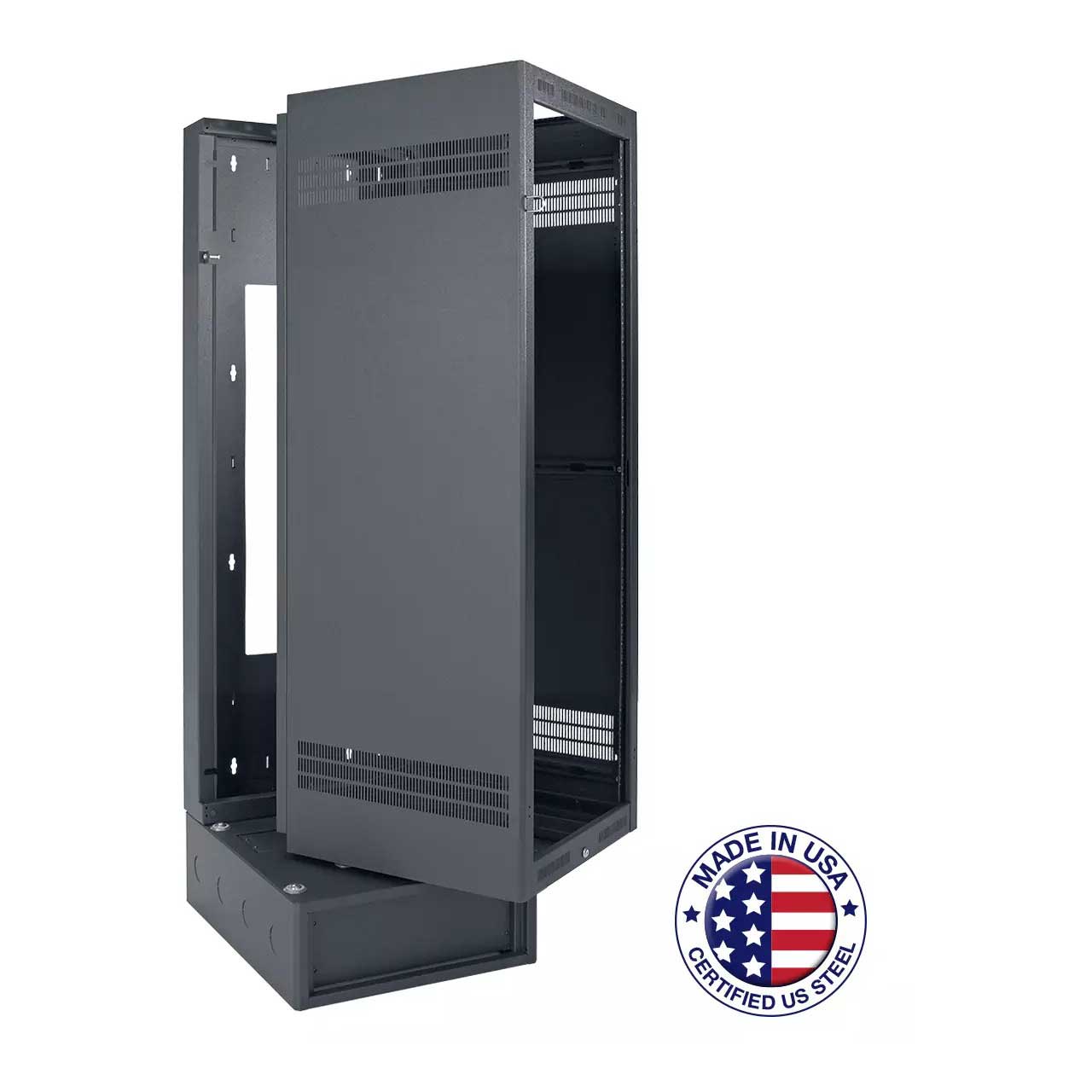

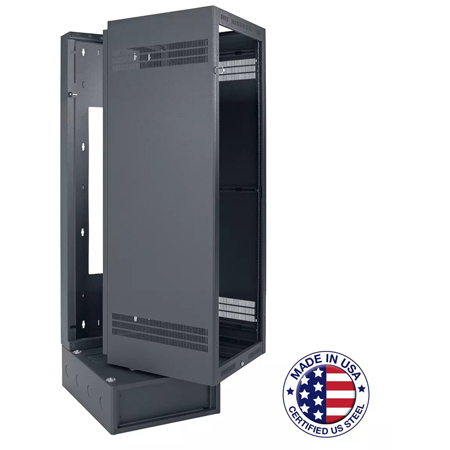

The Lowell LWBR-3532 wall-mount rack swings open from its backbox with a single-release grasp, then pivots smoothly on internal spring-loaded hinges and stainless steel ball transfers that are set into its support base. The support base adds 4U of rack space that can be used to mount equipment or optional drawer. Slam latch closure.

Features:
- Cabinet with welded sides opens with a single-release grasp, then pivots smoothly on stainless steel ball transfers, swinging 90 degrees to access equipment connections (field-changeable to left hand swing). Slam latch closure. Top opening with integral E.I.A. rail accommodates standard 19 in. accessories or included solid closure panels.
- One pair adjustable mounting rails tapped 10-32
- Backbox (4.69 in. deep) mounts on 16 in. centers. Large central cutout fits over wall obstructions. Laser-cut knockout panel on top has knockouts for wireless antennas and combination knockouts for conduit.
- Support base (4U) has access panels and stainless steel ball transfers to support cabinet
- Black wrinkle textured powder epoxy finish
- Pilot Point screws with captive washers
Item Includes:
- 1x Rack - Wall Mount w Base - 35U, 32"D
- 2x Adjustable Rails, Black
Warranty:
- 5 years
