Lowell LWR-2419 24RU Wall-Rack / 19 Inch Deep

ITEM #: LMC-LWR-2419 MFG #: LWR-2419

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,408.00

Our Price:

$1,239.04

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


LWR-2419 - Overview

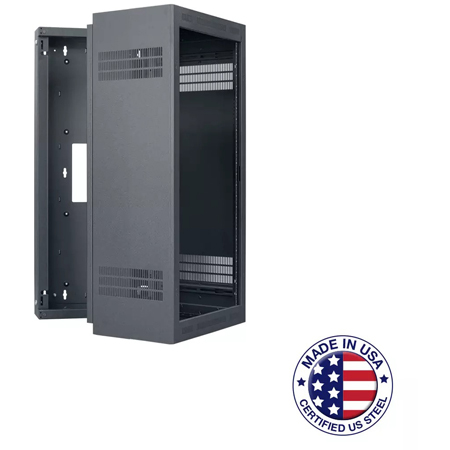

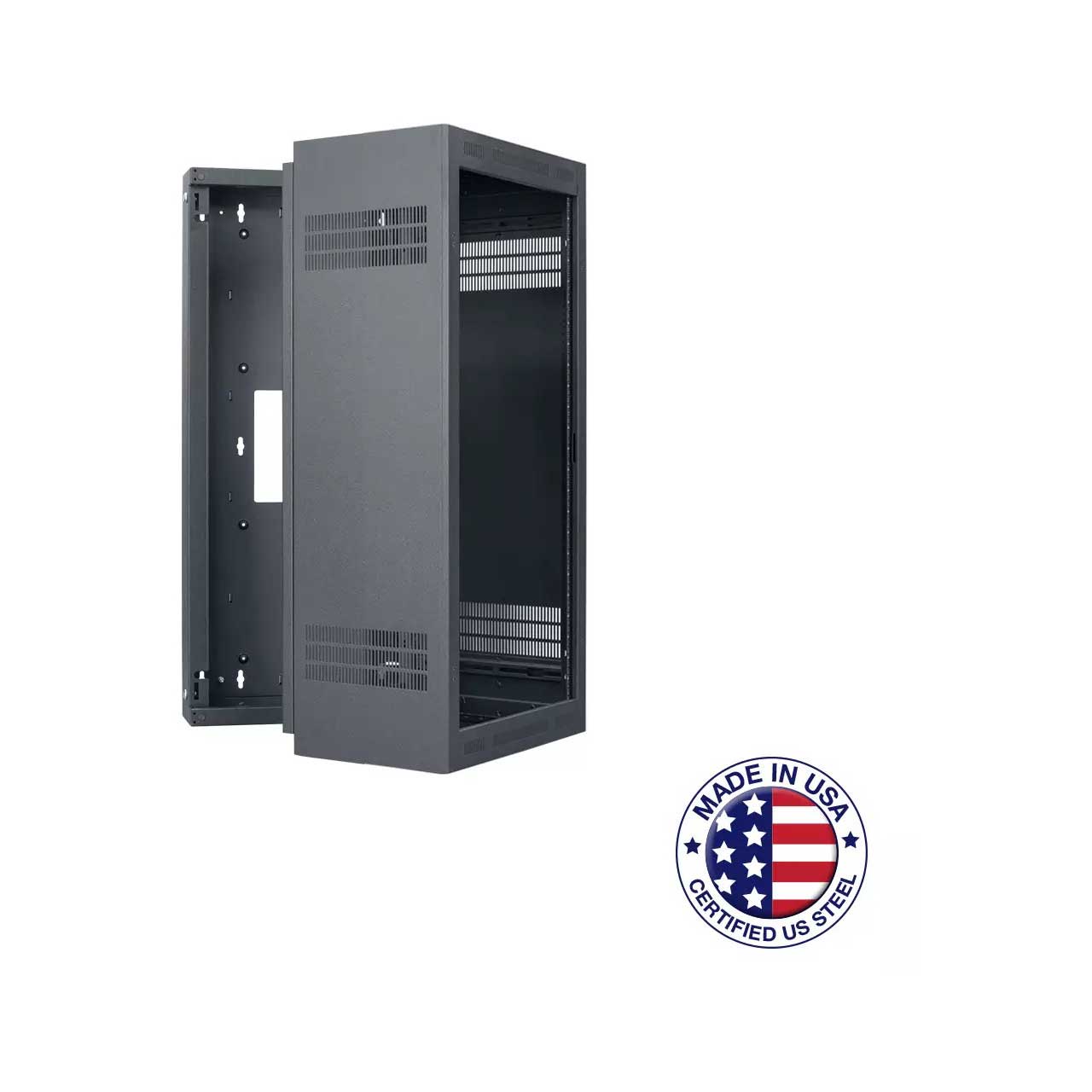

The Lowell LWR-2419 heavy-duty sectional wall rack features a front mounting section that swings open from its backbox, allowing easy access to cables and equipment. The welded 16-gauge certified U.S. steel rack features fully gusseted corners and a triple formed (side-to-bottom, side-to-top) wrap design that mounts to the backbox with positive-locking, spring-loaded L-pins. A roller closure keeps the front closed without mandatory locking. U.S. steel with black powder epoxy finish. Optional front door (order separately).

  • Features:

    • Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, laser-cut knockout panels on top/bottom, and two keyed side locks.
    • Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with two heavy duty spring-loaded L-pins (self seating, positive locking). Welded sides with vents. Knockouts for wireless antennas.
    • One pair adjustable mounting rails tapped 10-32
    • Integral top/bottom rails on E.I.A. spacing for mounting or lacing
    • Black wrinkle textured powder epoxy finish
    • Pilot Point screws with captive washers
    • Grounding stud

  • Item Includes:

    • 1x Rack - Sectional Wall Mount - 24 Rack Units, 19"D
    • 2x Adjustable Rails, Black

  • Warranty:

    • 5 years
