Lowell ACSPR-RPC1-1509 Remote-Controllable 15A Power Panel w/ Advanced Surge Protection

Name: Lowell ACSPR-RPC1-1509 Remote-Controllable 15A Power Panel w/ Advanced Surge Protection
Brand: Lowell Manufacturing Co.
SKU: LMCACSPRRPC11509
Price: 1101.76 USD
Availability: PreSale

ITEM #: LMCACSPRRPC11509 MFG #: ACSPR-RPC1-1509

Lowell Manufacturing Co.

List Price:

$1,252.00

Our Price:

$1,101.76

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

ACSPR-RPC1-1509 - Overview

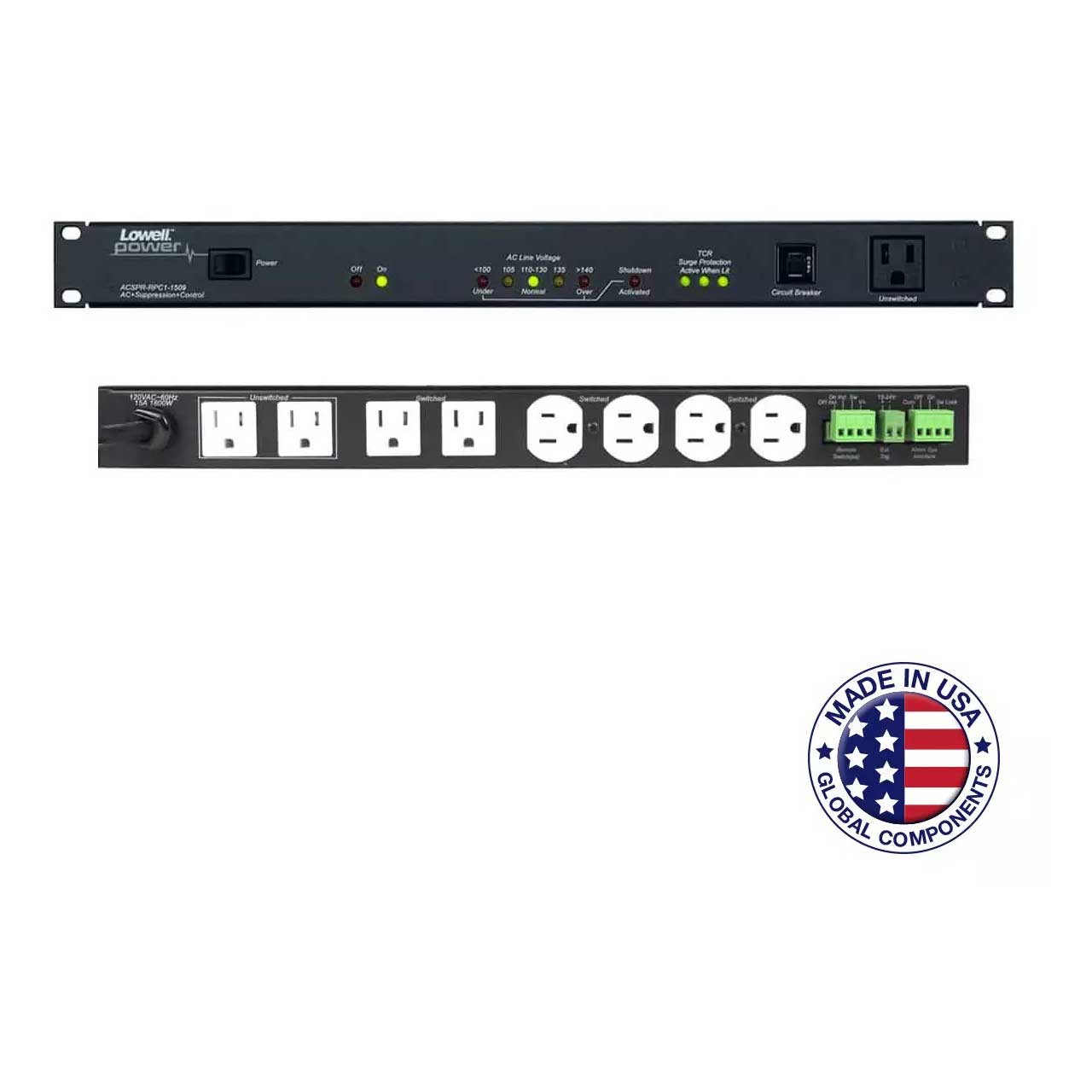

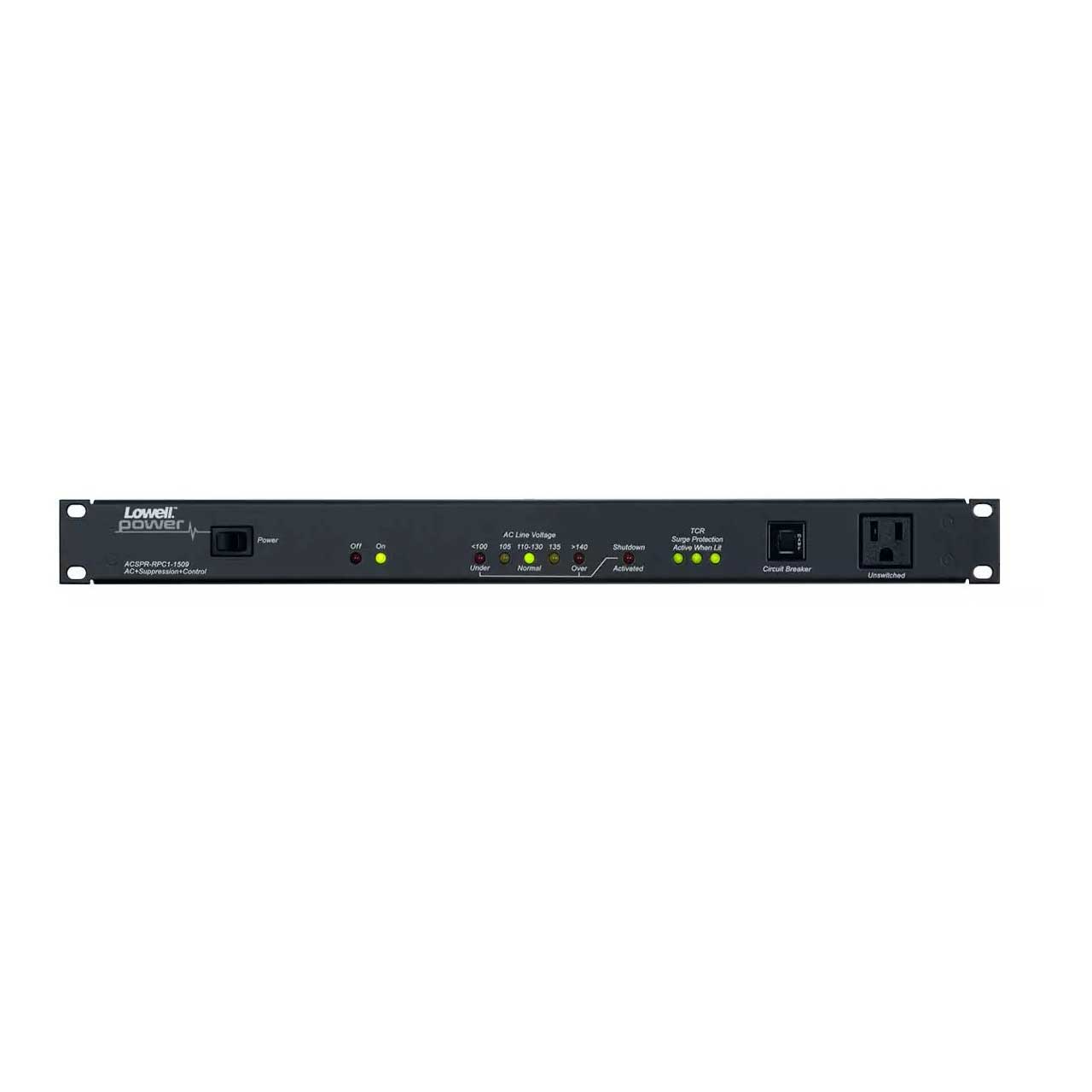

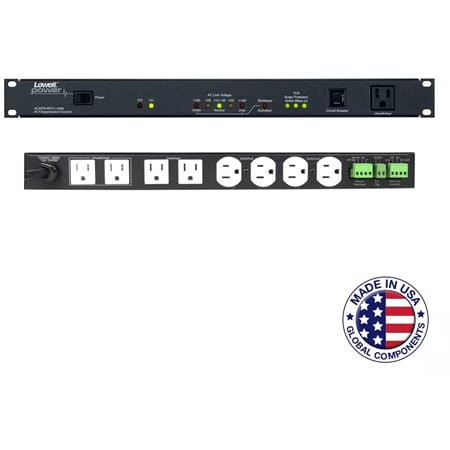

The Lowell ACSPR-RPC1-1509 features Advanced Surge Protection to protect against power surges/spikes up to 72,000A. This model also includes the Voltage Tolerance Envelope monitor for over/under voltage protection. It has a rocker switch and nine NEMA 5-15R receptacles—a combination of switched (controlled by switch) and un-switched (always on). The panel can be activated/deactivated by an external remote switch, trigger voltage, alarm system, or sequencer connected to rear terminal blocks.

Features:
- Advanced surge protection to 72,000A
- Remote power control circuitry (RPC) allows for on/off control by external DSP timed events. Rear termination blocks are available for connecting remote switches (momentary) and remote triggers (maintained) for on/off functions.
- Integral override facilitates use in life safety applications where fire code mandates an alarm interface.
Specifications:

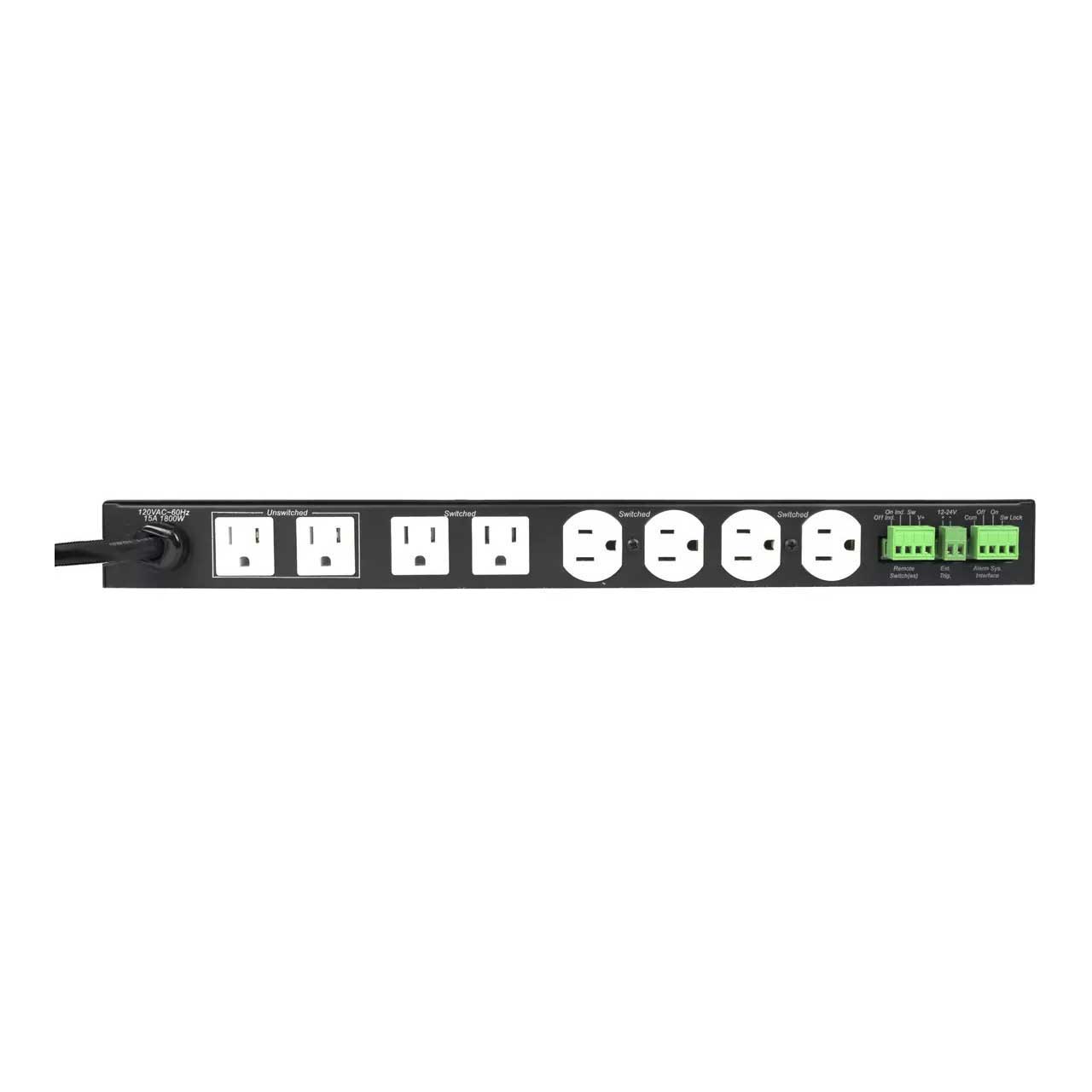

- Outlets: 9 outlets (1 front un-switched, 2 rear un-switched, 6 rear switched)
- Power Rating: 120VAC, 60Hz, 15A
- Termination: 9 ft. attached cord with NEMA 5-15P plug
- Voltage Tolerance Envelope Monitor with Auto Reset: Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
- Steel Chassis: 19 in. x 9.00 in. x 1.75 in. (1U)
- Activation: Rocker switch
Item Includes:
- 1x 15A Power Panel
- 6x Switched Outlets, 1U
- 3x Unswitched Outlets, 1U
- 1x Surge Supp, RPC, Over/Under Protection
Warranty:
- 1 year
