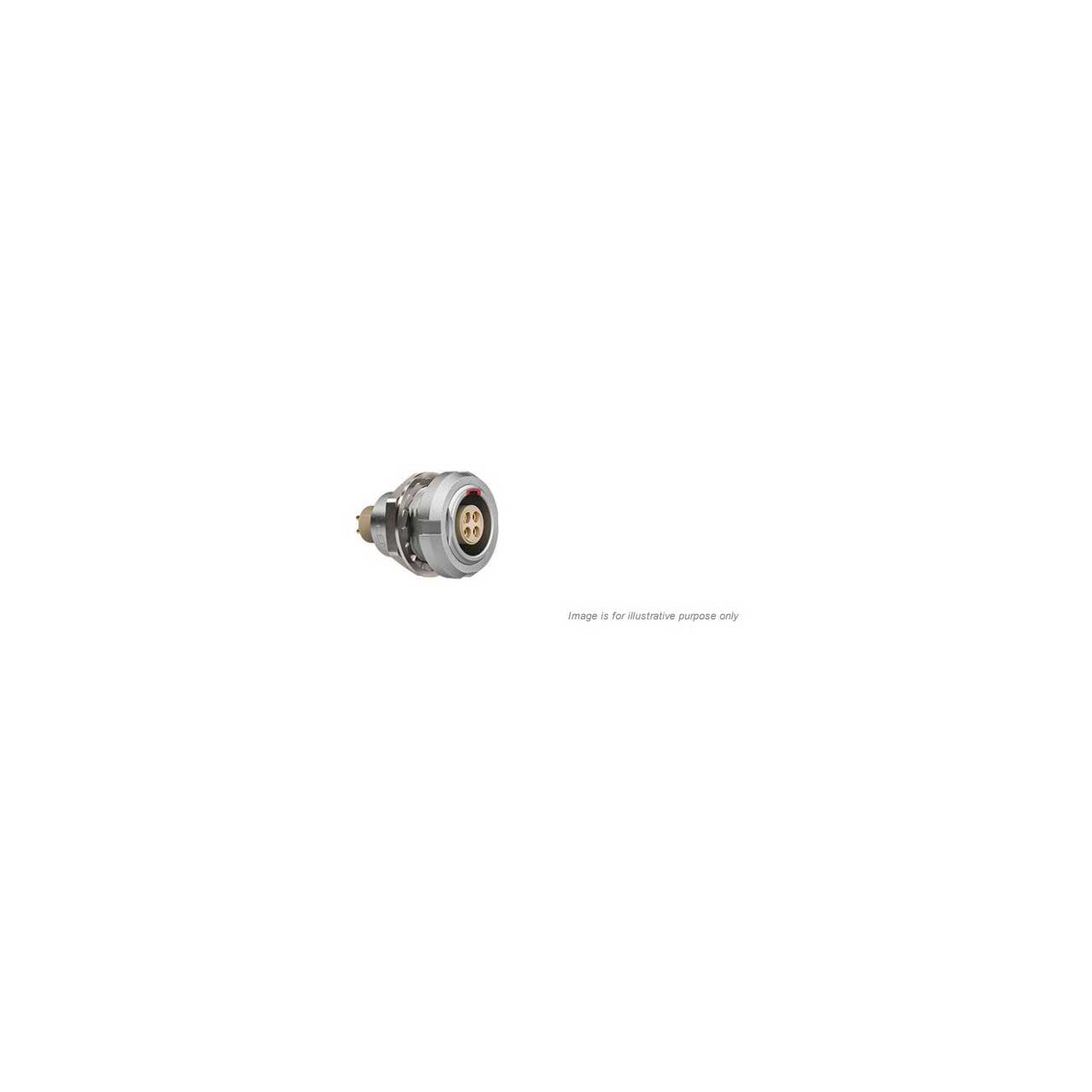

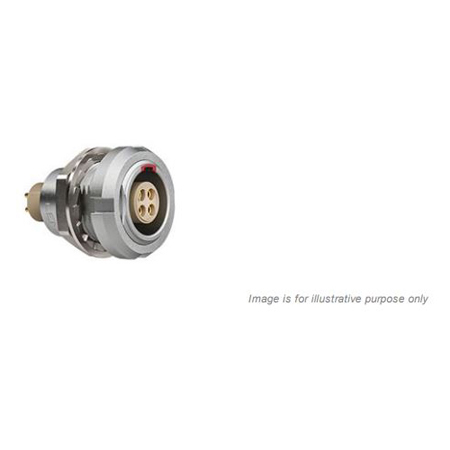

Lemo ECG.0B.304.CLN 4 Position Circular Brass Push Pull Female Print PCB Mount Fixed Lemo Receptacle

ECG.0B.304.CLN - Overview

• Specifications:

  • Shell Style/Model: EC Fixed receptacle with two nuts and straight contacts for printed circuit (back panel mounting)
  • Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
  • Housing: Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
  • Weight: 0.01 pounds/5.10g
  • Configuration: 0B.304 : 4 Low Voltage
  • Insulator: L: PEEK (UL 94 / V-0/1.5)
  • Rated Current: 7 Amps
  • Contact Type: Print (straight)
  • Max. Matings: 5000
  • Contact Dia.: 0.7 mm (0.028in)
  • R (max): 6.1 mOhm
  • Vtest (contact-contact): 850 V (AC), 1200 V (DC)
  • Vtest (contact-shell): 700 V (AC), 990 V (DC)
  • Endurance (Shell): 5000
  • Temp (min / max): -55°C / +250°C
  • Humidity (max): <=95% [at 60 deg C /140 F]
  • Vibration: 15 g [10 Hz - 2000 Hz]
  • Shock Resistance: 100 g [ 6 ms]
  • Salt Spray Corrosion: >1000 hr
  • Climatical Category: 50/175/21
  • Shielding (min): 75 dB (10 MHz)
  • Shielding (min): 40 dB (1 GHz)
  • IP Rating: 50
  • Matching parts: FGG.0B.304.CLAD56
  • Tools: Spanner 2: DCH.91.121.PA


• Item Includes:

  • Lemo receptacle
  • Securing Nuts (2)
