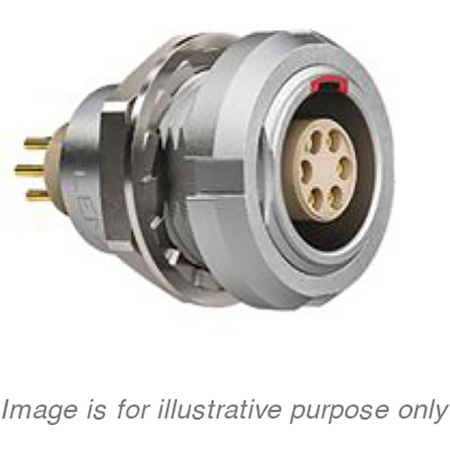

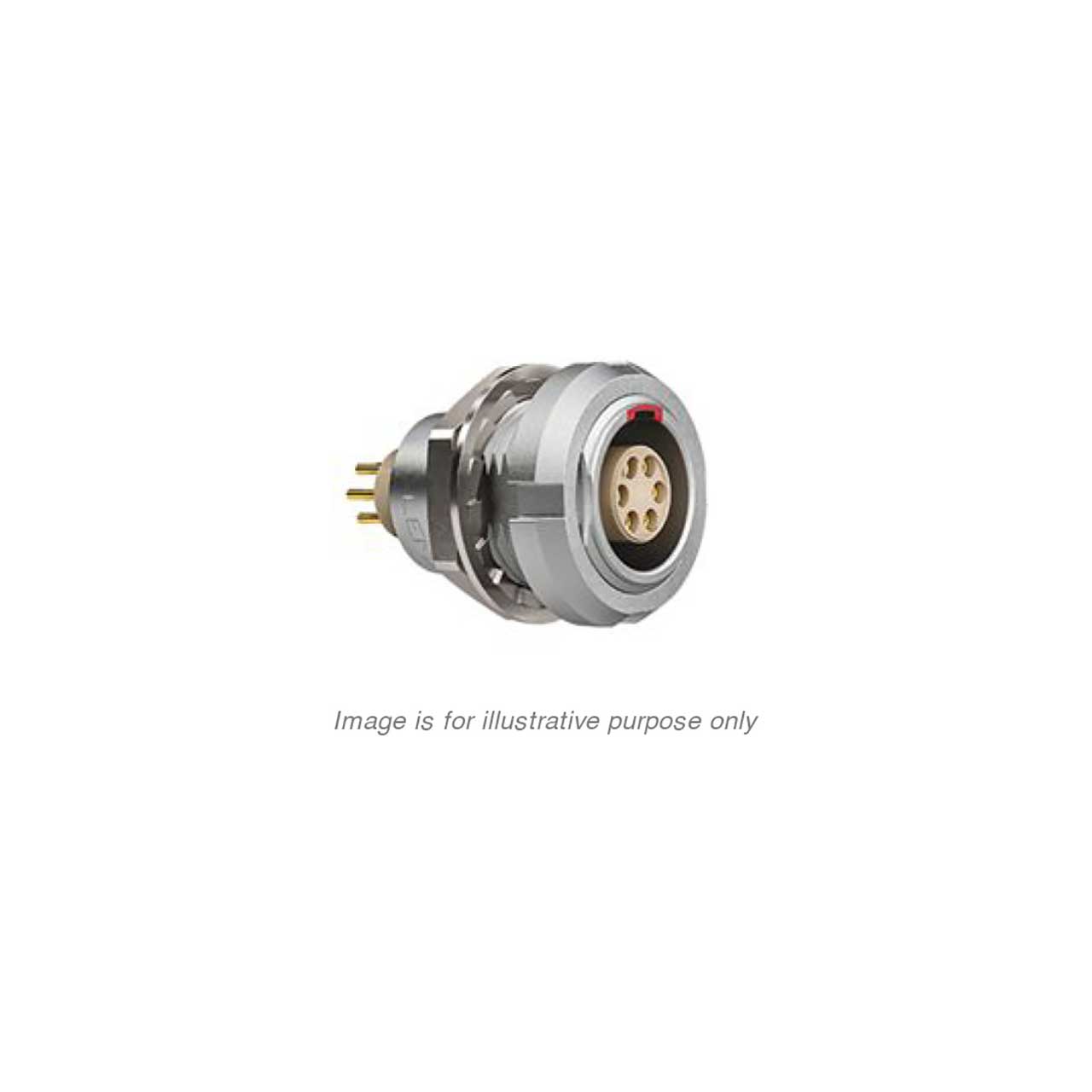

Lemo ECG.0B.306.CLN Circular Push Pull Connector - Fixed Receptacle

ITEM #: LMO-ECG0B306CLN MFG #: ECG.0B.306.CLN

Primary Image
Lemo USA
Free Shipping with $49 Minimum Order

List Price:

$23.26

Our Price:

$19.40

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ECG.0B.306.CLN - Overview

The Lemo ECG.0B.306.CLN is a Circular Push Pull Connector with two nuts and straight contacts for printed circuits.

  • Specifications:

    • Configuration: 0B.306 : 6 Low Voltage
    • Insulator: L: PEEK (UL 94 / V-0/1.5)
    • Rated Current: 2.5 Amps
    • Contact Type: Print (straight)
    • Contact Dia.: 0.5 mm (0.02in)
    • R (max): 8.7 mOhm
    • Vtest (contact-contact): 650 V (AC), 920 V (DC)
    • Vtest (contact-shell): 850 V (AC), 1200 V (DC)
    • Endurance (Shell): 5000
    • Temp (min / max): -55°C / +250°C
    • Humidity (max): <=95% [at 60 deg C /140 F]
    • Vibration: 15 g [10 Hz - 2000 Hz]
    • Shock Resistance: 100 g [ 6 ms]
    • Climatical Category: 50/175/21
    • Shielding (min): 75 dB (10 MHz)
    • Shielding (min): 40 dB (1 GHz)
    • Salt Spray Corrosion: >1000 hr


  • Item Includes:

    • 1x ECG.0B.306.CLN Connector
