RTS LMS-325 5-Watt Modular Amplified Loudspeaker

Name: RTS LMS-325 5-Watt Modular Amplified Loudspeaker
Brand: RTS Intercoms
SKU: LMS-325
Price: 718.00 USD
Availability: PreSale

ITEM #: LMS-325 MFG #: LMS-325

RTS Intercoms

Our Price:

$718.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

LMS-325 - Overview

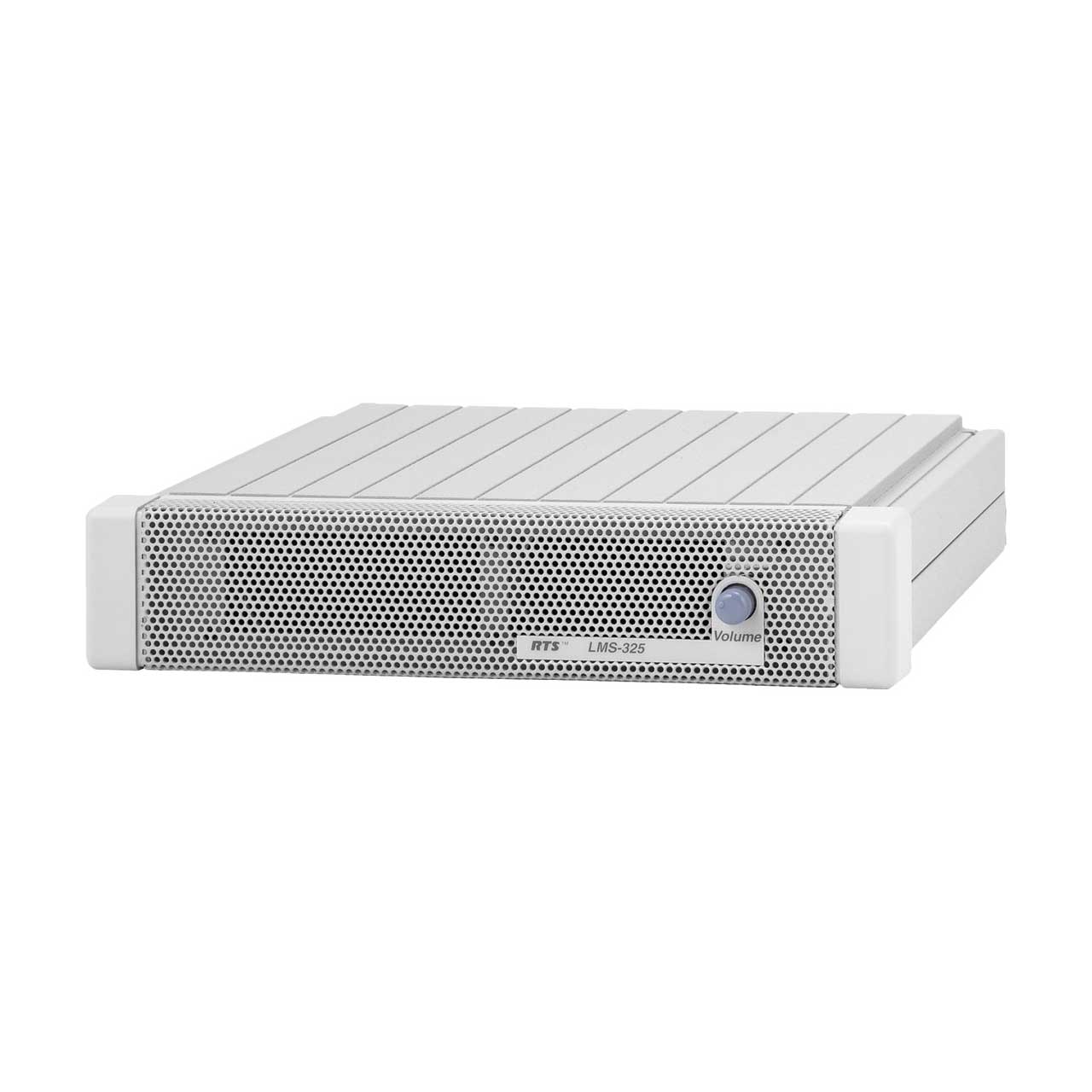

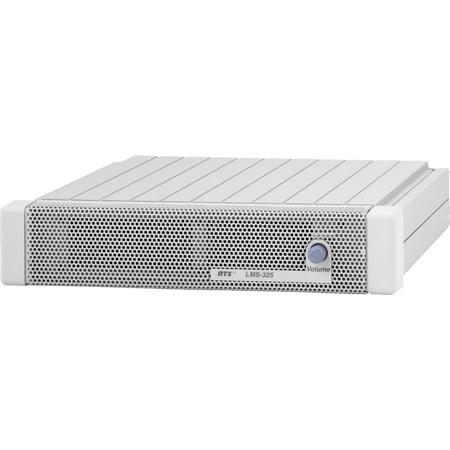

The RTS Model LMS-325 Line Monitor Speaker Station is an amplified, modular speaker that can be used to monitor one (1) or two (2) intercom or program channels. It features 5 watts of drive power
and includes a wide range 8 Ohm speaker.
The LMS-325 is in the standard 1 RU (Rack Unit), ½ rack width form factor of other RTS intercom products, including the RM-325 Intercom station, the MRT-327, MCE-325, SSA-324 and others. A large variety of mounting options and hardware are available to suit any application.

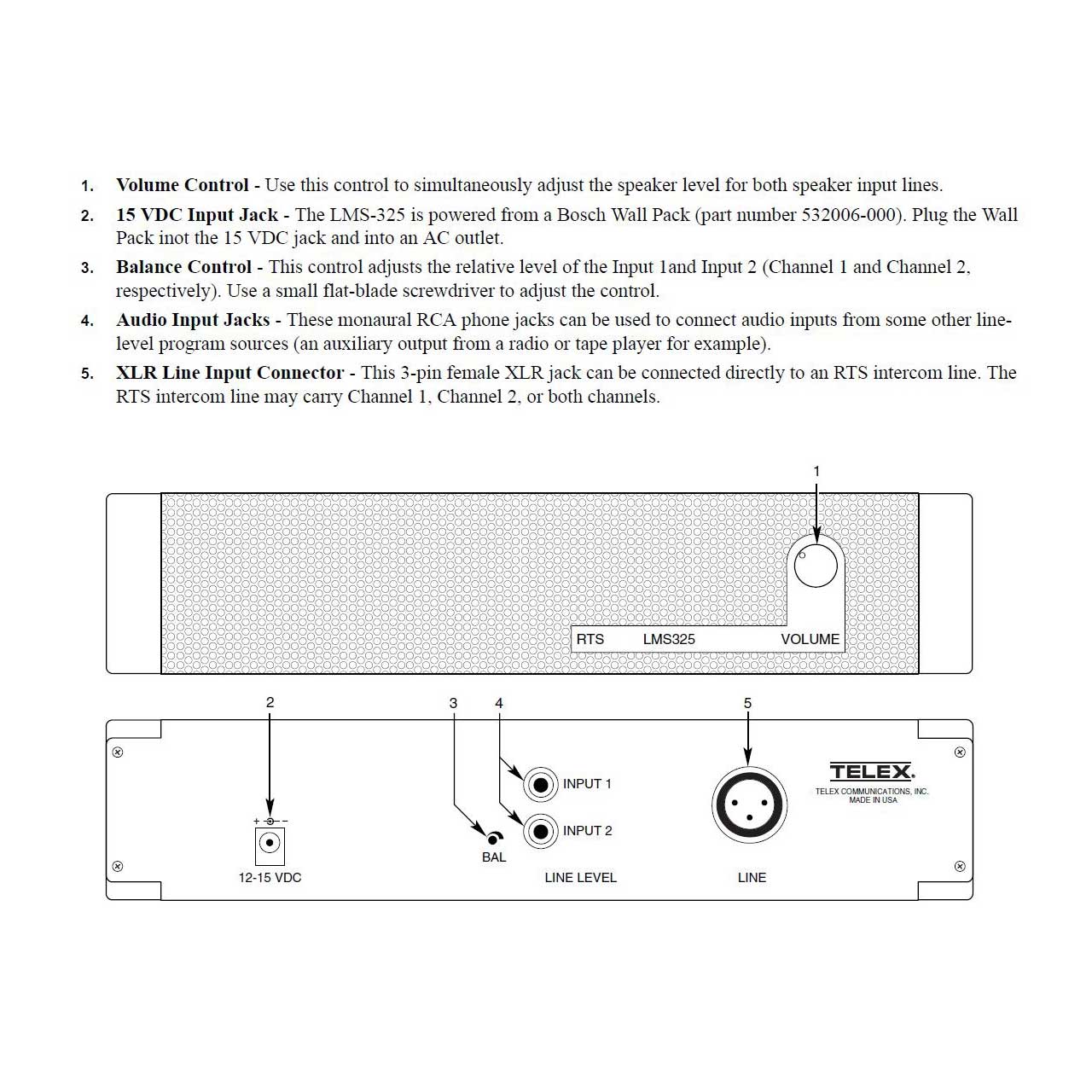

The LMS-325 has separate phono jacks for each program input and an XLR-3 connector for a 2-channel RTS intercom line. A rear panel adjustment allows the user to set relative levels between the two (2) input channels. The unit is powered locally from a supplied power pack to allow operation with dry audio signals and to prevent loading of the RTS TW intercom channels.

Features:
- Two (2) monaural phone jacks for two (2) separate audio inputs.
- One 3-pin XLR connector for RTS intercom channels one and two.
- Control to adjust volume of speaker output.
- Control that balances the speaker's audio level between input one (1) and input two (2).
- Power externally from a Bosch Wall Pack.
Specifications:
- Power Rating: 5 watts.
- Sensitivity: 90± 2dB/2.83V/meter on axis averaged over one (1) octave bands centered at 250Hz, 500Hz, 1kHz, 2kHz, 4kHz and 8kHz when enclosed in a sealed box with a volume of 1.3 liters.
- Frequency Response: 200Hz to 10kHz± 4dB on 1/10 octave measurements in a sealed box with a volume of 1.3 liters.
- Free Air Resonance: 200Hz to 250Hz.
- Frequency Response: 200Hz to 10kHz ±1.5dB.
- Mechanical Noise: Free of buzzes and rattles with 5W sinewave input from 100Hz to 10kHz.
- Environmental Requirements: Storage: -20§C to 80§C (-4§F to 176§F); 0% to 95% humidity, non-condensing, Operating: 0§C to 50§C (32§F to 122§F); 0% to 95% humidity, non-condensing.
- Dimensions: 1.72 in (44 mm) H x 8.2 in (208 mm) W x 8 in (203mm) D.
- Weight: 2 lb 12 oz (1.25 kg).
GTIN:
0800549325950

LMS-325 - Recommended Accessories

Sescom Mic Cable Canare Star-Quad 3-Pin XLR Male to 3-Pin XLR Female - Black - 25 Foot
SC25XXJ
Our Price: $26.49
Sescom Audio Cable Canare Star-Quad RCA Male to RCA Male Black - 25 Foot
SC25RR
Our Price: $29.49
Sescom Pro Audio Hum Eliminator Inline with Isolation
IL-19
Our Price: $50.49

LMS-325 - Reviews

LMS-325 - Attachments

See RTS F.01U.155.706 Manual (PDF)
See RTS F.01U.155.706 Specifications (PDF)

Overview

LMS-325 - Overview

Features:
- Two (2) monaural phone jacks for two (2) separate audio inputs.
- One 3-pin XLR connector for RTS intercom channels one and two.
- Control to adjust volume of speaker output.
- Control that balances the speaker's audio level between input one (1) and input two (2).
- Power externally from a Bosch Wall Pack.
Specifications:
- Power Rating: 5 watts.
- Sensitivity: 90± 2dB/2.83V/meter on axis averaged over one (1) octave bands centered at 250Hz, 500Hz, 1kHz, 2kHz, 4kHz and 8kHz when enclosed in a sealed box with a volume of 1.3 liters.
- Frequency Response: 200Hz to 10kHz± 4dB on 1/10 octave measurements in a sealed box with a volume of 1.3 liters.
- Free Air Resonance: 200Hz to 250Hz.
- Frequency Response: 200Hz to 10kHz ±1.5dB.
- Mechanical Noise: Free of buzzes and rattles with 5W sinewave input from 100Hz to 10kHz.
- Environmental Requirements: Storage: -20§C to 80§C (-4§F to 176§F); 0% to 95% humidity, non-condensing, Operating: 0§C to 50§C (32§F to 122§F); 0% to 95% humidity, non-condensing.
- Dimensions: 1.72 in (44 mm) H x 8.2 in (208 mm) W x 8 in (203mm) D.
- Weight: 2 lb 12 oz (1.25 kg).
GTIN:
0800549325950
