LYNX Technik GMPT UPXD US greenMachine titan w/ GMC-4KUPXD & GMC-3GUPXD Constellations Installed & Licensed

ITEM #: LNX-GMPT-UPXD-US MFG #: GMPT UPXD US

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$6,500.00

Our Price:

$6,175.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

GMPT UPXD US - Overview

The greenMachine UPXD US is a packaged broadcast-quality video processing unit that contains 2 great constellation Licenses! .

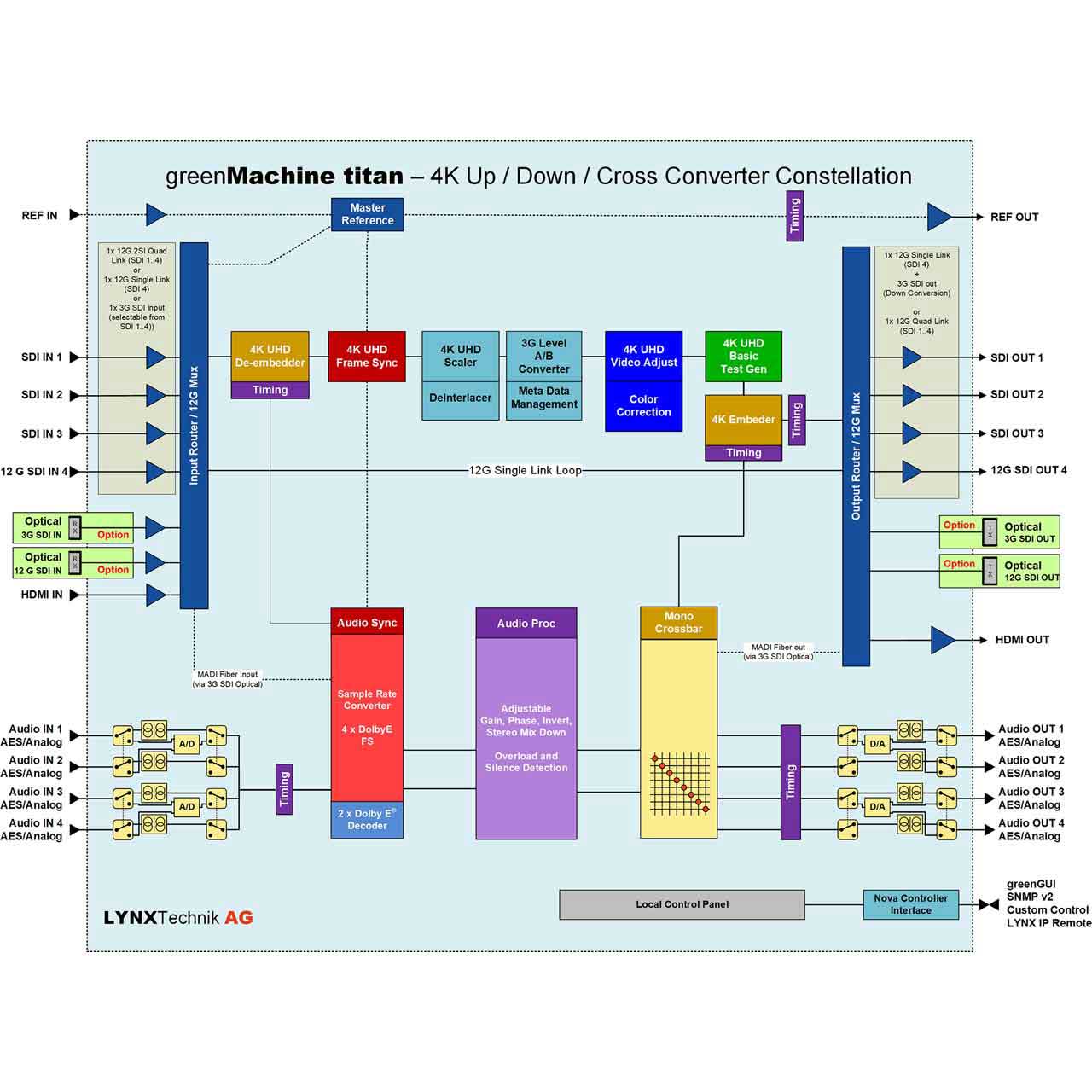

The first license is the GMC-4KUPXD Constellation, a single channel 4K/UHD Up/Down/Cross Converter.

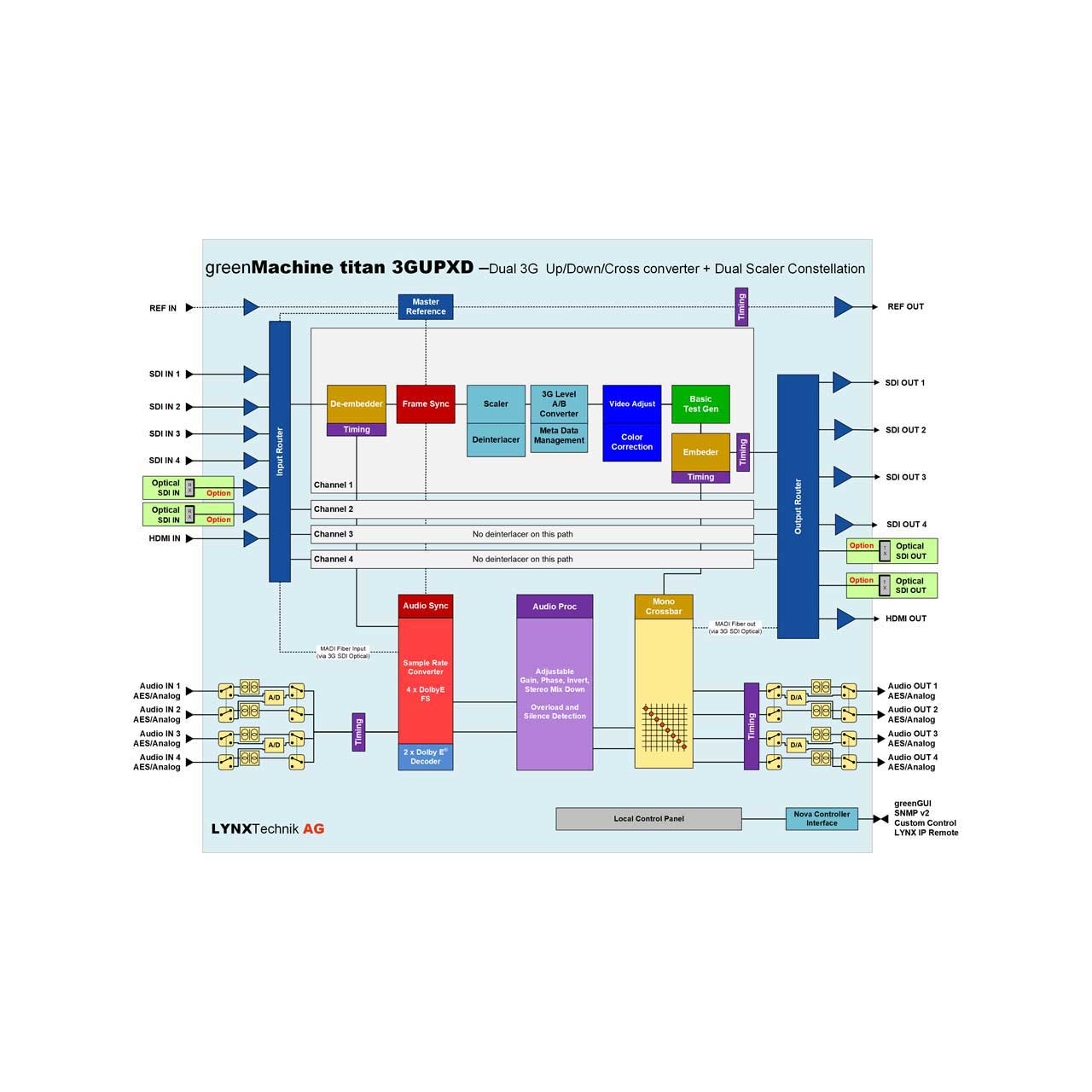

The 2nd license is the GMC-3GUPXD. A 4 Channel 3G-SDI Dual UPXD converter + Dual Scaler, FS and Audio processor.

It includes full audio processing capabilities, scalers for the spatial conversion of the video signals including versatile region of interest (ROI) selection, and high-performance deinterlacer. It also supports 4x3G (2SI Quad link) or 12G SDI (single link) inputs and outputs for 4K UHD signals. With 2SI quad-link <> single link conversion, signals can be interchanged in between the single link and 2SI quad links.

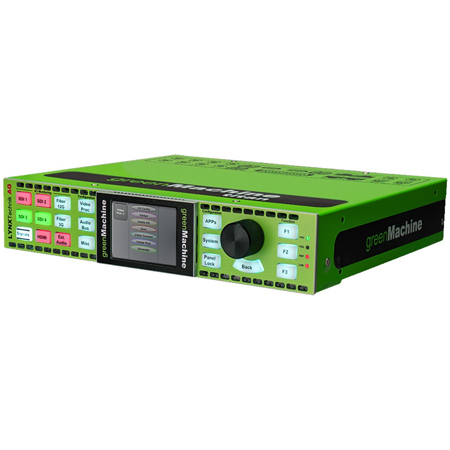

The greenMachine UPXD package comes with a fully-featured local control interface with LCD which displays image previews and audio level meters of the processed video paths in addition to the graphical user interface called LynxCentraal. It is also supported by the Nova controller which enables the module to be remotely controlled and monitored via third party master control software.

This greenMachine 4k UPXD package is also supported by the Nova controller which enables the module to be remotely controlled and monitored via third party master control software.

This package has the GMC 4KUPXD constellation installed and licensed. along with the GMC 3GUPXD license for quad 3G operation.

  • Features:

    • Broadcast quality up/down/cross converter supporting formats up to 4k UHD (3840x2169)
    • 12G SDI (Single Link or 2SI Quad link) or 4 x 3G modes of operation
    • 2SI Quad-Link<>Single-Link Conversion
    • Versatile Region of Interest (ROI) selection
    • Support for one MADI input and output and four external audio
    • Two Dolby Er decoders, Dolby Er synchronization, full audio processing
    • Multiple adjustable user delays for audio and video
    • Basic test pattern generator
    • Multiple additional processing features allows for adjustments of the video content, e.g. gain, hue etc.


  • Specifications:

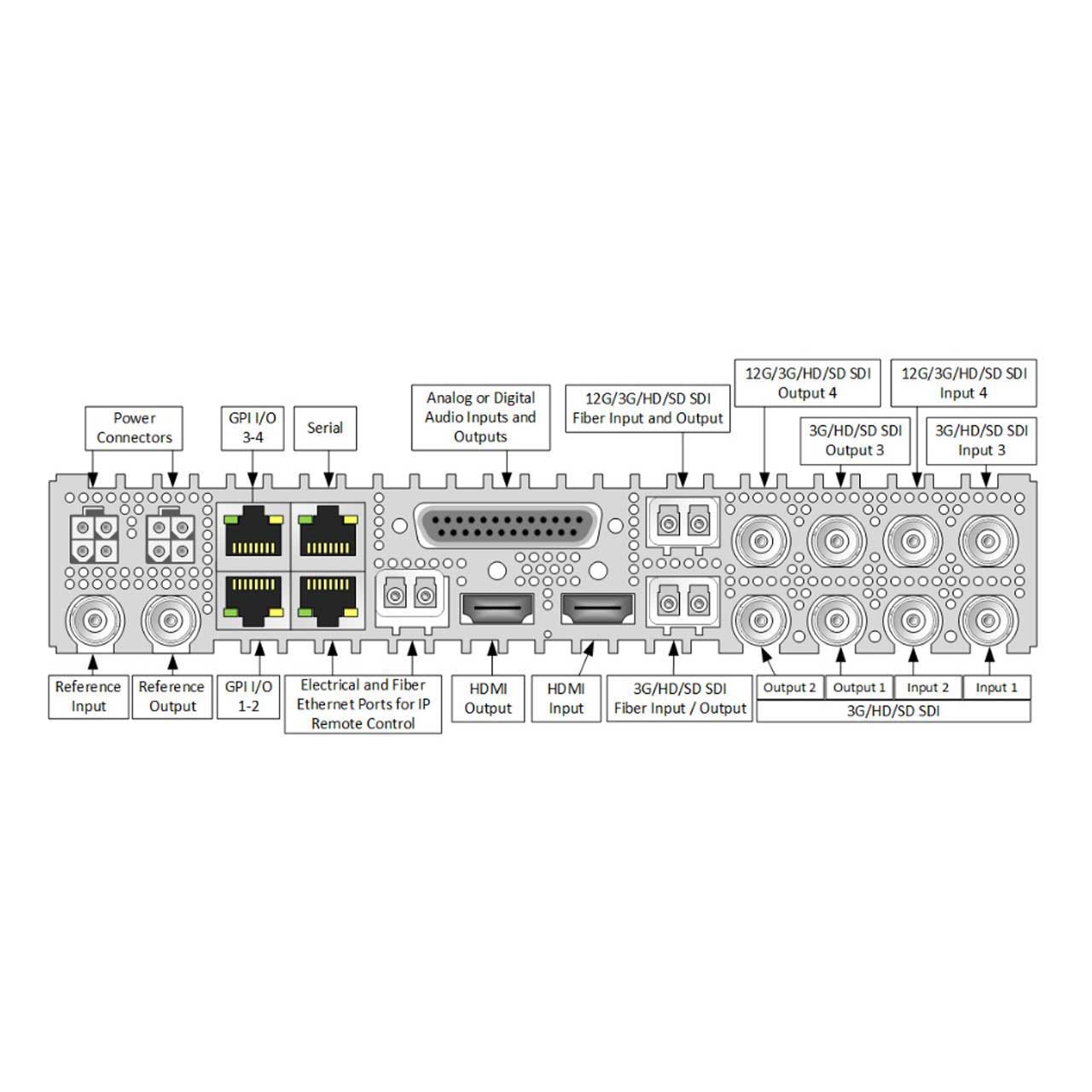

    • Inputs & Outputs
      SDI Input
    • 4x 3G SDI video on 75 Ohm BNC connector (SMPTE 259m, 292M, 424M ) with automatic video format and standard detection
    • Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
    • Automatic cable EQ (Belden 1694A): 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 110m @ 3Gbit/s
      12G SDI Input*
    • 1x 12G SDI video on 75 Ohm BNC connector (SMPTE 259M, 292M, 424M, 2082) with automatic video format and standard detection
    • Return Loss: >7dB to 6GHz; >4dB to 12GHz
      SDI Output
    • 4x SDI video on 75 Ohm BNC connector (SMPTE 259m, 292M, 424M)
    • Timing jitter: < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 3Gbit/s
    • Alignment jitter: < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 3Gbit/s
    • Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
      12G SDI*
    • Output: 1x 12G SDI video on 75 Ohm BNC connector (SMPTE 259M, 292M, 424M, 2082)
    • Return Loss: >7dB to 6GHz; >4dB to 12GHz
    • Reference Input: 1x analog video reference on 75 Ohm BNC connector, Analog bi-level (SDTV) or tri-level (HDTV) auto detect
    • Reference Output: 1x analog video reference on 75 Ohm BNC connector, Analog bi-level (SDTV) or tri-level (HDTV), cross lock capability
      *NOTE: 12G SDI operations not supported on 3G contellations and constellation modes ( i.e. 3G quad channel confoguration)

      Audio Connection
    • Audio I/O: 4x input and 4x output on Sub-D 25 female connector
    • Analog I/O: input impedance >10k Ohm, Output Impedance 150 Ohm, Analog I/O full scale level: selectable 12, 15, 18, 20, 22, 24 dBu

      Supported SDI Formats
    • SDTV: 525 / 59.94Hz, 625 / 50Hz
    • HDTV: 1080i / 50Hz, 1080i / 59.94Hz, 1080i / 60Hz, 1080p / 23.98Hz, 1080p / 24Hz, 1080p / 25Hz, 1080p / 29.97Hz, 1080p / 30Hz, 1080psf /23.98Hz, 1080psf / 24Hz, 1080psf / 25Hz, 720p /23.98 Hz, 720p / 24Hz, 720p / 25Hz, 720p / 29.97Hz, 720p / 30Hz, 720p / 50Hz, 720p / 59.94Hz, 720p / 60Hz
    • 3Gbit/s Level A: 1080p / 50Hz, 1080p / 59.94Hz, 1080p / 60Hz

      AV Connection
    • HDMI: 1x Input 10 bit HDMI 1.4b, 1x Output 10 bit HDMI 1.4b
    • Digital: AES3 balanced transformer isolated; Digital output level: 4V peak to peak nom
    • MADI: 64 channel MADI supported on selected constellations (optional MADI SFP reqired for this)

      Network Connection
    • Ethernet(LAN): 1x 10/100/1000 BaseT RJ45 Connector
    • GPI I/O: 4x general purpose inputs (RJ45 Connector), 4x general purpose outputs (RJ45 Connector)
    • Serial Data: EIA/ETA RS232C / RS422 /RS 485 (selectable through LynxCentraal) - RJ45 connector, ESD protection for up to 16kV

    • Power: 12V DC @ 45W nominal (supports 7 - 24VDC input range), 2x power connections for redundant power supply
    • Mechanical: W: 1/2 19", H: 1.75", D: 8.86" - including connectors.
    • Weight: 3.09lb


  • Item Includes:

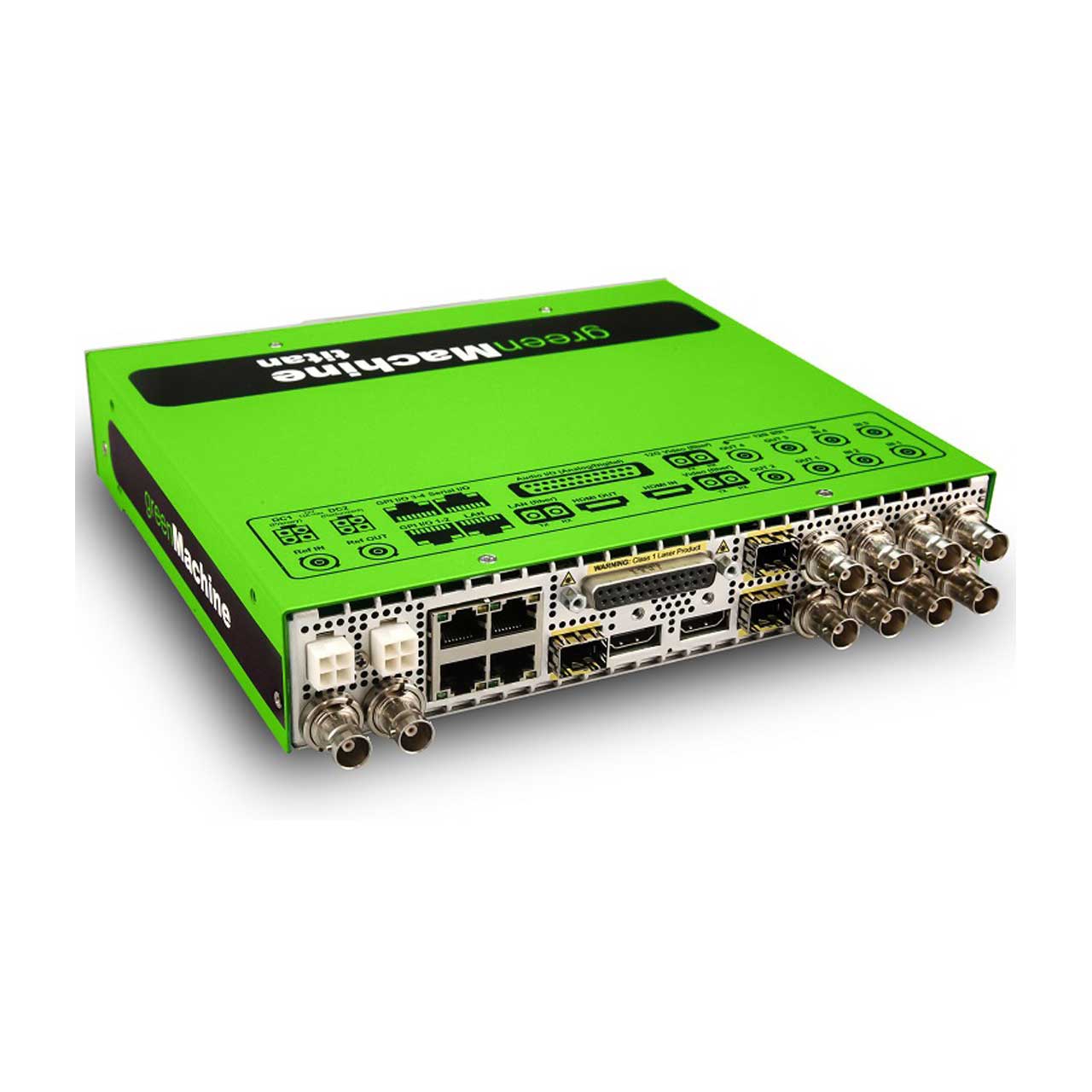

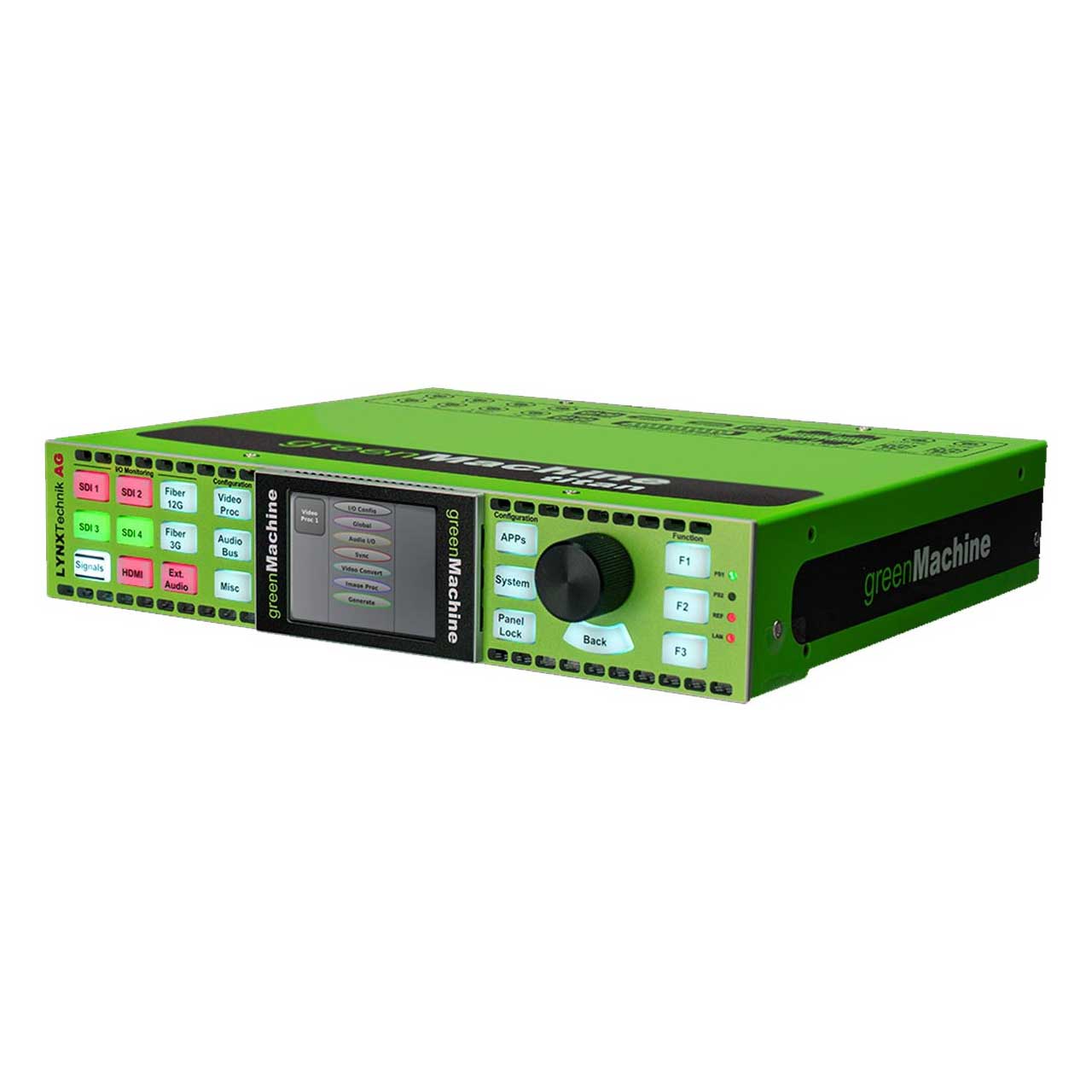

    • 1x GM 6840 greenMachine Titan Hardware Platform
    • 1x GMC-4KUPXD Constellation (licensed and installed)
    • 1x GMC-3GUPXD Constellation (licensed and installed)
    • 1x RPS A100 US Primary Power Supply (redundant optional)


  • GTIN:

    4250479325807
