The LYNX Technik OBD 1810 is a bidirectional Fiber Optic to SDI transmitter and receiver which uses a single fiber link supplied in a compact self-contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

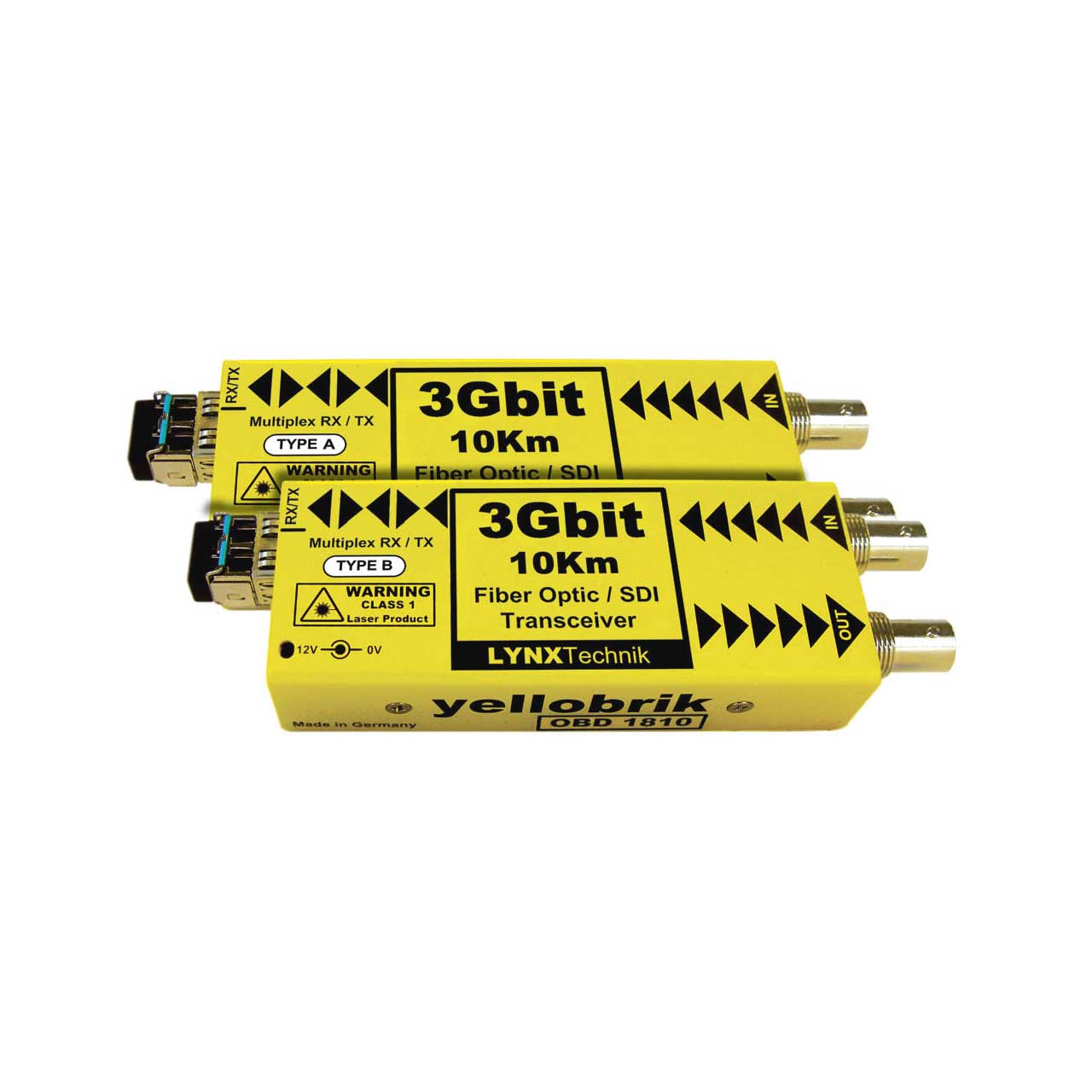

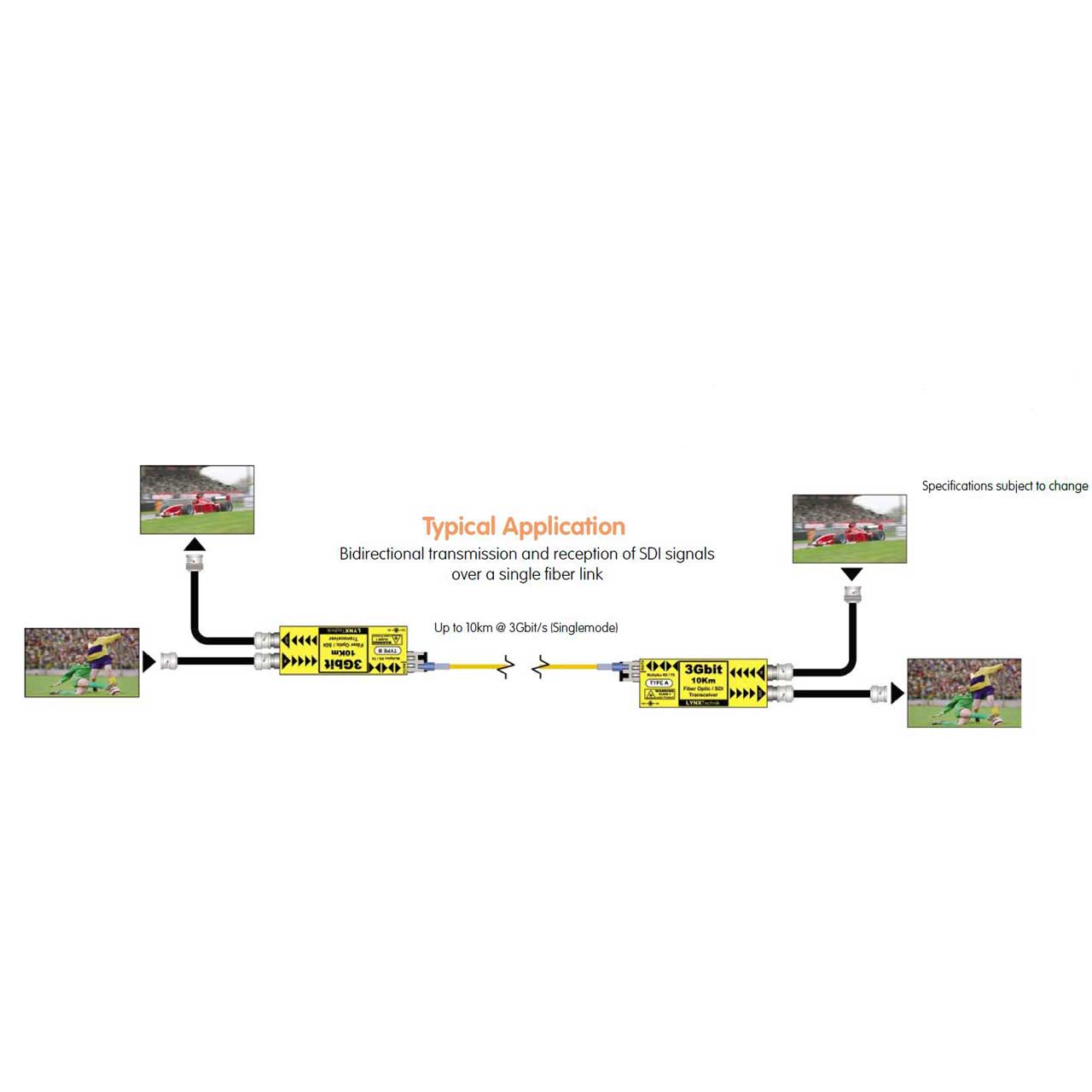

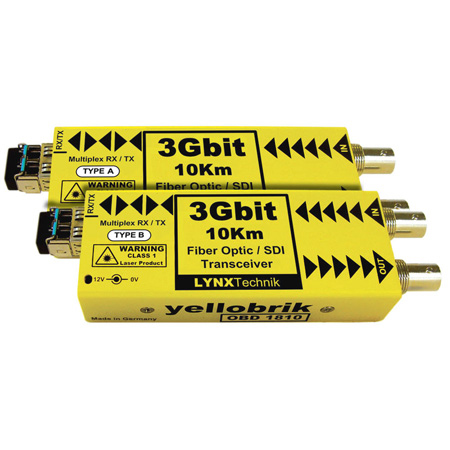

The OBD 1810 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fiber link between the two.
Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 270Mbit, 1.5Gbit and 3Gbit SDI source prior to conversion. The modules are fully compatible with 3Gbit Level A and Level B formats.
Note. This system used WDM optical multiplexing and should only be used in point to point applications. This solution cannot be integrated into a CWDM multiplexed system.
