O CM 1891 - Overview

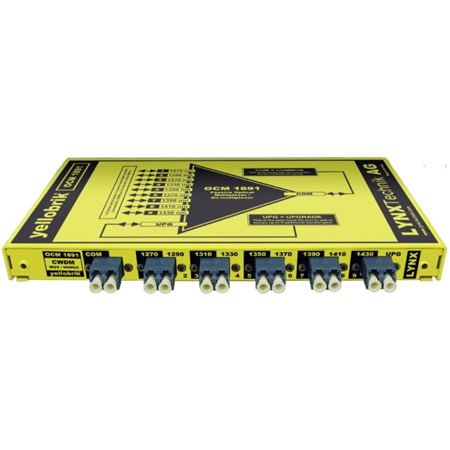

The LYNX Technik OCM 1891 is a compact CWDM passive 9 channels optical multiplexer/demultiplexer designed to send or receive up to 9 individual signals over a single fiber link. The module has an UPG (Upgrade) port to connect to the OCM 1892, which expands the capability of the modules to 18 CWDM channels.

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, ideal for system installations.

Ideally suited for use with the CWDM yellobrik fiber modules (all 18 wavelengths available).

Please Note: SFP Modules Required, Sold Separately. Images for reference only.

  • Features:

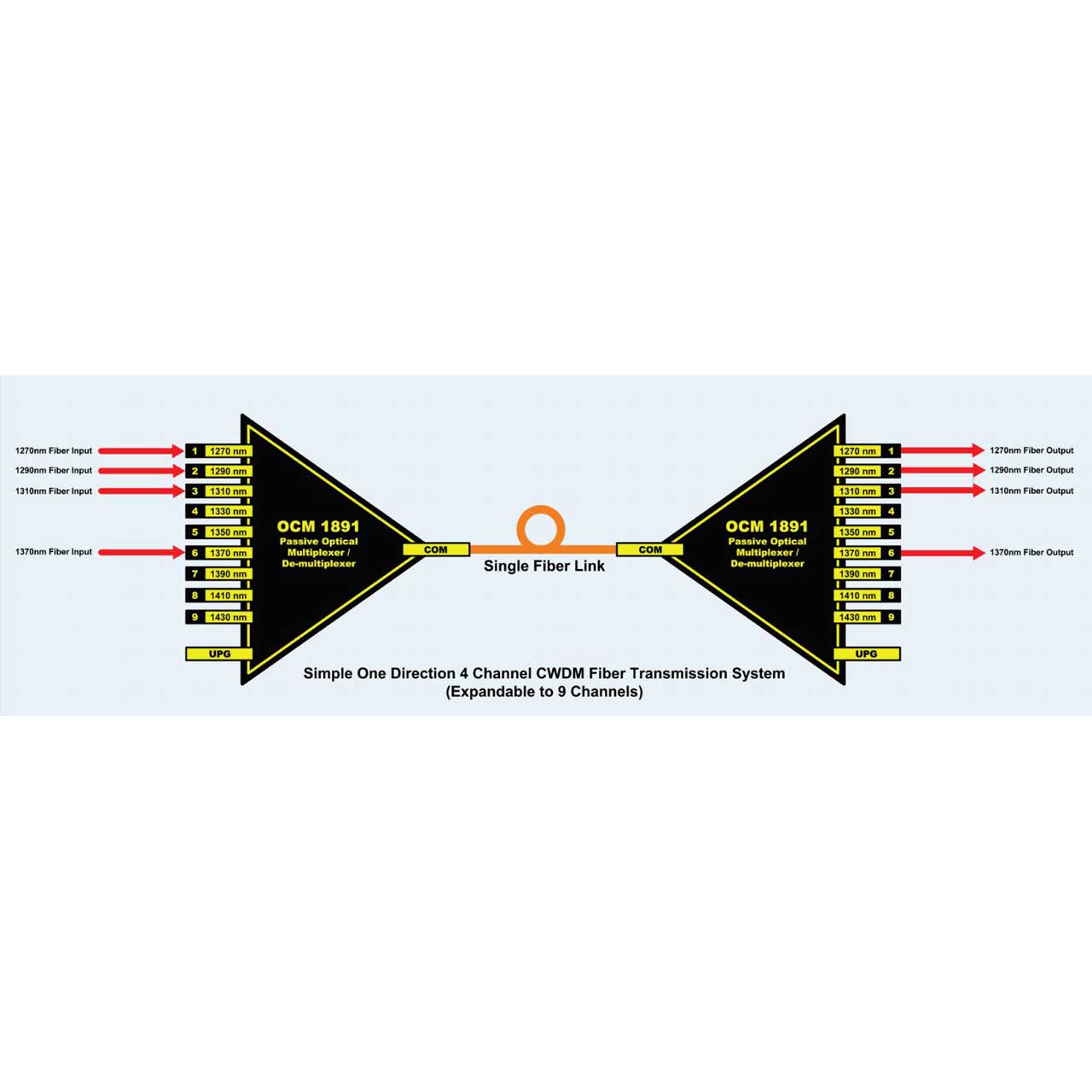

    • Send/Receive up to 9 channels over a single fiber
    • 1270nm to 1430nm (ITU-T G.694.2)
    • Passive operation (no power required)

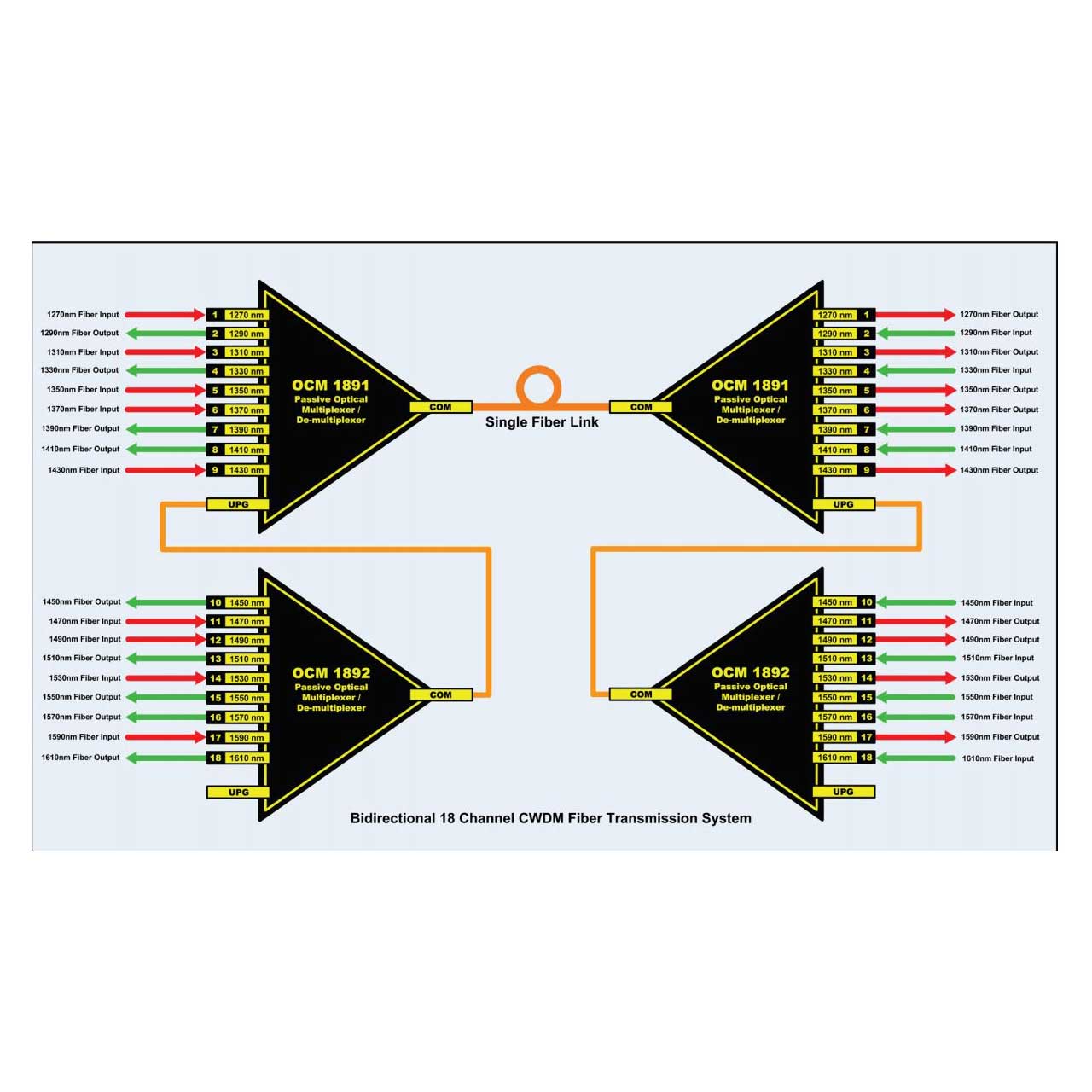

    • Combine with OCM 1892 for 18 channels
    • LC/PC single mode optical connections
    • Optional 1/2 RU 19" rack frame


  • Specifications:

    • Optical I/O

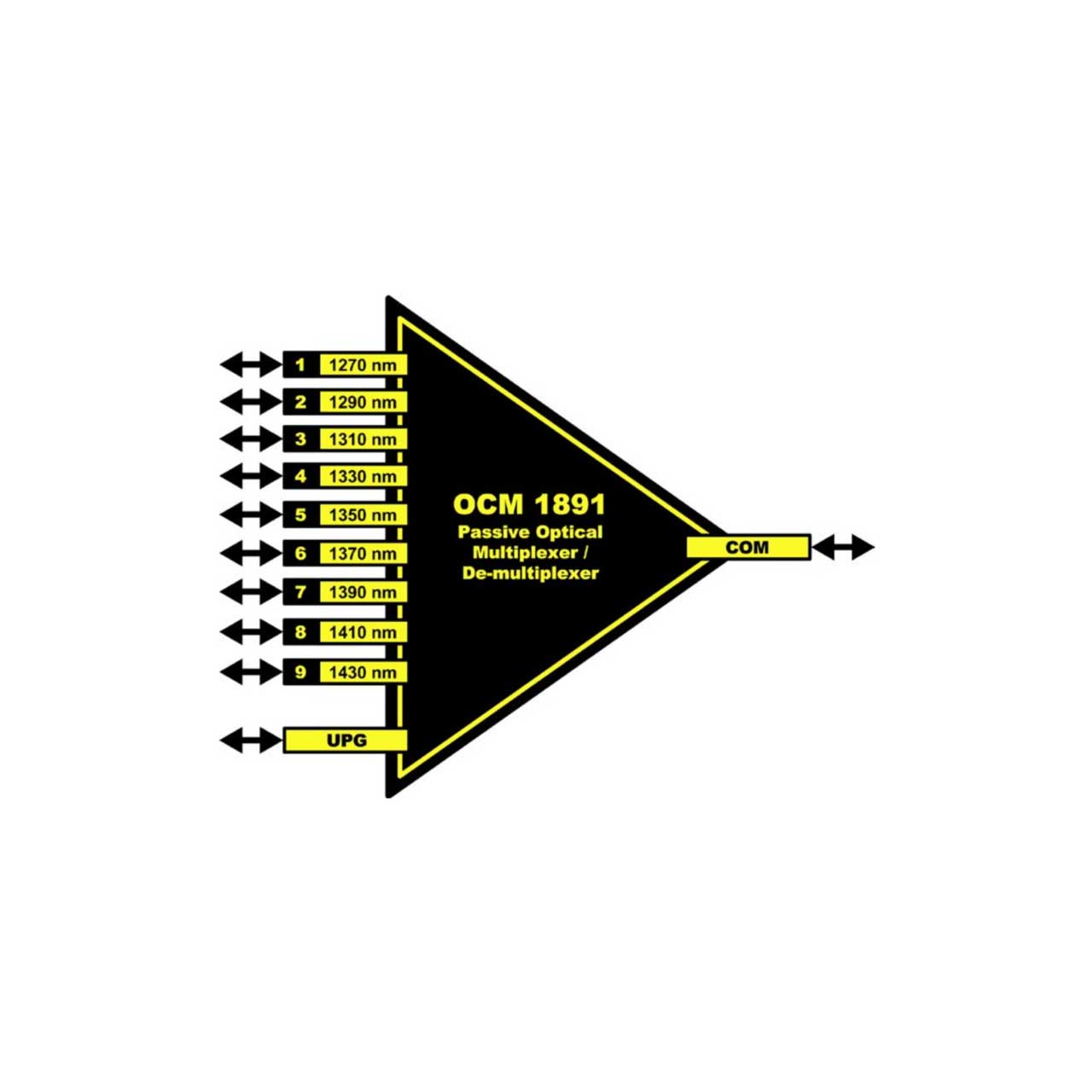

    • 9x Fiber Optic I/O channels (1 through 9)
    • Center frequencies taken from ITU-T G.694.2
    • 1270,1290,1310,1330,1350,1370,1390,1410,1430 nm
    • 1x COM (common) connection = multiplexed I/O
    • 1x UPG (Upgrade) I/O connection
    • (pass band connection to OCM 1892 module)
    • LC/PC connectors SMF (single mode)
    • Channel Insertion Loss: 2.7dB
    • UPG Insertion Loss: 2.7dB
    • Polarization Dependant Loss: max 0.2dB
    • Return Loss: > 45dB
    • Isolation (to adjacent channel): > 30dB
    • Directivity > 55dB
    • Temp. Dependant Loss: < 0.005dB/°C
    • Temp. Dependant Change of Wavelength: < 0.003nm/°C
    • Max. Input Power: 500mw
    • Single or full duplex operation

      Physical
    • Size (LxWxH): 4.25" x 7.79" x 0.75"
    • Weight: 8.1oz (230g)
    • Power: None required (passive operation)


  • Item Includes:

    • 1xModule and plastic transport case
    • SFP Modules Required, Sold Separately.


  • GTIN:

    4250479318915
