LYNX Technik OCM 1892 9 Channel Fiber CWDM with LC Connectors (1450nm - 1610nm)

ITEM #: LNX-OCM1892 MFG #: O CM 1892

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$1,828.00

Our Price:

$1,736.60

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

O CM 1892 - Overview

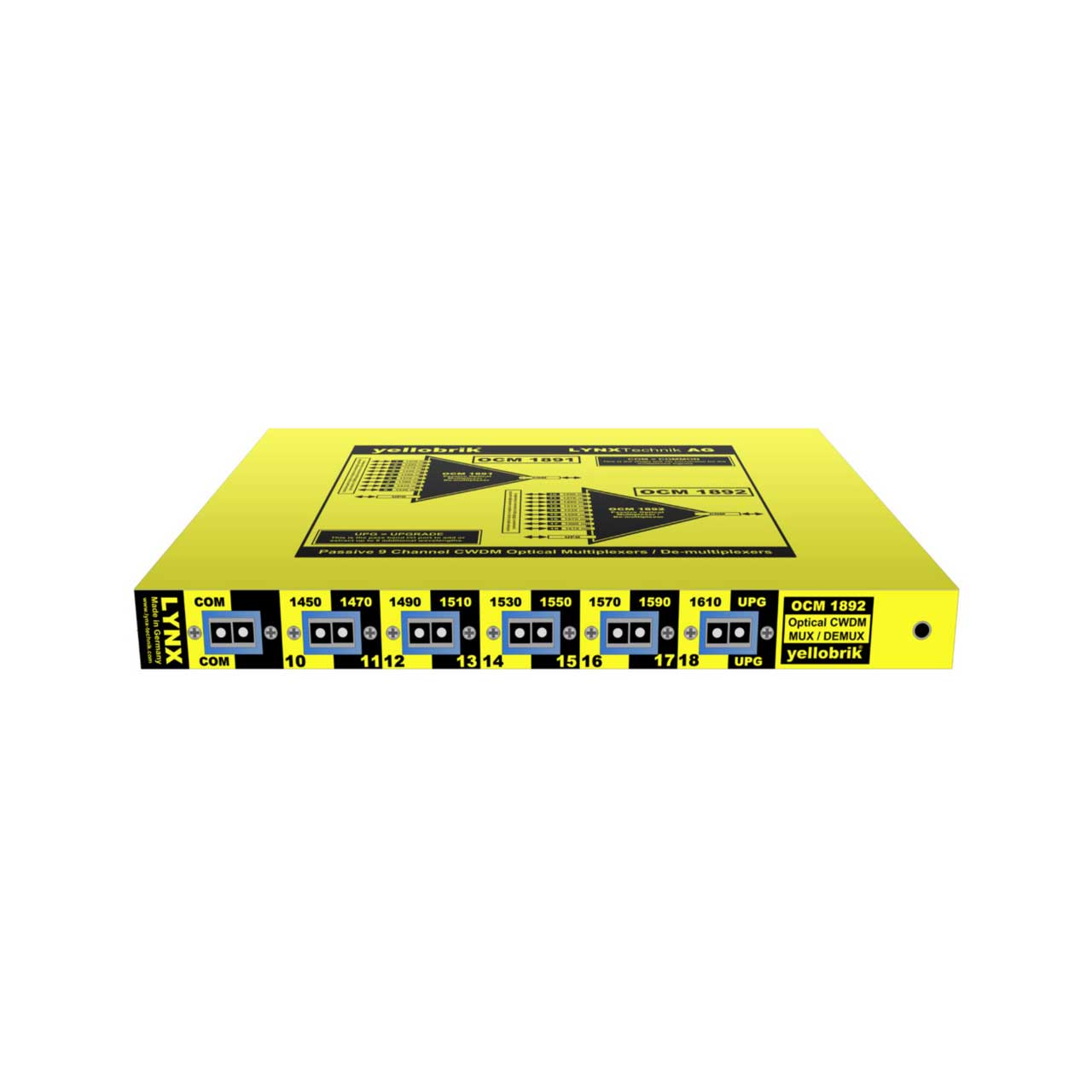

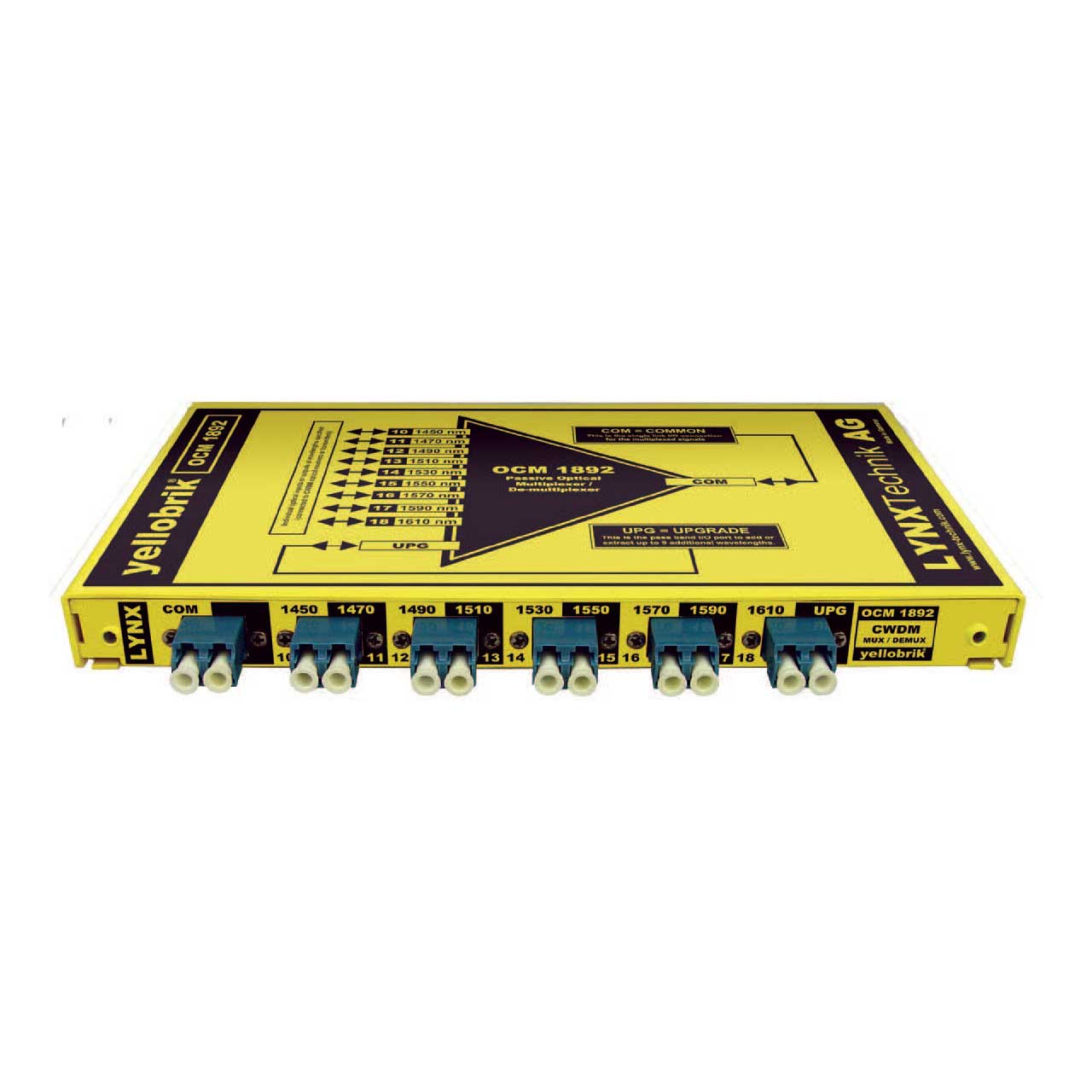

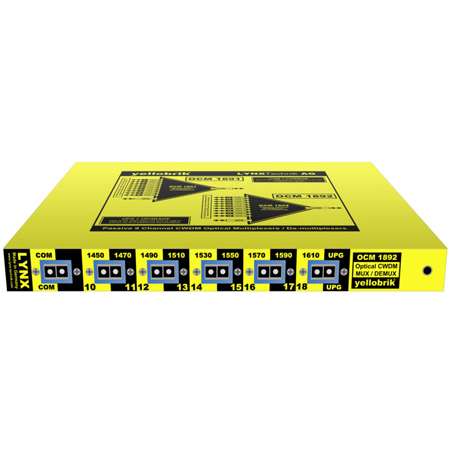

The LYNX Technik OCM1892 is a compact CWDM passive 9 channels optical multiplexer/demultiplexer designed to send or receive up to 9 individual signals over a single fiber link. The module has an UPG (Upgrade) port to connect to the OCM 1891, which expands the capability of the modules to 18 CWDM channels.

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, ideal for system installations.

Ideally suited for use with the CWDM yellobrik fiber modules (all 18 wavelengths available).

Please Note: SFP Modules Required, Sold Separately. Images for reference only.

  • Features:

    • Send/Receive up to 9 channels over a single fiber
    • 1450nm to 1610nm (ITU-T G.694.2)
    • Passive operation (no power required)

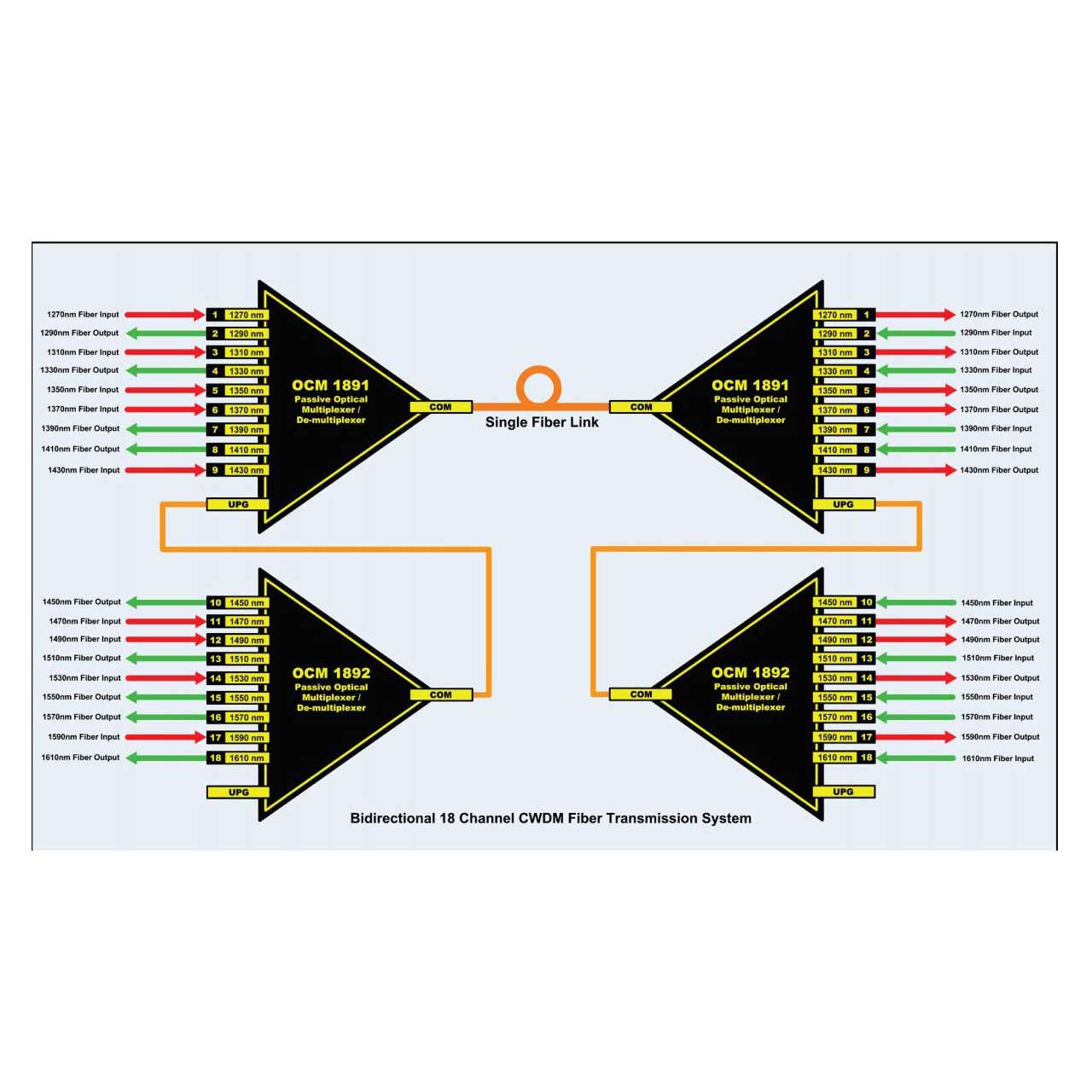

    • Combine with OCM 1891 for 18 channels
    • LC/PC single mode optical connections
    • Optional 1/2 RU 19" rack frame


  • Specifications:

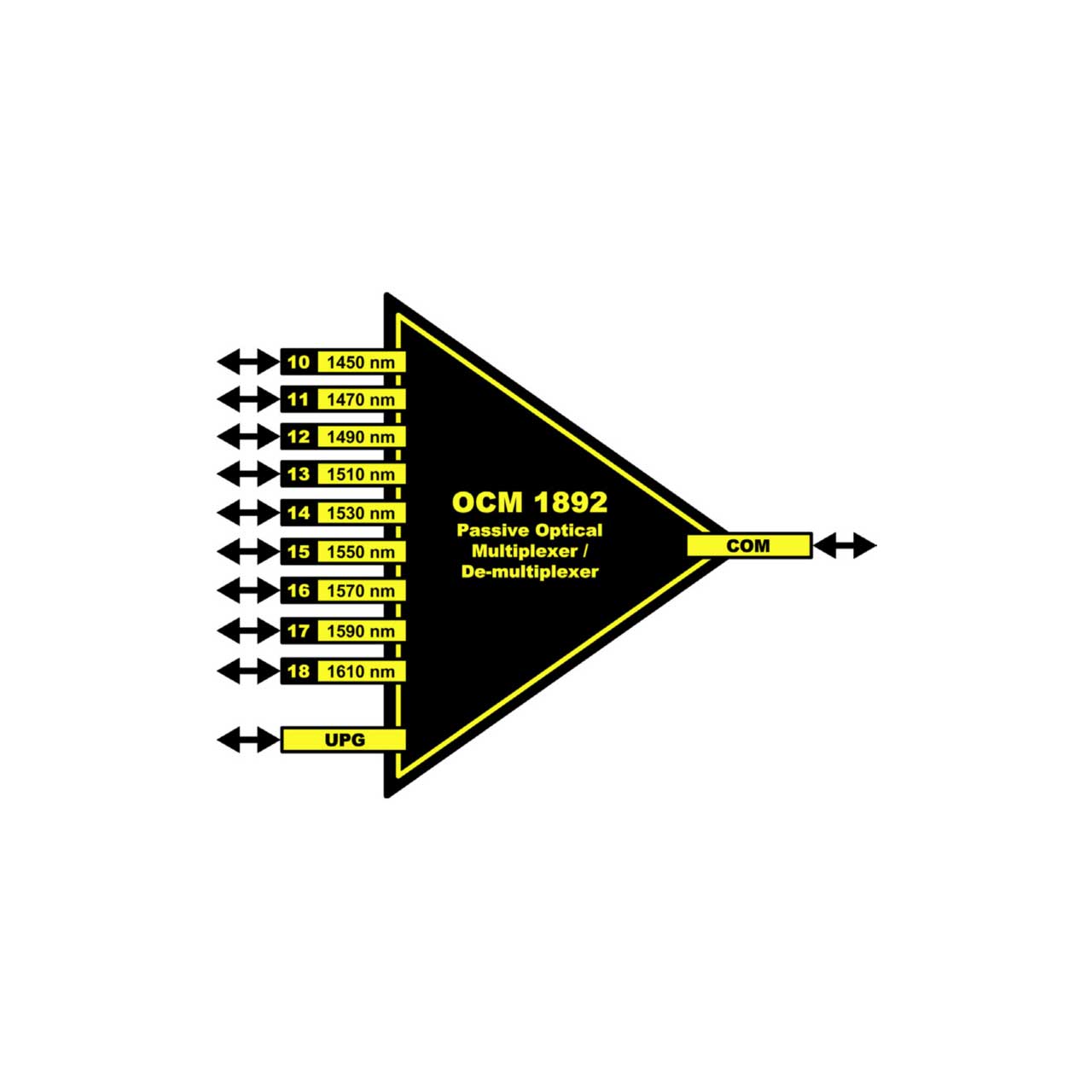

    • Optical I/O
    • 9x Fiber Optic I/O channels (10 through 18)
    • Center frequencies taken from ITU-T G.694.2
    • 1450,1470,1490,1510,1530,1550,1570,1590,1610 nm
    • 1x COM (common) connection = multiplexed I/O
    • 1x UPG (Upgrade) I/O connection
    • (pass band connection to OCM 1892 module)
    • LC/PC connectors SMF (single mode)
    • Channel Insertion Loss: 2.7dB
    • UPG Insertion Loss: 2.7dB
    • Polarization Dependant Loss: max 0.2dB
    • Return Loss: > 45dB
    • Isolation (to adjacent channel): > 30dB
    • Directivity > 55dB
    • Temp. Dependant Loss: < 0.005dB/°C
    • Temp. Dependant Change of Wavelength: < 0.003nm/°C
    • Max. Input Power: 500mw
    • Single or full duplex operation

      Physical
    • Size (LxWxH): 4.25" x 7.79" x 0.75"
    • Weight: 8.1oz (230g)
    • Power: None required (passive operation)


  • Item Includes:

    • 1x Module
    • SFP Modules Required, Sold Separately


  • GTIN:

    4250479318922
