LYNX Technik OH-TR-4-1270 Optical Transceiver (TR) SFP Module - CWDM capable - 40km - Fiber LC connectors

ITEM #: LNX-OH-TR-4-1270 MFG #: OH-TR-4-1270

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$729.00

Our Price:

$692.55

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

OH-TR-4-1270 - Overview

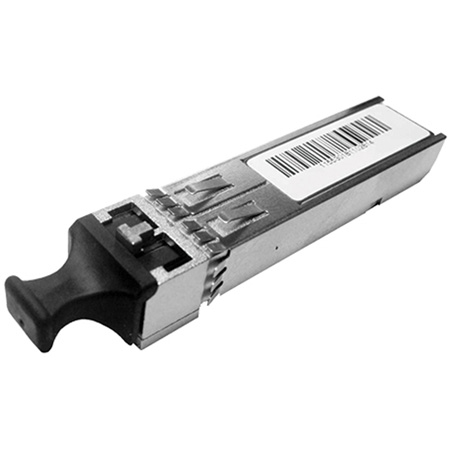

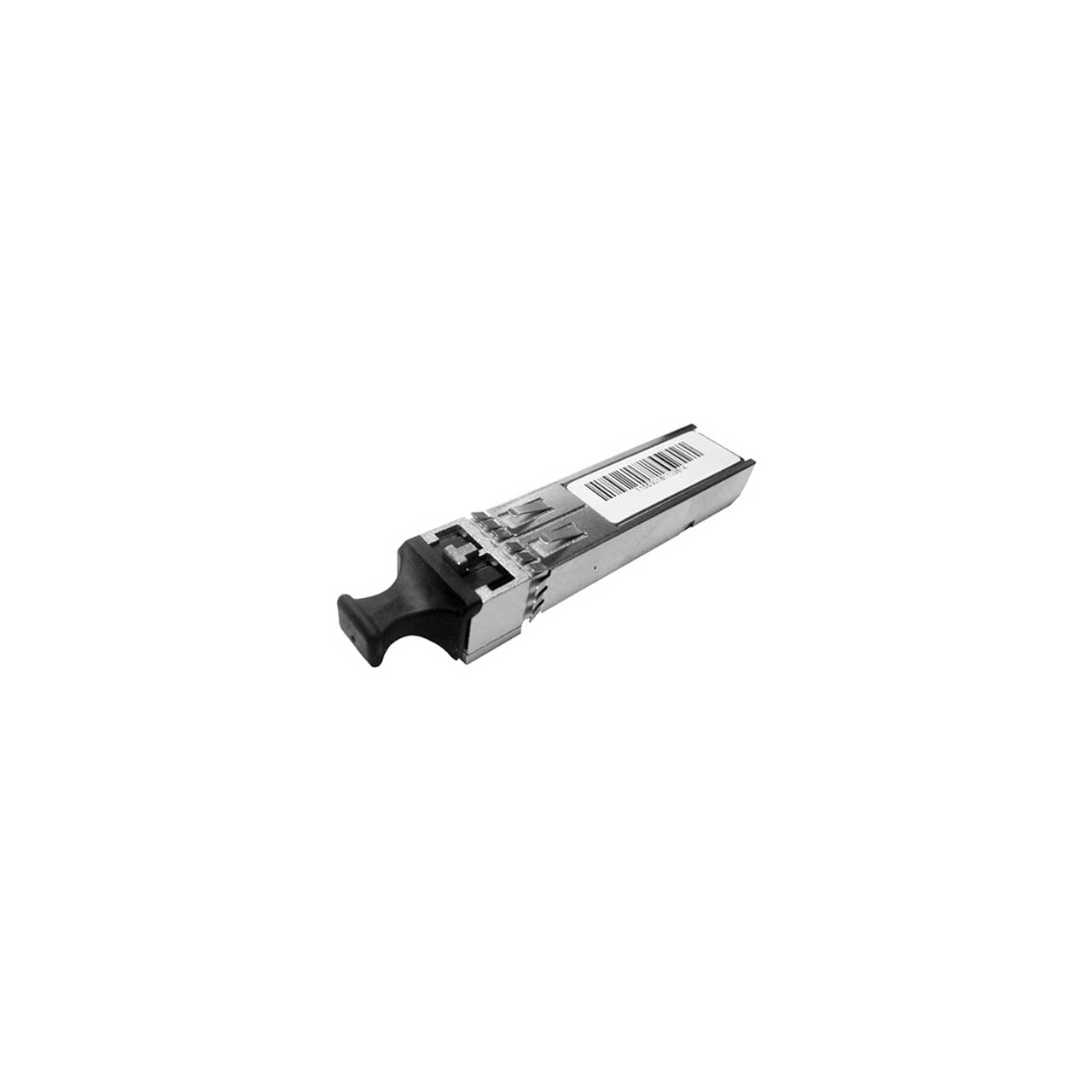

The LYNX Technik OH-TR-4-1270 SDI optical transceiver is a plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber, and also receives an optical SDI signal and converts to an electrical signal for further processing. 18 CWDM wavelength selections are provided and it is suitable for distances up to 40km**. The module accommodates 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI. A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

  • Features:

    • SDI multi-rate optical transceiver for 3G-SDI, HD-SDI and SD-SDI signals
    • Receiver and transmitter in single package
    • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • 18 CWDM wavelength selections according to ITU-T G694.2
    • Receive wavelengths 1260 to 1620nm according to ITU-T G694.2
    • TX Distances up to 40km**
    • For use with yellobrik and Series 5000 product lines
    • Pluggable and hot swappable
    • Lead free and RoHS compliant


  • Specifications:

    • TX Specifications
    • Intrinsic Jitter (ps):
      2.97 Gb/s: Typ: 45 / Max: 80
      1.485 Gbit/s: Typ: 45 / Max: 80
      270 Mbit/s: Typ: 45 / Max: 80
    • Wavelength: Min: λ-10nm /Typ: λ / Max: λ+10nm
    • Optical Power: Min: -4dBm / Typ: -1dBm / Max: 2dBm
    • Linear Extinction Ratio: Min: 5.0 Typ: 9.0
    • λ= 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610nm

      RX Specifications
    • Receiver Sensitivity:
      2.97 Gb/s: -20 dBm
      1.485 Gbit/s: -20 dBm
      270 Mbit/s: -20 dBm
    • Wavelength: 1260nm - 1620nm
    • Overload: -7.5 dBm
    • Loss of Signal Asserted: -35 dBm
    • Loss of Signal De-Asserted: -20 dBm
    • Optical Hysteresis: Min: 0.5dB Typ: 2dB

      Mechanical
    • Dimensions (not including connector - typ): 2.24 x 0.53 x 0.49" (57 x 13.4 x 12.4mm)
    • Weight: 0.11Lbs (50g)
    • SFP Connector pinning: MSA
    • Fiber connections: LC / Duplex - Singlemode
    • Operating Temperature Range: 41° to 104°F (5° to 40°C)
    • Power Supply Voltage: 3.3VDC
    • Power Consumption: 200mA typical 300mA max
    • Humidity: 90% (non-condensing)


  • GTIN:

    4250479312708
