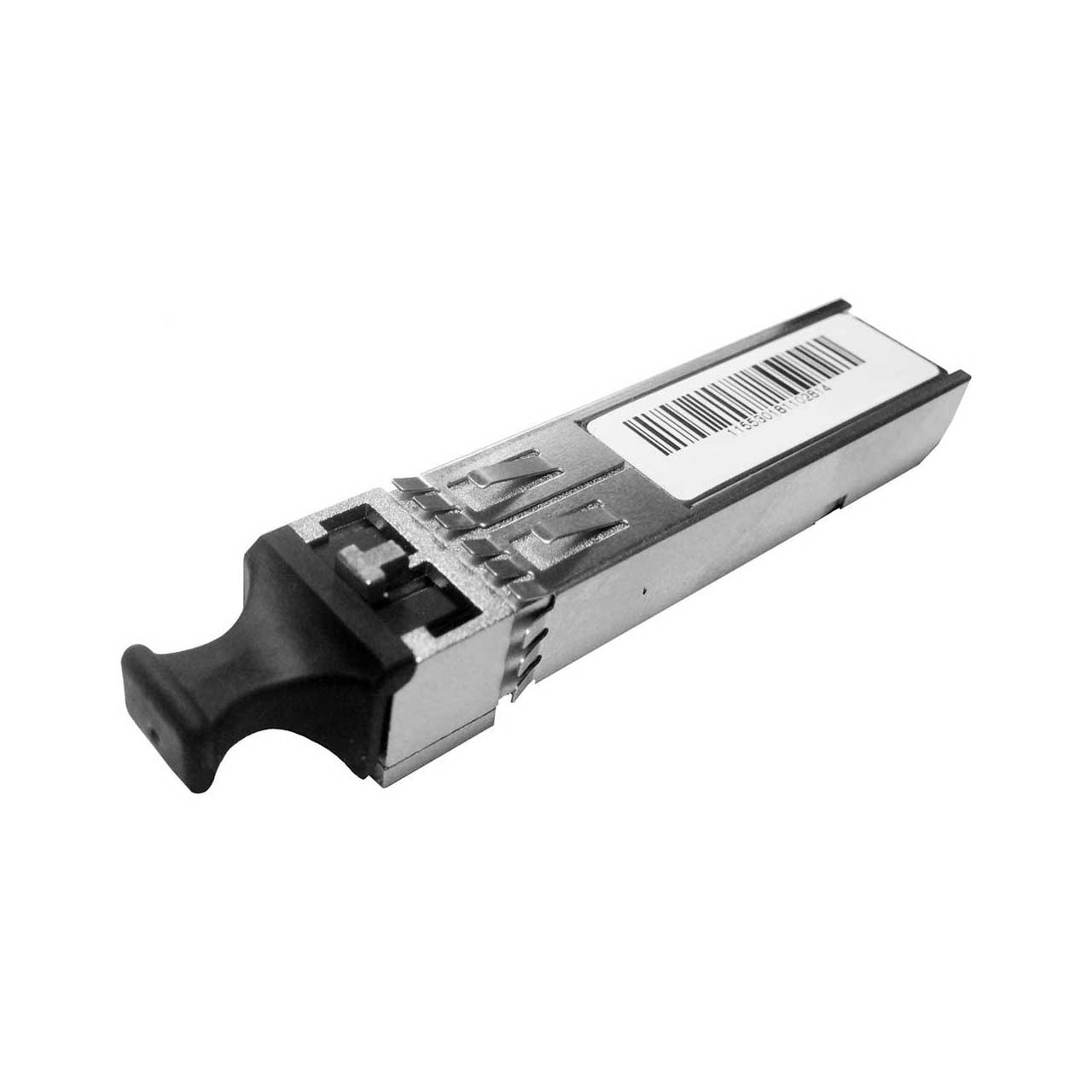

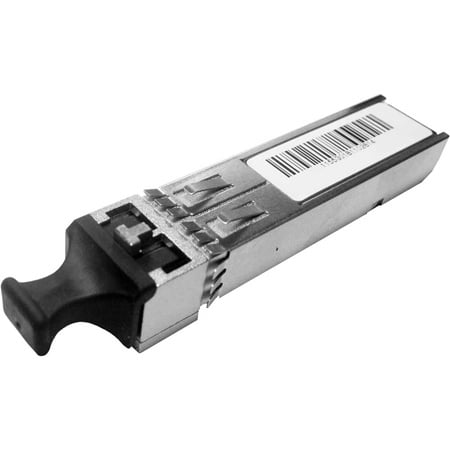

LYNX Technik OH-TX-4-1370 Singlemode Simplex SFP Optical Transmitter - CWDM capable - 40km - Fiber LC connectors

ITEM #: LNX-OH-TX-4-1370 MFG #: OH-TX-4-1370

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$505.00

Our Price:

$479.75

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OH-TX-4-1370 - Overview

The OH-TX-4-1370 SDI optical transmitter is a CWDM fiber plug in option for select LYNX Technik yellobrik and Series 5000 products. This SFP module facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber. 18 wavelength selections are available for CWDM applications and support for distances of up to 40km** is provided. The module supports 270Mbit / 1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI.

A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.

  • Features:

    • SDI multi-rate optical transmitter for 3G-SDI, HD-SDI and SD-SDI signals
    • Support for SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • 18 wavelength selections according to ITU-T G694.2
    • Distances up to 40km** (singlemode)
    • For use with yellobrik and Series 5000 product lines
    • Pluggable and hot swappable
    • LC Simplex connector - singlemode
    • Lead free and RoHS compliant


  • Specifications:

    • Intrinsic Jitter (ps): 2.97 Gb/s (Typ: 45; Max: 80); 1.485 Gbit/s (Typ: 45; Max: 80); 270 Mbit/s (Typ: 45; Max: 80)
    • Wavelengths [18 according to ITU-T G694.2]: Min: -10nm; Max: +10nm
    • Optical Power: Min: -4dBm Typ: -1dBm Max: +2dBm
    • Distance: Typ: 40km**
    • Linear Extinction Ratio: Min: 5.0 Typ: 8.0
    • Operating Temperature Range: Min: 41°F Max: 104°F
    • Power Supply Voltage: Min: 3.1 VDC Typ: 3.3 VDC Max: 3.5VDC
    • Power Consumption: Typ: 130 mA Max: 230 mA
    • Humidity (non condensing): Max: 90%


  • GTIN:

    4250479313712
