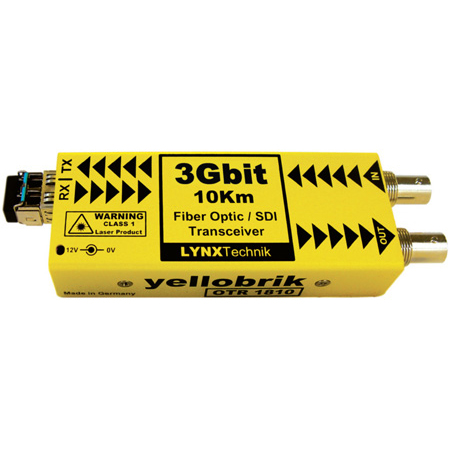

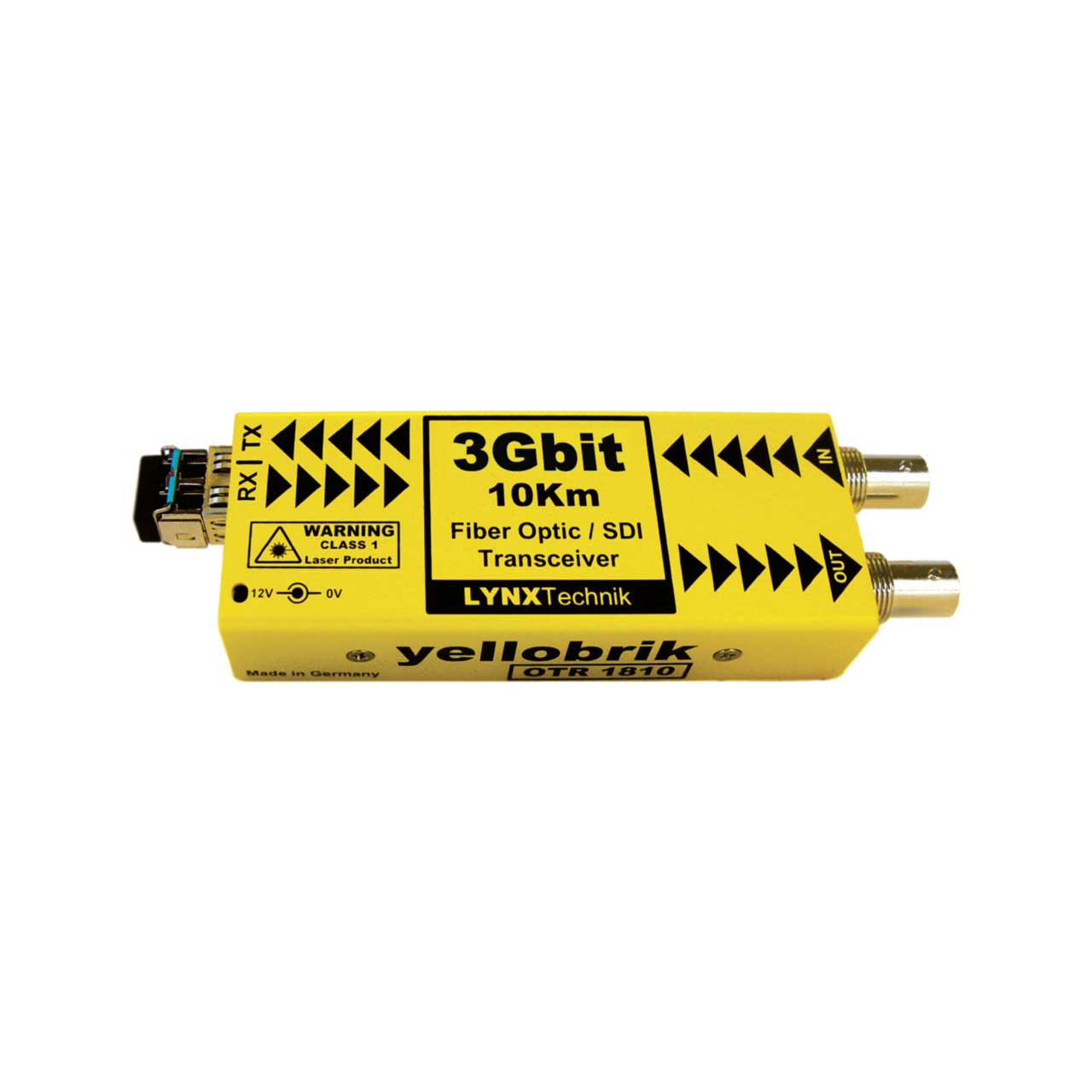

LYNX Technik Yellobrik OTR 1810 MM 3Gbit Fiber Optic/ SDI Tranceiver - Multimode

ITEM #: LNX-OTR-1810MM MFG #: O TR 1810 MM

Primary Image
LYNX Technik Inc
Free Shipping with $49 Minimum Order

List Price:

$680.00

Our Price:

$646.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

O TR 1810 MM - Overview

The LYNX Technik OTR-1810MM is a Fiber / SDI transmitter and receiver combined in a single self-contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

Each OTR 1810 transceiver has an independent transmitter and receiver channel, which provides an effective solution for any SDI signal up to 1080p60 (3Gbit/s) while preserving full uncompressed quality.

The OTR 1810 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI source prior to conversion. The module is fully compatible with 3Gbit Level A and Level B formats

  • Features:

    • SDI Fiber receiver and transmitter in single package
    • Supports SDI video up to 3Gbit/s (1080p60)
    • 3Gbit Level A and Level B support (all formats)
    • Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
    • Error free optical connections
    • Singlemode and Multimode versions
    • Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
    • Up to 300m (984 feet) @ 3Gbit/s (multimode)
    • Duplex LC optical connection
    • Supports hot swapping and hot plugging


  • Specifications:

    • SDI Video
    • 1 x SDI video input
    • 1 x SDI Video output
    • 75 Ohm BNC connectors
    • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
    • Multi-standard operation from 270Mbit/s to 3Gbit/s
    • Multi-rate reclocking
    • 270Mbit/s - 1.48Gbit/s - 3Gbit/s
    • Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
    • Automatic cable EQ (Belden 1694A cable)
    • 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

      Fiber Optic
    • 1 x fiber optic input
    • 1 x fiber optic output
    • Duplex using LC Connections
    • SMPTE 297M - 2006
    • Singlemode Version: OTR 1810
    • Transmitter: 1310nm (-5dBm)
    • Receiver: 1260nm to 1620nm (-3dBm to -19dBm)
    • Max. distance 10km (6.2 miles) @ 3Gbit/s
    • Multimode Version: OTR 1810 MM
    • Transmitter: 850nm (-5dBm)
    • Receiver: 750nm to 880nm (0dBm to -15dBm)
    • Max. distance 300m (984 feet) @ 3Gbit/s
    • TX active LED, and RX active on side of module

      Physical
    • Power: +12VDC @ 2.6W nominal - ( supports 7 - 16VDC input range )
    • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
    • Weight: 125g (4.4oz)
    • Ambient: 41 - 104°F 90% Humidity (non condensing)


  • Item Includes:

    • Module
    • AC power supply
    • Transport case


  • Options

    :

    • LC/ST DUP – Dual LC to ST Fiber connector adapter cable
    • LC/SC DUP – Dual LC to SC Fiber connector adapter cable
    • P-TAP 1000 – P-TAP battery power adapter lead
    • XLR-1000 – 4 Pin XLR camera battery power adapter lead


  • GTIN:

    4250479359840
