OTX 1410 - Overview

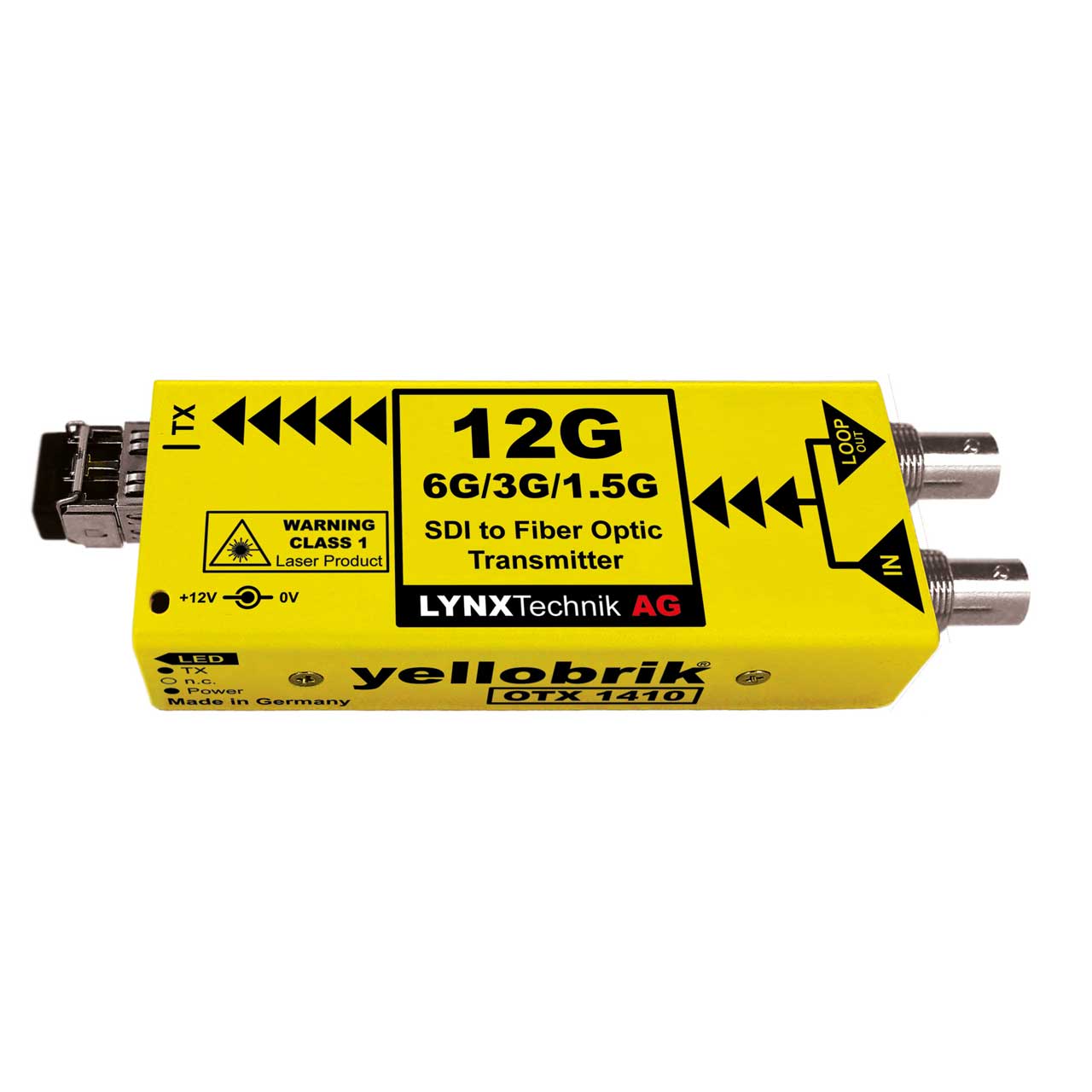

The LYNX OTX 1410 LC is a compact SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed, high bandwidth, broadcast quality video signals over long distances. When paired with the fiber optic to SDI receiver (e.g. yellobrik ORX 1400) you have a very cost-effective optical transmission / receiver system for signals up to 12Gbit/s (4096x2160 @ 60Hz), while preserving full uncompressed quality.

Operation of the OTX 1410 is fully automatic. The SDI video format is automatically detected, reclocked and then transmitted over the fiber optic connection. A reclocked electrical SDI output is also provided.

The OTX 1410 supports 12G, 6G, 3G and 1.5G SDI video standards.

  • Features:

    • Supports 12G, 6G, 3G and 1.5G SDI video inputs
    • 3Gbit Level A and Level B (support for all formats)
    • Auto reclocking 1.5Gbit / 3Gbit / 6Gbit / 12Gbit
    • Error free optical transmission
    • Reclocked SDI loop out connection

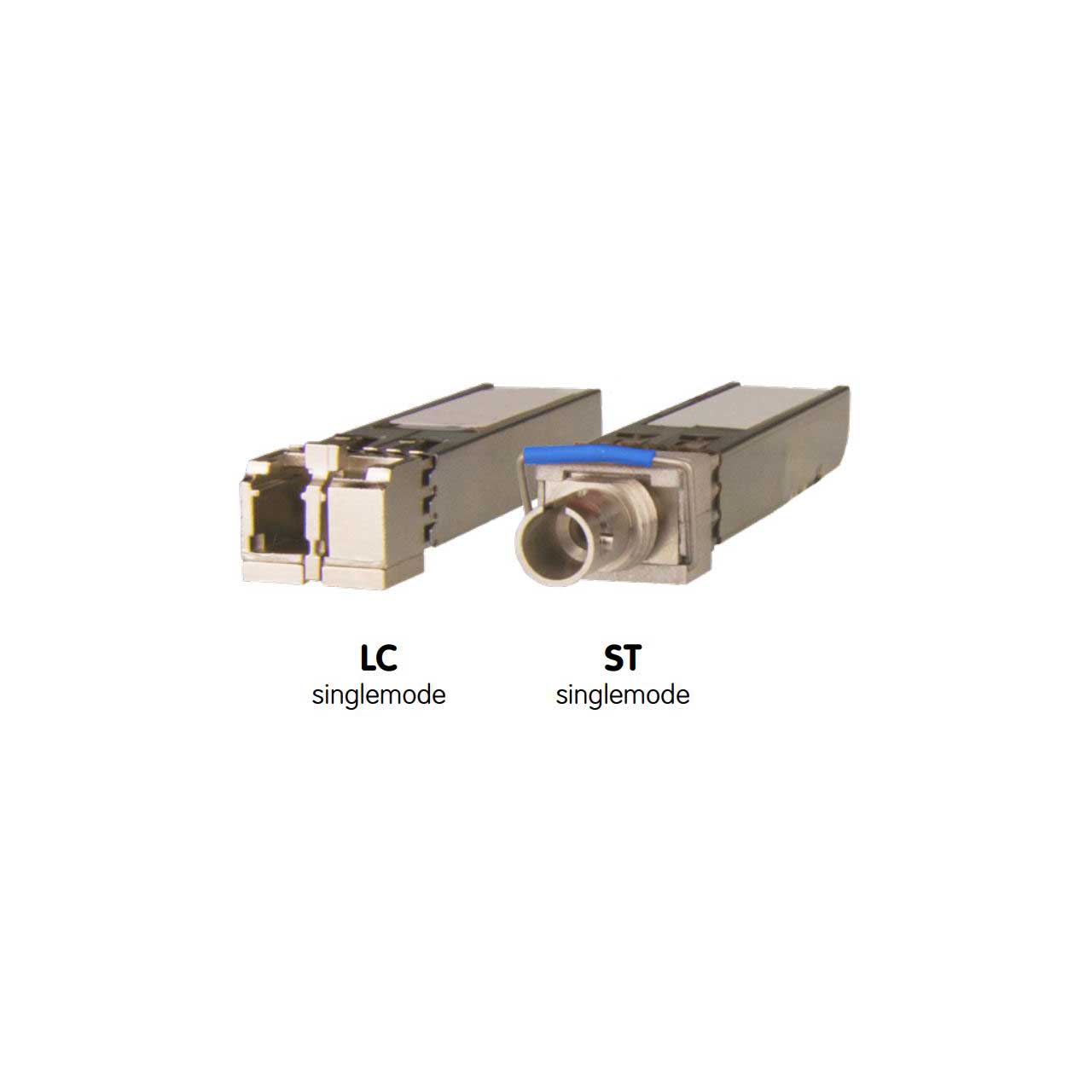

    • LC/PC and ST connection variants
    • Singlemode fiber connection
    • Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
    • Hot swappable and hot pluggable


  • Specifications:

    • SDI Input
      1x SDI video input and 1 x SDI reclocked loop output
      75 Ohm BNC connectors
      SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
      Multi-standard operation from 1.5Gbit/s to 12Gbit/s
      Multirate reclocking: 1.5Gbit - 3Gbit - 6Gbit - 12Gbit
      Automatic cable EQ - 260m @ 1.5Gbit/s, 150m @ 3Gbit/s (Belden 1694A cable) - 90m @ 6Gbit/s, 80m @ 12Gbit/s (Belden 4794R cable)
    • Optical Output
      1x fiber optic output
      SMF (singlemode) using LC/PC or ST connection
      SMPTE 297M - 2006
      Wavelength 1310nm, typical Optical power -3dBm
      TX active LED on side of module
      Max. distance approx. 10km (6.2 miles) @ 12Gbit/s (SM) - depending on system
    • Power: +12VDC @ 2.2W nominal - (supports 7 - 24VDC input range)
    • Physical:
    • Dimensions: 5.51 x 1.65 x 0.86" (140 x 42 x 22mm) including connectors
      Weight: 0.27Lbs (125g)
    • Ambient Temperature: 41° to 104°F (5° to 40°C) 90% Humidity (non condensing)


  • Item Includes:

    • 1x OTX 1410 LC Module
    • 1x AC power supply


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    4250479324756
