RFR 5013 - Overview

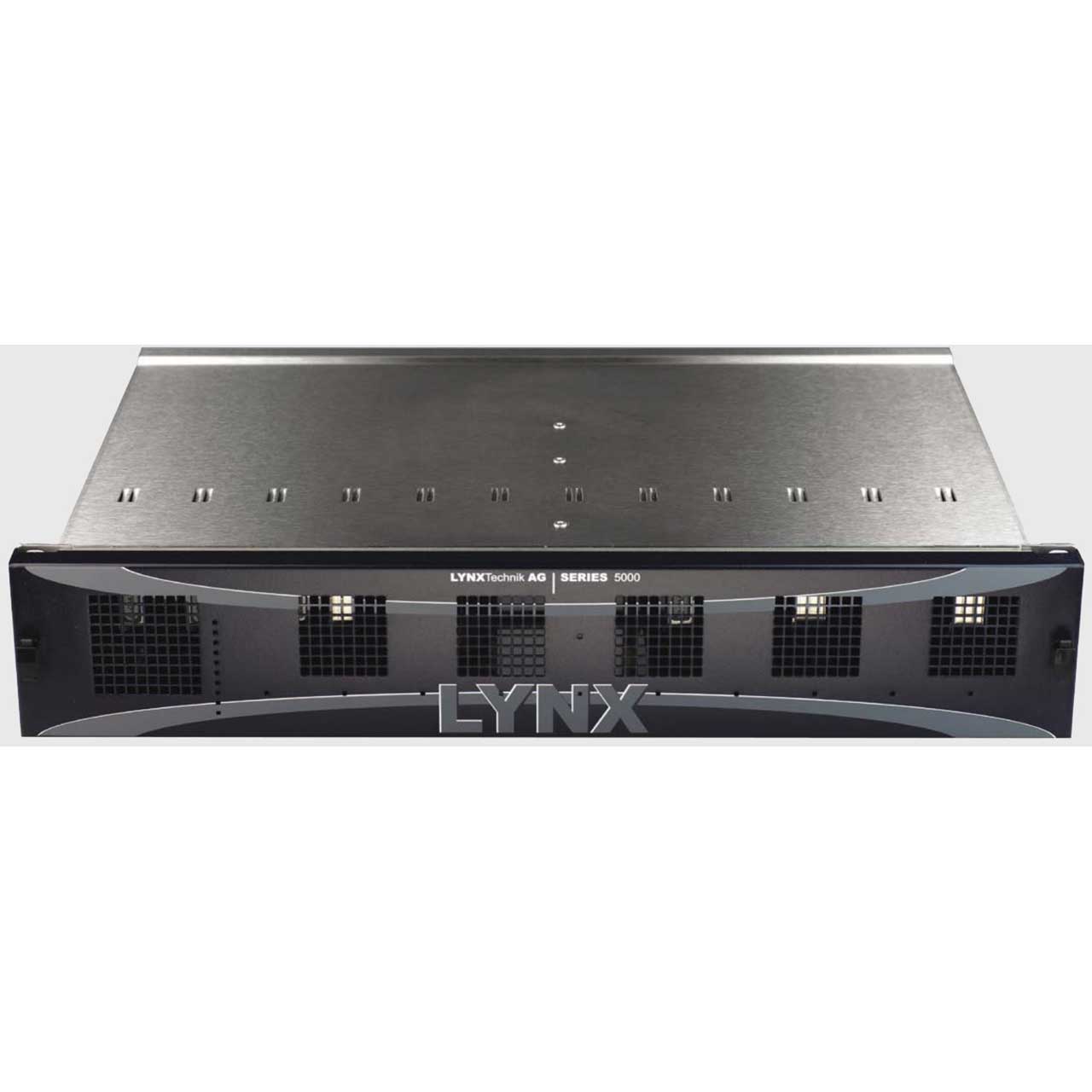

The primary building block to a Series 5000 system is the rack frame. The Lynx RFR 5013 is a 2RU rack mount chassis which can accommodate up to 12 Series 5000 passive optical modules (these modules require no power). The modules are mounted from the rear of the rack frame.

This a convenient low cost way to accommodate multiple passive modules in a rack frame identical in size form and fit to the standard electrical 2RU RFR 5012 rack frame.

The construction is extremely robust, suitable for studio installations and the most demanding mobile applications.

  • Features:

    • High quality steel construction, 2RU high
    • Compact, very small depth, ideal for mobile applications
    • Accommodates up to 12 passive Series 5000 modules

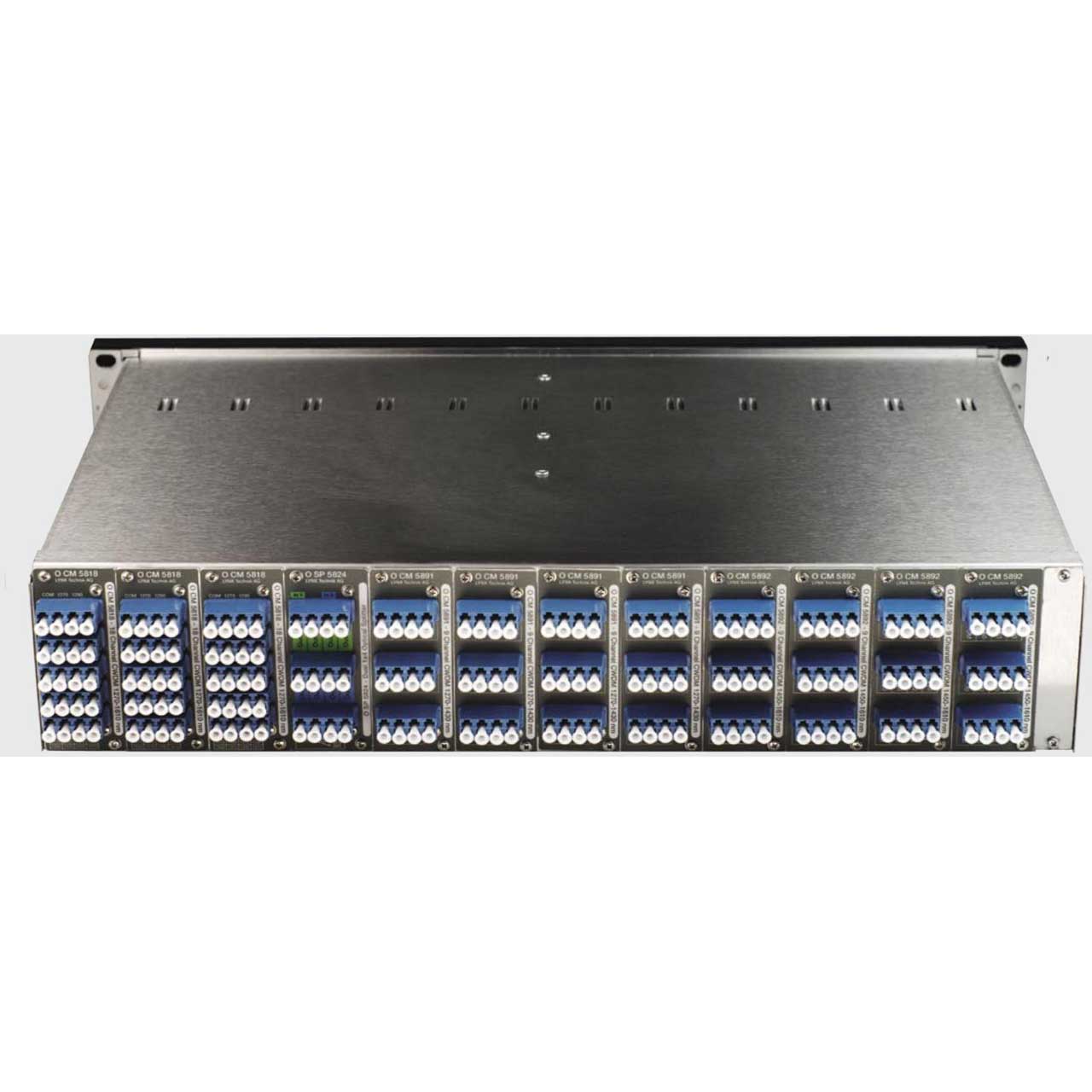

    • Modules install from the rear


  • Specifications:

    • Mechanical
    • Size: 2 RU high x 12.8 In deep
    • Mounting: Standard 19 In rack mount
    • Weight (empty): 2.5 Kg (5.5 lbs) (with no modules installed)
    • Connections: All optical connections of rear of rack frame

      Capacity
    • Processing Modules: Up to 12 x Series 5000 passive fiber modules (any mixture)

      Connections (modules)
    • Connection type: Optical connections are provided on the individual modules associated rear connection panel.

      Electrical Specifications
    • Power: none required (passive)

      Ambient
    • Temperature: 5°C to 40°C (41°F to 104°F)
    • Humidity: 90% Max non condensing


  • Item Includes:

    • 1x Rack frame
    • 1x Reference manual (on CD)


  • Warranty:

    • 3 Year Warranty
