LYNX Technik OCM 5818 18 Channel Optical CWDM MUX/DEMUX Module - Compatible w/ Series 5000 Rack Frames

ITEM #: LNX-OCM5818 MFG #: OCM 5818

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LNX-OCM5818

OCM 5818 - Overview

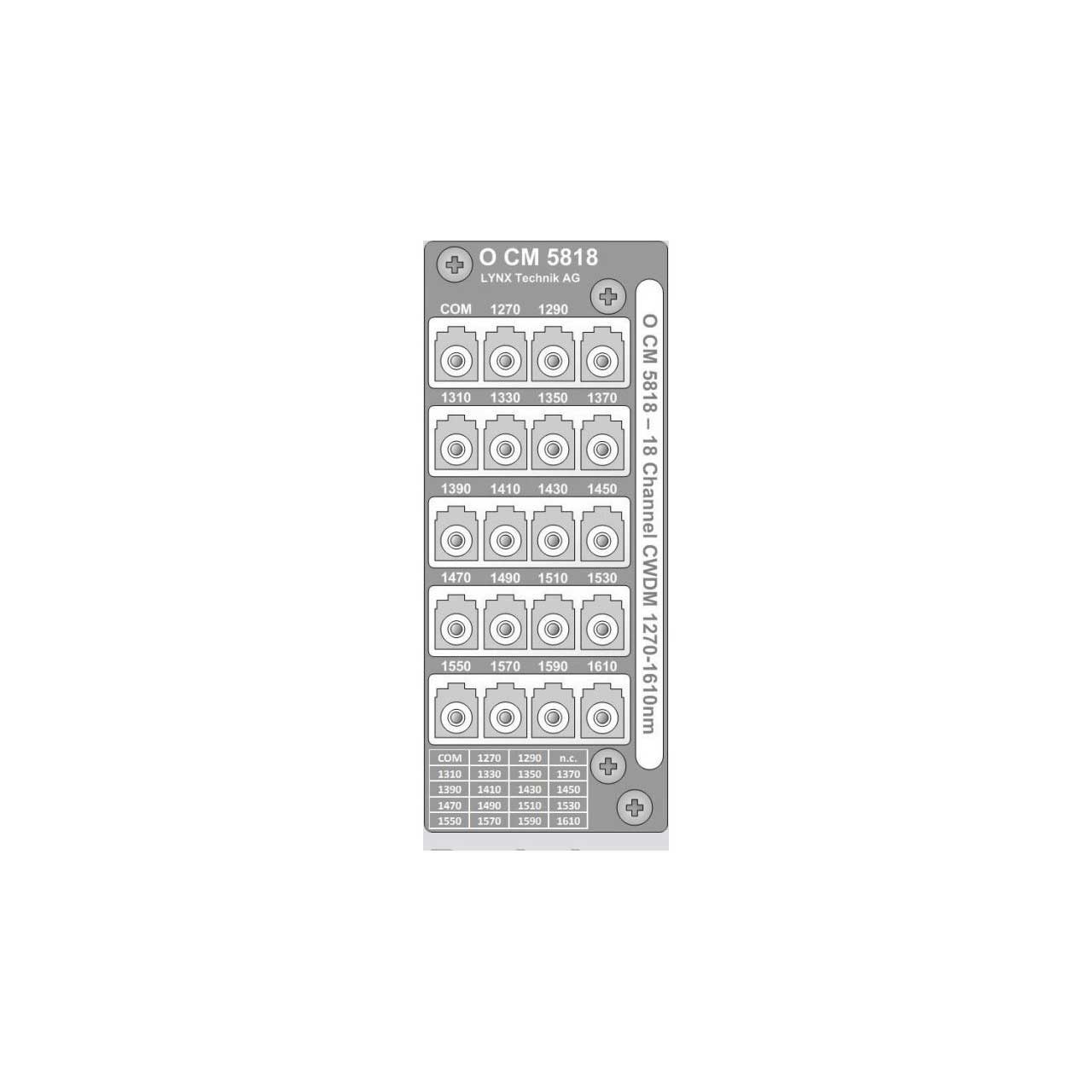

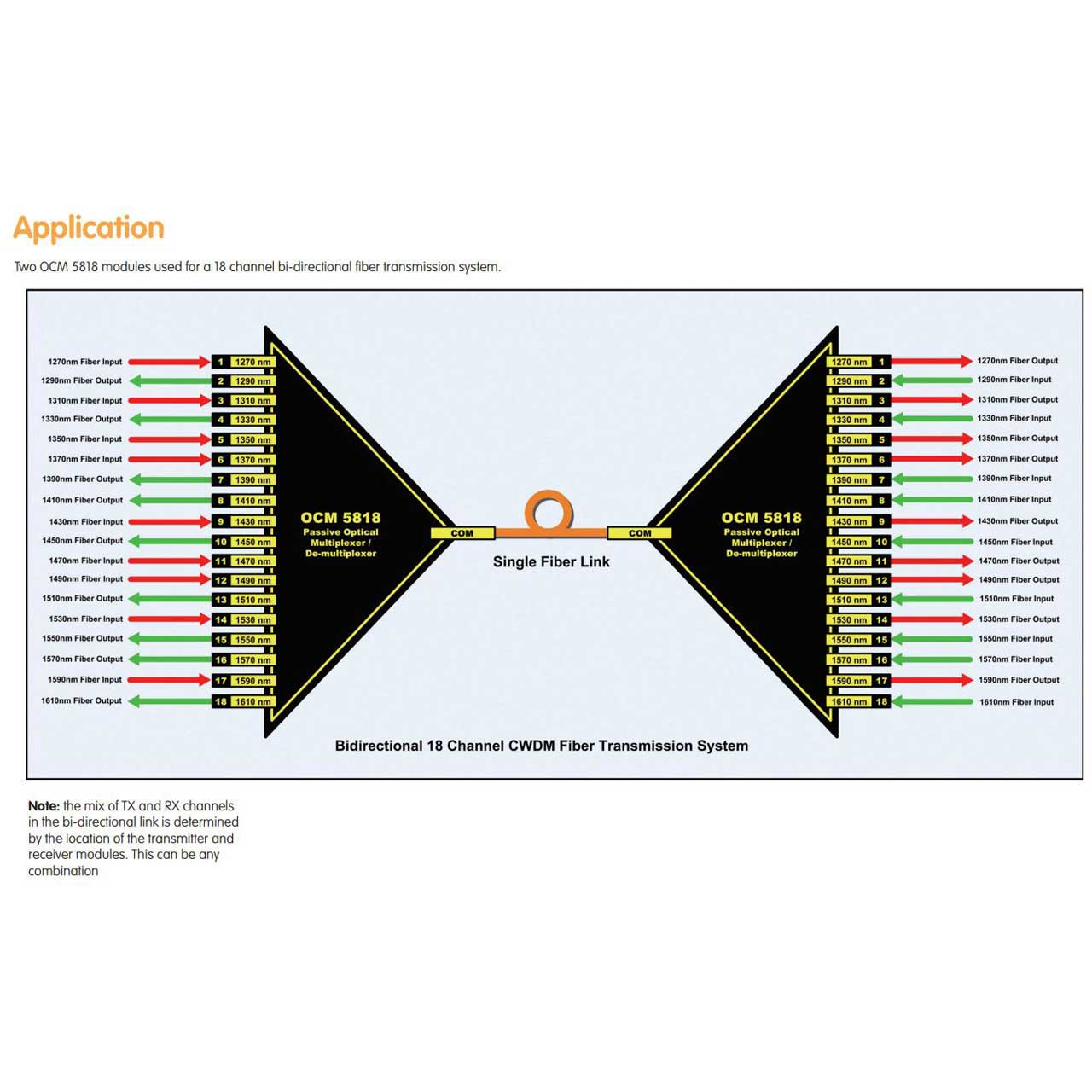

The Lynx OCM 5818 is an 18 channel CWDM passive optical multiplexer and/or de-multiplexer. This module allows the combination of up to 18 optical signals into a single unidirectional or bi-directional fiber link.

This version of the module supports all 18 wavelengths as specified in the ITU standard CWDM channel spacing grid (ITU-T G 694.2) namely 1270nm through 1610nm wavelengths.

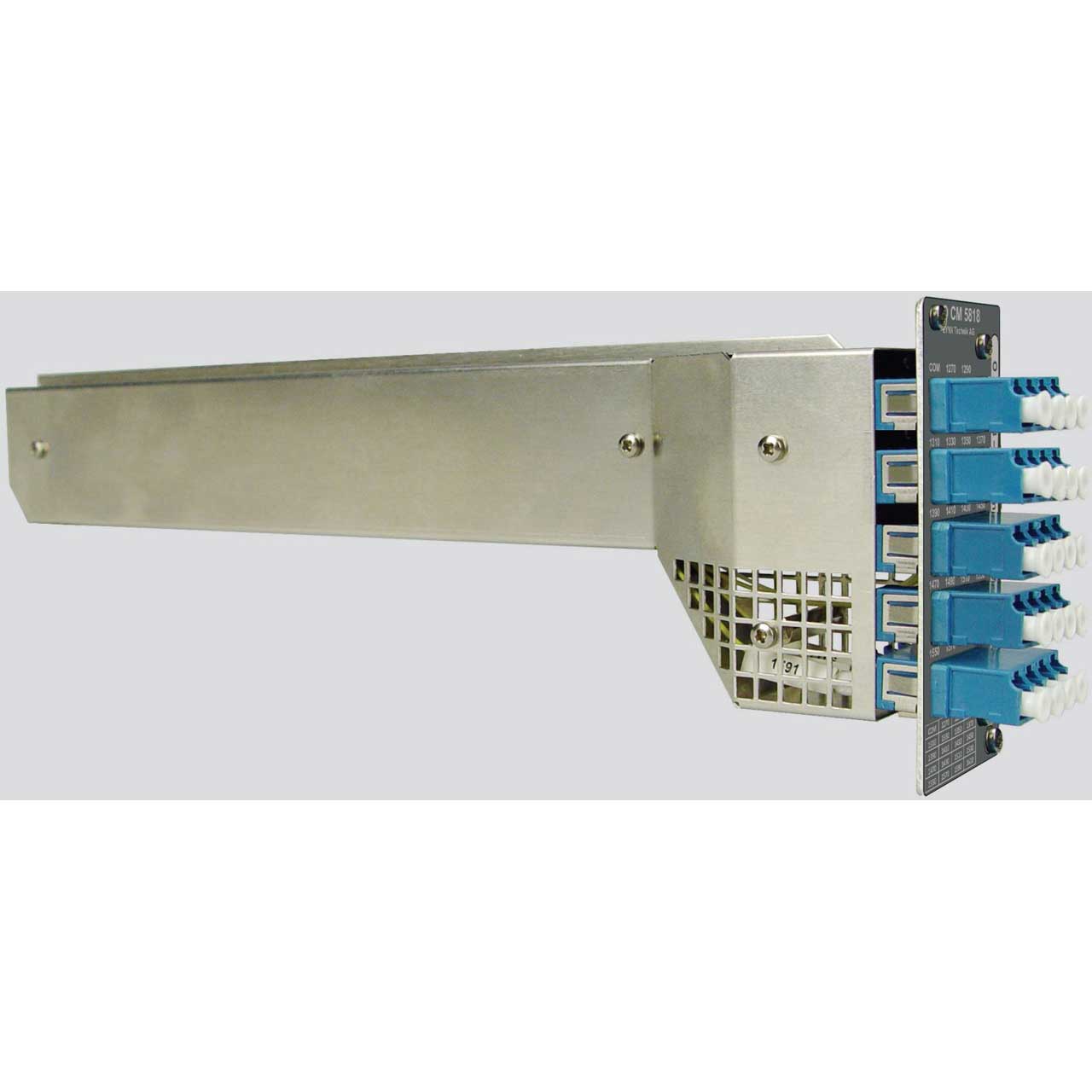

The module is passive in operation, meaning it requires no power, and is mechanically compatible with all Series 5000 rack frames and installs from the rear of the rack.

  • Features:

    • Mux and / or Demux up to 18 optical signals
    • ITU standard wavelength divisions: ITU-T 694.2
    • Passive operation
    • Compatible will all Series 5000 rack frames (2RU and 1RU)
    • Occupies one card slot
    • LC - PC connectors (singlemode)


  • Specifications:

    • Optical I/O
    • Optical I/O Ports: 18 (Wavelength Specific)
    • Supported I/O Wavelengths (ITU-T G694.2): 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm
    • COM Port: Common I/O port (Primary I/O with combined optical signals)
    • Connector Type: LC - PC (singlemode)

      Performance
    • Channel insertion loss: 2.7dB typ.
    • Polarization dependent loss: max 0.2dB
    • Return Loss: > 45dB
    • Isolation (To adjacent channel): > 30dB
    • Directivity: > 55dB
    • Temperature dependent loss: < 0.005 dB / °C
    • Temperature dependent change of wavelength: < 0.003 nm / °C
    • Max input power: 500mw

      Mechanical
    • Size: 85mm x 286mm (not incl. connectors)
    • Weight: 190 g (.2 lbs)

      Ambient
    • Temperature: -20°C to 85°C Maintaining specifications
    • Humidity: 90% Max non condensing


  • Item Includes:

    • Card Module
    • Mounting Screws
    • 1x Reference Manual (on CD)


  • Warranty:

    • 3 Year Warranty
