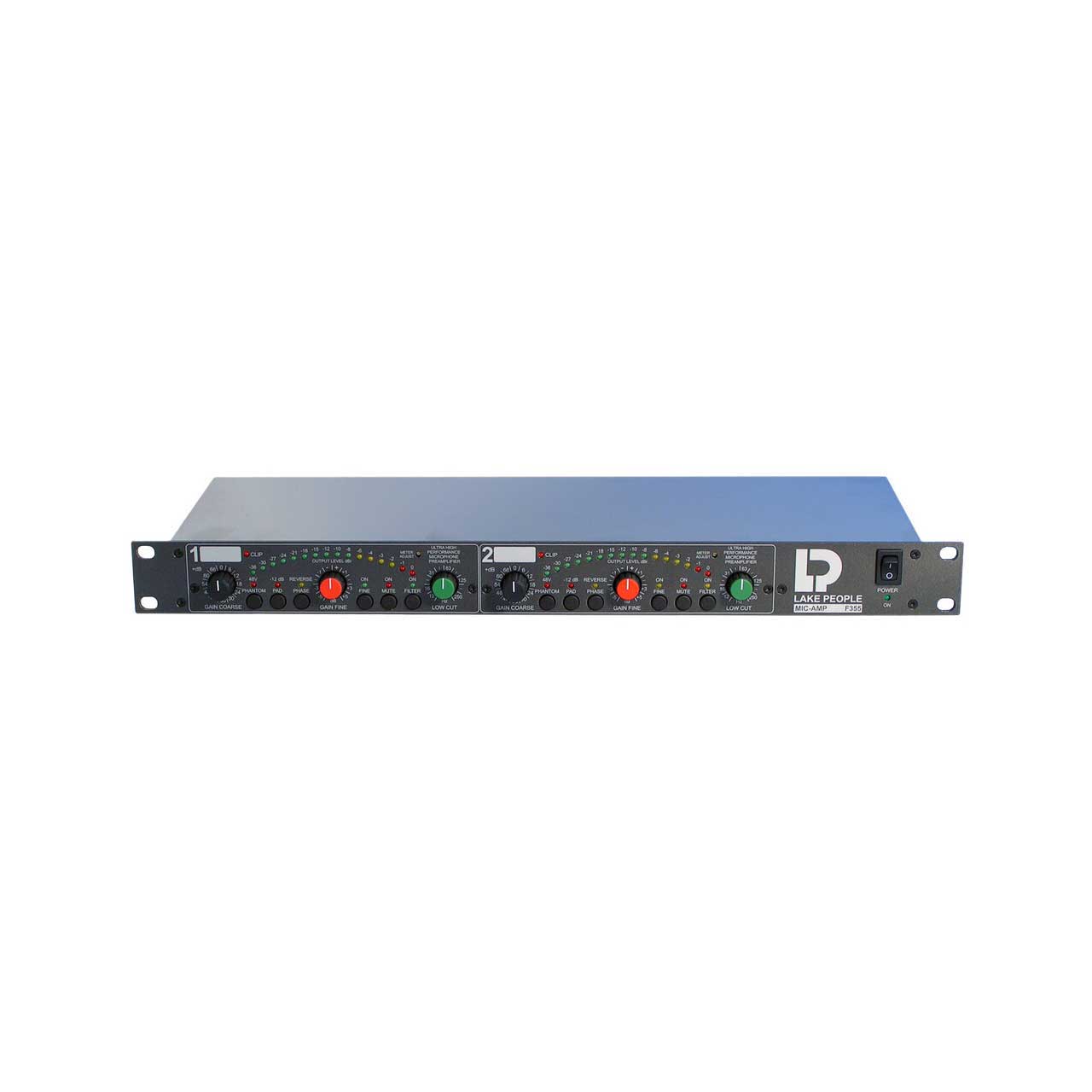

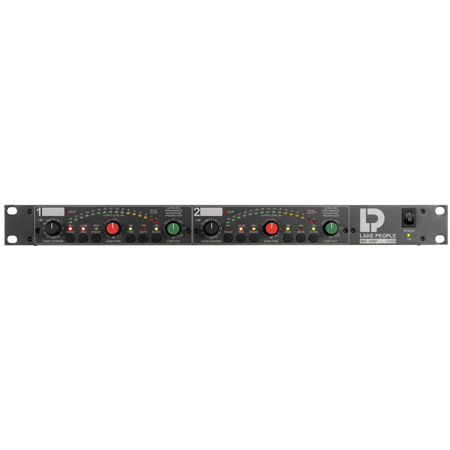

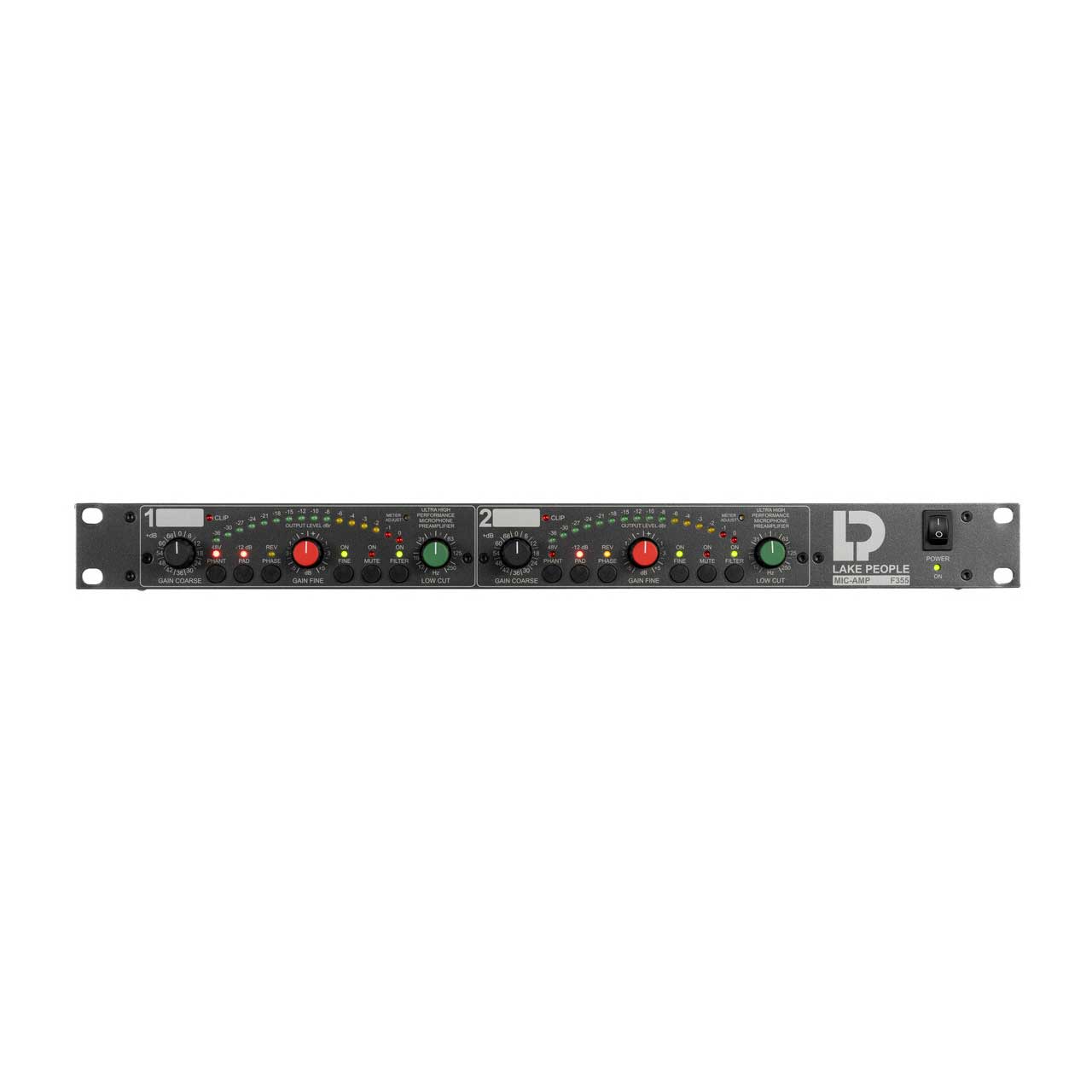

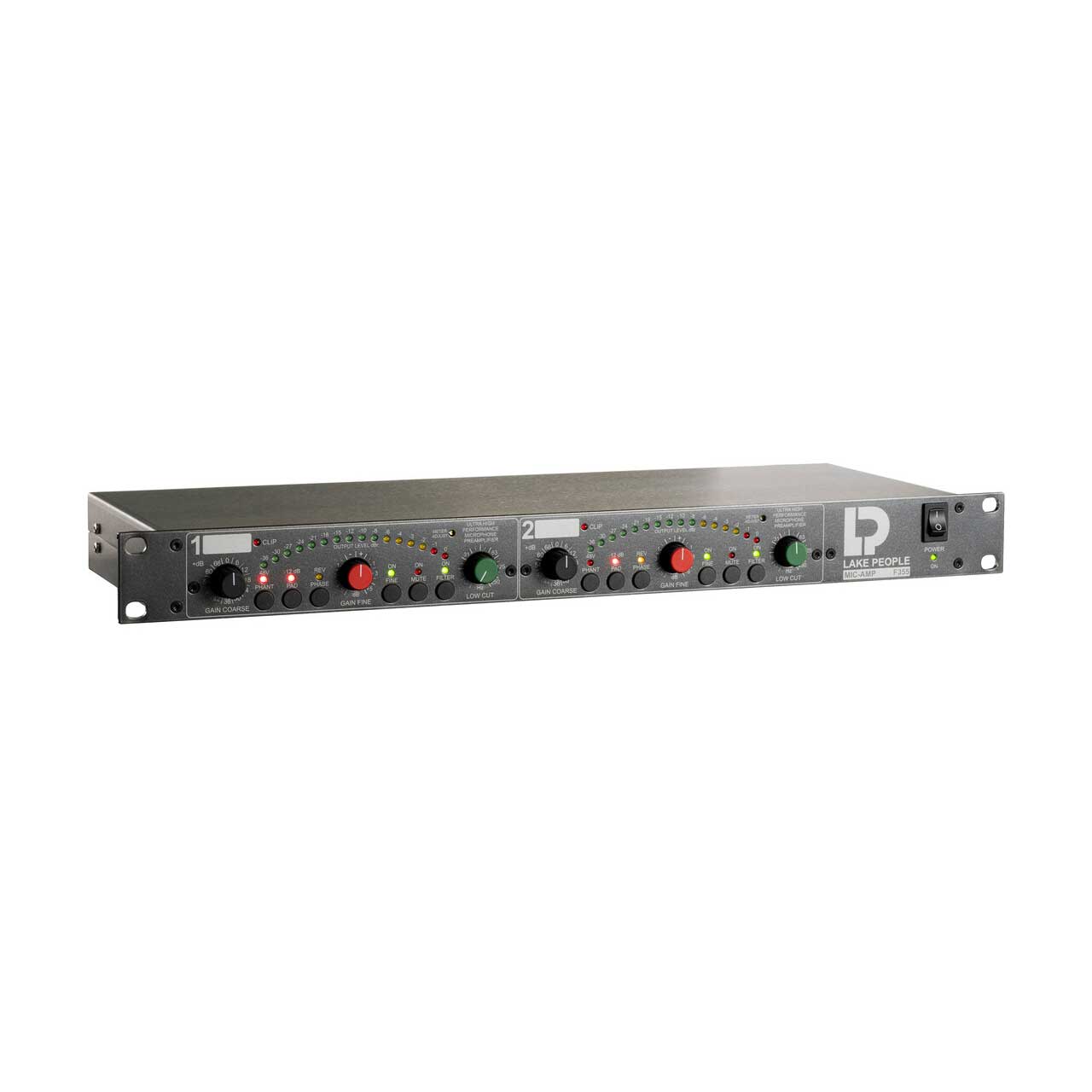

Lake People F355A 1RU 2-Channel Ultra-low-noise Microphone Preamp with Class-A Input Option (2-Channel)

F355A - Overview

• Features:

  • 16-level quick level display, 0 ... -36 dBr calibratable on the front
  • Deactivatable Lo-Cut, 12 dB/oct., with variable use 12...250 Hz
  • Deactivatable gain fine adjustment with center detent potentiometer +/- 5 dB
  • Amplification 0...+66 dB switchable in 12 steps of 6 dB
  • Programmable intelligent muting system
  • Pad switch for -12 dB pre-attenuation
  • Ultra High Quality Class-A Frontend
  • Switchable 48 volt phantom power
  • Phase reversal switchable
  • Separate clip display


• Specifications:

  • Dimensions: 483 x 44 x 166mm (19.02 x 1.73 x 6.54in)
  • Output Impedance: < 30 Ohm
  • Additional Features: Class A input, variable Lo-Cut, pad, 48V phantom power, phase reversal, 16-level meter
  • Housing: 19" / 1RU
  • Line I/O: 0 / 2 (XLR)
  • Max. Output Level: > +25 dBu
  • Max. Input Level: > +21 dBu ( > 33 dBu mit pad)
  • Mic Gain: 0 - +66 dB
  • Power Supply: Internal 230 V / 115 V AC
  • THD+N (@ -1 dBFs): < 0,001 %
  • Frequency Range: 5 Hz - 150 kHz (-3 dB)


• Item Includes:

  • 1x MIC-AMP F355 (Class-A inputs)
  • 1x user manual
  • 1x power cord


• GTIN:

  7426923821868
