USB autofocus probe for easy connector inspection

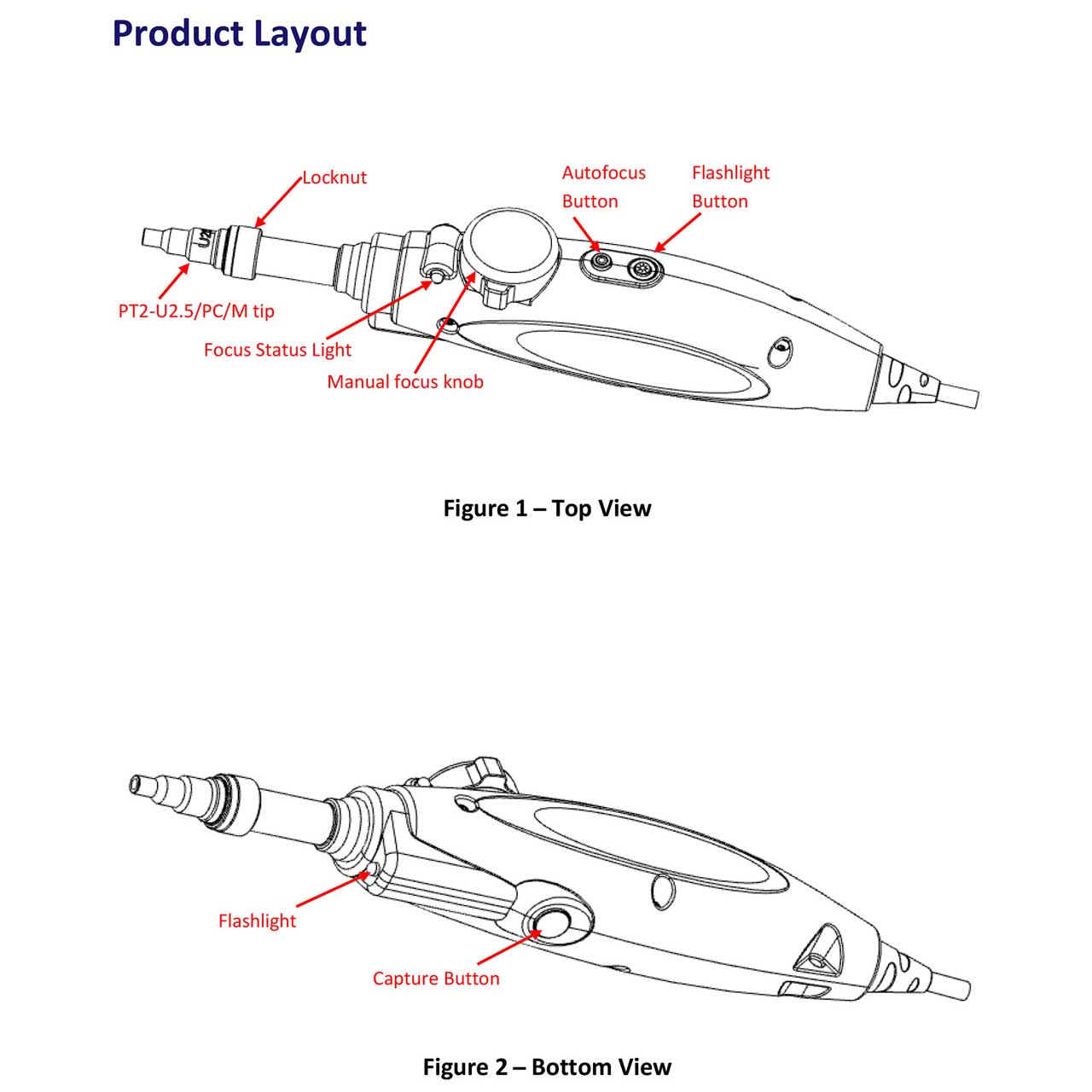

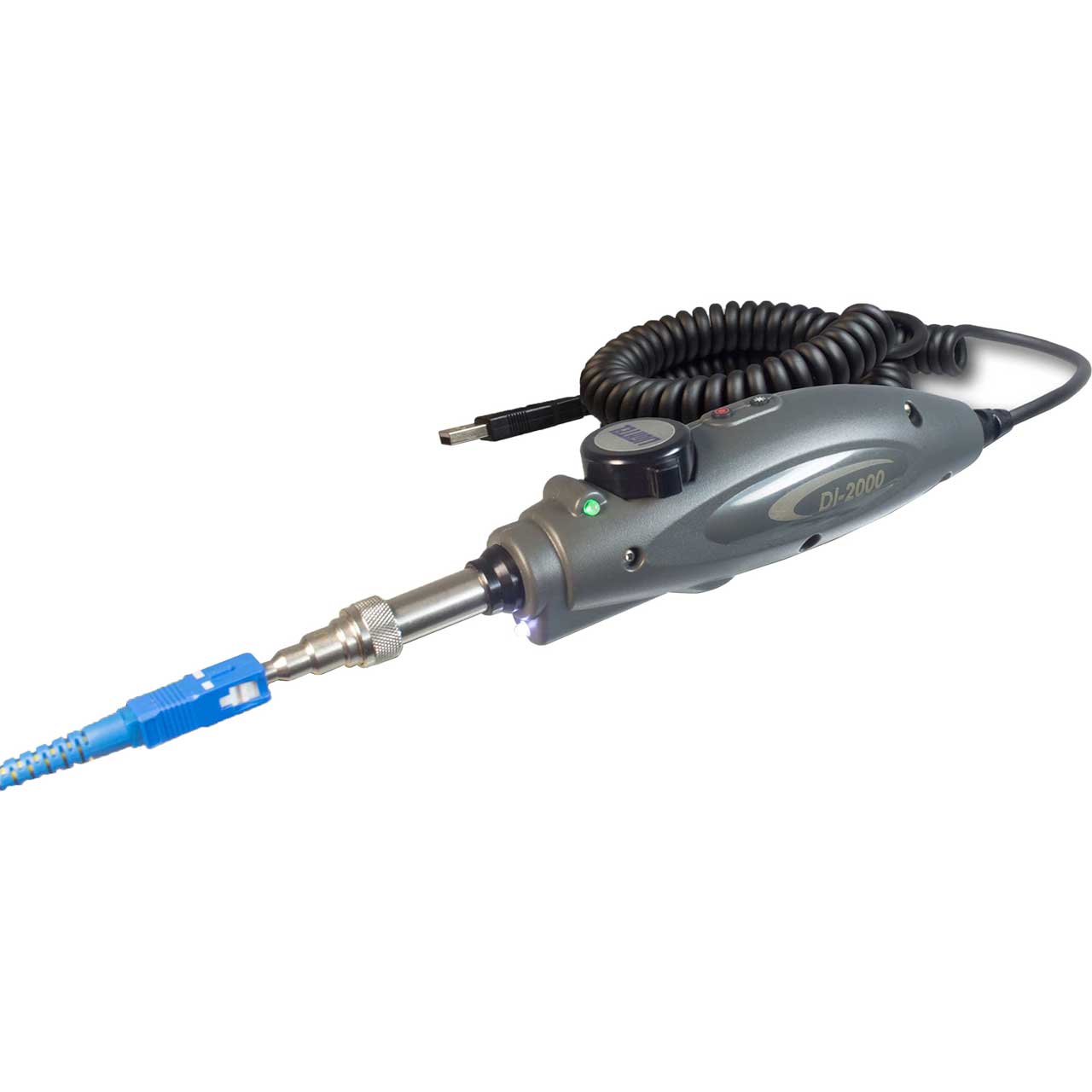

Many modern network issues can be traced to contaminated or damaged fiber optic connector endfaces. Lightel's DI-2000-B2/APC DI inspection probe series provides ergonomic, easy-to-use, and versatile inspection of the endfaces for fiber optic male and female, single and multi-channel connectors. The DI-2000 features rapid one-touch autofocus. Its visual indicator LED will change from red to green when focus is achieved, facilitating connector inspection, especially useful in high density racks. In addition, since technicians must sometimes work in wiring closets or data centers with poor illumination, the unit comes equipped with a built-in flashlight. With its easily accessible capture button, capturing and saving images to your PC and other devices is simple. Like all of our DI Series scopes, the DI-2000 can use any of Lightel's more than 120 inspection tips.

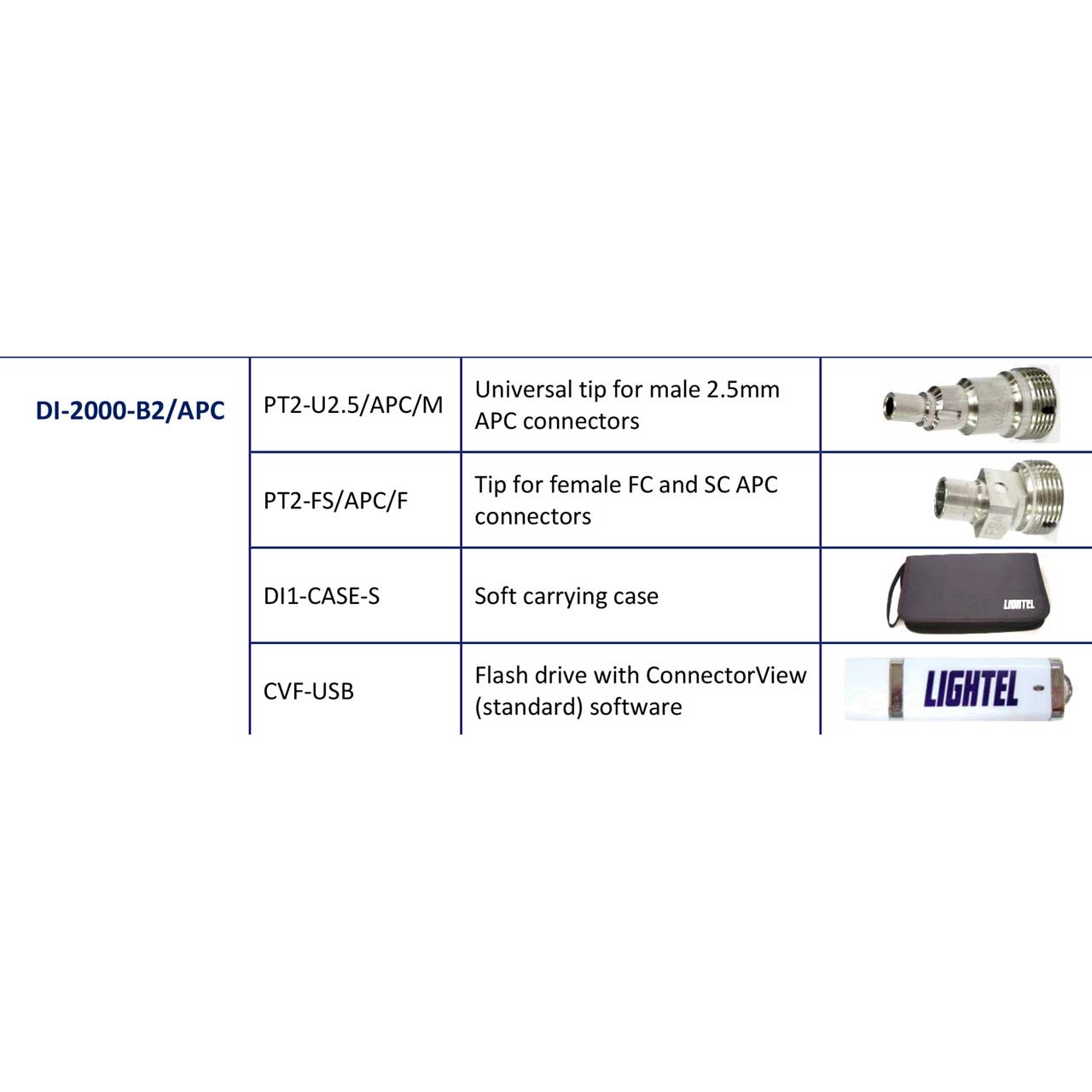

The DI-2000 package includes four UPC tips, free ConnectorView (standard) software for image display, auto-centering, image capture and digital zoom, and a convenient carrying case. Lightel's optional ConnectorView Plus software can provide pass/fail analysis on a Windows tablet or PC. WiFi connectivity to tablets and smart phones is also available using their optional DI-1000-WIFI adapter.
