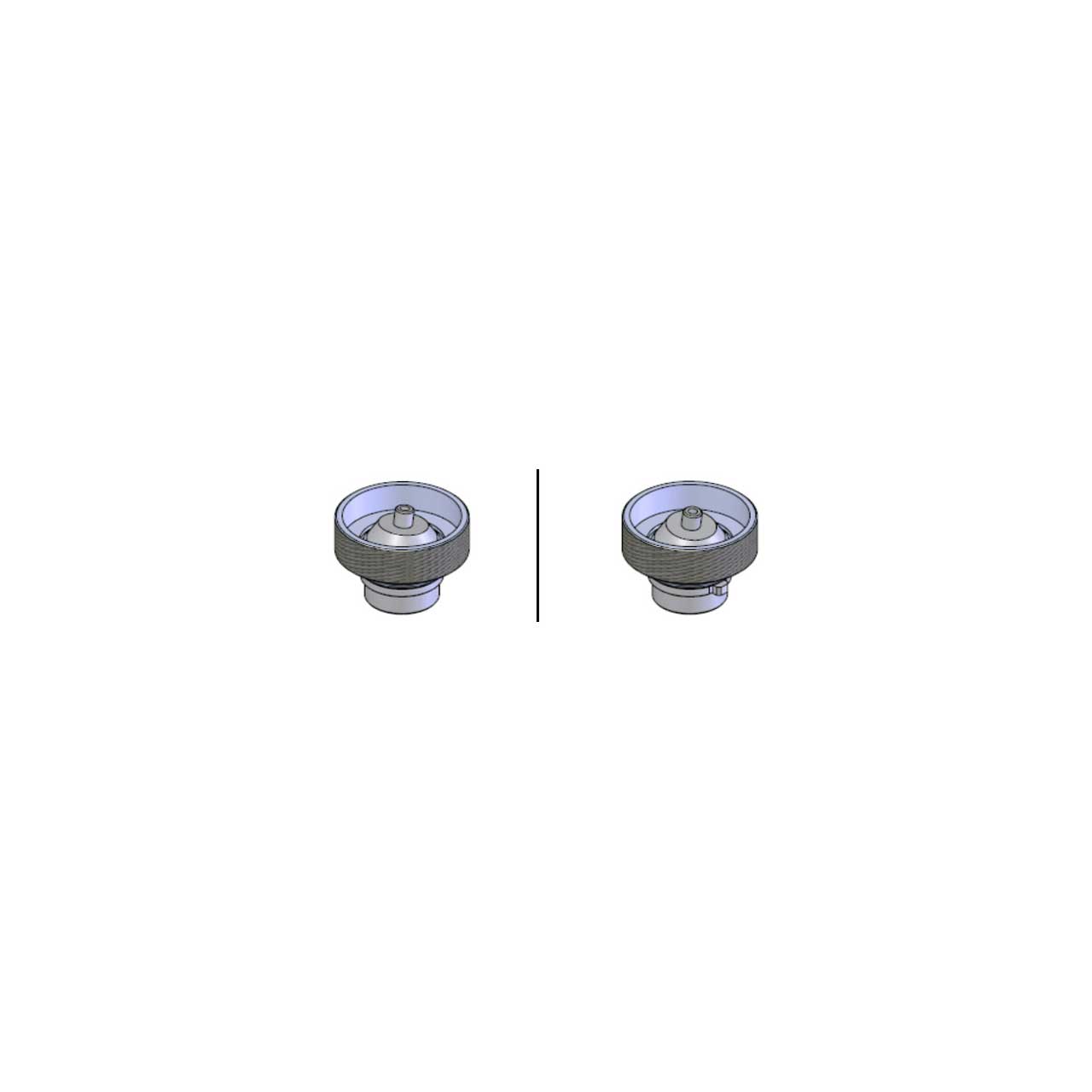

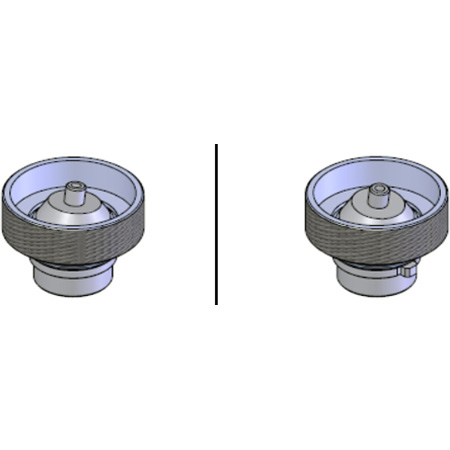

Lightel VC62-1.25/APC Universal Tip for 1.25mm Male APC Type Connectors

VC62-1.25/APC - Overview

• Features:

  • Ergonomic design
  • Fast, easy focus
  • One hand operation
  • Inspect patchcords (male) and in-adapter connectors (female)
  • Foldable monitor set with adjustable viewing angle
  • Portable set with a charger and rechargeable batteries
  • Change tips in seconds
  • Comprehensive line of tips for both PC and APC type connectors, including extended tips in three lengths, 60° and 90° angled tips for applications with tight access, and tips for ribbon connectors
  • Uses our Series 2 inspection tips, and can also use all our CI-1000 tips with an optional adapter
  • USB option
  • "Hot" fiber viewing option
  • CE approved, RoHS compliant


• Specifications:

  • Magnification: 400x (with 9" monitor)
  • Field of View: ~ 425µm x 320µm (standard) ~ 640µm x 480µm (lower magnification option)
  • Resolution: 0.5µm detectable
  • Focus: Manual adjustment, 2mm max travel
  • Light source: Blue LED
  • LCD monitor: 3.5" TFT-LCD;
  • Power supply: 9.6V battery pack or AC power supply
  • Battery life: 4 hours
  • Operating temperature: 0°C to 50°C
  • Storage temperature: -20°C to 70°C
