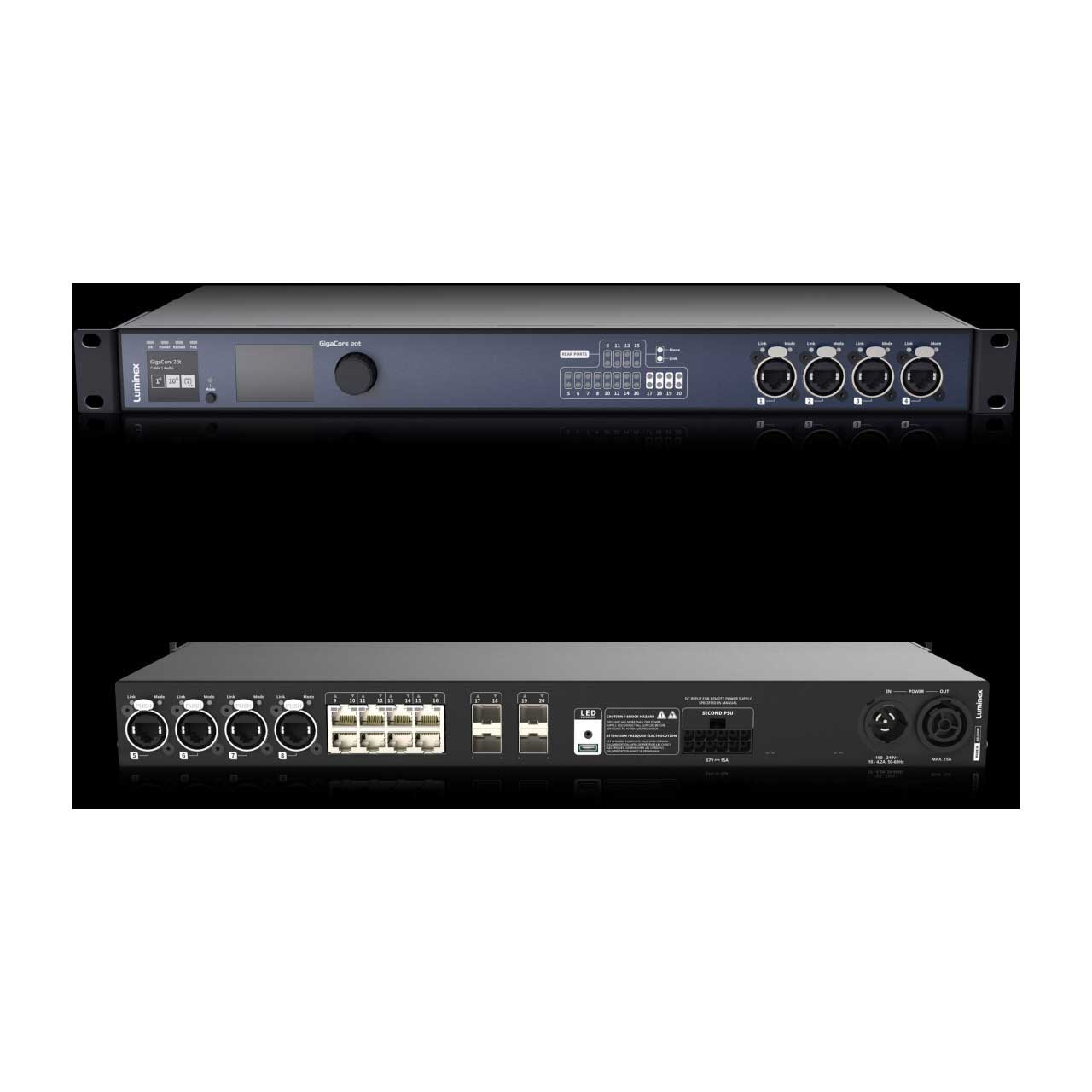

Luminex LU0100080-10G-P500 GigaCore 20t - 10G Ethernet Switch for Professional Touring Applications - PoE++ Included

LU0100080-10G-P500 - Overview

• Features:

  • Most suitable applications: Touring applications
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
  • Profile manager: Yes
  • PoE: PoE++ Included
  • Memory: Flash 1Gb RAM - 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 112Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)


• Specifications:

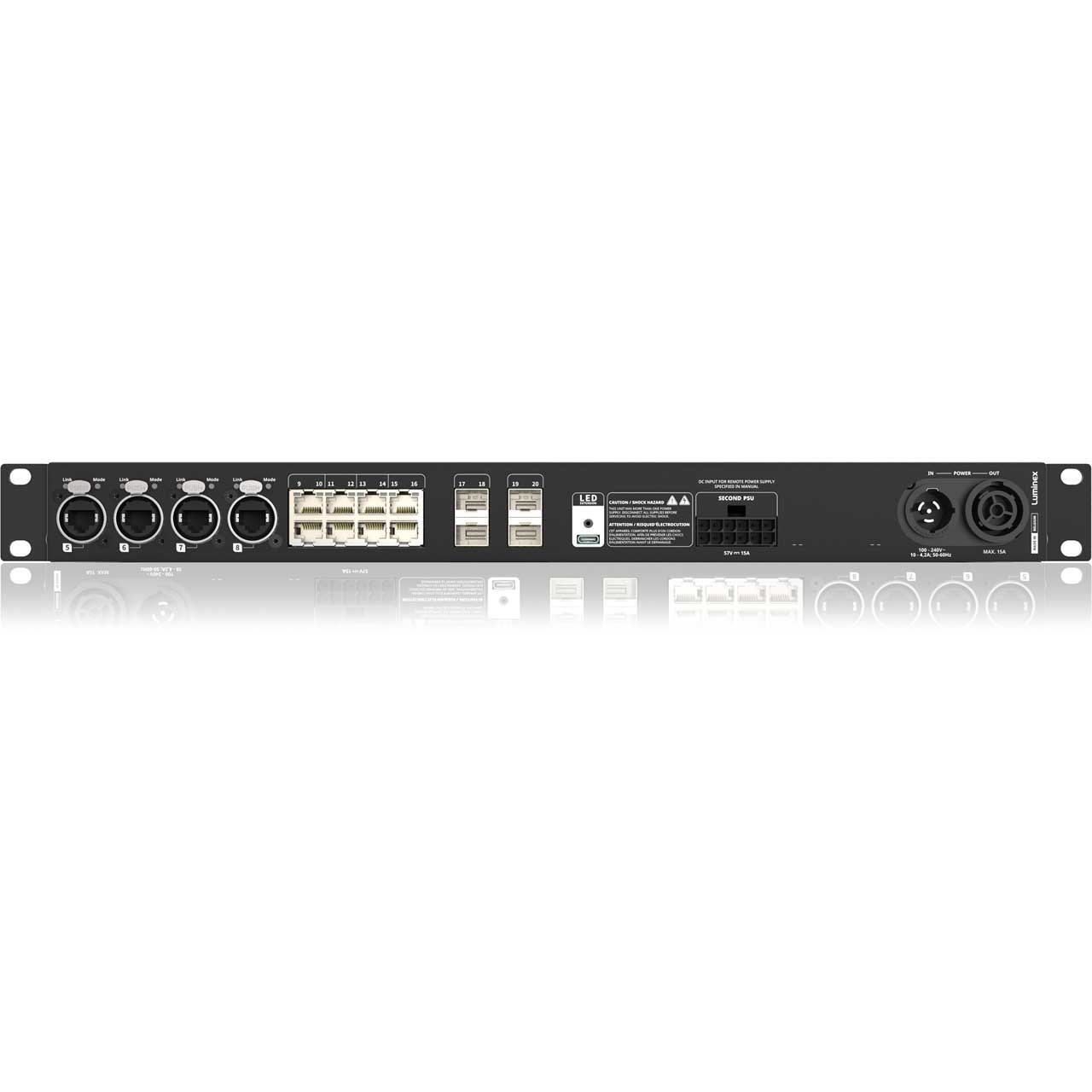

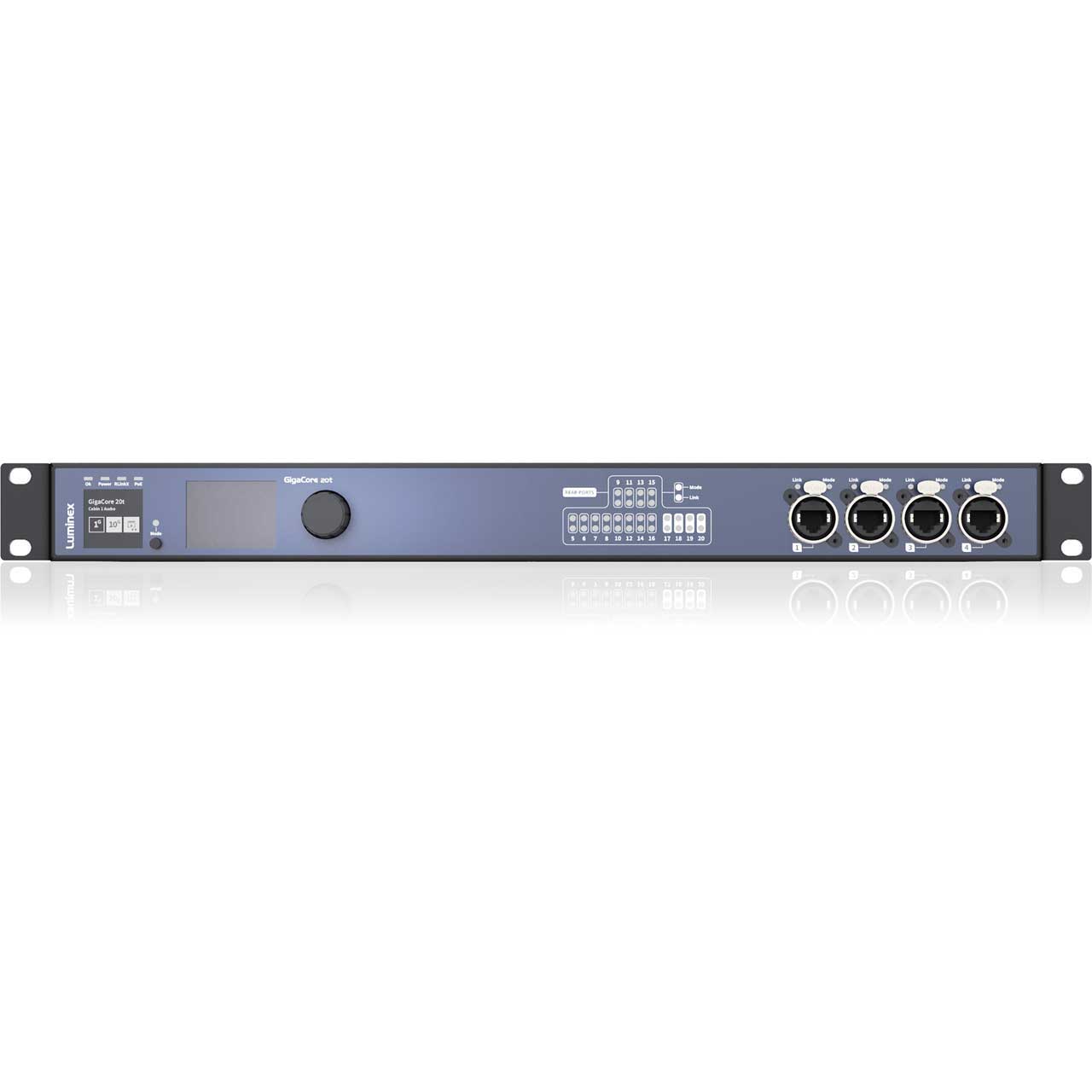

  • Ethernet connectivity: 8 x EtherCon conectors (4x front, 4x rear) (1Gbps) 8 x RJ 45 connectors (rear) (1Gbps)
  • Fiber connectivity: 2 x SFP+ cages (10Gbps/1Gbps) (independent from other ports) (rear)
  • Ethernet port speed: 1Gbps
  • Backup PoE power input: Yes
  • Backup power input: Yes (PoE models only)
  • Power connectivity: 1 x PowerCON True 1 in/out
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Minimum 50W - Maximum 1050W
  • Backup power input: Yes (PoE models only)
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions: 19" x 8.54" x 1.73" (WxHxD)
  • Environment:
    Operating temperature: 32 to 122 °F
    Storage temperature: 14 to 158 °F
    Humidity (non condensing): 5 to 95% RH

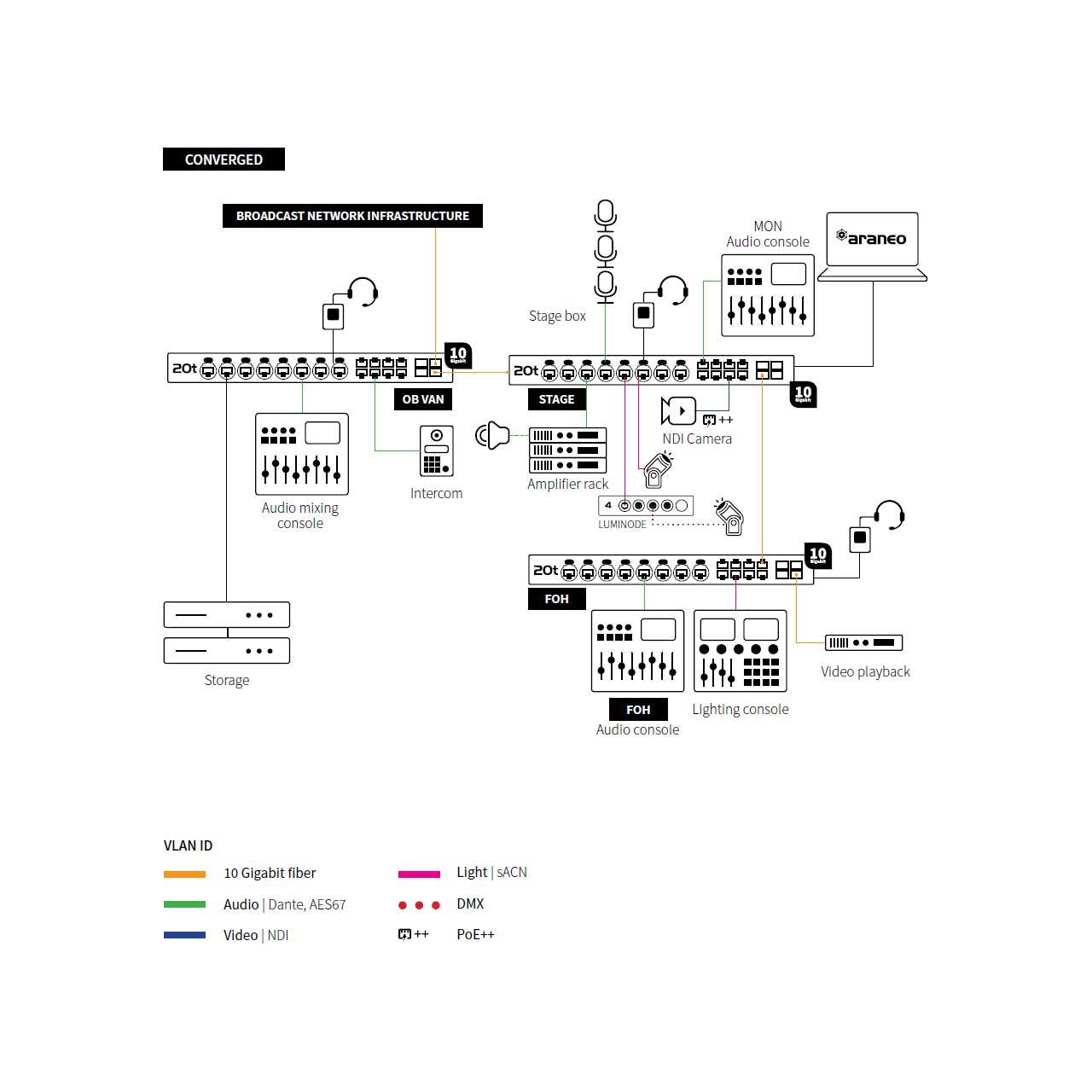

• Applications:

  • Live events
  • Touring
  • Convention centers
  • Large system integrations
  • Sports arenas
  • Broadcast and recording studios, OB vans
  • Theme parks
