Professional UltraHD 60P camera

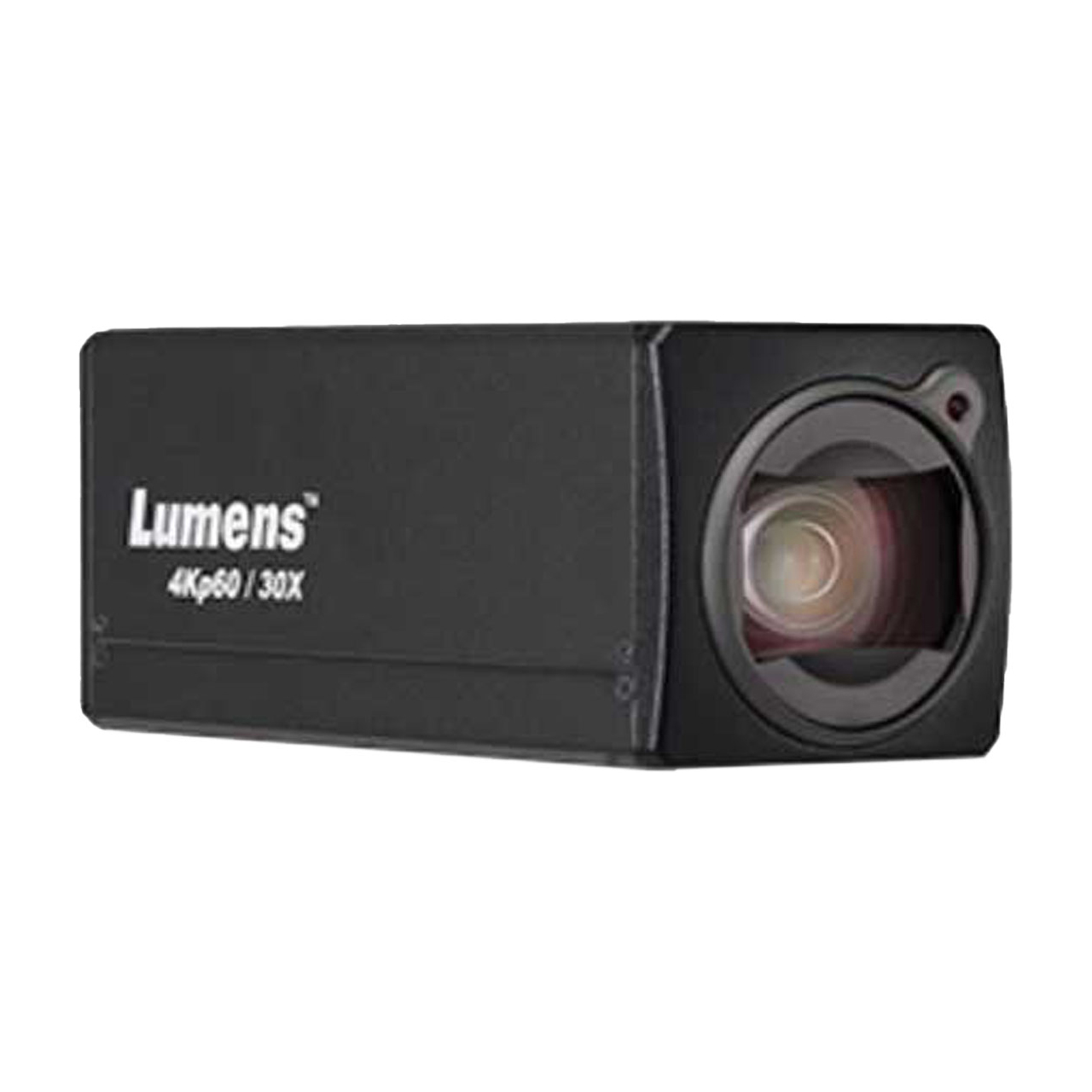

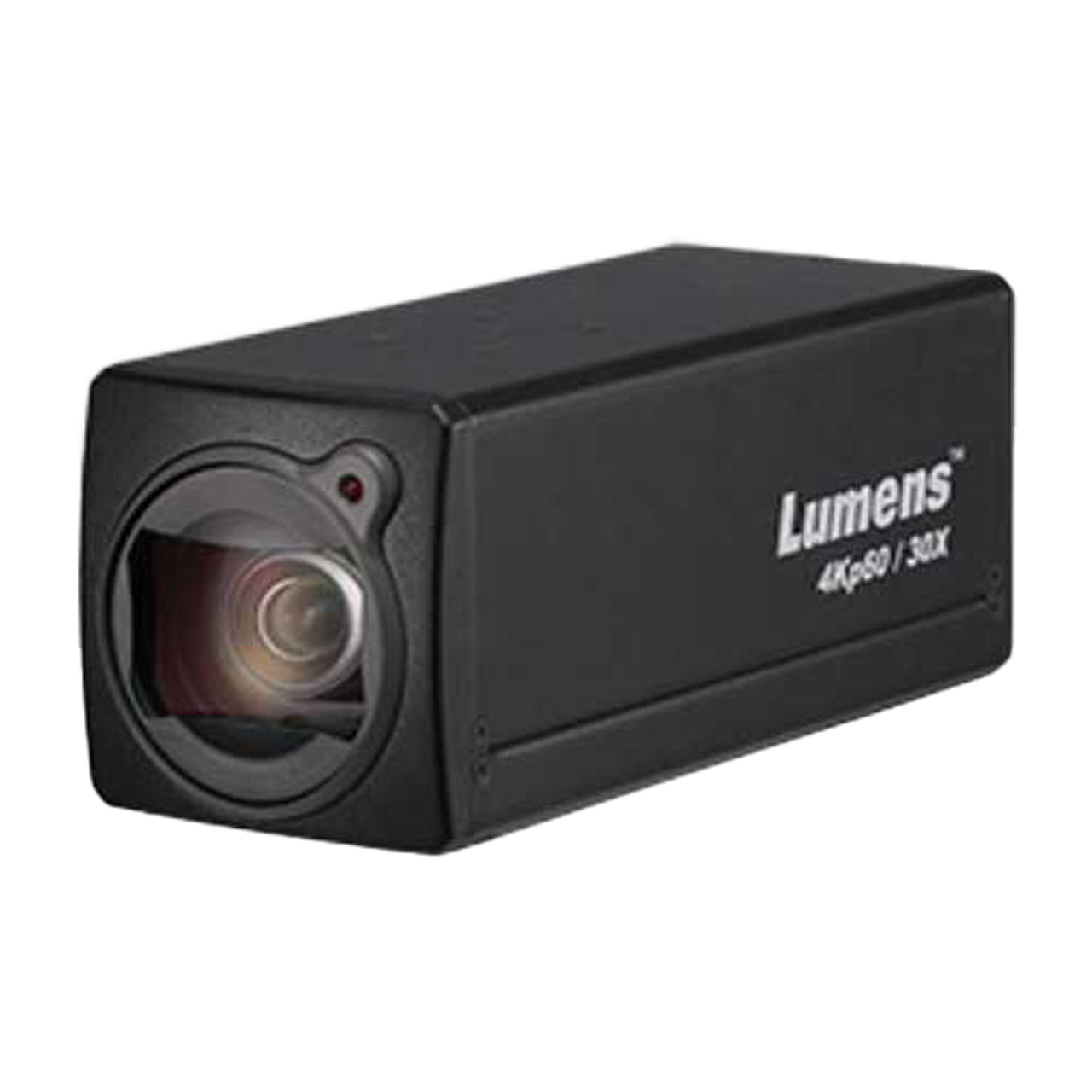

The Lumens VC-BC701P is a professional-level 4K box camera. VC-BC701P is remarkable for its ability to output high quality UltraHD video at 60 frames per second. Despite this level of performance, the camera is small and lightweight enough to be discreetly installed in virtually any location.
4K Quality

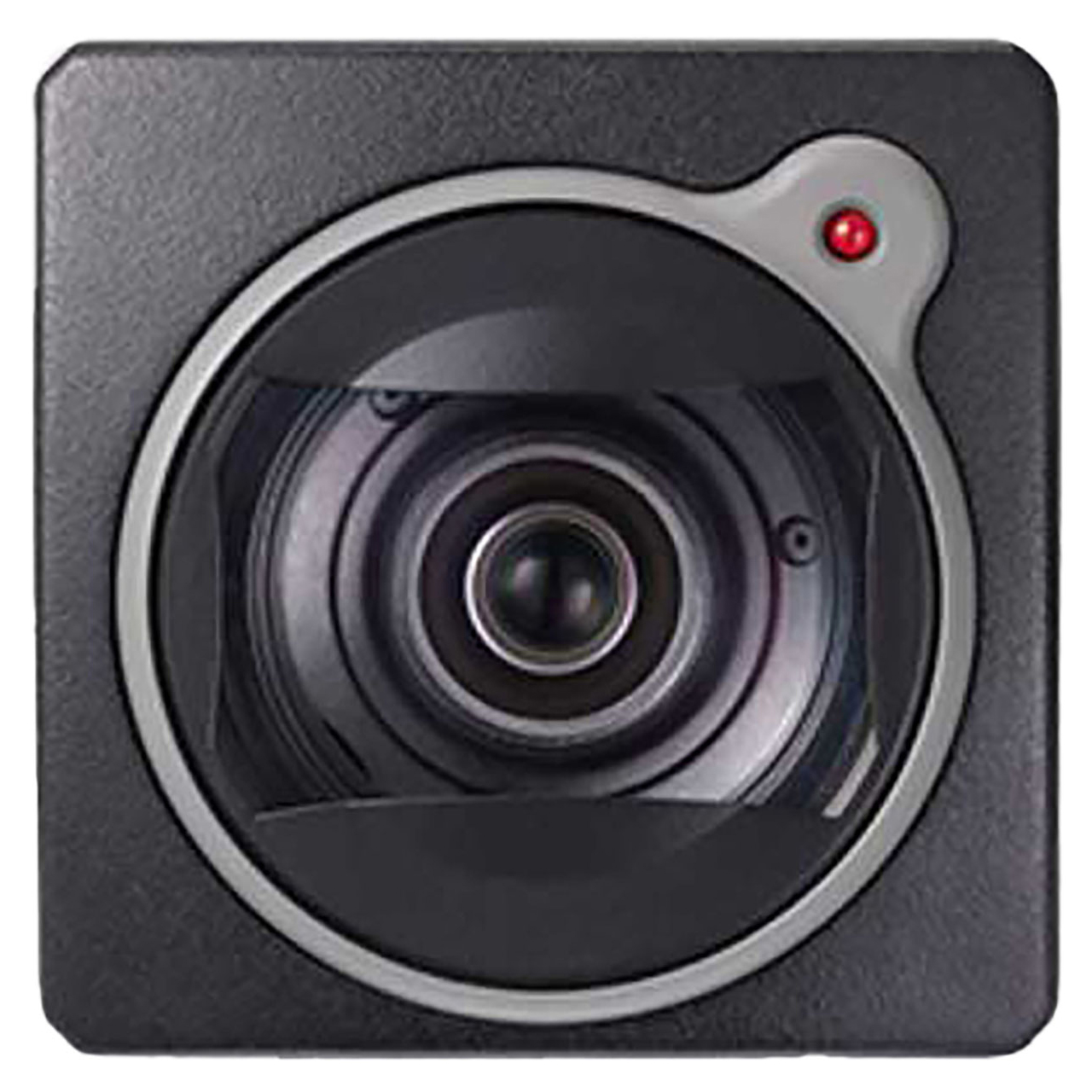

Its 1/2.5" 8.57MP CMOS sensor produces crystal clear pictures even in very dark conditions. Users have full control over aperture, white balance, and exposure settings to deliver the images and colors your production requires. WDR (Wide Dynamic Range) and 3D noise reduction provide superior performance in high contrast environments and where lighting is variable.
Ideal for AV, Broadcast and Video Workflows

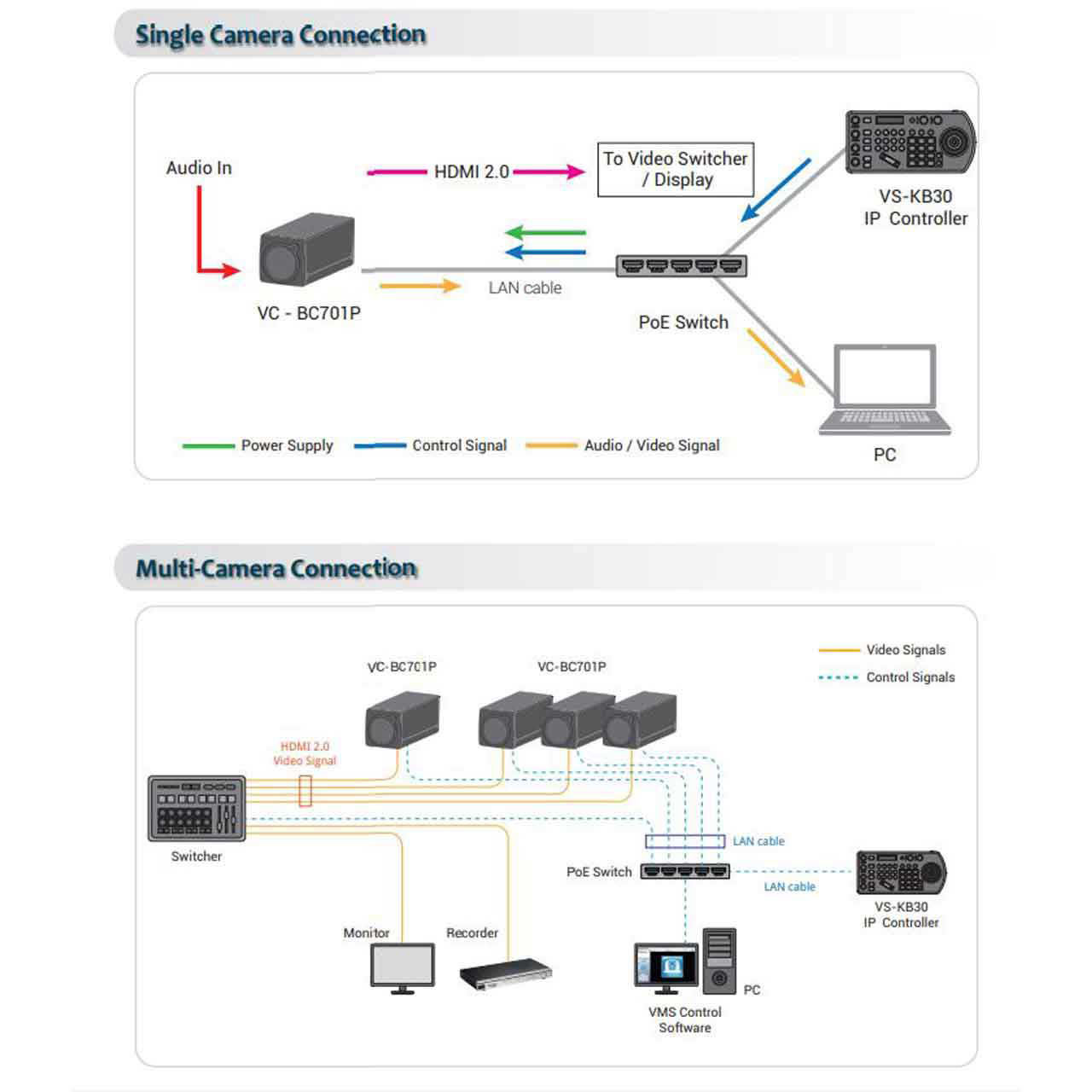

The VC-BC701P outputs video via its Ethernet and HDMI interfaces. This flexibility means that the camera can join IP networks, send video to recorders and encoders, and connect to video switchers and mixing desks. With this level of versatility, VC-BC701P is suitable for use in video studios, theater production, houses of worship, conference production, and live-action sports.
Triple stream video
Equipped with Lumens' triple stream technology, the VC-BC701P encodes multiple IP outputs in HEVC and H.264 formats, tailored for your network environment. Technicians can route each stream as appropriate. For example, the 4K HEVC stream can be routed to in-venue screens and recorders; the high-resolution H264 HD stream can be viewed by users via a CDN such as YouTube or Facebook. A low bandwidth version enables the team to monitor the camera, locally or remotely.
Secure Streaming
As well as supporting popular formats such as RTSP, RTMP and MPEG-TS, VC-B701P generates secure RTMPS and SRT streams. These encrypted outputs are increasingly supported by video delivery networks and decoders, because of the level of privacy and content protection they offer. The inclusion of SRT is ideal for low latency delivery at lower bitrates, giving customers an excellent user experience even over poor Internet connections.
Power and Control

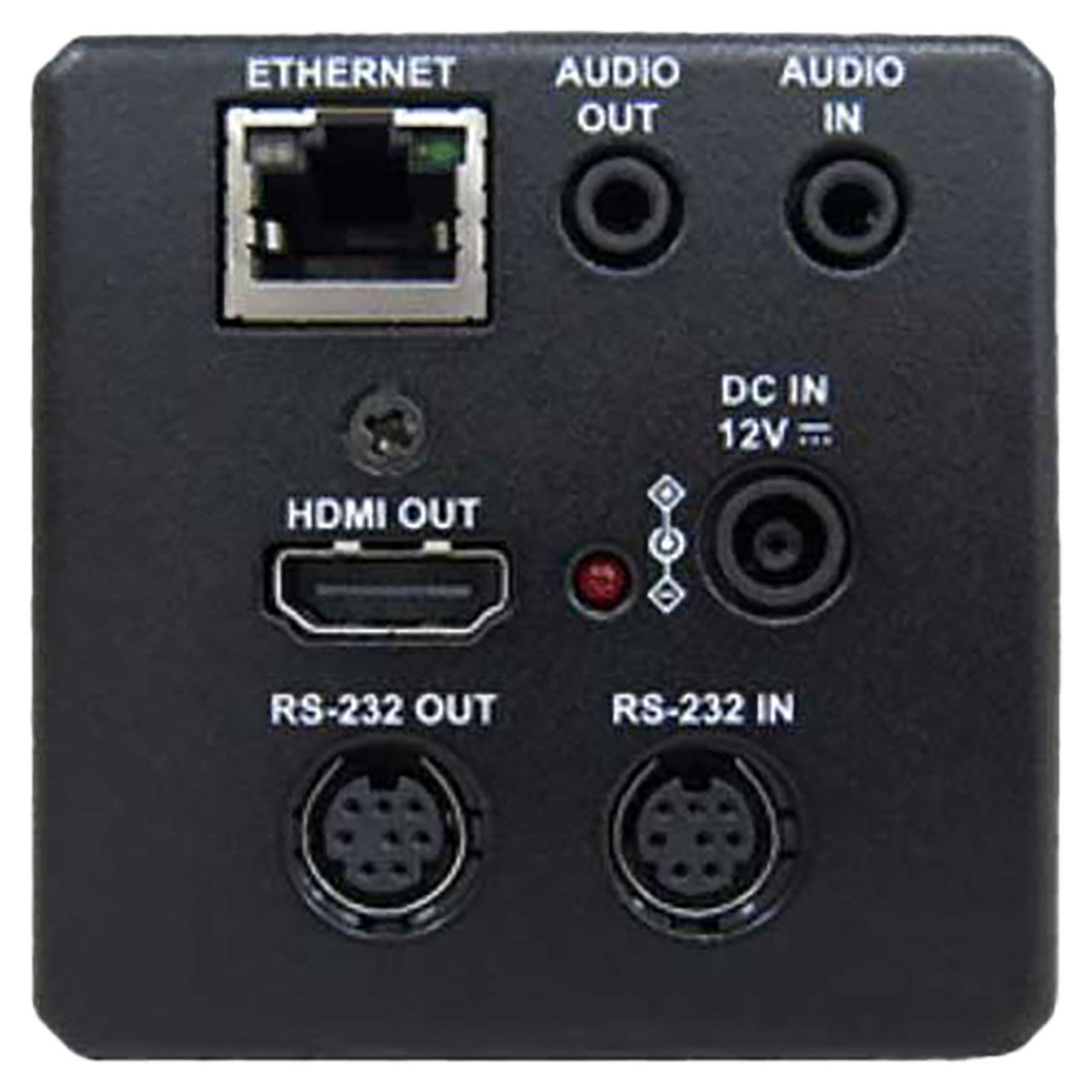

In addition to its video outputs, the VC-BC701P is loaded with connectivity to make living with the camera as easy as possible. Ports include audio in and out, RS-232 in and out, and DC power in. Flexibility does not stop there, though. Camera control is via RS-232 or over IP; Camera power is via the DC adapter or PoE (Power over Ethernet).
