Liberty DL-AR6940 Digitalinx Secure Adapter Ring

ITEM #: LWC-DL-AR6940 MFG #: DL-AR6940

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$287.35

Our Price:

$264.08

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    DL-AR6940 - Overview

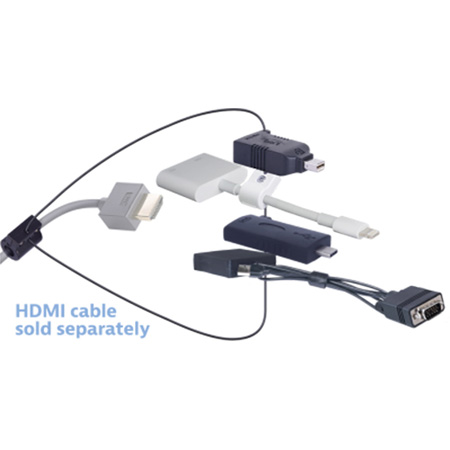

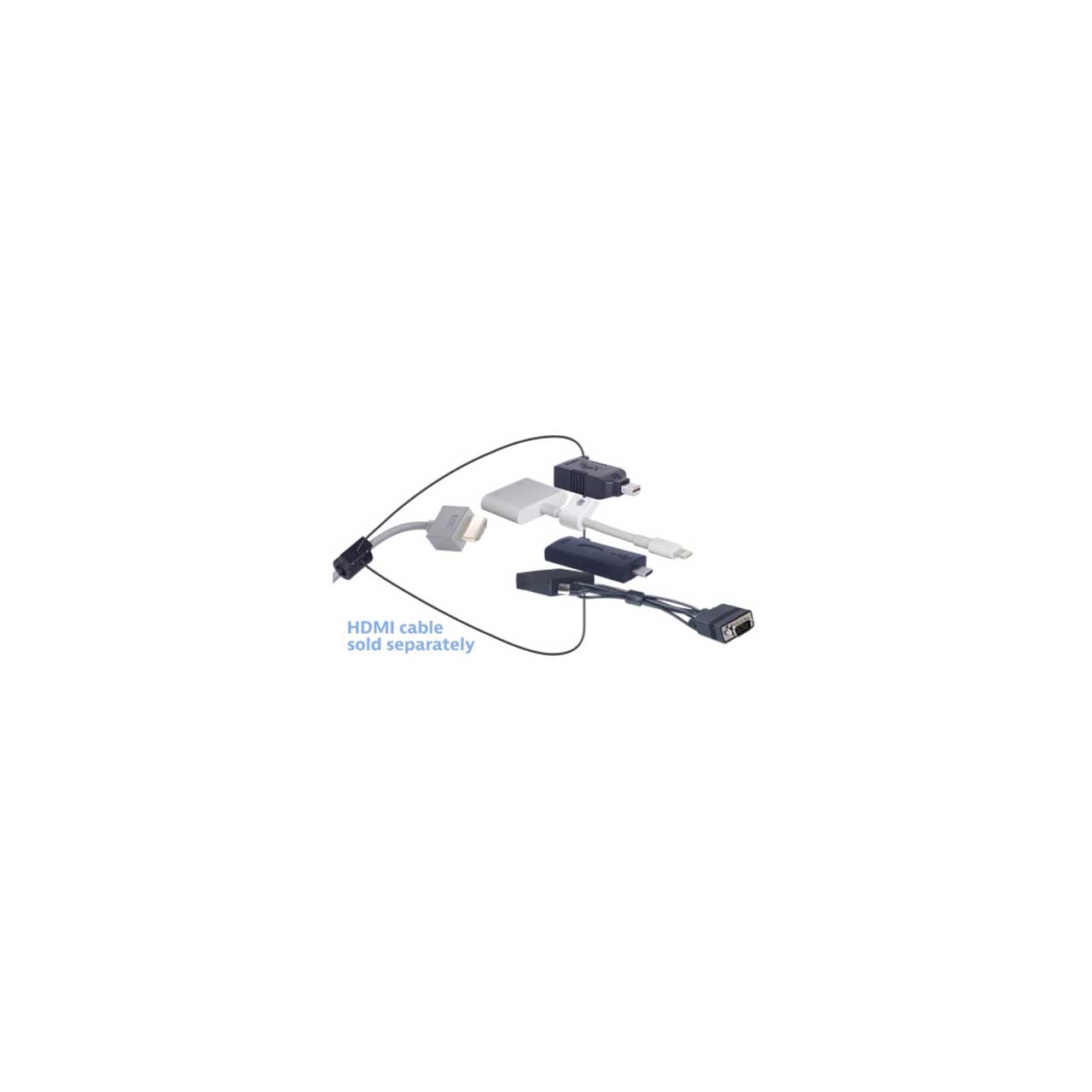

    Make Liberty's Patented breakthrough DL-AR adapter ring part of every install and feel the love from your customers!

    Our tensile aircraft strength ring & clamp locks to an HDMI cable (sold separately) keeping all of your adapters at your fingertips.

    Not only do you get a solid and reliable connection, but the adapters are secured to the HDMI cable so they can't get lost before the next presentation!

    • Specifications:

      • DisplayPort Adapter (ARDPHD)
      • Input Male full size DisplayPort connector
      • Output Female HDMI type A receptacle
      • Compliance DisplayPort 1.1 for 1.62 and 2.7 Gbps
      • HDMI to 2.25 Gbps
      • Supported video resolutions PC: Up to 1920x1200
      • HDTV: Up to 1080p

        Mini DisplayPort Adapter (ARMDPHD)
      • Input Male mini DisplayPort connector
      • Output Female HDMI type A receptacle
      • Compliance DisplayPort 1.1 for 1.62 and 2.7 Gbps
      • HDMI to 2.25 Gbps
      • Supported video resolutions PC: Up to 1920x1200
      • HDTV: Up to 1080p

        Mini HDMI Adapter (ARMCHD)
      • Input Male mini HDMI type C connector
      • Output Female HDMI type A receptacle
      • Compliance HDMI to 2.25 Gbps
      • Supported video resolutions PC: Up to 1920x1200
      • HDTV: Up to 1080p

        Micro HDMI Adapter (ARMDHD)
      • Input Male micro HDMI type D connector
      • Output Female HDMI type A receptacle
      • Compliance HDMI to 2.25 Gbps
      • Supported video resolutions PC: Up to 1920x1200
      • HDTV: Up to 1080p

        Single Link DVI-D Adapter (ARDVHD)
      • Input Male single link DVI-D connector
      • Output Female HDMI type A receptacle
      • Compliance HDMI to 2.25 Gbps
      • Supported video resolutions PC: Up to 1920x1200
      • HDTV: Up to 1080p

        Cable and Clamp Assembly (DL-CL)
      • Security Cable Material: Steel with black polyethylene sheath
      • Security Cable Length: 450 mm (17.72 in)
      • Cable Clamp Dimensions (closed): 17 mm x 24 mm x 26.5 mm (0.67 in x 0.94 in x 1.04 in.)
      • Cable Clamp Inner Diamete:r 9 mm (0.35 in.)
      • Cable Clamp Material: Black ABS plastic
      • Mid Insert Diameter: 6 mm (0.24 in.)
      • Small Insert Diameter: 4 mm (0.16 in.)
      • Mid, Small Insert Material: Foam rubber
